Catalytic Converter: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the battery. Refer to: Battery .
- Remove the HO2S. Refer to: Heated Oxygen Sensor (HO2S) .

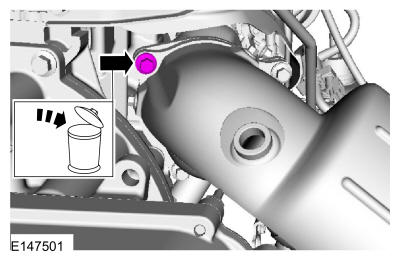

- Remove and discard the catalytic converter bolt.
- Remove the catalyst monitor sensor. Refer to: Catalyst Monitor Sensor .
- Remove the muffler and tailpipe. Refer to: Muffler and Tailpipe .

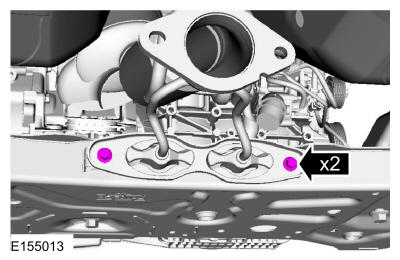

- Remove the bolts from the exhaust isolator bracket to the subframe.

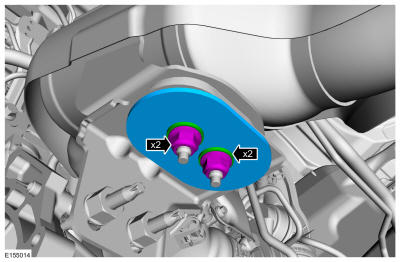

- Remove the nuts and the catalytic converter mounting bracket.
-

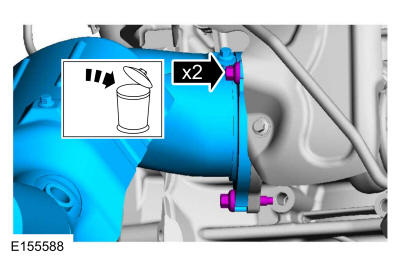

- Remove and discard the catalytic convertor bolts.
- Remove the catalytic converter.

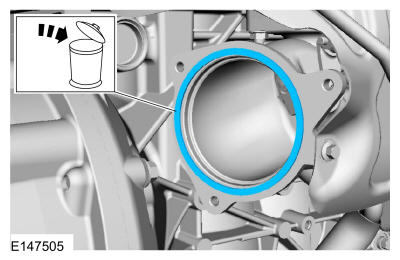

- Remove and discard the catalytic converter to TC gasket.
