Piston Diameter
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Check
NOTE:
Refer to the appropriate appropriate service information in ENGINE - 1.5L ECOBOOST (118KW/160PS) - I4
/ ENGINE IGNITION - 2.0L ECOBOOST (184KW/250PS) - MI4
/ ENGINE - 2.5L DURATEC (125KW/170PS)
for the specification.

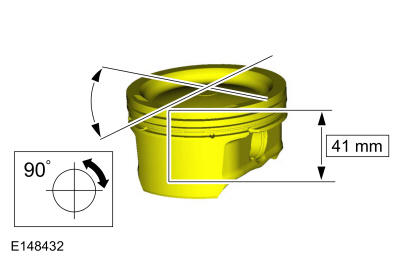

- Measure the piston diameter 90 degrees from the piston pin and 41 mm (1.61 in) down from the top of the piston at the point indicated.
