Bearing Inspection

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Inspection

    1. Cratering - fatigue failure
    2. Spot glazing - incorrect seating
    3. Scratching - dirty engine oil
    4. Base exposed - poor lubrication
    5. Both edges worn - journal damaged
    6. One edge worn - journal tapered or bearing not seated

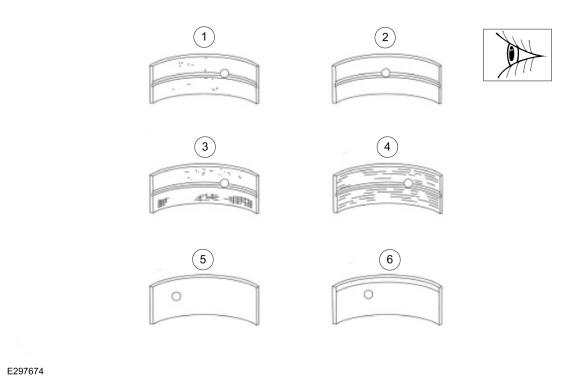

GFD479313Courtesy of FORD MOTOR COMPANY
