Timing Cover: Installation

WARNING: This page is about a different variant/trim than selected.

Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with Motorcraft® Metal Surface Prep.

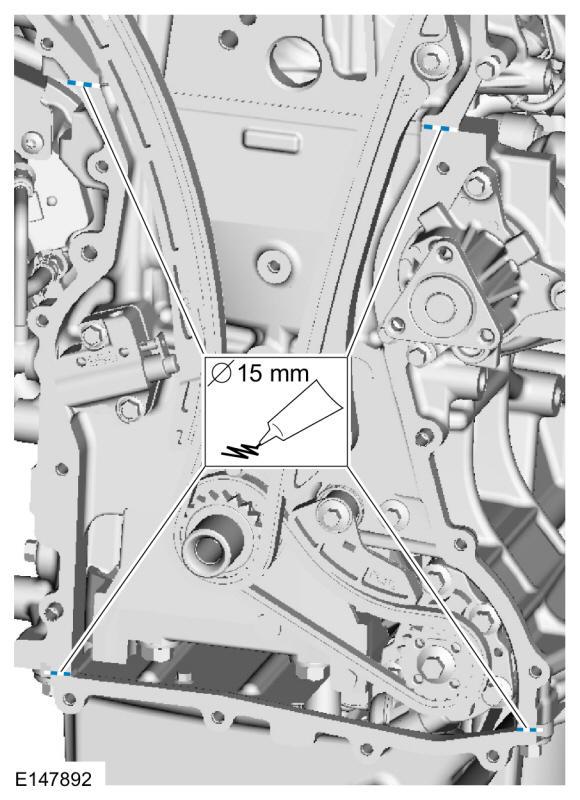

Apply a 15 mm bead of silicone sealant to the cylinder head and oil pan joint areas.

MaterialMotorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with Motorcraft® Metal Surface Prep.

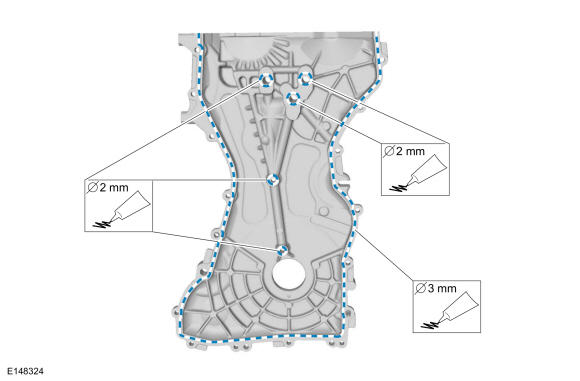

Apply a 3 mm bead of silicone sealant to the outside sealing surfaces of the engine front cover. Apply a 2 mm bead of silicone sealant to the inside sealing surfaces.

MaterialMotorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
Install the engine front cover and the bolts. Tighten in sequence shown.
Torque:

Stage 1: Bolts 1 - 3: 35 lb.ft (48 Nm), Stage 2: Bolts 4 - 7: 89 lb.in (10 Nm), Stage 3: Bolt 8: 18 lb.ft (25 Nm), Stage 4: Bolts 9 - 13: 89 lb.in (10 Nm), Stage 5: Bolt 14: 35 lb.ft (48 Nm), Stage 6: Bolts 15 - 23: 89 lb.in (10 Nm)

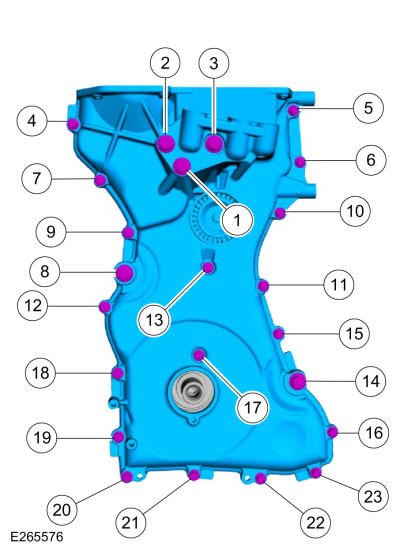

Fig 1: Engine Front Cover Tightening Bolts Sequence
Courtesy of FORD MOTOR COMPANY

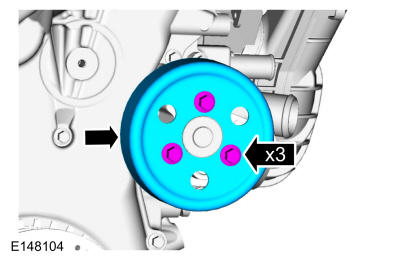

Install the coolant pump pulley and the bolts.
Torque:

177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the idler pulley and the bolt.
Torque:

97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

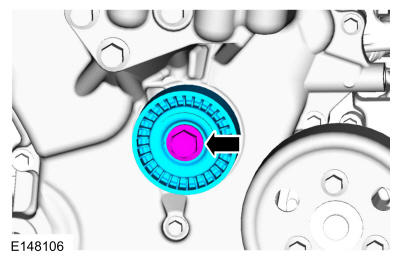

Install the accessory drive belt tensioner and the bolts.
Torque:

18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Remove the through bolt from the Camshaft Front Oil Seal Installer.

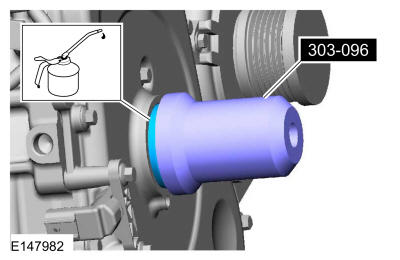

Lubricate with clean engine oil and using the special tool, install the crankshaft front seal. Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

MaterialEngine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Courtesy of FORD MOTOR COMPANY

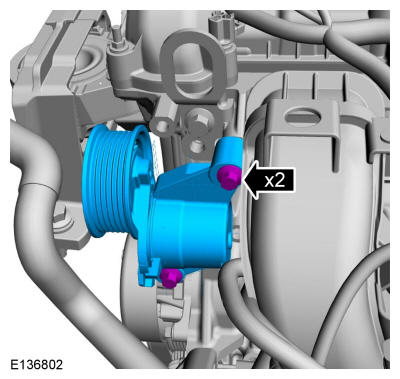

Install the engine mount. Refer to: Engine Mount .
Install the crankshaft pulley. Refer to: Crankshaft Pulley .
Install the CKP sensor. Refer to: Crankshaft Position (CKP) Sensor .
After completing the repair, perform the Misfire Monitor Neutral Profile Correction procedure.
