Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

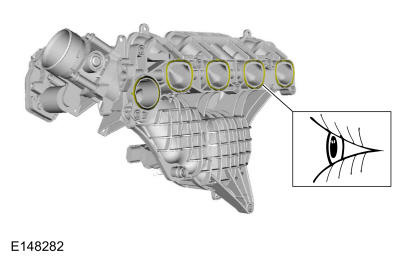

Visually inspect the intake manifold gaskets for nicks, cuts and abrasions. If these conditions are not present, the gaskets may be re-used.

Courtesy of FORD MOTOR COMPANY

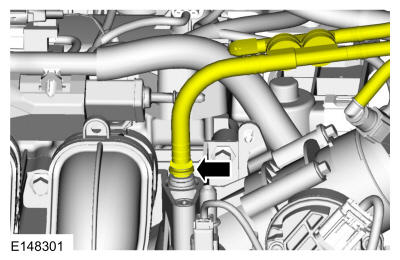

Connect the crankcase vent oil separator tube onto the intake manifold.

Courtesy of FORD MOTOR COMPANY

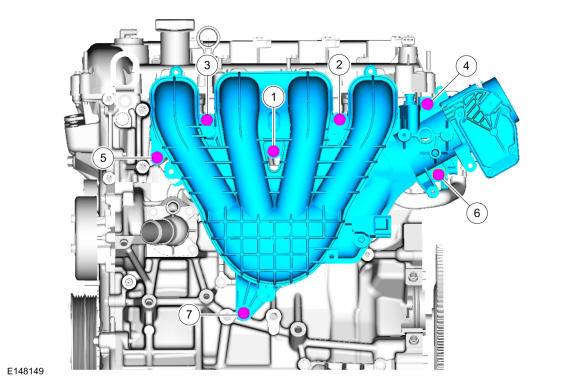

Position the intake manifold and install the bolts. Tighten the bolts in sequence shown.
Torque:

159 lb.in (18 Nm)

Fig 1: Intake Manifold Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

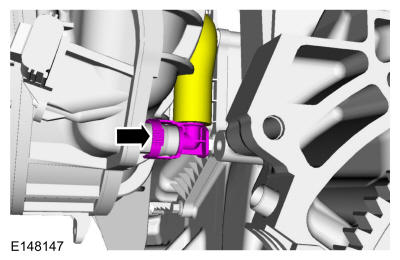

Attach the coolant hose retainer.

Courtesy of FORD MOTOR COMPANY

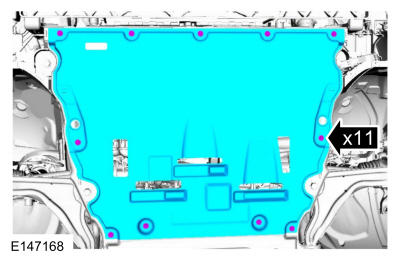

Install the engine undershield and the retainers.

Courtesy of FORD MOTOR COMPANY

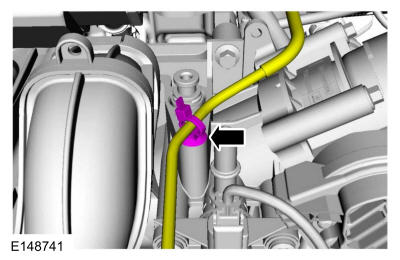

Attach the wire harness retainer.

Courtesy of FORD MOTOR COMPANY

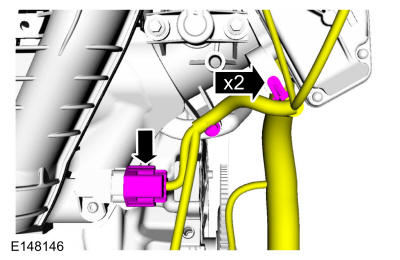

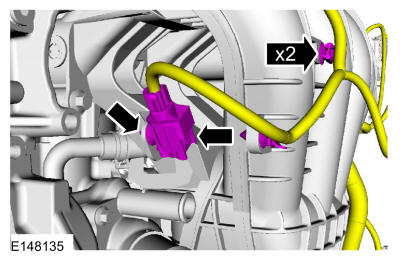

Attach the wire harness retainers onto the intake manifold and connect the electrical connector.

Courtesy of FORD MOTOR COMPANY
Attach the wire harness retainers and connect the MAP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

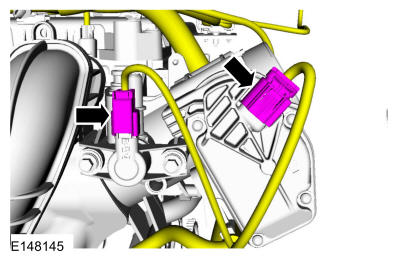

Connect the TB and EVAP canister purge valve electrical connectors.

Courtesy of FORD MOTOR COMPANY

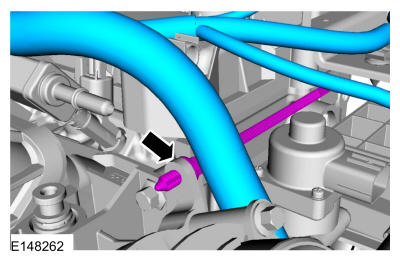

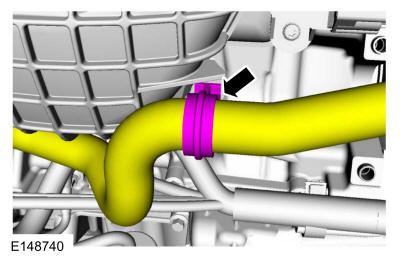

Attach the engine vent hose retainer.

Courtesy of FORD MOTOR COMPANY

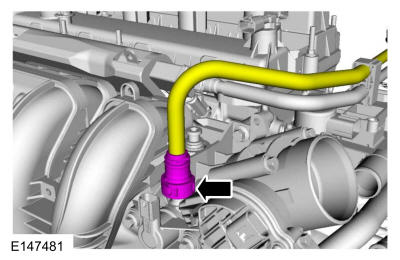

Connect the fuel vapor tube. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Connect the brake booster tube onto the intake manifold.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
