Cylinder Head: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan may cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
    • Remove the oil drain bolt and drain the engine oil. Use the General Equipment: Oil Drain Equipment

    • Install the oil drain bolt.

      Torque:

      21 lb.ft (28 Nm)

    GFD480233Courtesy of FORD MOTOR COMPANY

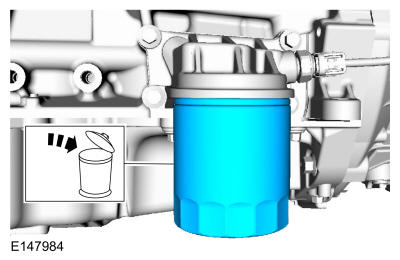

  3. Remove and discard the engine oil filter.
    GFD480554Courtesy of FORD MOTOR COMPANY
  4. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  5. Disconnect the CMS (catalyst monitor sensor) and HO2S electrical connectors, detach the wire harness retainers.
    GFD480555Courtesy of FORD MOTOR COMPANY
  6. Remove the bolts and the exhaust manifold heat shield.

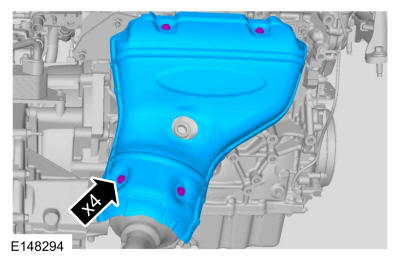

    GFD480556Courtesy of FORD MOTOR COMPANY

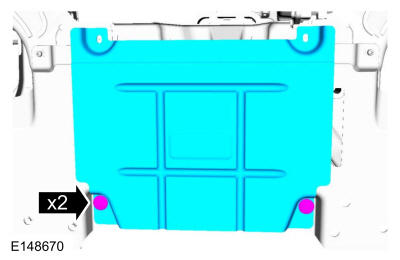

  7. Remove the retainers and the underbody shield.
    GFD480557Courtesy of FORD MOTOR COMPANY

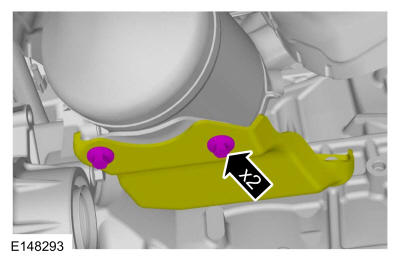

  8. Remove the exhaust manifold bracket bolts.
    GFD480558Courtesy of FORD MOTOR COMPANY
  9. NOTE: Do not excessively bend or twist the exhaust flexible pipe. Failure to follow these instructions may cause damage to the flexible pipe.

    Support the exhaust flexible pipe with a support wrap or suitable splint.

    GFD480559Courtesy of FORD MOTOR COMPANY
    • Remove and discard the nuts.

    • Position aside the exhaust system.

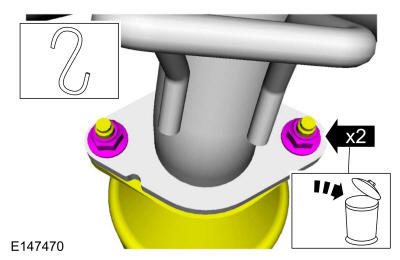

    GFD480560Courtesy of FORD MOTOR COMPANY
  10. Remove and discard the exhaust system gasket.
    GFD480561Courtesy of FORD MOTOR COMPANY

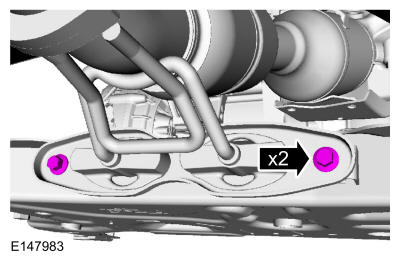

  11. Remove the bolts for the exhaust manifold.
    GFD480562Courtesy of FORD MOTOR COMPANY
  12. Remove and discard the nuts. Position back the exhaust manifold.

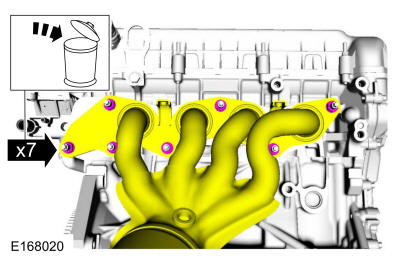

    GFD480563Courtesy of FORD MOTOR COMPANY

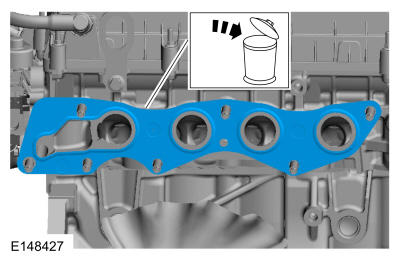

  13. Remove and discard the exhaust manifold gasket.
    GFD480564Courtesy of FORD MOTOR COMPANY

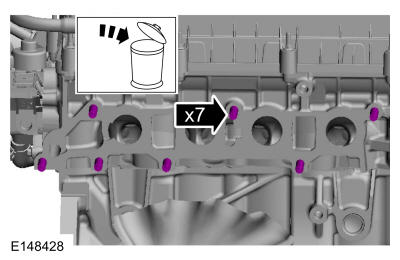

  14. Remove and discard the exhaust manifold studs.
    GFD480565Courtesy of FORD MOTOR COMPANY
  15. Remove the following items:

    1. Remove the air cleaner. Refer to: Air Cleaner .
    2. Remove the intake manifold. Refer to: Intake Manifold .
    3. Remove the fuel injectors. Refer to: Fuel Injectors .
    4. Remove the camshafts. Refer to: Camshafts .

  16. NOTE: If the camshafts and valve tappets are to be reused, mark the location of the valve tappets to make sure they are assembled in their original positions.
    NOTE: The number on the valve tappets only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 3.650 mm.

    Remove the valve tappets.

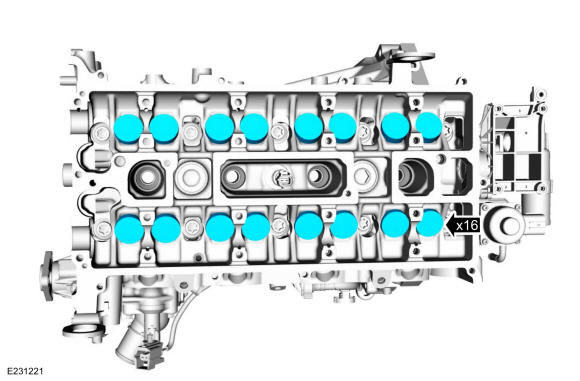

    GFD480566Courtesy of FORD MOTOR COMPANY
  17. Inspect and install new parts, as necessary.
    GFD479809Courtesy of FORD MOTOR COMPANY

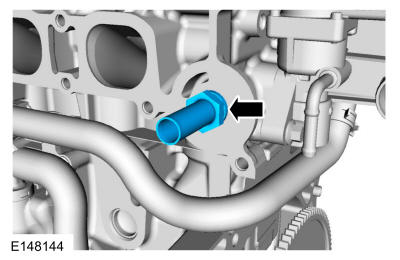

  18. Remove the EGR tube.
    GFD480567Courtesy of FORD MOTOR COMPANY

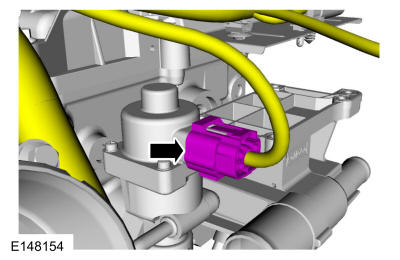

  19. Disconnect the EGR electrical connector.
    GFD480568Courtesy of FORD MOTOR COMPANY

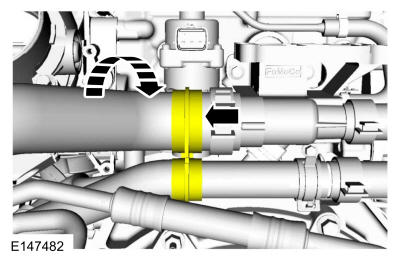

  20. Position aside the coolant hose clip.
    GFD480569Courtesy of FORD MOTOR COMPANY

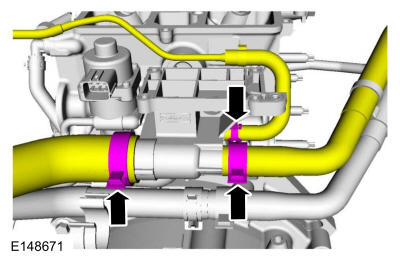

  21. Disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
    GFD480570Courtesy of FORD MOTOR COMPANY

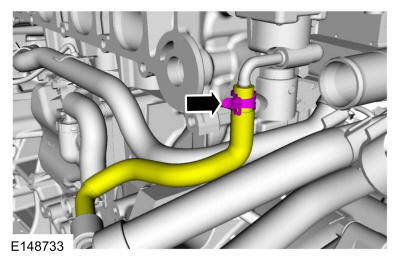

  22. Disconnect the EGR valve coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD480571Courtesy of FORD MOTOR COMPANY
  23. Disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

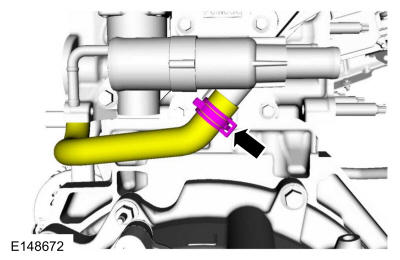

    GFD480572Courtesy of FORD MOTOR COMPANY

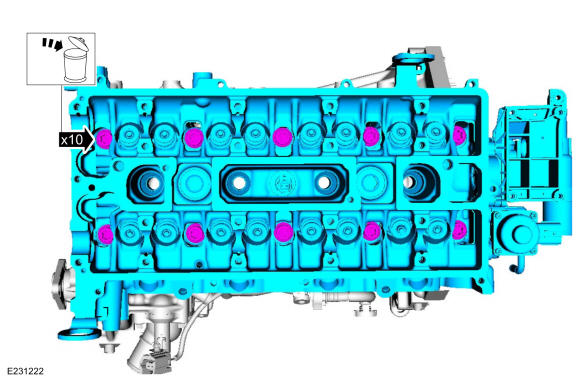

    • Remove the bolts and the cylinder head.

    • Discard the bolts.

    GFD480573Courtesy of FORD MOTOR COMPANY

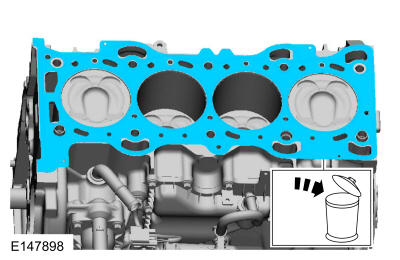

  24. Remove and discard the cylinder head gasket.
GFD480574Courtesy of FORD MOTOR COMPANY
