Crankshaft Front Seal: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Remove the through-bolt from the Camshaft Front Oil Seal Installer.

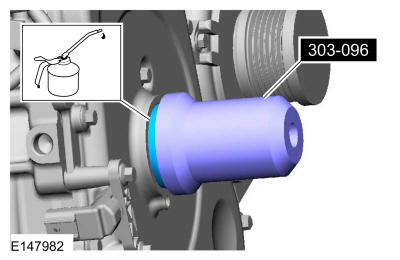

Lubricate with clean engine oil and using the special tool, install the crankshaft front seal. Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

MaterialEngine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Courtesy of FORD MOTOR COMPANY
Install the crankshaft pulley. Refer to: Crankshaft Pulley
