Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different variant/trim than selected.

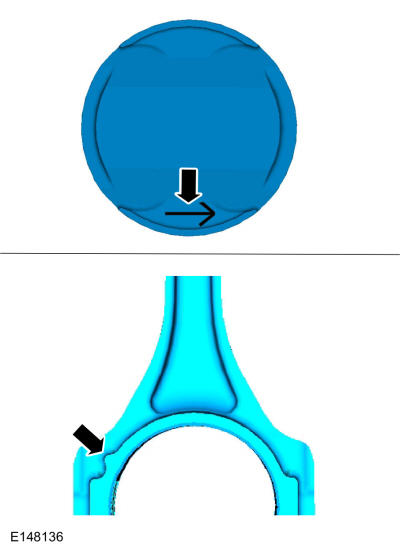

NOTE: Align the piston-to-connecting rod orientation marks made during disassembly.

NOTE: The arrow on the top piston of the piston points towards the front of the engine.

Align the piston-to-connecting rod orientation marks, and position the connecting rod in the piston.

Courtesy of FORD MOTOR COMPANY
Lubricate with clean engine oil and install the piston pin.
MaterialEngine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Courtesy of FORD MOTOR COMPANY
Install the piston pin retainers.

Courtesy of FORD MOTOR COMPANY
Lubricate with clean engine oil and install the piston rings.
MaterialEngine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Courtesy of FORD MOTOR COMPANY
NOTE: The piston compression upper and lower rings should be installed with the paint mark on the outside diameter circumference of the ring to be positioned on the right side of the ring gap. The lower compression ring needs to be installed with the undercut side downward.

NOTE: The upper and lower compression ring gaps are not controlled for installation.
1. Upper oil control segment ring gap location.
2. Oil control spacer gap location.
3. Lower oil control segment ring gap location.

Courtesy of FORD MOTOR COMPANY
