Thermostat Housing: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
-
NOTE: Be prepared to capture escaping fluid.

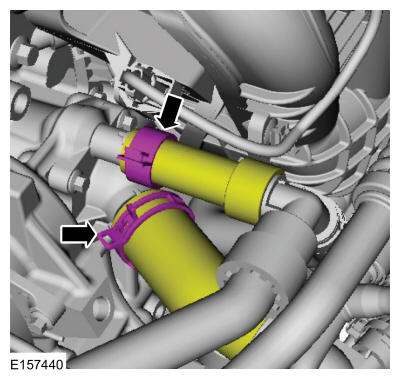

- Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
- Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

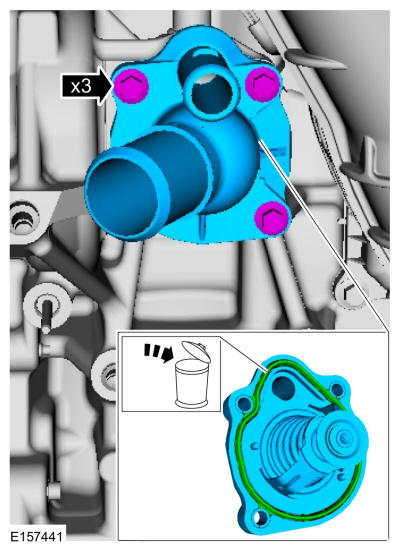

- Remove the bolts and the thermostat housing.
Torque: 89 lb.in (10 Nm)
