Coolant Pump: Installation
WARNING: This page is about a different variant/trim than selected.
- Lubricate the O-ring seal with clean engine coolant and install the coolant pump. Refer to: Specifications .
Torque: 89 lb.in (10 Nm)

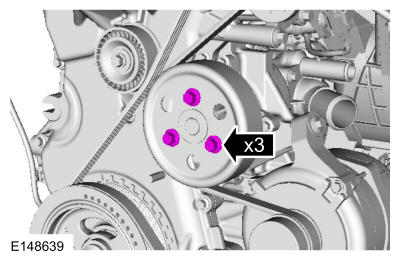

- Install the coolant pump pulley and install the bolts finger tight.

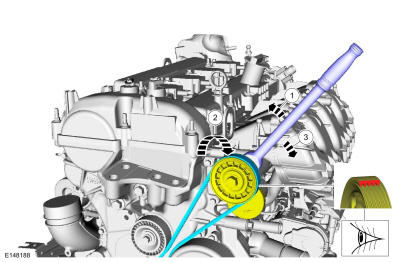

- Remove the waterproof plastic from the A/C belt. Rotate the accessory drive belt tensioner and install the accessory drive belt.
- Tighten the coolant pump pulley bolts.
- Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
