Block Heater: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the catalytic converter. Refer to: Catalytic Converter .
-
NOTE: Note the position of the component before removal.NOTE: Make sure that the component is installed to the position noted before removal.

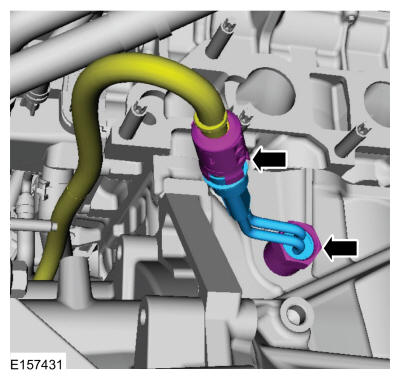

- Disconnect the block heater electrical connector.
- Remove the block heater.
Torque: 41 lb.ft (55 Nm)
