Removal And Installation: Radiator: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Engine Cooling System Health and Safety Precautions .
Remove the CAC radiator. Refer to: Charge Air Cooler (CAC) Radiator .
Remove the air cleaner. Refer to: Air Cleaner .

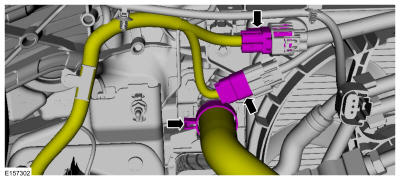

Disconnect the electrical connectors, release the clamp and disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

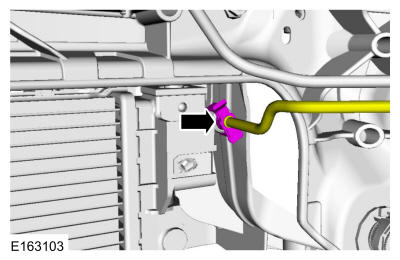

Depress the tab and disconnect the coolant tube.

Courtesy of FORD MOTOR COMPANY

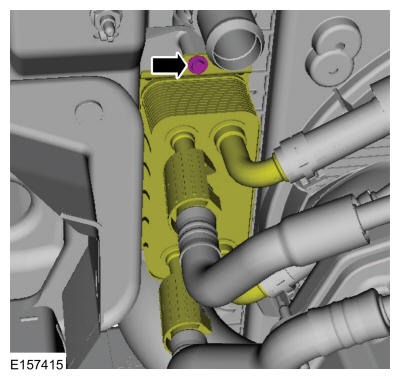

Remove the bolt and position the transmission fluid cooler aside.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

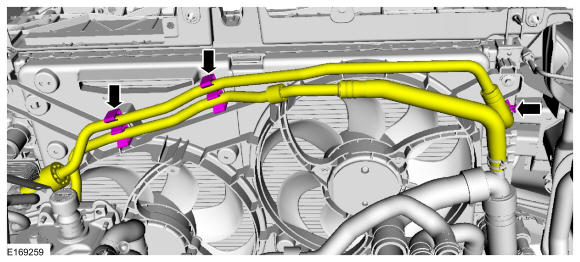

Release the clamp and disconnect the coolant hose. Detach the hoses from the retainers. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

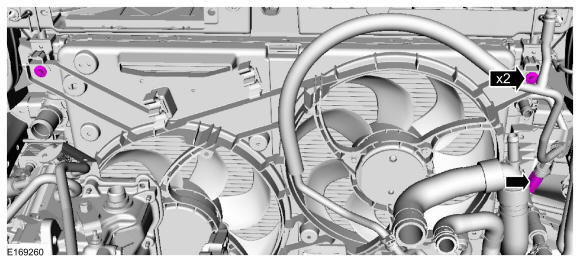

Disconnect the A/C pressure switch electrical connector and remove the bolts.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

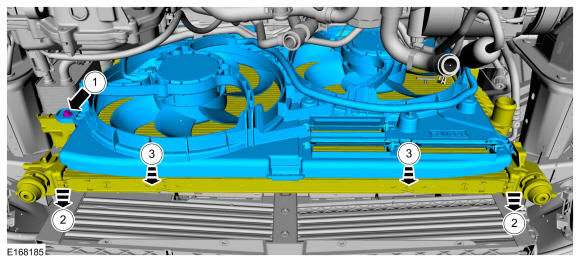

Remove the cooling fan motor and shroud.
1. Remove the bolt.
  Torque: 53 lb.in (6 Nm)
2. Position the radiator toward the front of the vehicle.
3. Remove the cooling fan motor and shroud.
Courtesy of FORD MOTOR COMPANY

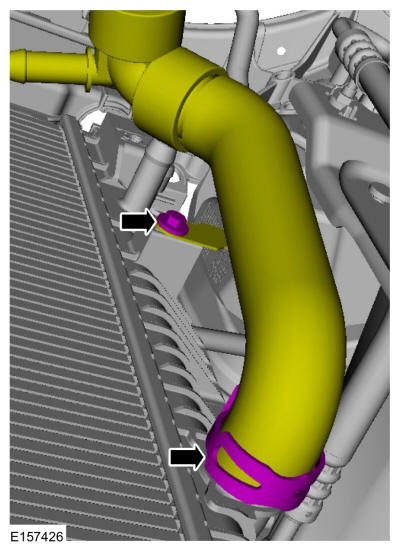

Remove the bolt, release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

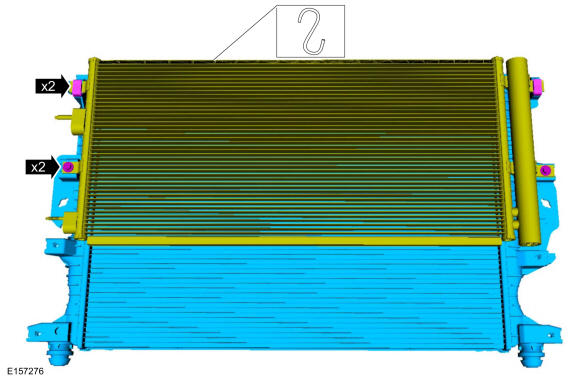

Support the A/C condenser, remove the bolts and the radiator from the vehicle.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

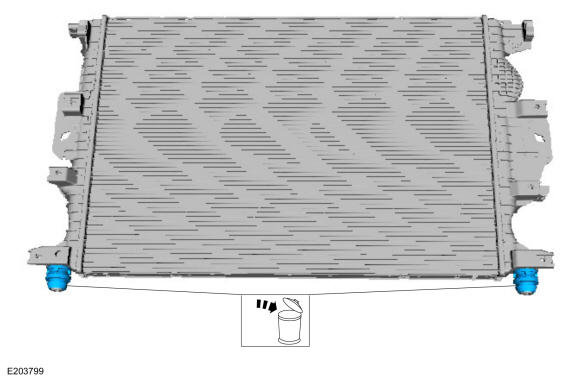

Remove and discard the radiator lower isolators.

Courtesy of FORD MOTOR COMPANY
