Removal And Installation: Solenoid: Installation

WARNING: This page is about a different variant/trim than selected.

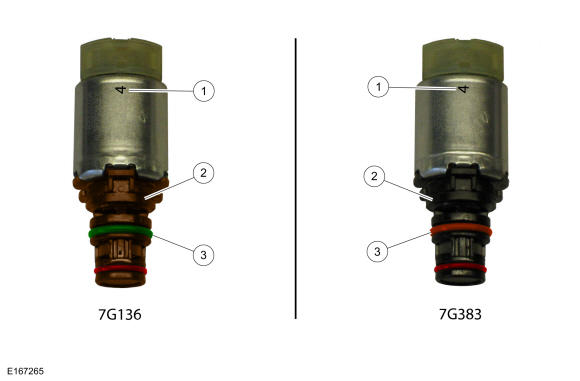

  1. NOTE: Verify replacement component matches original component:

    1. Number
    2. Color
    3. Color

    GFD482715Courtesy of FORD MOTOR COMPANY

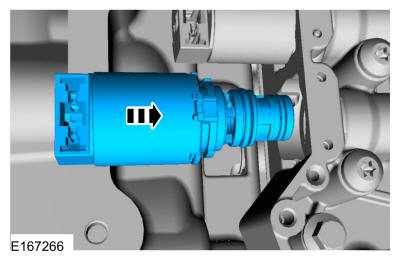

  2. NOTE: Make sure the component is installed in the position noted before removal.

    Install the solenoid(s) in the solenoid body.

    GFD482716Courtesy of FORD MOTOR COMPANY

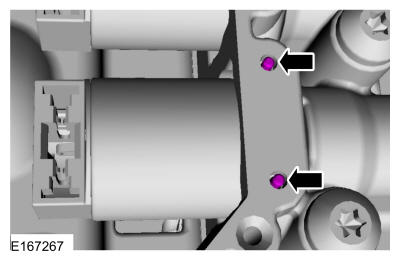

  3. Install the solenoid retaining pin(s).
    GFD482717Courtesy of FORD MOTOR COMPANY
  4. Install the transmission internal wiring harness frame. Refer to: Transmission Internal Wiring Harness Frame .
