Roll Restrictor RH: Installation

WARNING: This page is about a different variant/trim than selected.

Install the roll restrictor and the roll restrictor bracket and tighten the bolts in the sequence shown.
Torque: 1: 92 lb.ft (125 Nm) 2: 92 lb.ft (125 Nm) 3: 92 lb.ft (125 Nm) 4: 85 lb.ft (115 Nm) 5: 111 lb.ft (150 Nm)

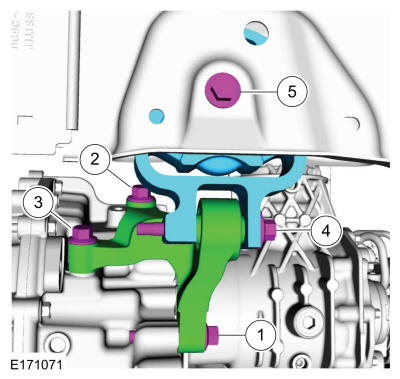

Fig 1: Roll Restrictor Bracket Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the engine undershield and the retainers.

Courtesy of FORD MOTOR COMPANY
Install the engine front undershield and the retainers.

Courtesy of FORD MOTOR COMPANY
