Main Control Valve Body: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the main control cover. Refer to: Main Control Cover - 2.0L EcoBoost (184kW/250PS) - MI4 . Refer to: Main Control Cover - 1.5L EcoBoost (118kW/160PS) - I4 . Refer to: Main Control Cover - 2.5L Duratec (125kW/170PS) .
- Disconnect the TR sensor electrical connector.
- Disconnect the OSS sensor electrical connector.
- Remove the main control-to-cover seal.
-
NOTE: The main control should be handled with care or damage to the main control may occur.NOTE: Note the location of the short and long main control-to-transmission case bolts for reassembly.

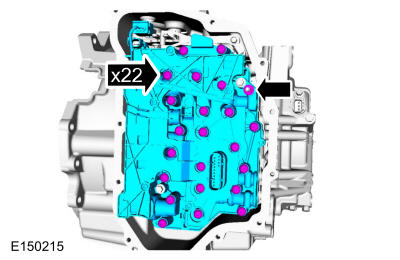

Remove the main control nut, the main control-to-transmission case bolts and the main control.
- Remove and discard the main control-to-transmission case separator plate.
- Remove the solenoid body-to-valve body bolts and separate the solenoid body from the main control valve body.

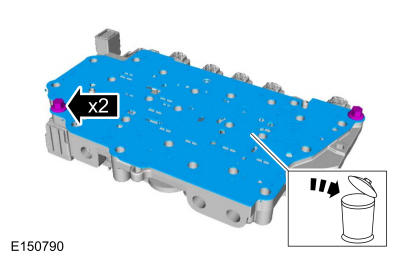

- Remove the separator plate-to-solenoid body bolts and remove and discard the separator plate.
