Halfshaft Seal RH - AWD: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transfer case assembly. Refer to: Power Transfer Unit .

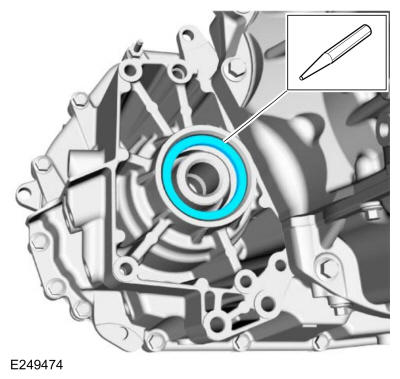

  2. Using a punch, poke a small hole in the halfshaft seal. Use the General Equipment: Punch
    GFD482666Courtesy of FORD MOTOR COMPANY

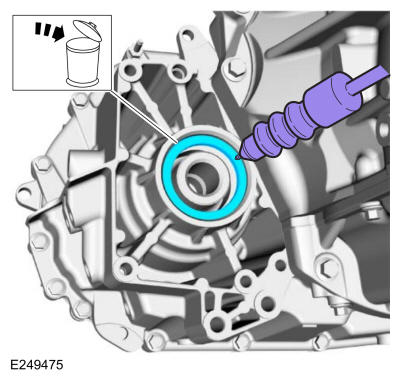

  3. Using a dent puller, remove and discard the halfshaft seal. Use the General Equipment: Puller
GFD482667Courtesy of FORD MOTOR COMPANY
