Halfshaft Seal LH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the LH halfshaft. Refer to: Front Halfshaft LH .

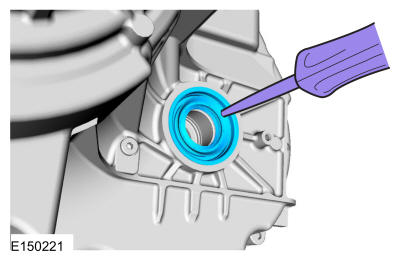

  2. Poke a small hole in the halfshaft seal. Use the General Equipment: Punch
    GFD482662Courtesy of FORD MOTOR COMPANY

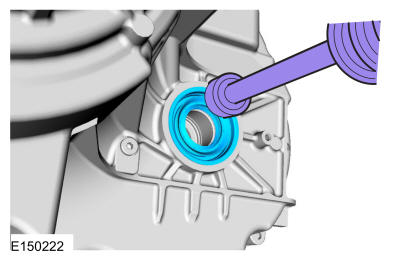

  3. Using a dent puller, remove the halfshaft seal. Use the General Equipment: Puller
GFD482663Courtesy of FORD MOTOR COMPANY
