Rear Halfshaft: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Never pick up or hold the halfshaft by only the inner or outer Constant Velocity (CV) joint. Damage to the CV joint will occur.

NOTE: Never use a hammer to remove or install the halfshafts. Damage to the CV joint may occur.

NOTE: Never use the halfshaft assembly as a lever to position other components. Damage to the halfshaft or CV joint may occur.

NOTE: Do not allow the boots to contact sharp edges or hot exhaust components. Damage to the halfshaft boots will occur.

NOTE: Do not drop assembled halfshafts. The impact may cut the boots from the inside without evidence of external damage.

Remove the wheel knuckle. Refer to: Wheel Knuckle - AWD .

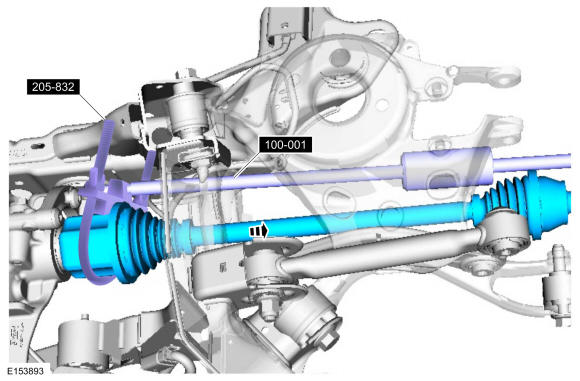

Using the special tools, remove the rear halfshaft. Use Special Service Tool: 205-832 Remover, Halfshaft., 100-001 (T50T-100-A) Slide Hammer.

Courtesy of FORD MOTOR COMPANY

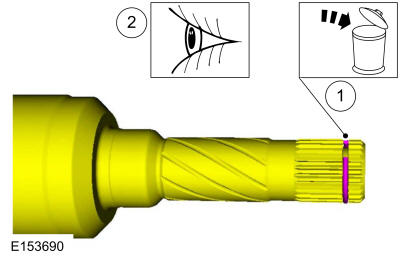

Inspect the inner CV joint.
1. Remove and discard the halfshaft retaining circlip.
2. Inspect the halfshaft end for damage.

Courtesy of FORD MOTOR COMPANY
