Front Halfshaft LH: Installation

WARNING: This page is about a different variant/trim than selected.

Inspect the outer CV housing at the shown locations.

Courtesy of FORD MOTOR COMPANY
Inspect the inner CV housing at the shown locations.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure new component is installed.

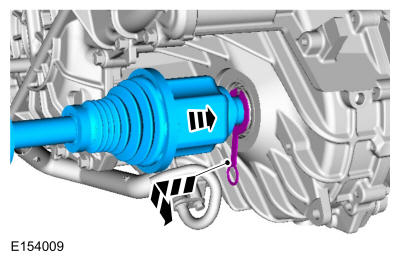

Install the new inner halfshaft retaining circlip.

Courtesy of FORD MOTOR COMPANY
Install a new halfshaft seal. Refer to: Halfshaft Seal LH .
NOTE: Do not fully install shaft at this time.

Using the seal protector, insert the splines of the halfshaft through the halfshaft seal. Remove the seal protector.

Courtesy of FORD MOTOR COMPANY
NOTE: Insert shaft until circlip is fully seated. When checking if circlip is seated do not pull on CV joints or damage can result.

NOTE: Pull on the inner CV joint to ensure the halfshaft circlip is seated properly.

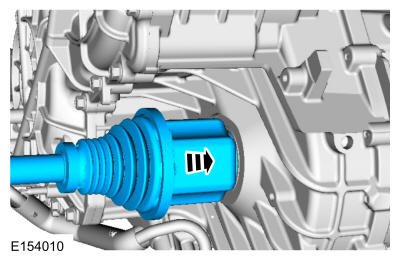

Insert the halfshaft until the halfshaft retaining clip is fully seated.

Courtesy of FORD MOTOR COMPANY
If equipped. Install a new halfshaft washer.

Courtesy of FORD MOTOR COMPANY
Pull the halfshaft into the front wheel bearing and wheel hub. Use Special Service Tool: 204-161 (T97P-1175-A) Installer, Halfshaft.

Courtesy of FORD MOTOR COMPANY

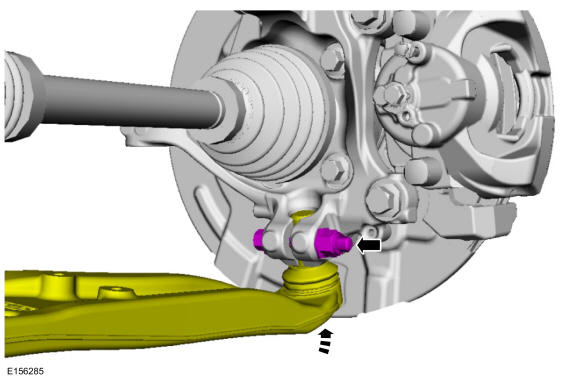

Position the ball joint into the wheel knuckle and install the new ball joint pinch bolt and nut.
Torque: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped. Position back the suspension height sensor and install the bolt.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Position the brake hose and install the brake hose bracket bolt.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten the front wheel hub nut with the vehicle on the ground. The nut must be tightened to specification before the vehicle is lowered onto the wheels. Wheel bearing damage will occur if the wheel bearing is loaded with the weight of the vehicle applied.

NOTE: Install and tighten the new wheel hub nut to specification in a continuous rotation. Always install a new wheel hub nut after loosening or when not tightened to specification in a continuous rotation or damage to the components may occur.

NOTE: Apply the brake to keep the halfshaft from rotating.

Install the wheel hub nut. While an assistant applies the brake, tighten the new wheel hub nut.

Torque: 148 lb.ft (200 Nm)

Courtesy of FORD MOTOR COMPANY
Check the transmission fluid level. Refer to: Transmission Fluid Drain and Refill .
Install the powertrain underbody shield.

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
If equipped with dynamic suspension, calibrate the suspension height sensor. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.
