Muffler and Tailpipe: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

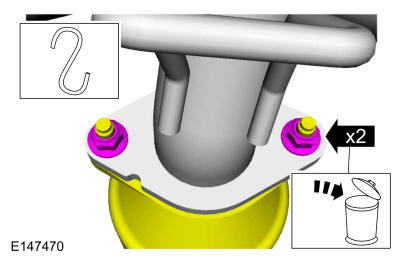

    • Remove and discard the nuts.

      Torque: 35 lb.ft (48 Nm)

    • Position aside the muffler and tailpipe.

    GFD502423Courtesy of FORD MOTOR COMPANY
  3. Remove and discard the gasket.
    GFD502413Courtesy of FORD MOTOR COMPANY
  4. Detach the exhaust isolators hangers and remove the muffler and tailpipe assembly.
GFD502424Courtesy of FORD MOTOR COMPANY
