Catalytic Converter - Plug-In Hybrid Electric Vehicle (PHEV): Removal

WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Health and Safety Precautions .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the front subframe. Refer to: Front Subframe .

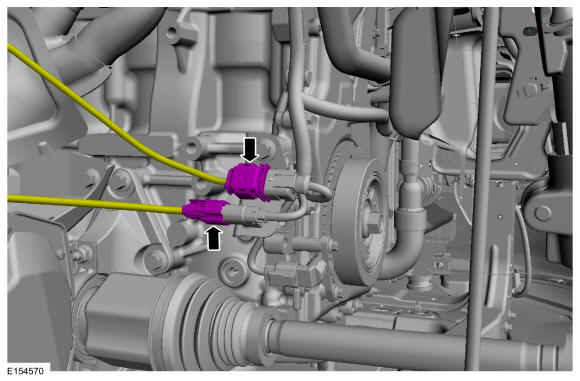

Courtesy of FORD MOTOR COMPANY
Torque: 89 lb.in (10 Nm)

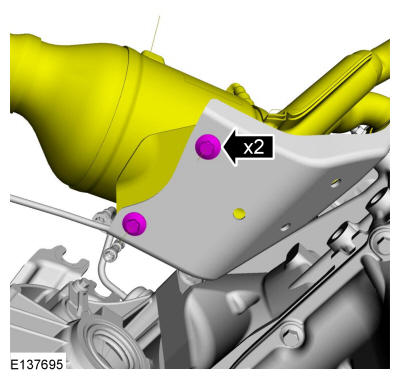

Courtesy of FORD MOTOR COMPANY
NOTE: Do not excessively bend or twist the exhaust flexible pipe. Failure to follow these instructions may cause damage to the flexible pipe.

Support the exhaust flexible pipe with a support wrap or suitable splint.

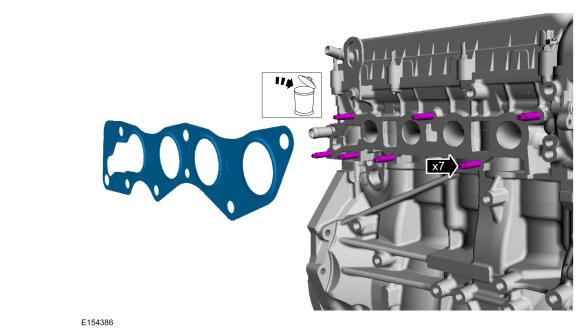

Courtesy of FORD MOTOR COMPANY
Torque: 35 lb.ft (48 Nm)

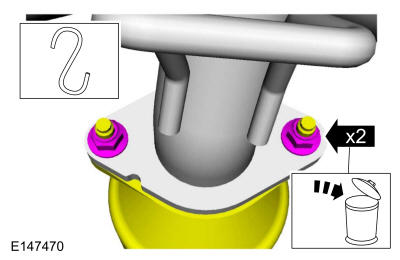

Courtesy of FORD MOTOR COMPANY

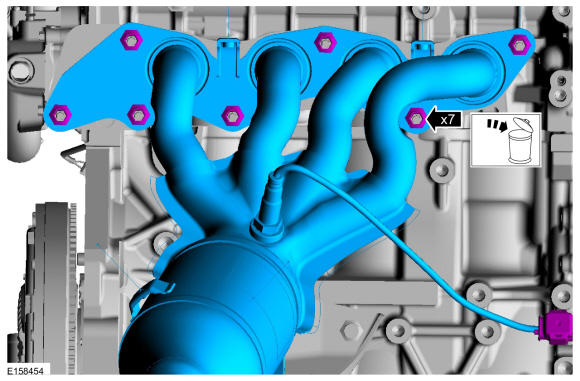

Courtesy of FORD MOTOR COMPANY
Torque: 18 lb.ft (25 Nm)

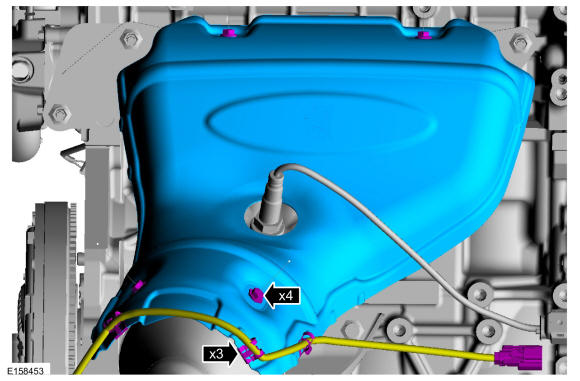

Courtesy of FORD MOTOR COMPANY
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY
