Removal And Installation: Radiator: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .
- Refer to: Cooling Fan Motor and Shroud .

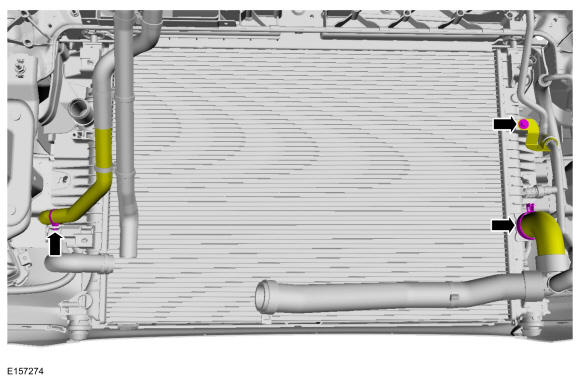

- Release the clamps and disconnect the coolant hoses. Remove the A/C tube bracket bolt.
Torque: 62 lb.in (7 Nm)

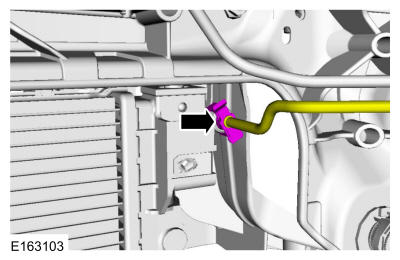

- Disconnect the degas bottle hose from the radiator.
Torque: 62 lb.in (7 Nm)

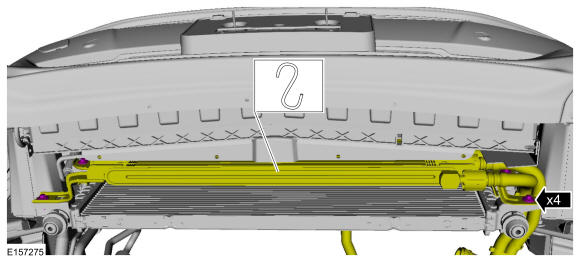

- Support the transmission fluid cooler/electric powertrain radiator assembly and remove the bolts.
Torque: 53 lb.in (6 Nm)

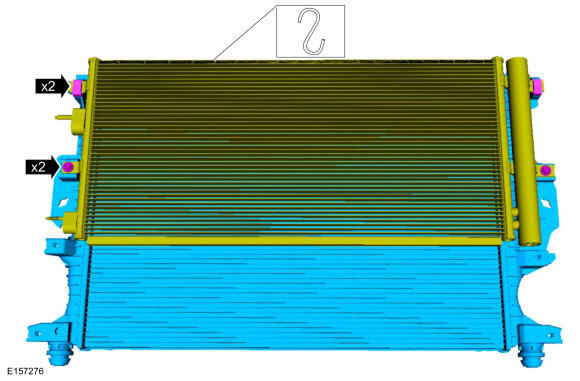

- Support the A/C condenser, remove the bolts, release the tabs and remove the radiator from the vehicle.
Torque: 53 lb.in (6 Nm)

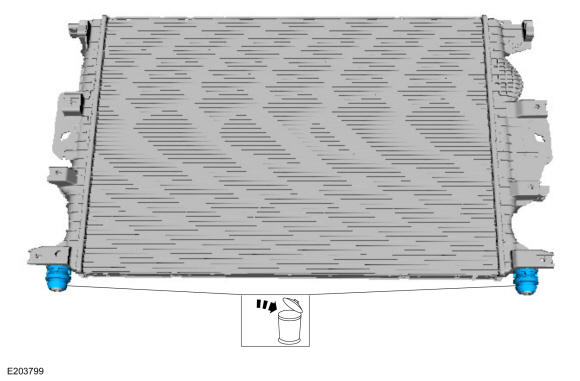

- Remove and discard the radiator lower isolators.
