Heater Hoses: Removal

All vehicles

1. Refer to: Air Cleaner .
2. Refer to: Air Cleaner Outlet Pipe .
3. Drain the engine cooling system. Refer to Engine Cooling System Draining, Filling and Bleeding :
4. Drain the electric powertrain cooling system. Refer to: Engine Cooling System Draining, Filling and Bleeding .
5. Refer to: Transmission Control Module (TCM) .

   Courtesy of FORD MOTOR COMPANY

   FHEV vehicles

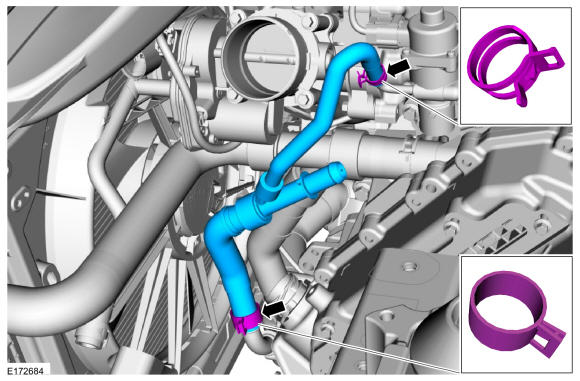

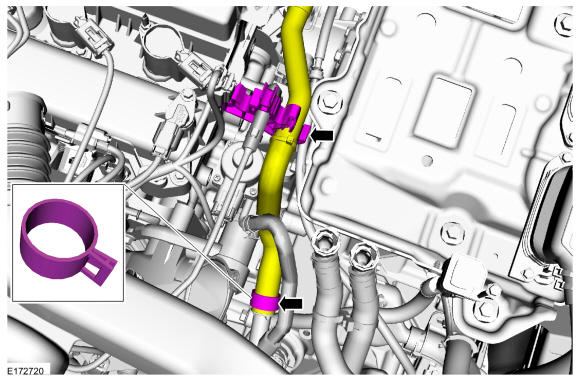

6. Use the General Equipment: Hose Clamp Remover/Installer

   Courtesy of FORD MOTOR COMPANY

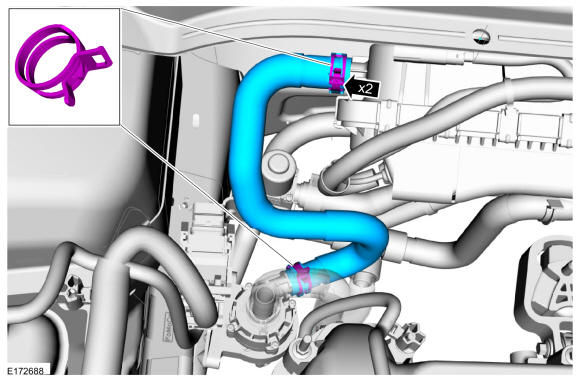

7. Use the General Equipment: Hose Clamp Remover/Installer

   Courtesy of FORD MOTOR COMPANY

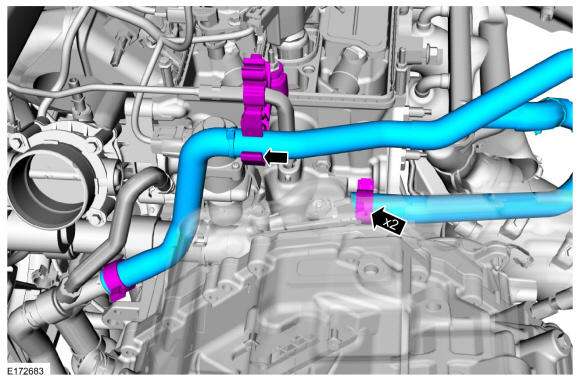

8. Use the General Equipment: Hose Clamp Remover/Installer

   Courtesy of FORD MOTOR COMPANY

   PHEV vehicles

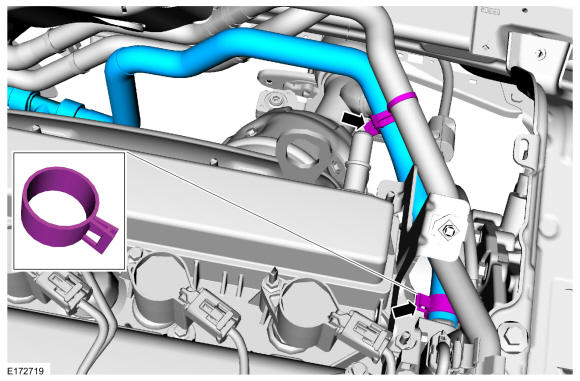

9. Use the General Equipment: Hose Clamp Remover/Installer

   Courtesy of FORD MOTOR COMPANY

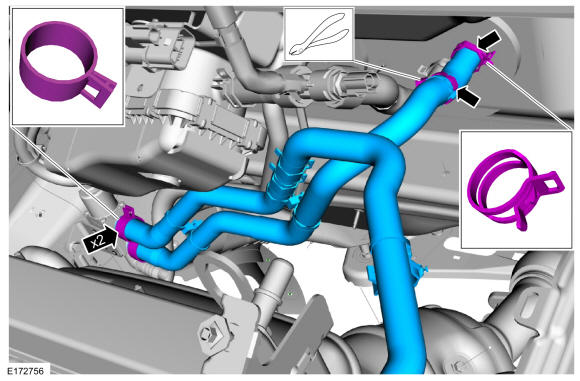

10. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

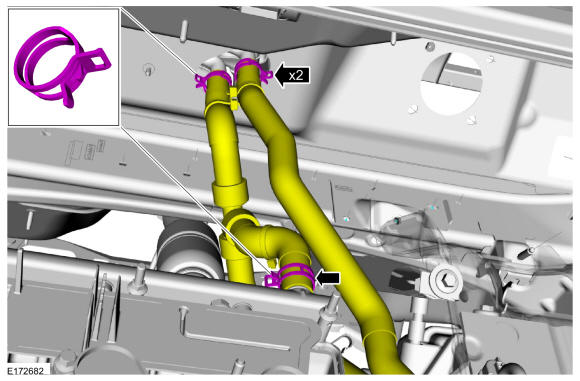

11. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

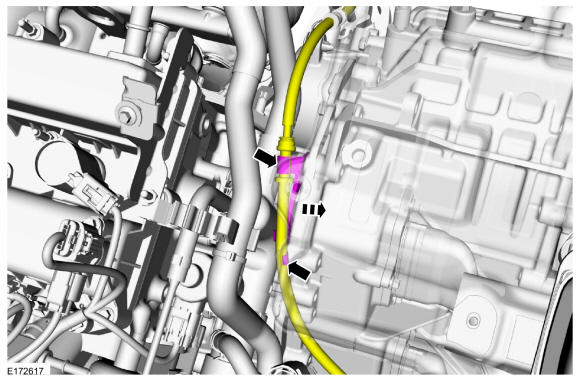

12. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

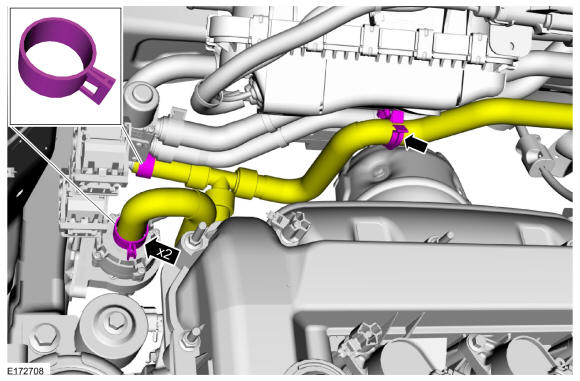

13. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

14. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
