Cooling Fan Motor and Shroud: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .

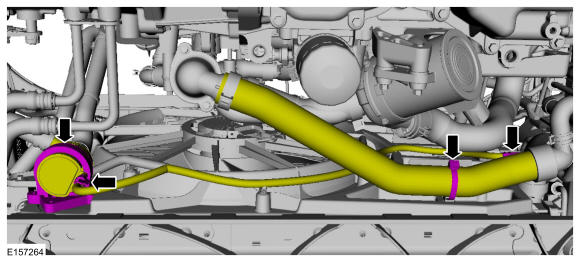

- Refer to Engine Cooling System Draining, Filling and Bleeding
- Use the General Equipment: Hose Clamp Remover/Installer

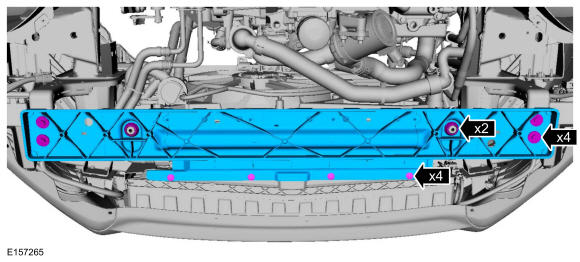

- Torque: 53 lb.in (6 Nm)
-

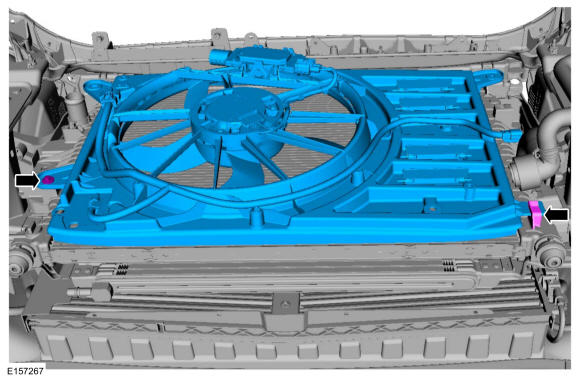

NOTE: Support the radiator/condenser/cooling fan motor and shroud assembly.

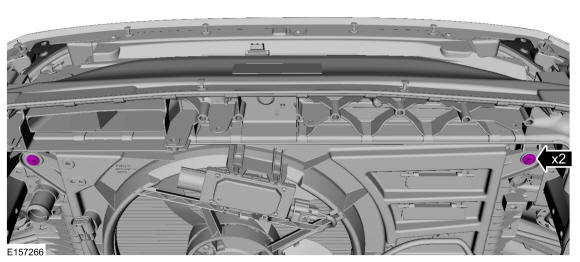

Torque: 18 lb.ft (24 Nm)

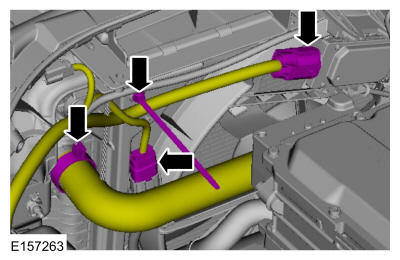

- Torque: 53 lb.in (6 Nm)
