Coolant Pump: Installation

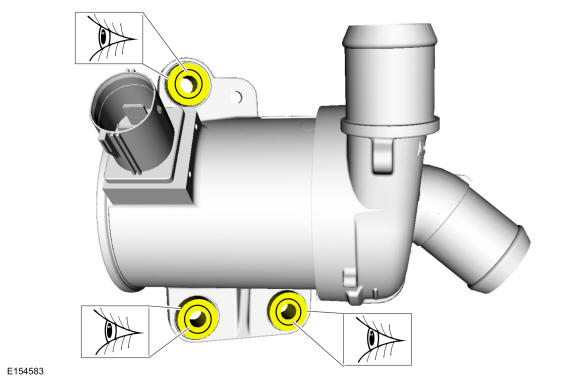

  1. NOTE: Three 2-piece grommet (a rubber overmolded aluminum torque limiter and a black rubber ring) assemblies must be present on the electric coolant pump before assembling it to the bracket.
    GFD501978Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
