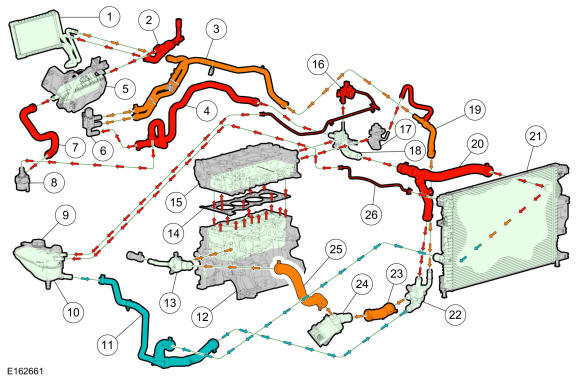

| 1 |
Heater core |
| 2 |
Heater inlet hose assembly |
| 3 |
Heater hose assembly |
| 4 |
Heater coolant control valve inlet hose assembly |
| 5 |
Auxiliary heater assembly |
| 6 |
Heater coolant control valve |
| 7 |
Heater pump assembly-to-auxiliary heater assembly hose |
| 8 |
Heater pump assembly |
| 9 |
Pressure relief cap |
| 10 |
Degas bottle |
| 11 |
Lower radiator hose |
| 12 |
Cylinder block |
| 13 |
Cylinder block coolant pump hole cover assembly |
| 14 |
Cylinder head gasket |
| 15 |
Cylinder head |
| 16 |
Coolant outlet connector adapter assembly-to-degas bottle hose and connector |
| 17 |
Exhaust gas recirculation (EGR) valve |
| 18 |
Coolant outlet connector adapter assembly |
| 19 |
Heater outlet hose assembly |
| 20 |
Upper radiator hose |
| 21 |
Radiator |
| 22 |
Thermostat housing |
| 23 |
Coolant pump inlet hose |
| 24 |
Coolant pump |
| 25 |
Coolant pump outlet hose |
| 26 |
Radiator-to-degas bottle hose |
