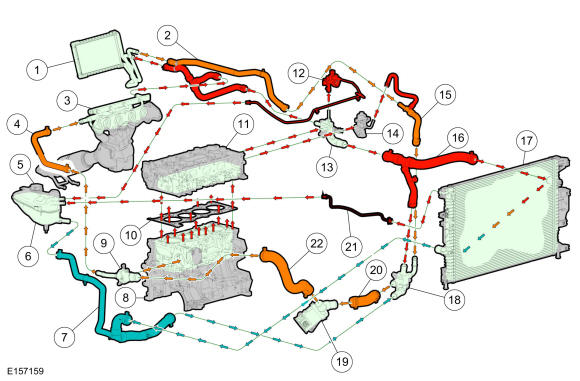

| 1 |
Heater core |
| 2 |
Heater hose assembly |
| 3 |
Exhaust manifold and converter assembly |
| 4 |
Cylinder block coolant pump hole cover assembly outlet hose |
| 5 |
Pressure relief cap |
| 6 |
Degas bottle |
| 7 |
Lower radiator hose |
| 8 |
Cylinder block |
| 9 |
Cylinder block coolant pump hole cover assembly |
| 10 |
Cylinder head gasket |
| 11 |
Cylinder head |
| 12 |
Coolant outlet connector adapter assembly-to-degas bottle hose and connector |
| 13 |
Coolant outlet connector adapter assembly |
| 14 |
Exhaust gas recirculation (EGR) valve |
| 15 |
Heater outlet hose assembly |
| 16 |
Upper radiator hose |
| 17 |
Radiator |
| 18 |
Thermostat housing |
| 19 |
Coolant pump |
| 20 |
Coolant pump inlet hose |
| 21 |
Radiator-to-degas bottle hose |
| 22 |
Coolant pump outlet hose |
