Component Testing

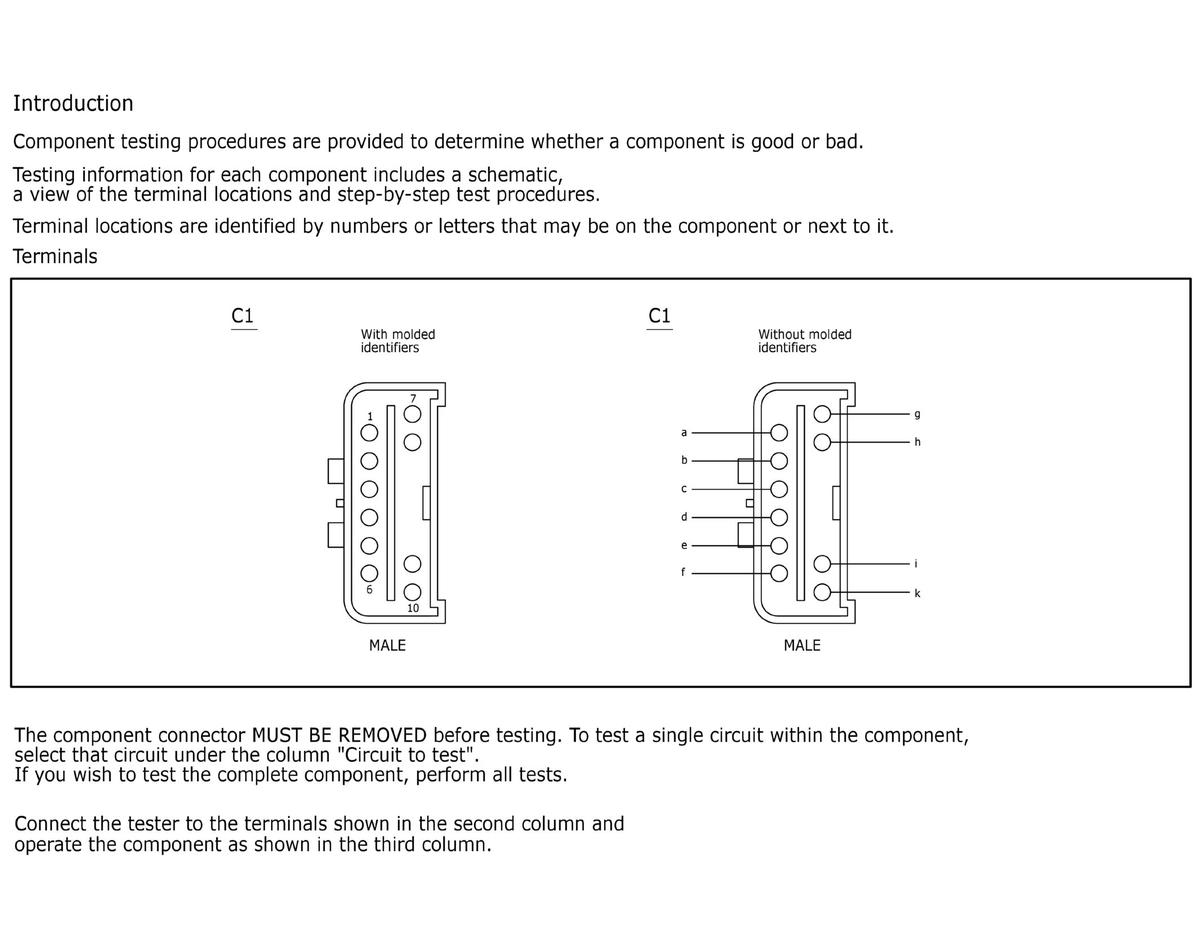

Fig 1: Component Testing Introduction

Courtesy of FORD MOTOR COMPANY

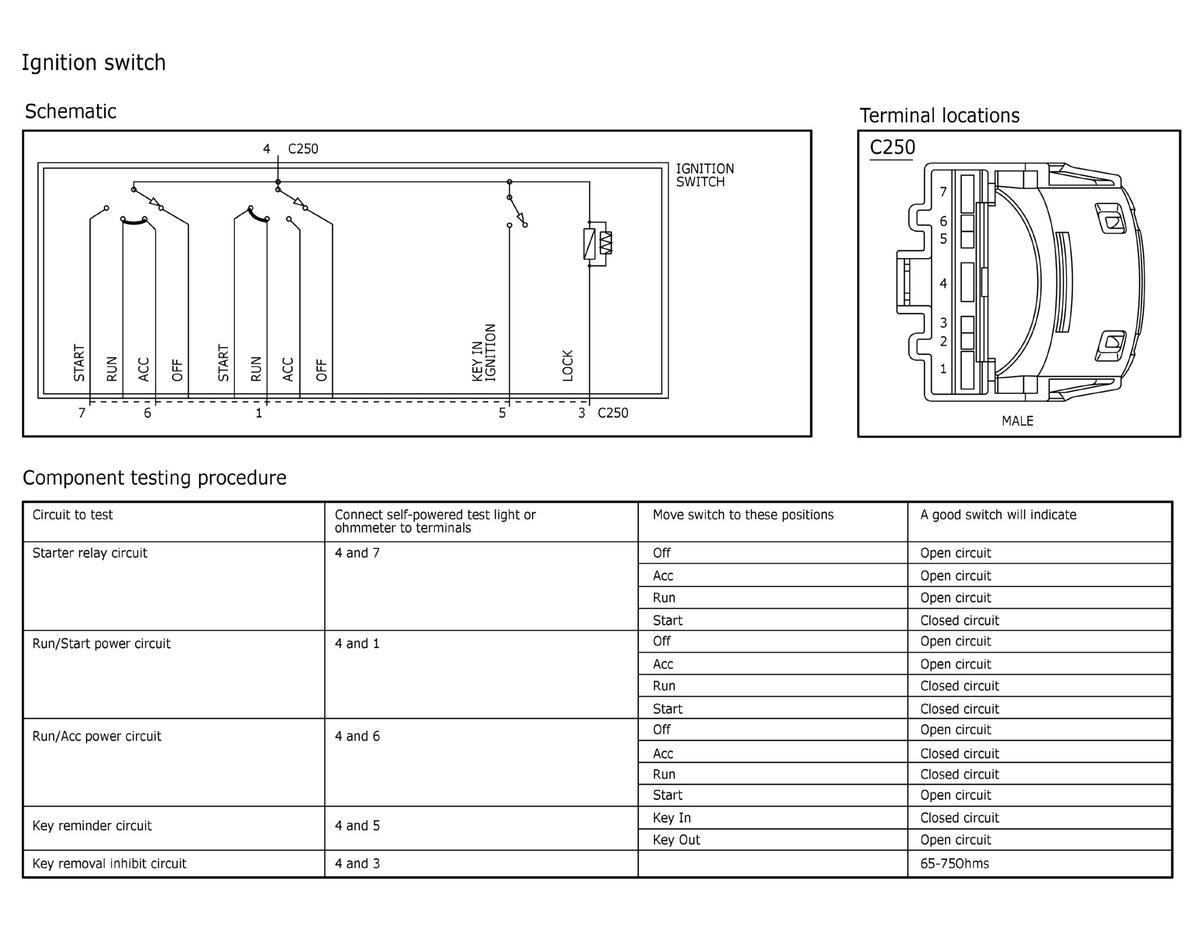

Fig 2: Ignition Switch Component Testing

Courtesy of FORD MOTOR COMPANY

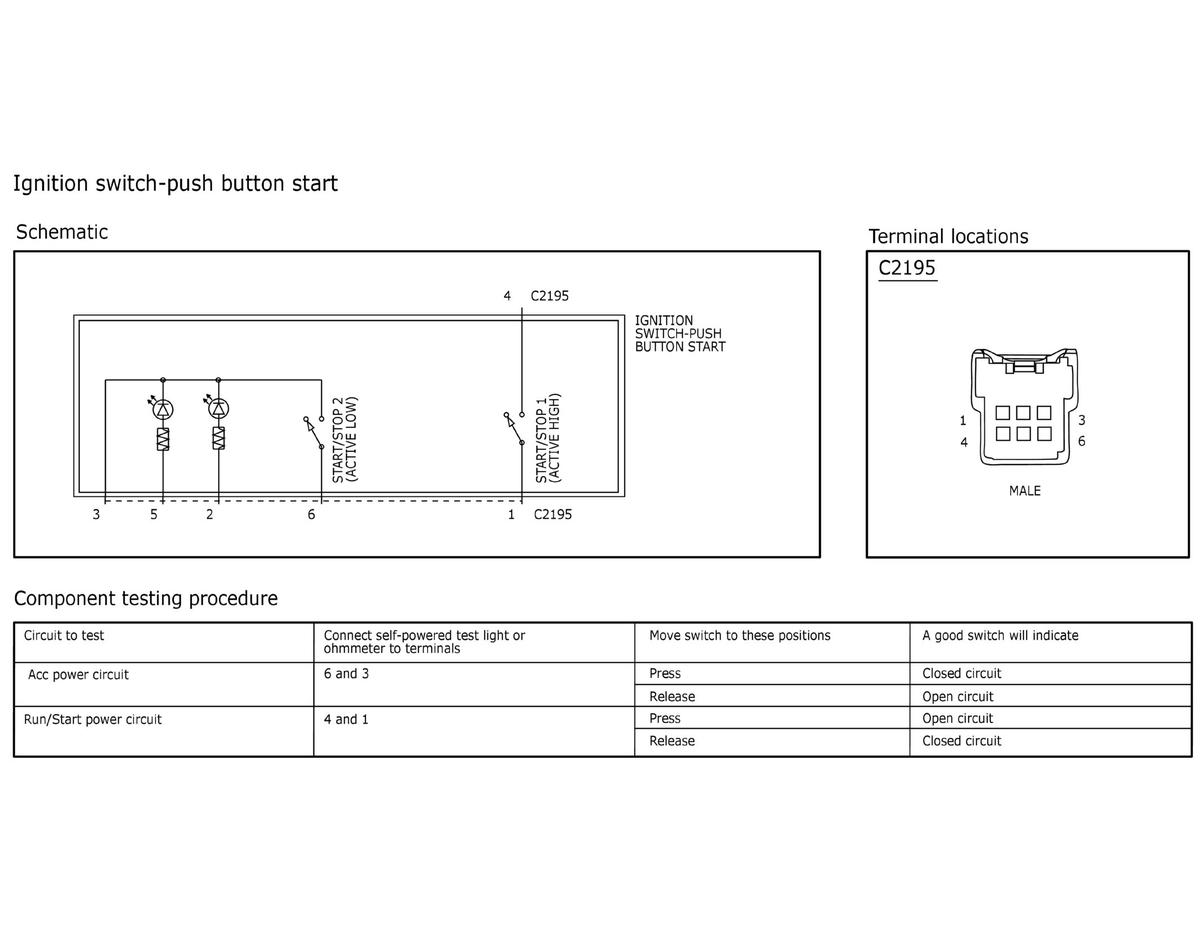

Fig 3: Ignition Switch-push Button Start Component Testing

Courtesy of FORD MOTOR COMPANY

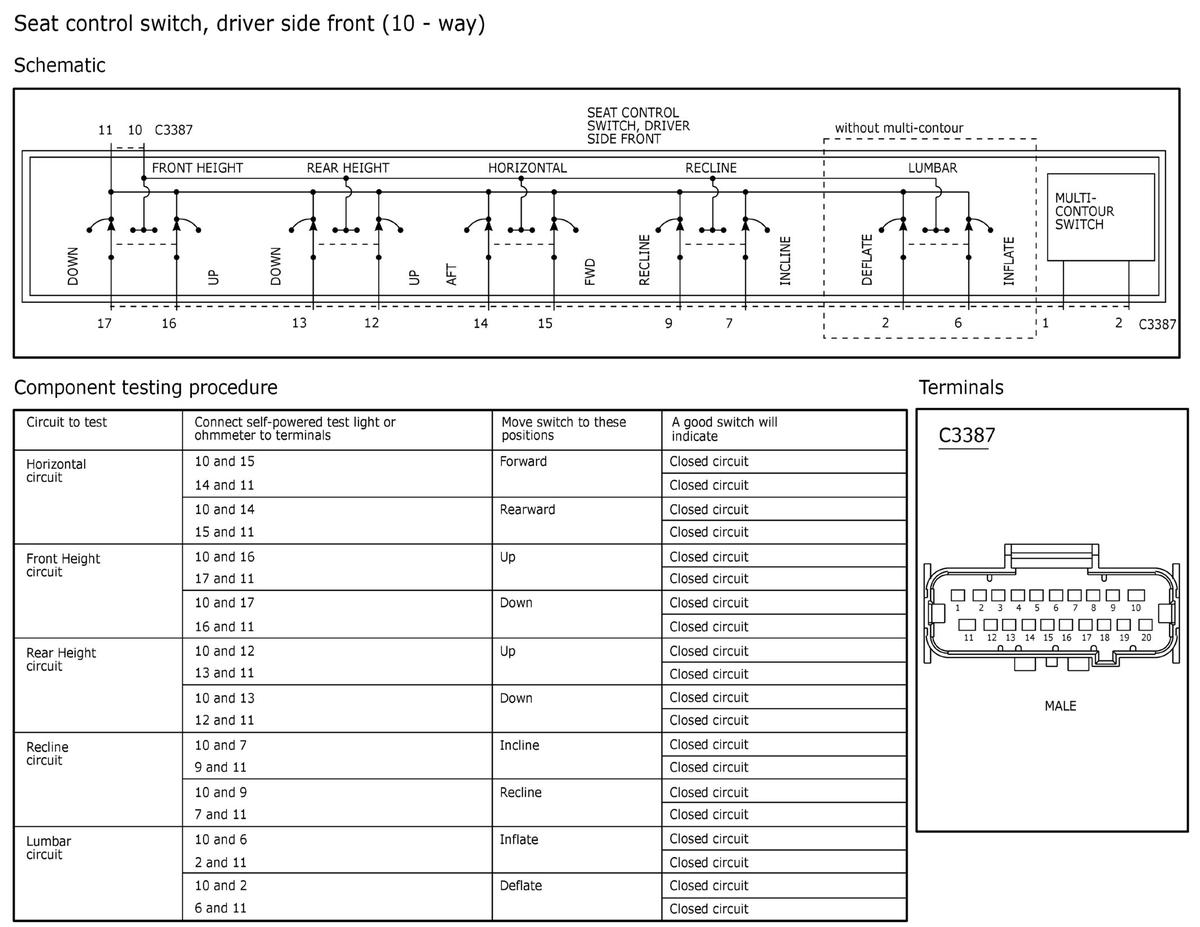

Fig 4: Seat Control Switch Driver Side Front (10-Way) Component Testing

Courtesy of FORD MOTOR COMPANY

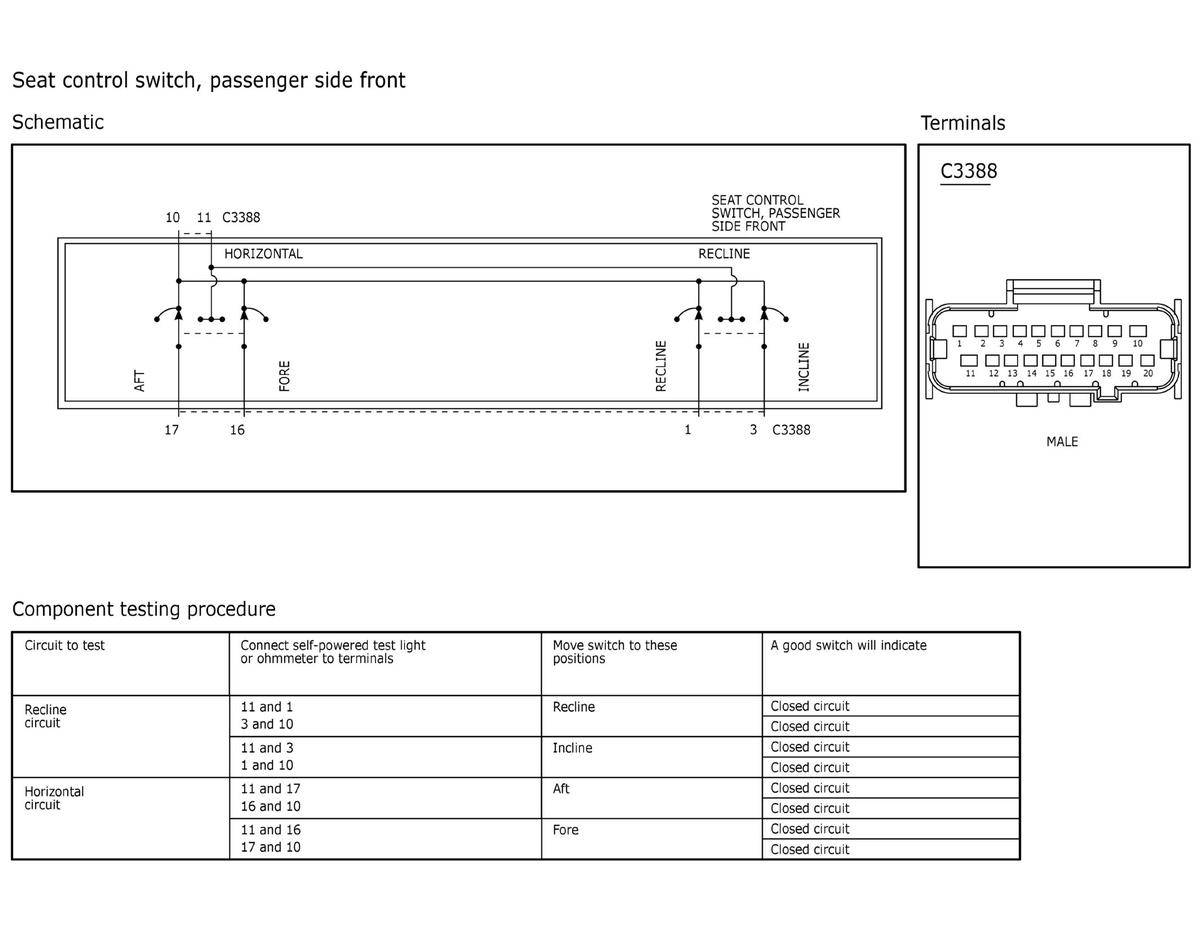

Fig 5: Seat Control Switch Front Passenger Side Front Component Testing

Courtesy of FORD MOTOR COMPANY

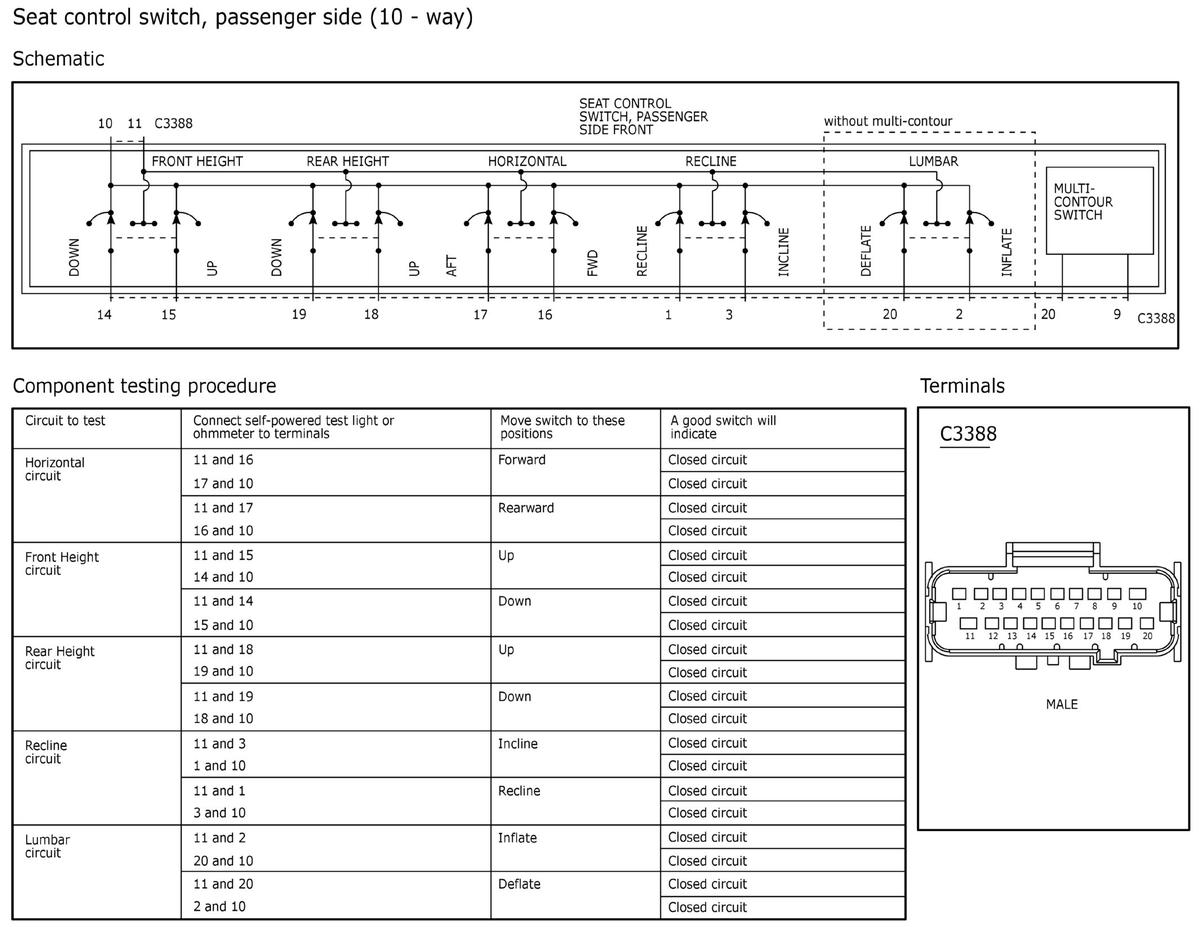

Fig 6: Seat Control Switch Passenger Side (10-Way) Component Testing

Courtesy of FORD MOTOR COMPANY

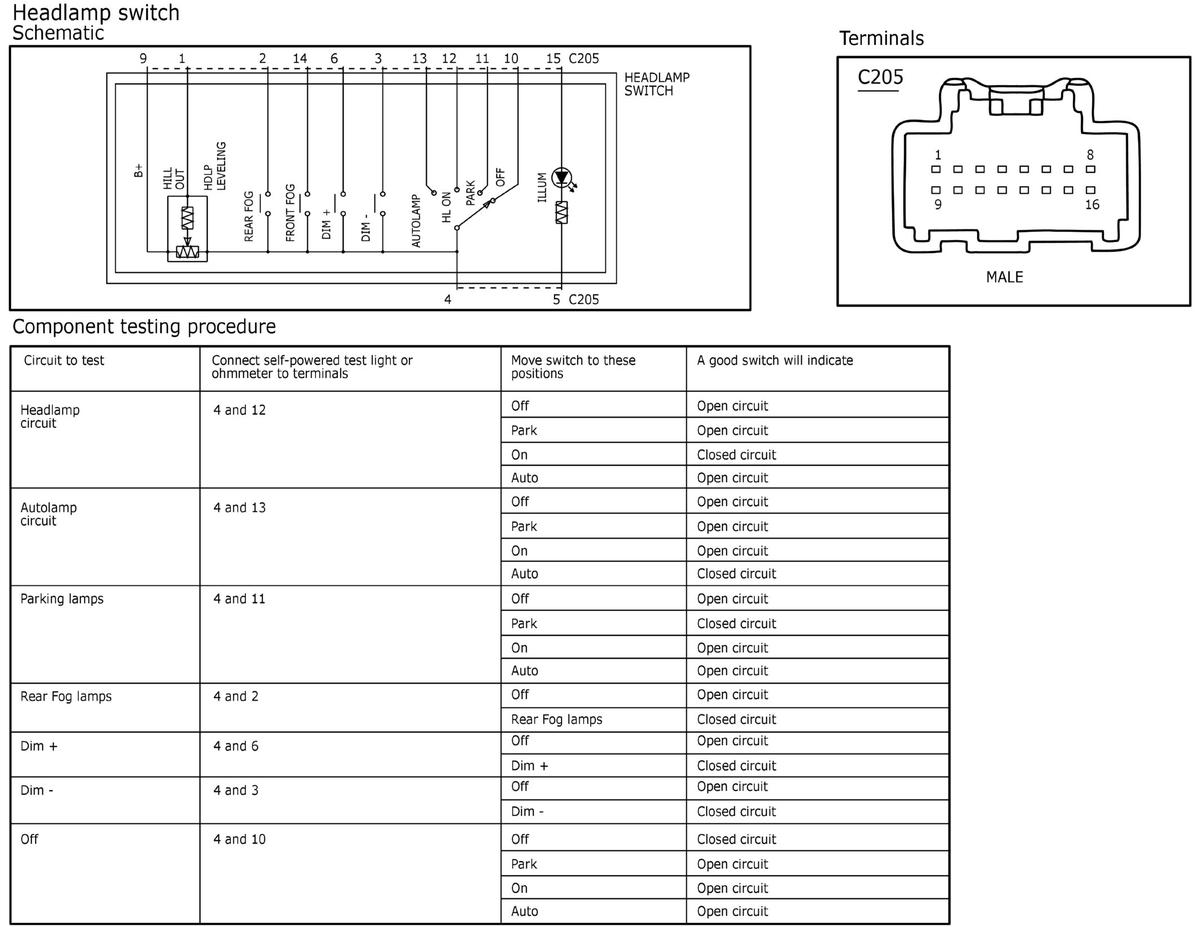

Fig 7: Headlamp Switch Component Testing

Courtesy of FORD MOTOR COMPANY

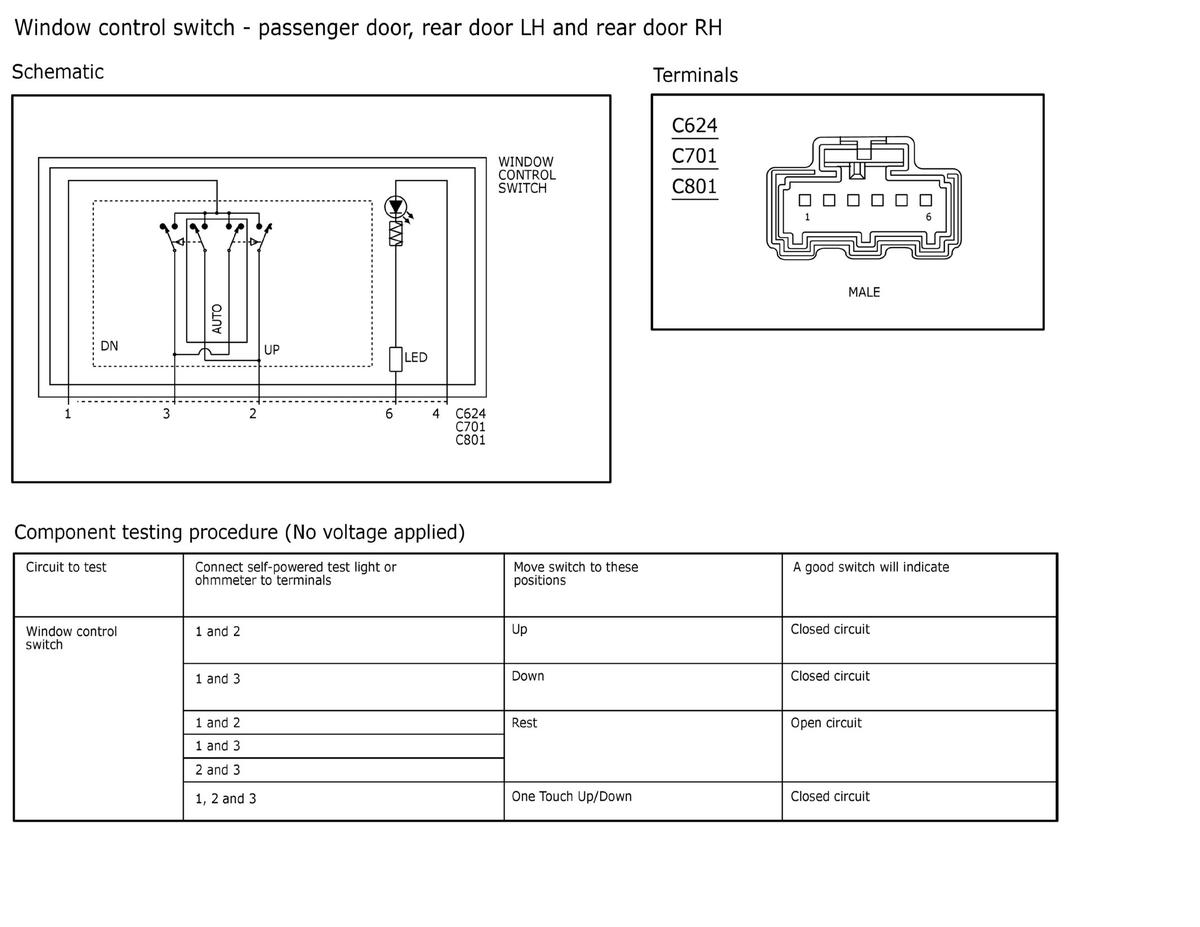

Fig 8: Window Control Switch - Passenger Door, Rear Door LH and Rear Door RH Component Testing

Courtesy of FORD MOTOR COMPANY

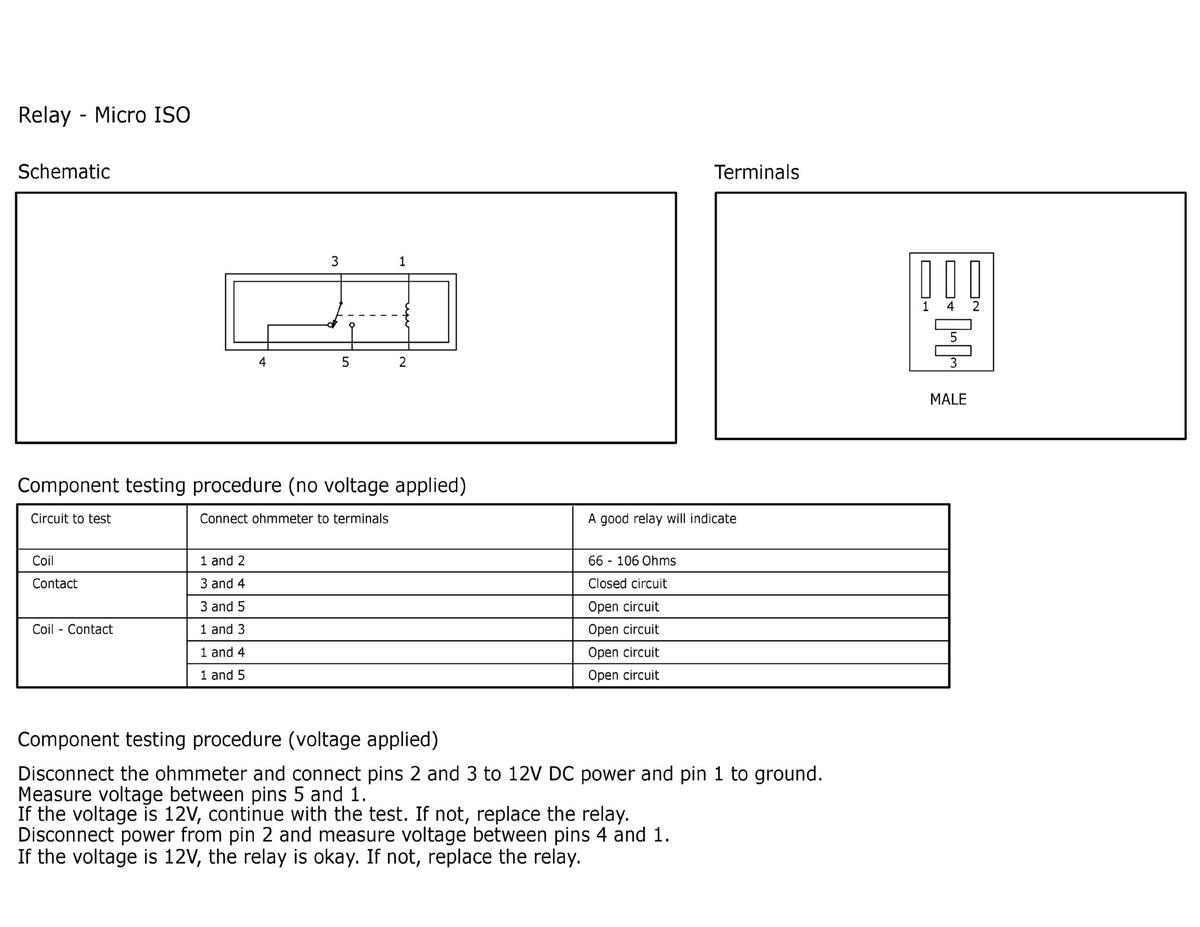

Fig 9: Relay Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

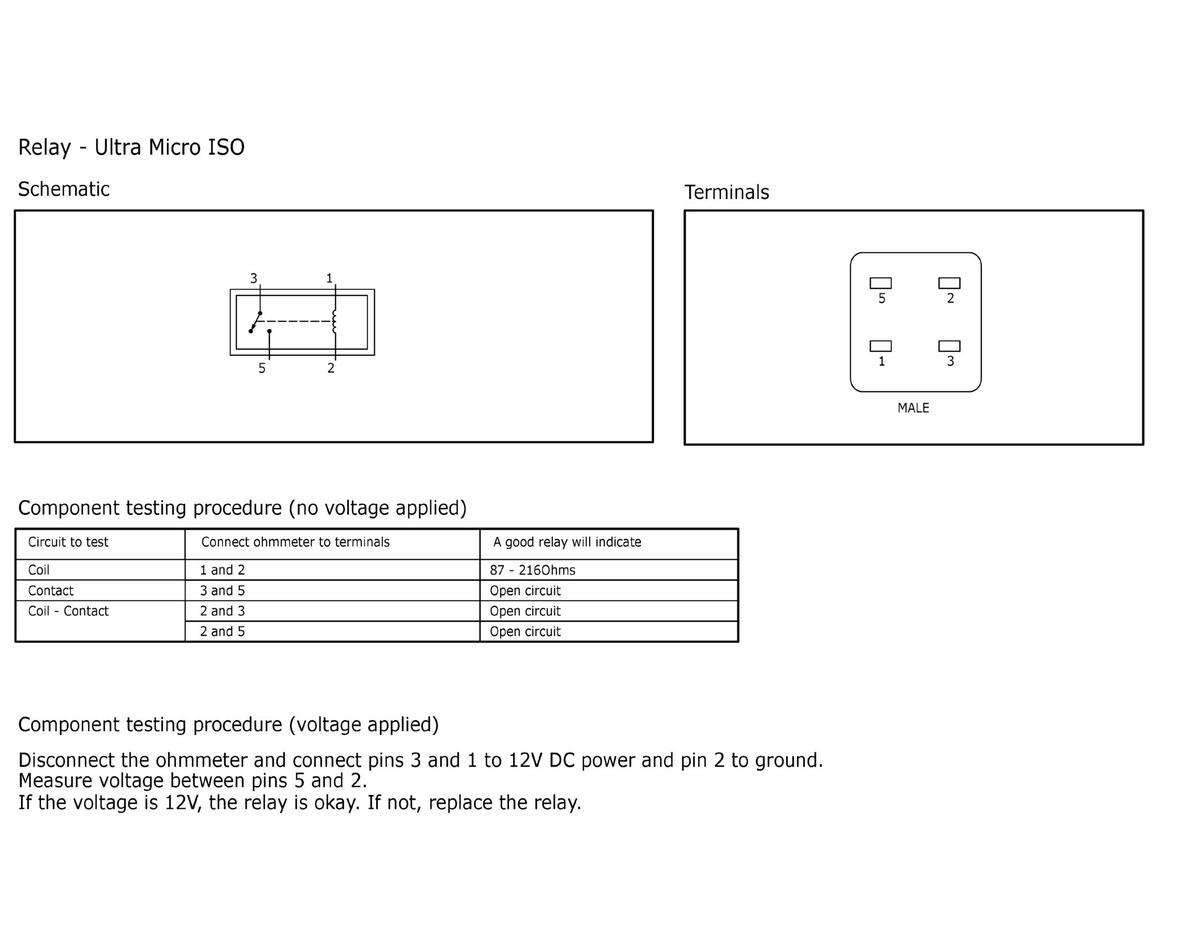

Fig 10: Relay Ultra Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

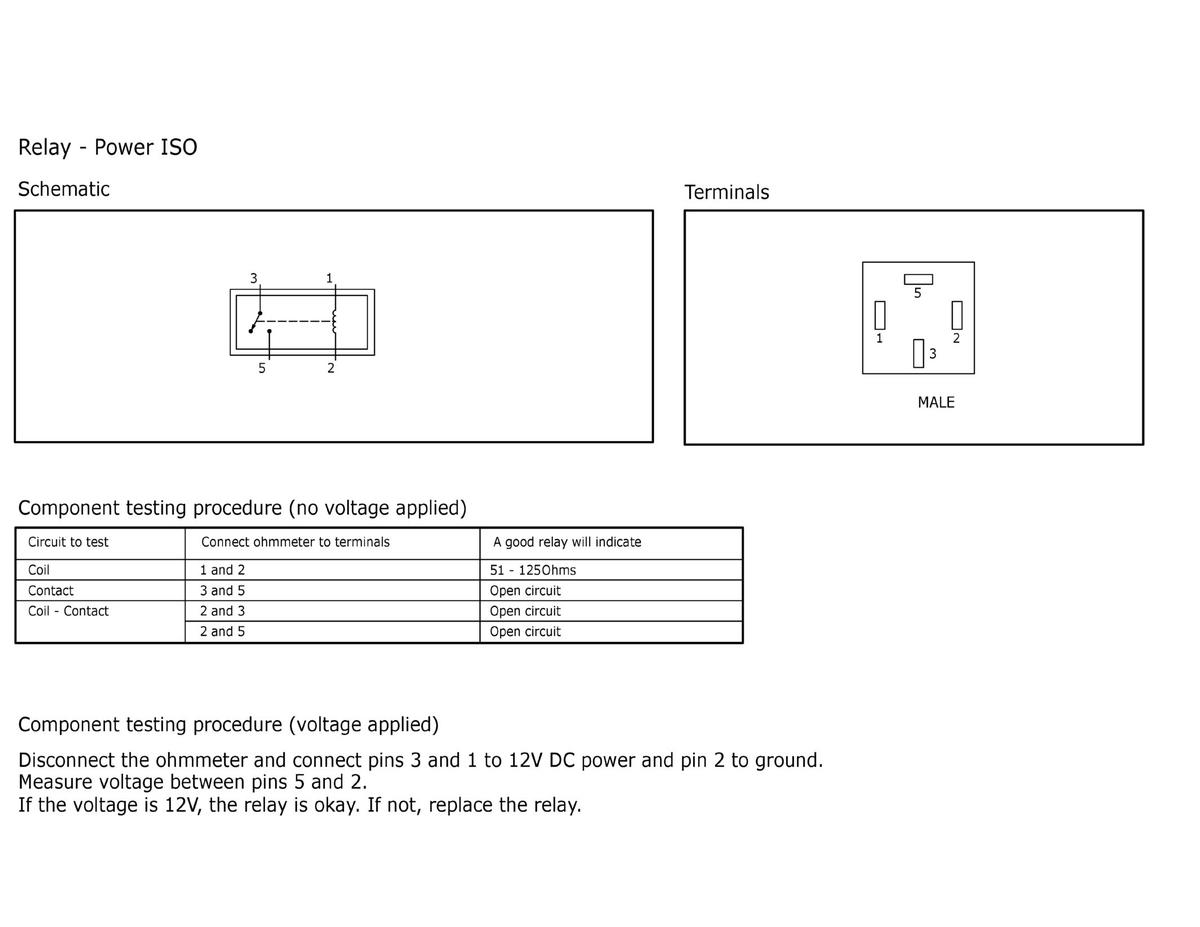

Fig 11: Relay Power ISO Component Testing

Courtesy of FORD MOTOR COMPANY

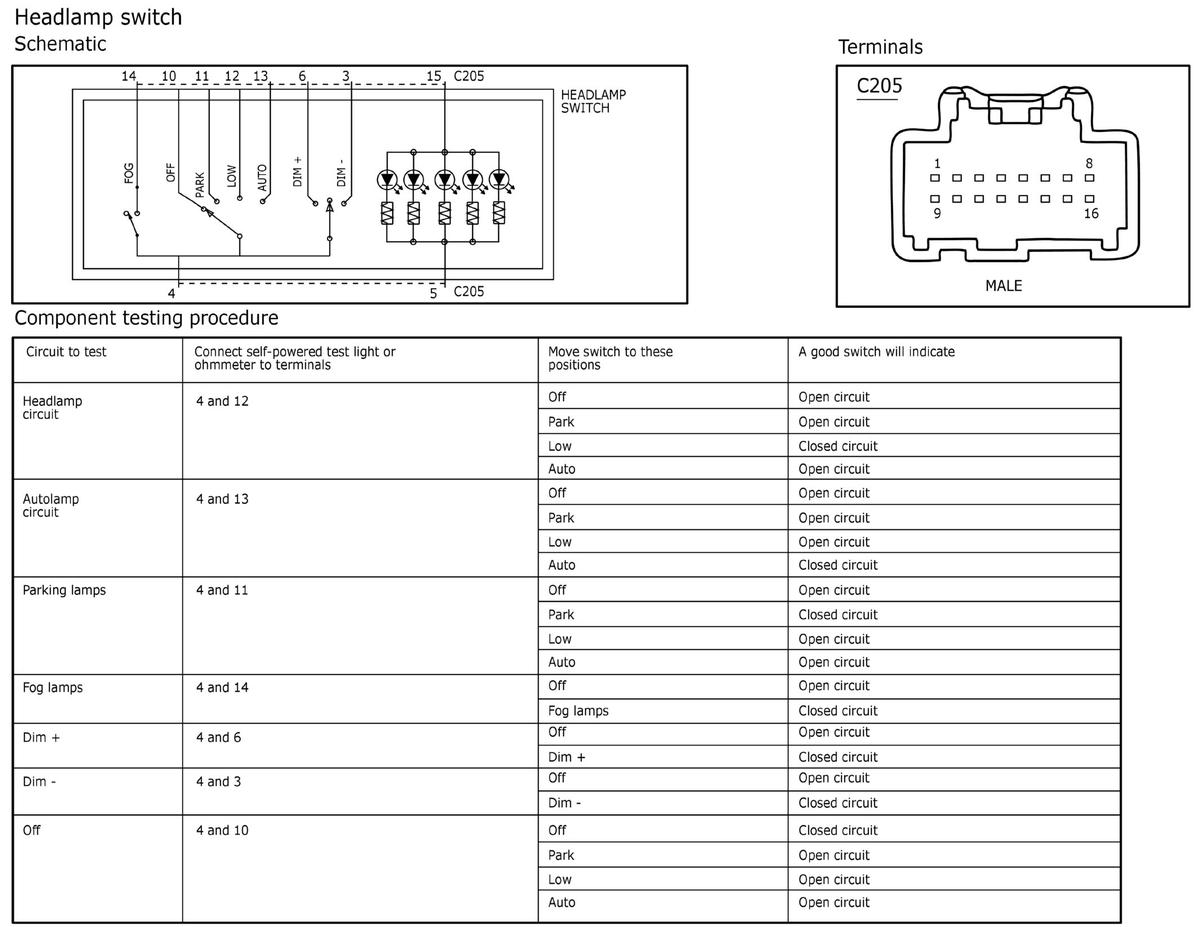

Fig 12: Headlamp Switch Component Testing

Courtesy of FORD MOTOR COMPANY
