Vehicle Dynamic Suspension

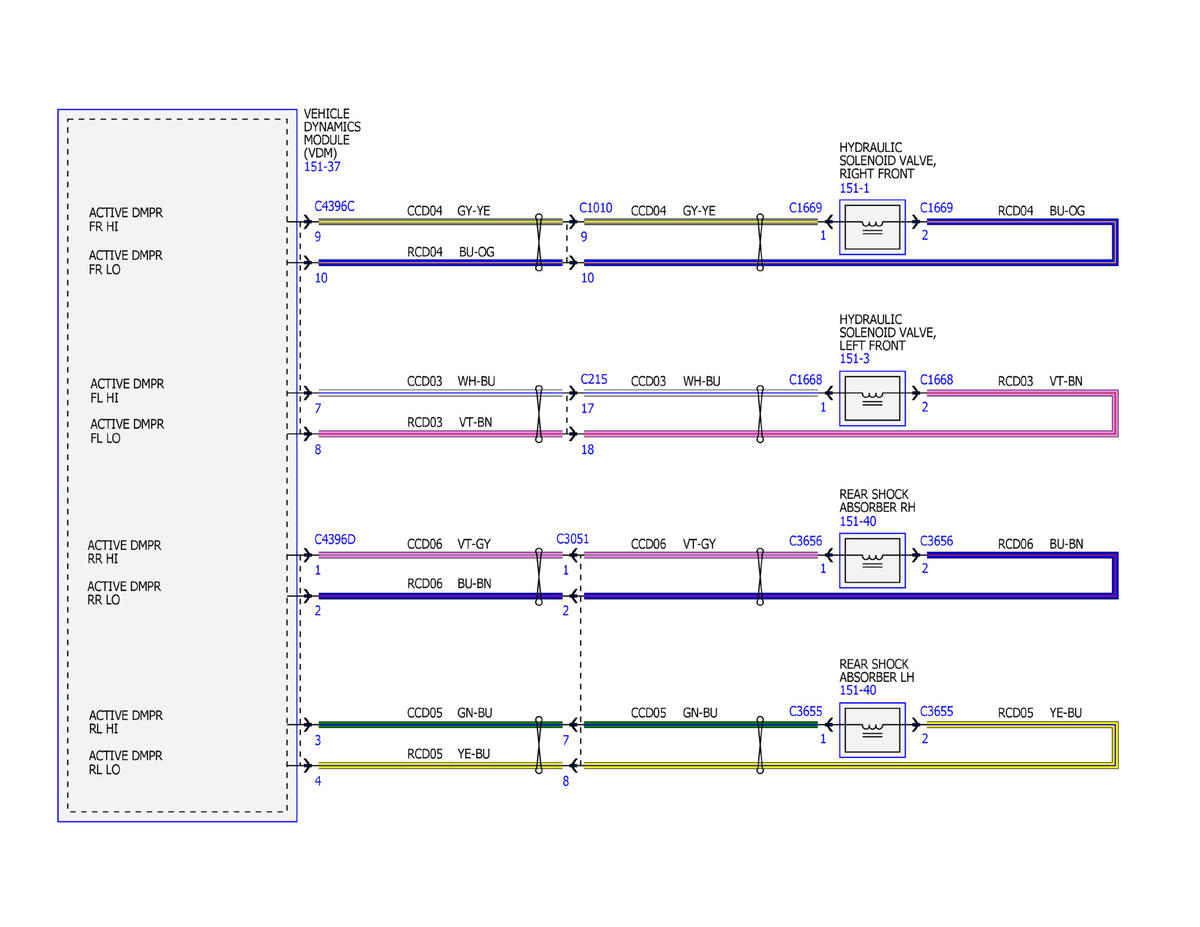

Fig 1: Vehicle Dynamic Suspension Wiring Diagram (1 Of 3)
GFDWR73036Courtesy of FORD MOTOR COMPANY

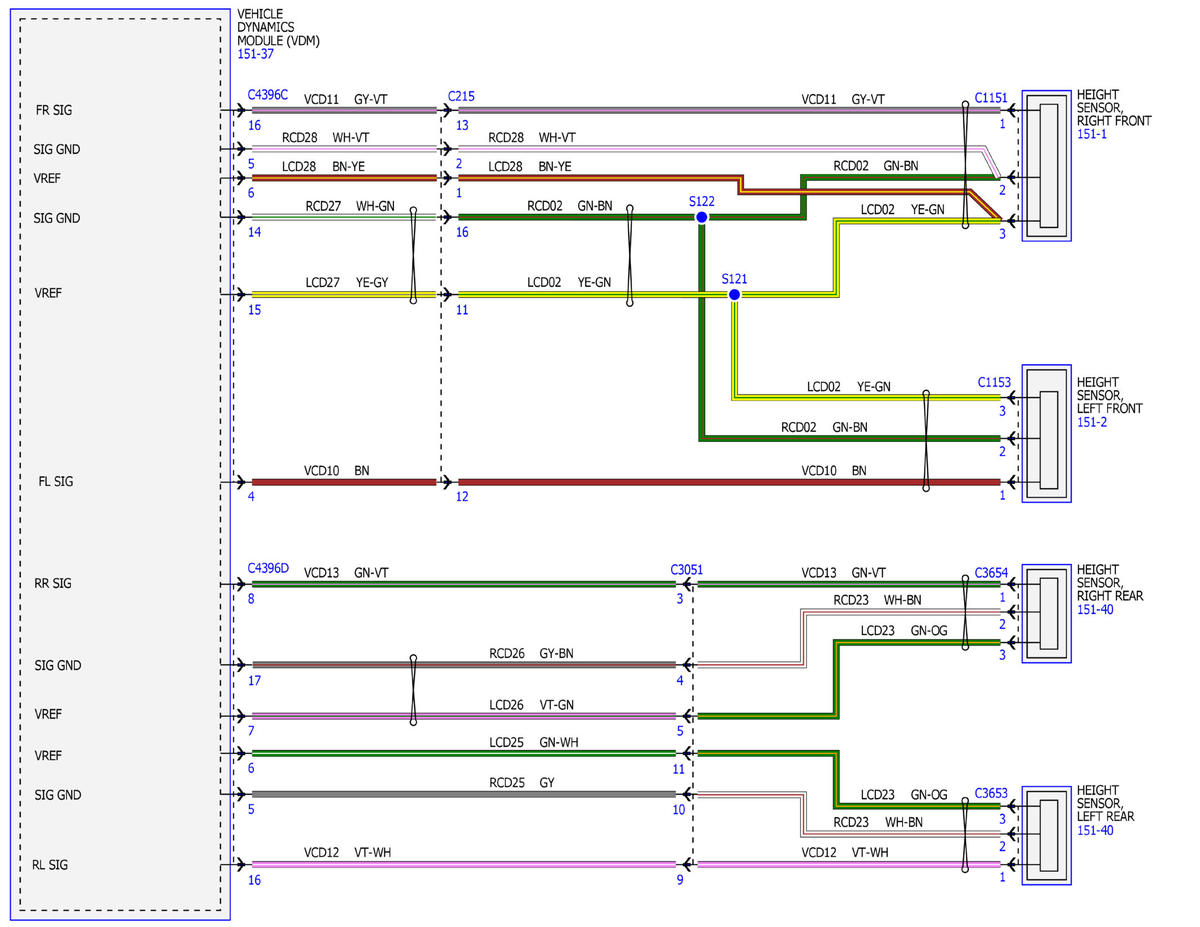

Fig 2: Vehicle Dynamic Suspension Wiring Diagram (2 Of 3)
GFDWR73037Courtesy of FORD MOTOR COMPANY

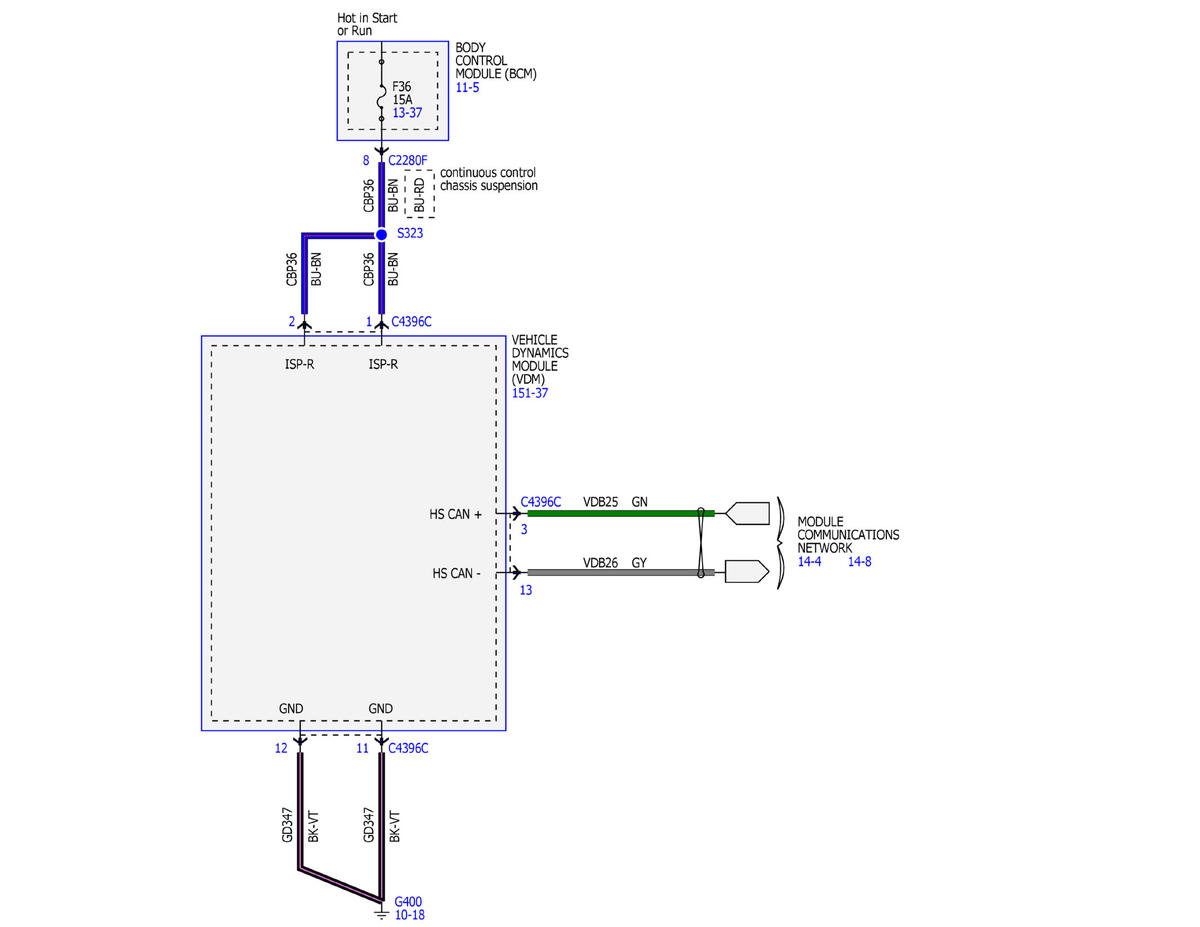

Fig 3: Vehicle Dynamic Suspension Wiring Diagram (3 Of 3)
GFDWR73038Courtesy of FORD MOTOR COMPANY
