Transmission Controls - 6F50/6F55

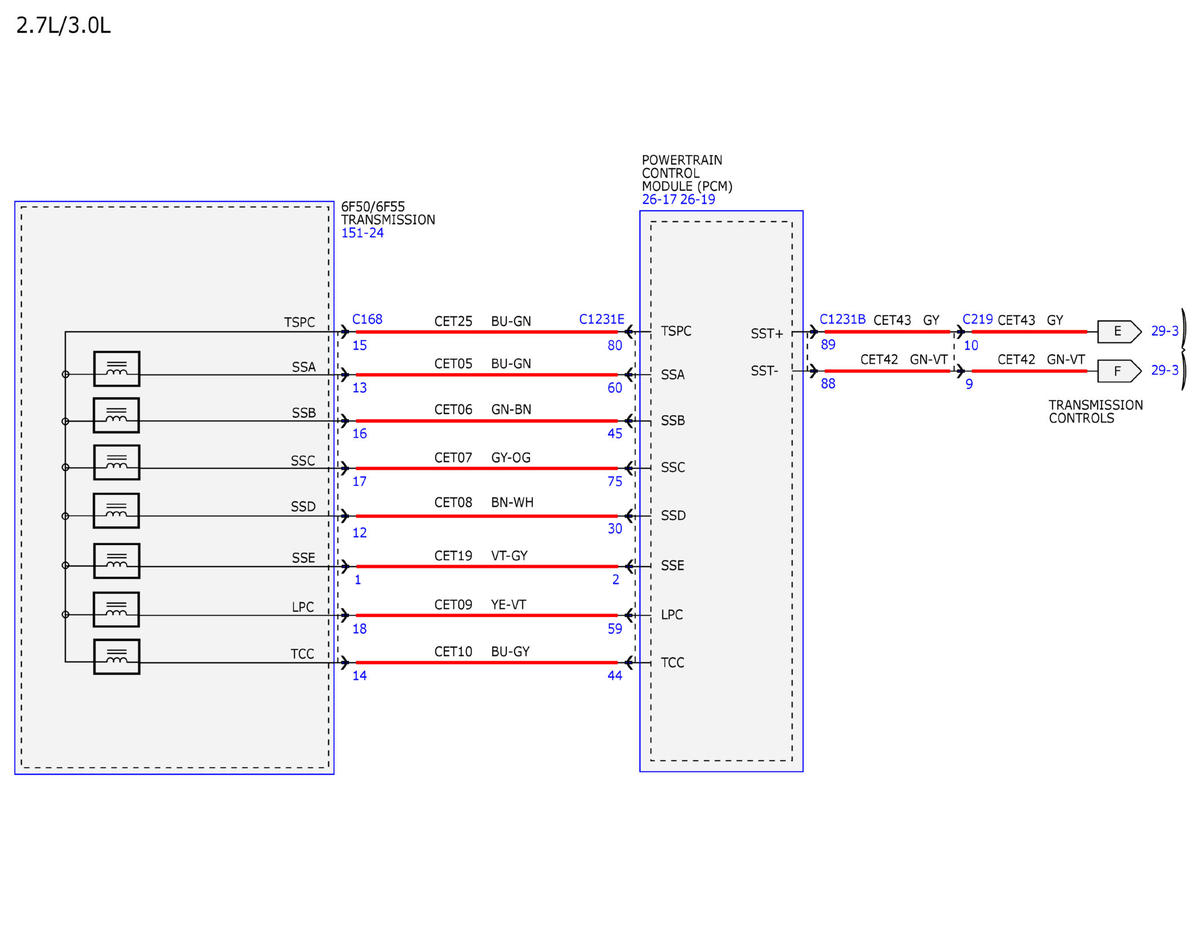

Fig 1: Transmission Controls - 6F50/6F55 Wiring Diagram (1 Of 5)
GFDWR89791Courtesy of FORD MOTOR COMPANY

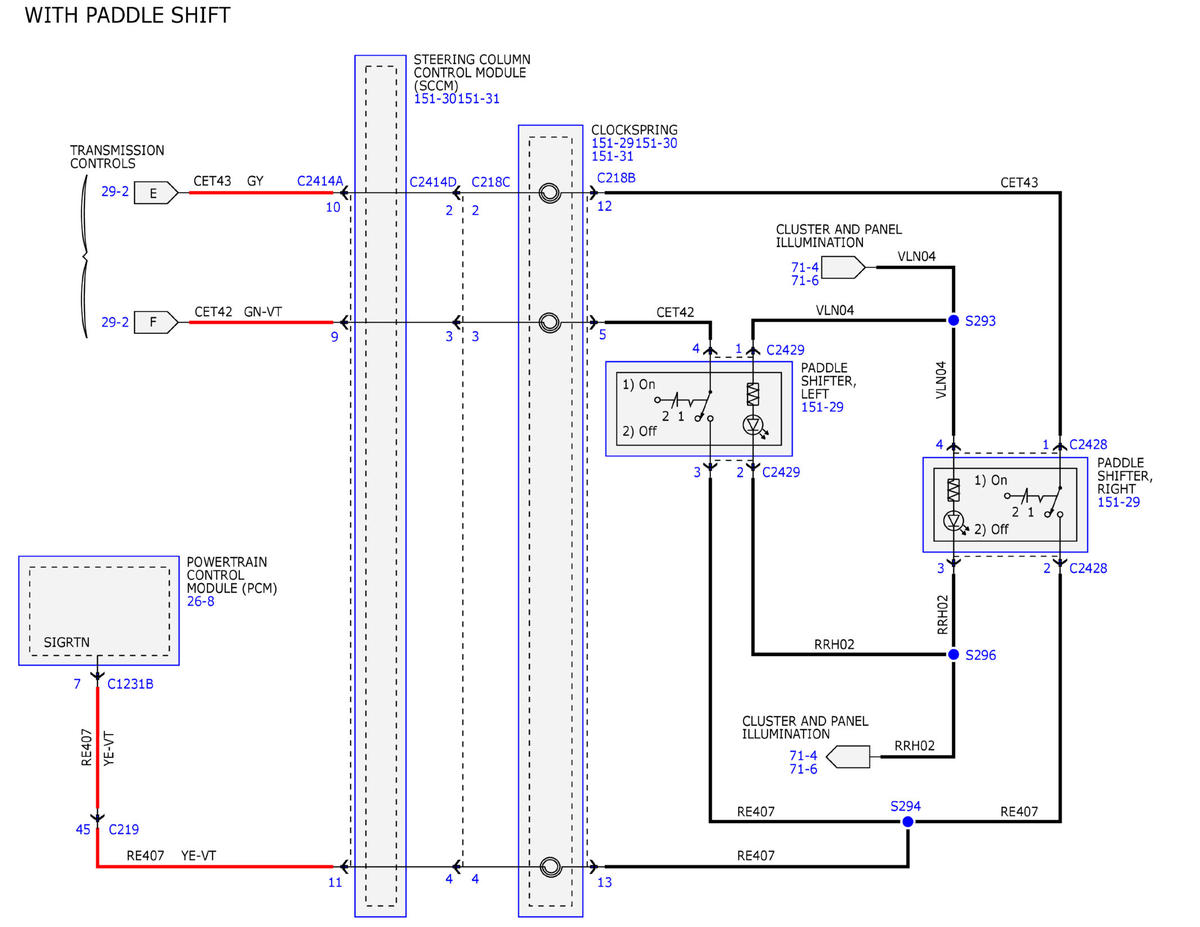

Fig 2: Transmission Controls - 6F50/6F55 Wiring Diagram (2 Of 5)
GFDWR89792Courtesy of FORD MOTOR COMPANY

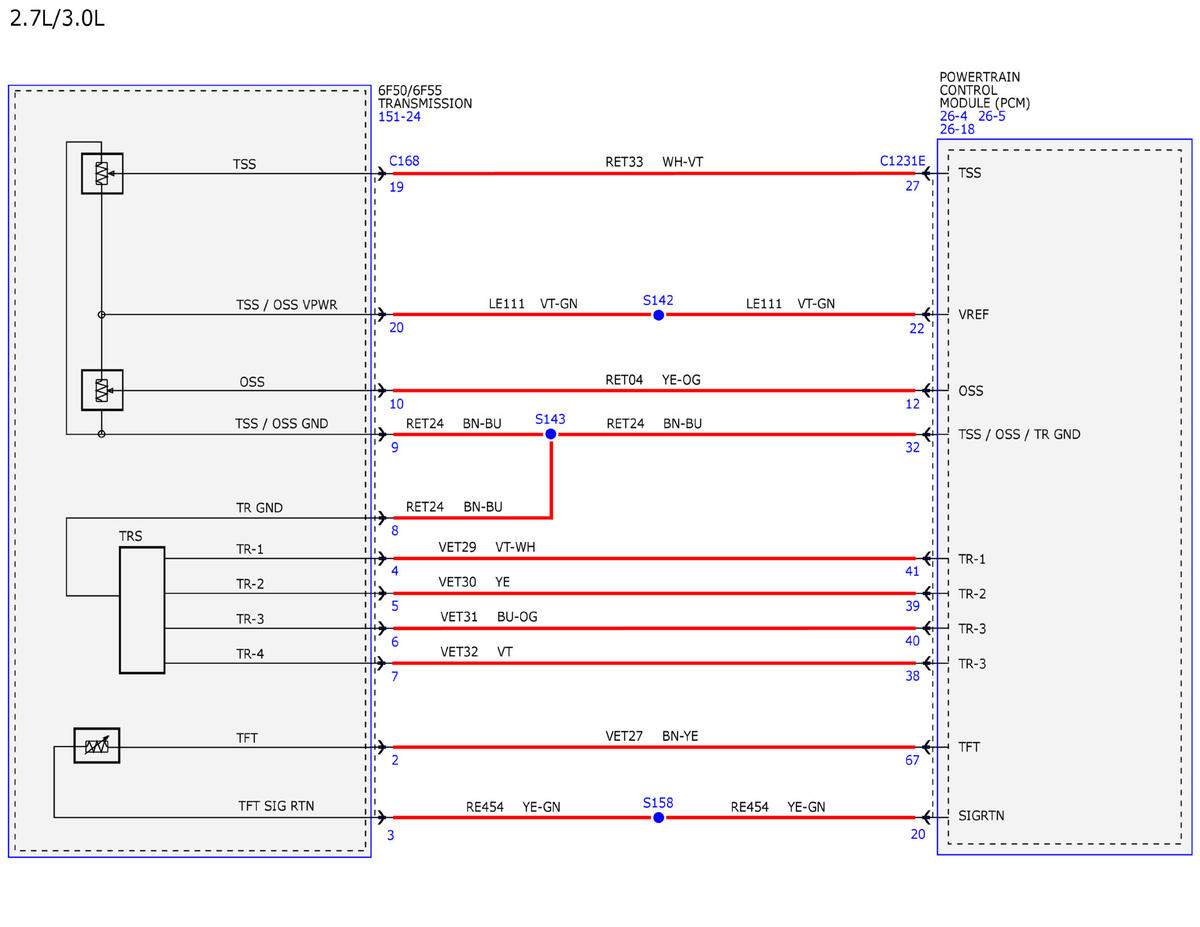

Fig 3: Transmission Controls - 6F50/6F55 Wiring Diagram (3 Of 5)
GFDWR89793Courtesy of FORD MOTOR COMPANY

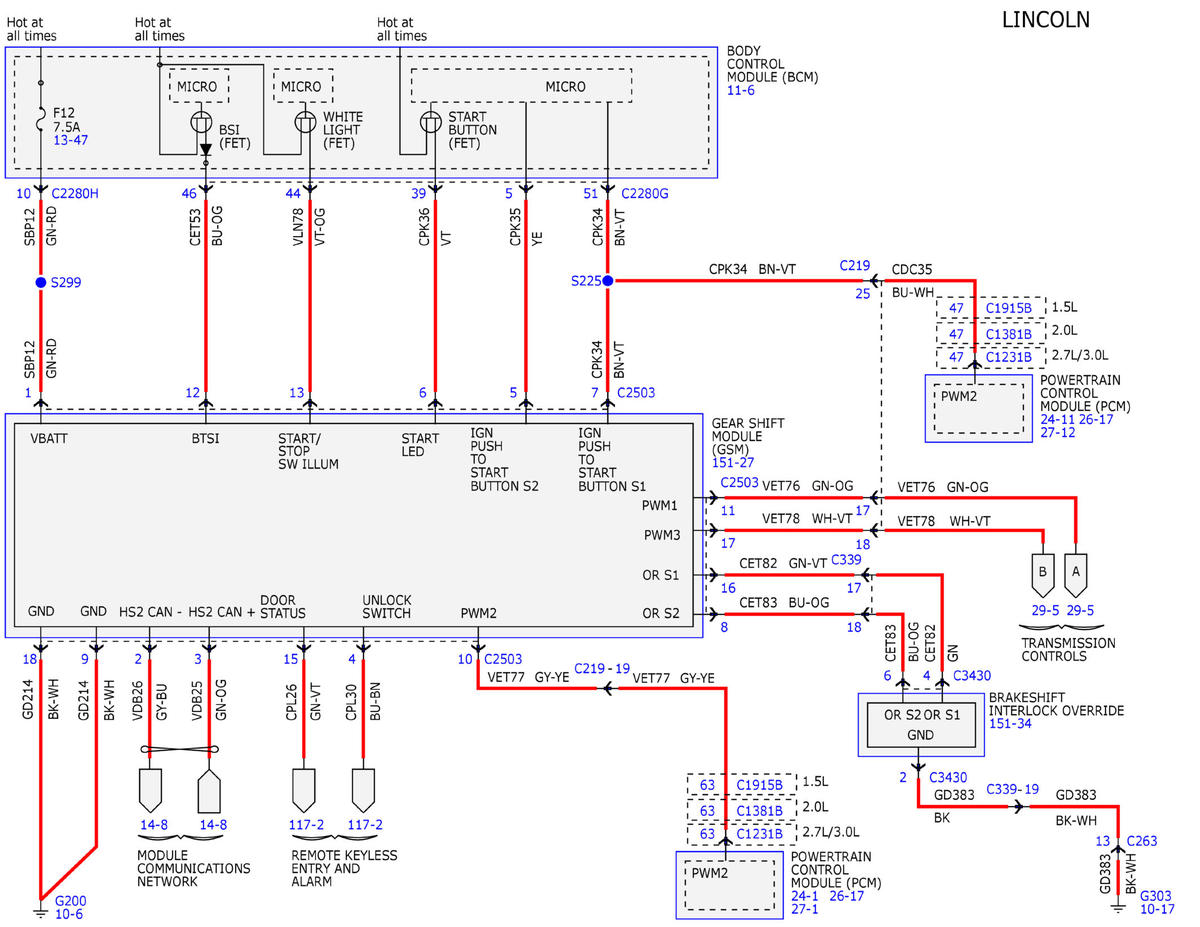

Fig 4: Transmission Controls - 6F50/6F55 Wiring Diagram (4 Of 5)
GFDWR89794Courtesy of FORD MOTOR COMPANY

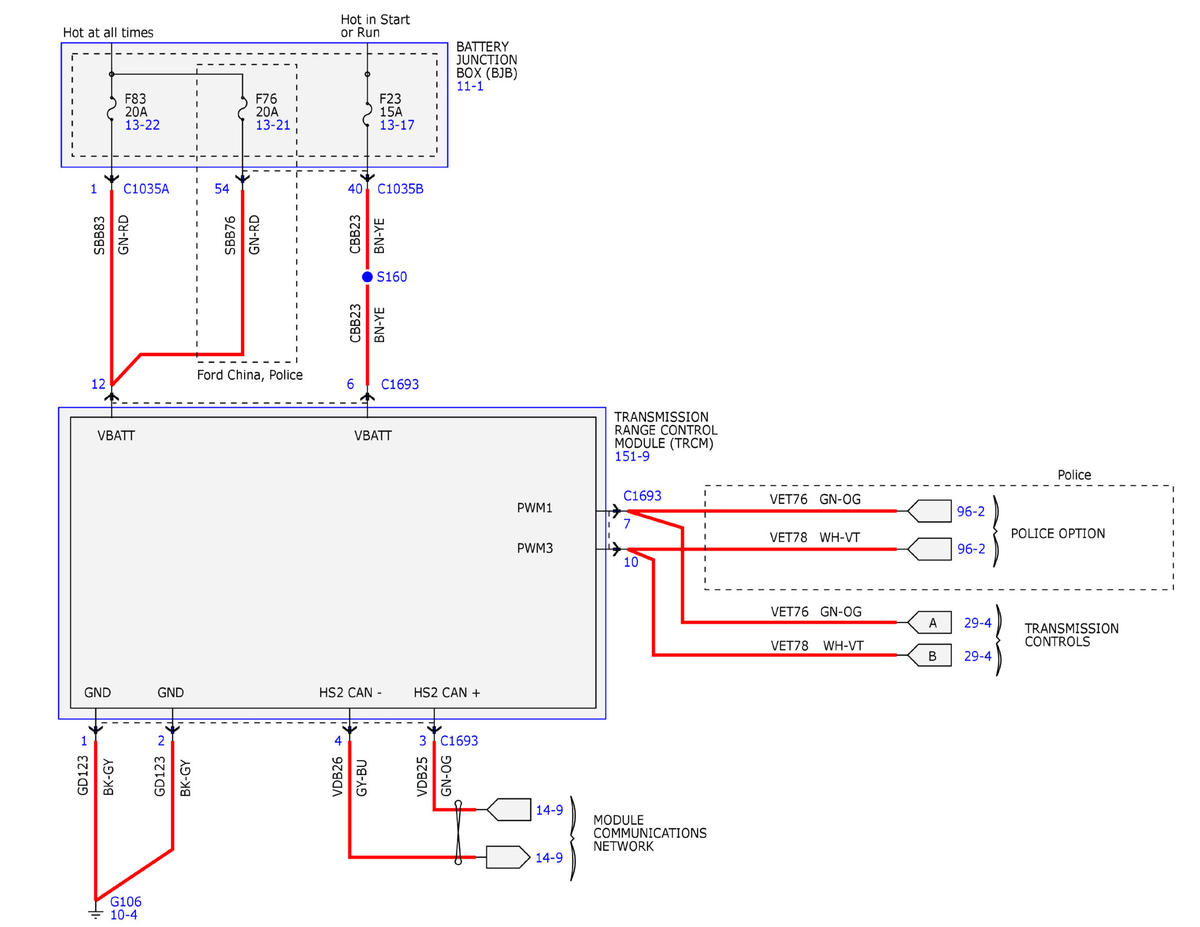

Fig 5: Transmission Controls - 6F50/6F55 Wiring Diagram (5 Of 5)
GFDWR89795Courtesy of FORD MOTOR COMPANY
