Transmission Controls - 6F35

Fig 1: Transmission Controls - 6F35 Wiring Diagram (1 Of 8)
GFDWR89783Courtesy of FORD MOTOR COMPANY

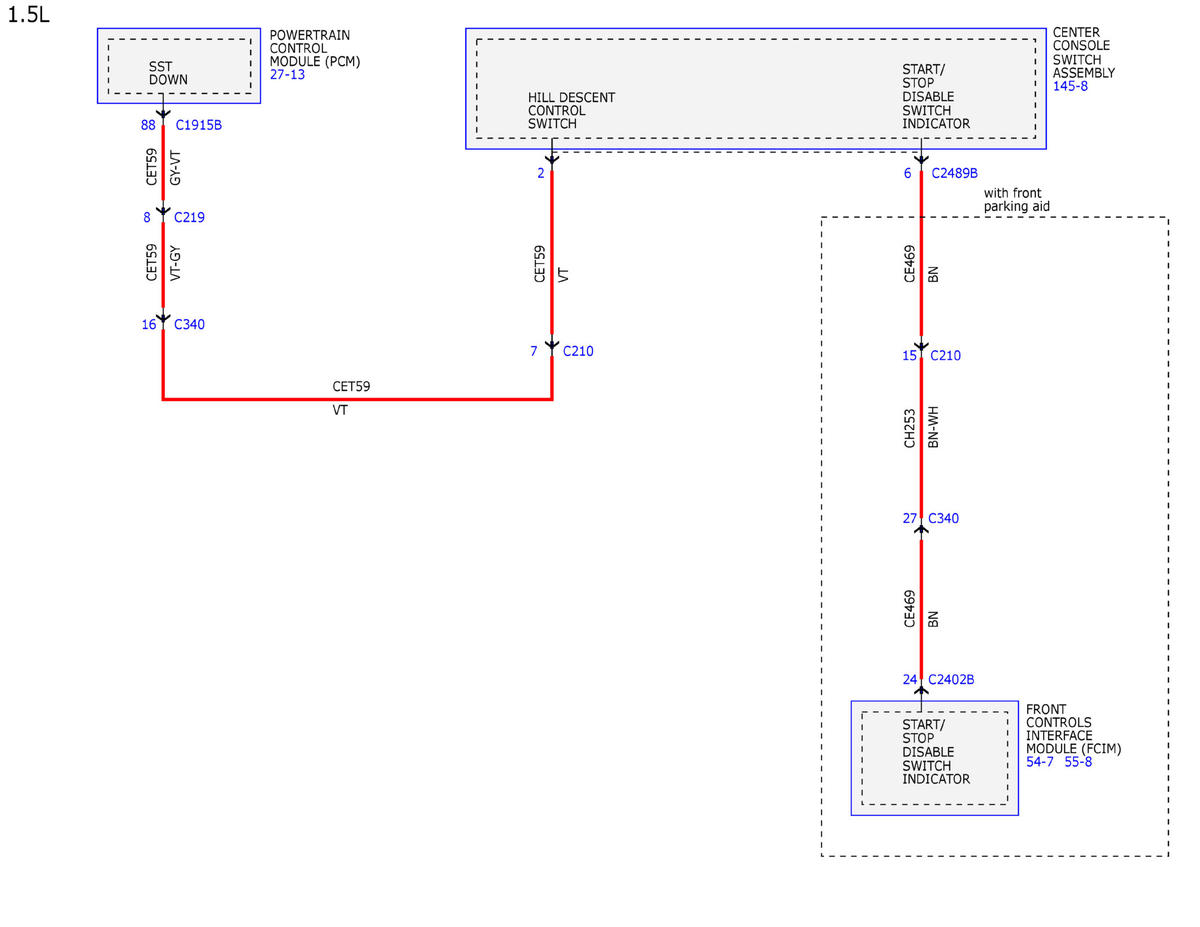

Fig 2: Transmission Controls - 6F35 Wiring Diagram (2 Of 8)
GFDWR89784Courtesy of FORD MOTOR COMPANY
Fig 3: Transmission Controls - 6F35 Wiring Diagram (3 Of 8)
GFDWR89785Courtesy of FORD MOTOR COMPANY

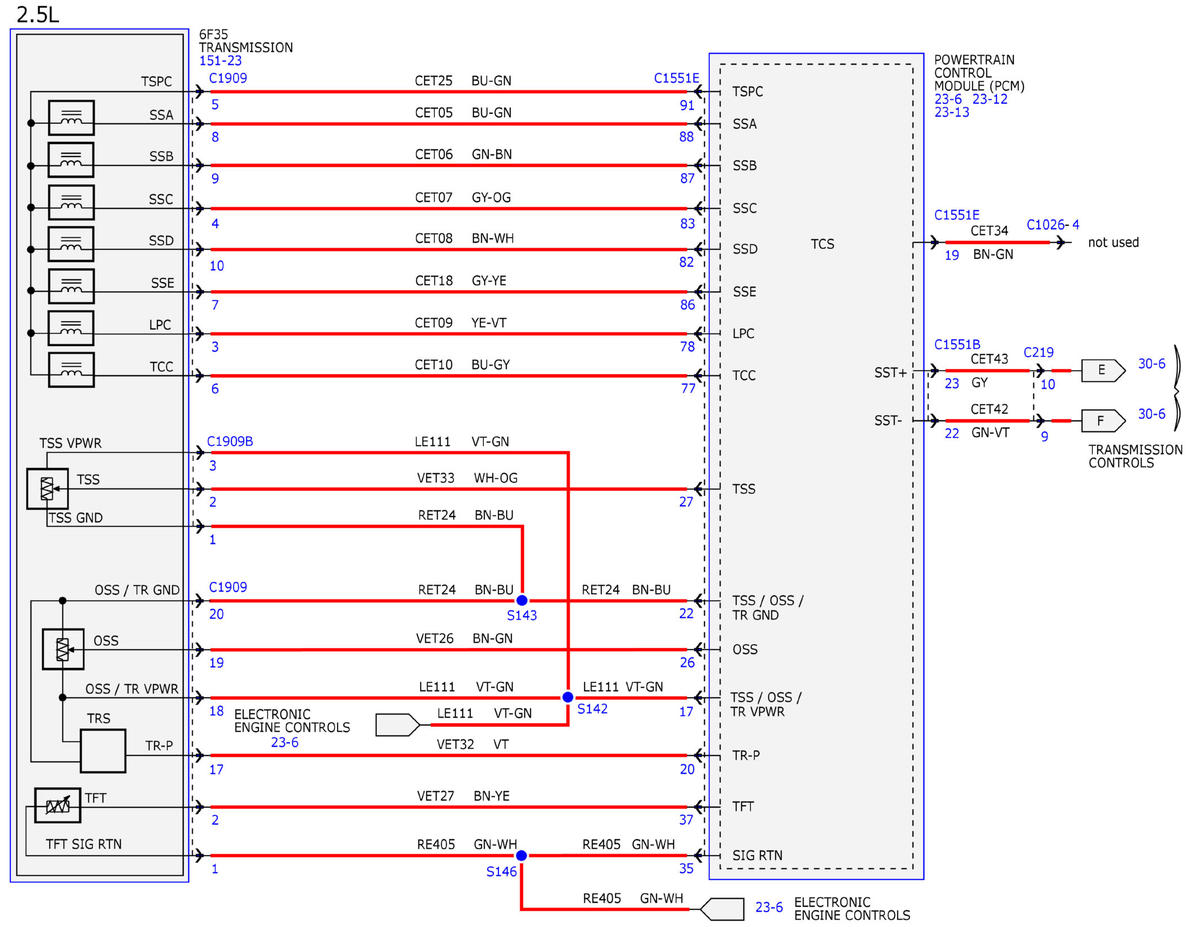

Fig 4: Transmission Controls - 6F35 Wiring Diagram (4 Of 8)
GFDWR89786Courtesy of FORD MOTOR COMPANY

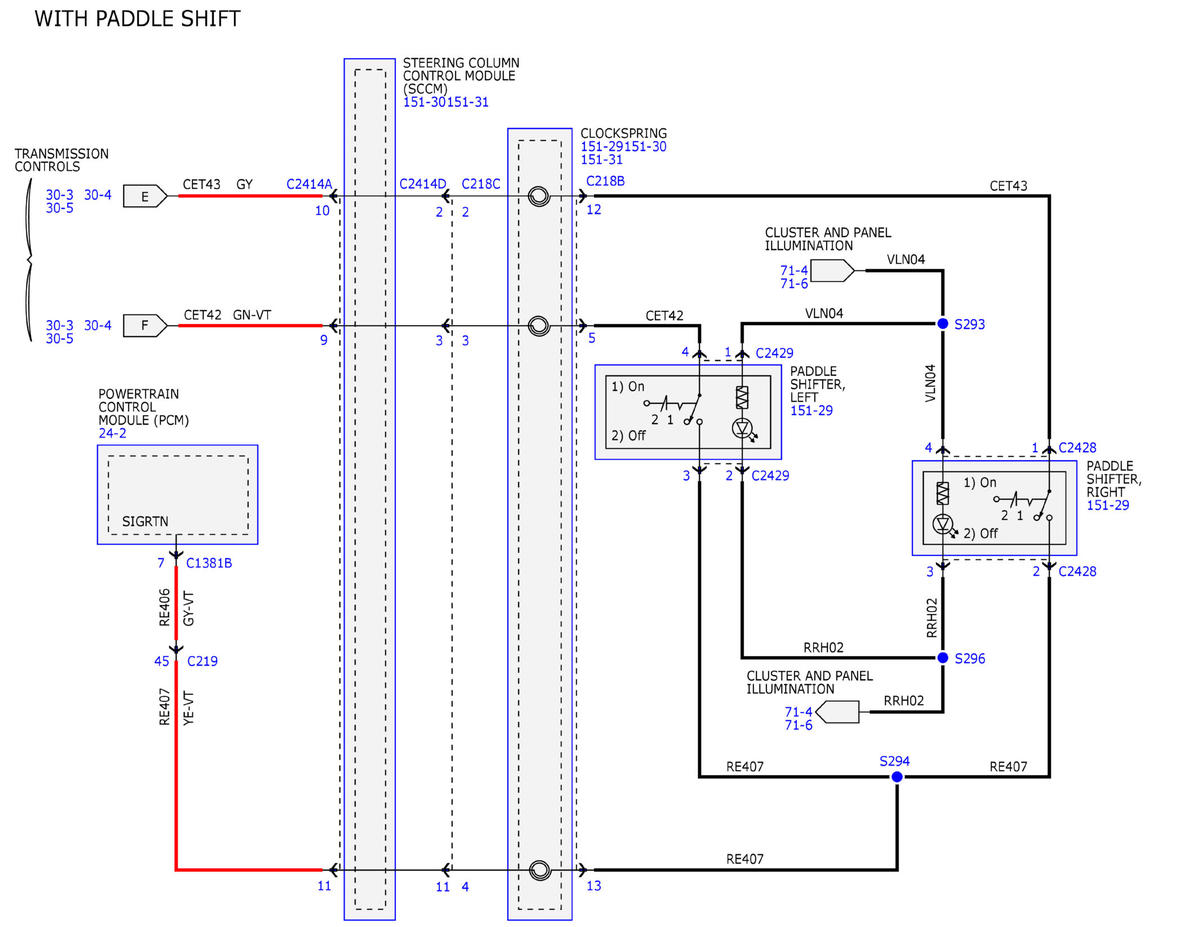

Fig 5: Transmission Controls - 6F35 Wiring Diagram (5 Of 8)
GFDWR89787Courtesy of FORD MOTOR COMPANY
Fig 6: Transmission Controls - 6F35 Wiring Diagram (6 Of 8)
GFDWR89788Courtesy of FORD MOTOR COMPANY
Fig 7: Transmission Controls - 6F35 Wiring Diagram (7 Of 8)
GFDWR89789Courtesy of FORD MOTOR COMPANY
Fig 8: Transmission Controls - 6F35 Wiring Diagram (8 Of 8)
GFDWR89790Courtesy of FORD MOTOR COMPANY
