Tire Pressure Monitor System

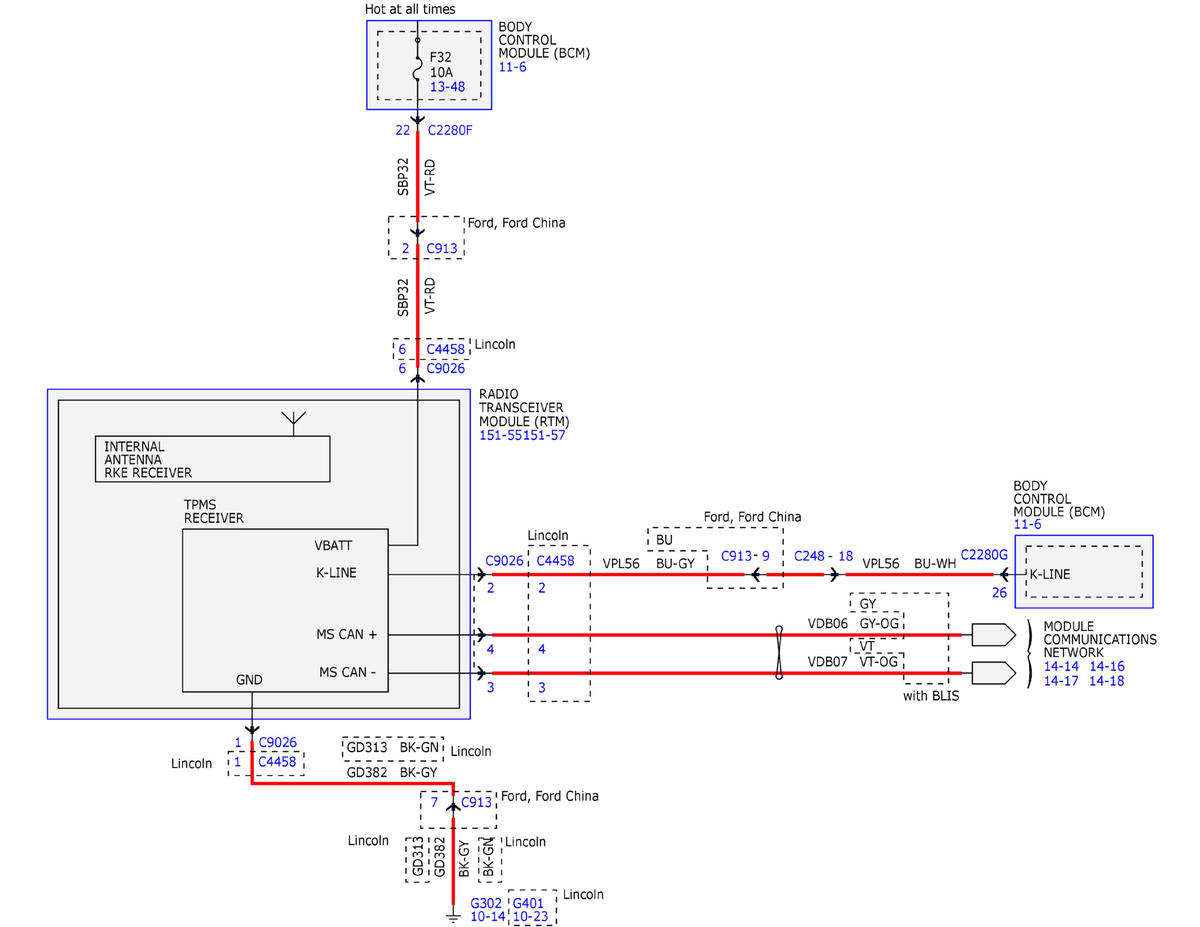

Fig 1: Tire Pressure Monitor System Wiring Diagram

GFDWR89782

Courtesy of FORD MOTOR COMPANY
