Shift Interlock

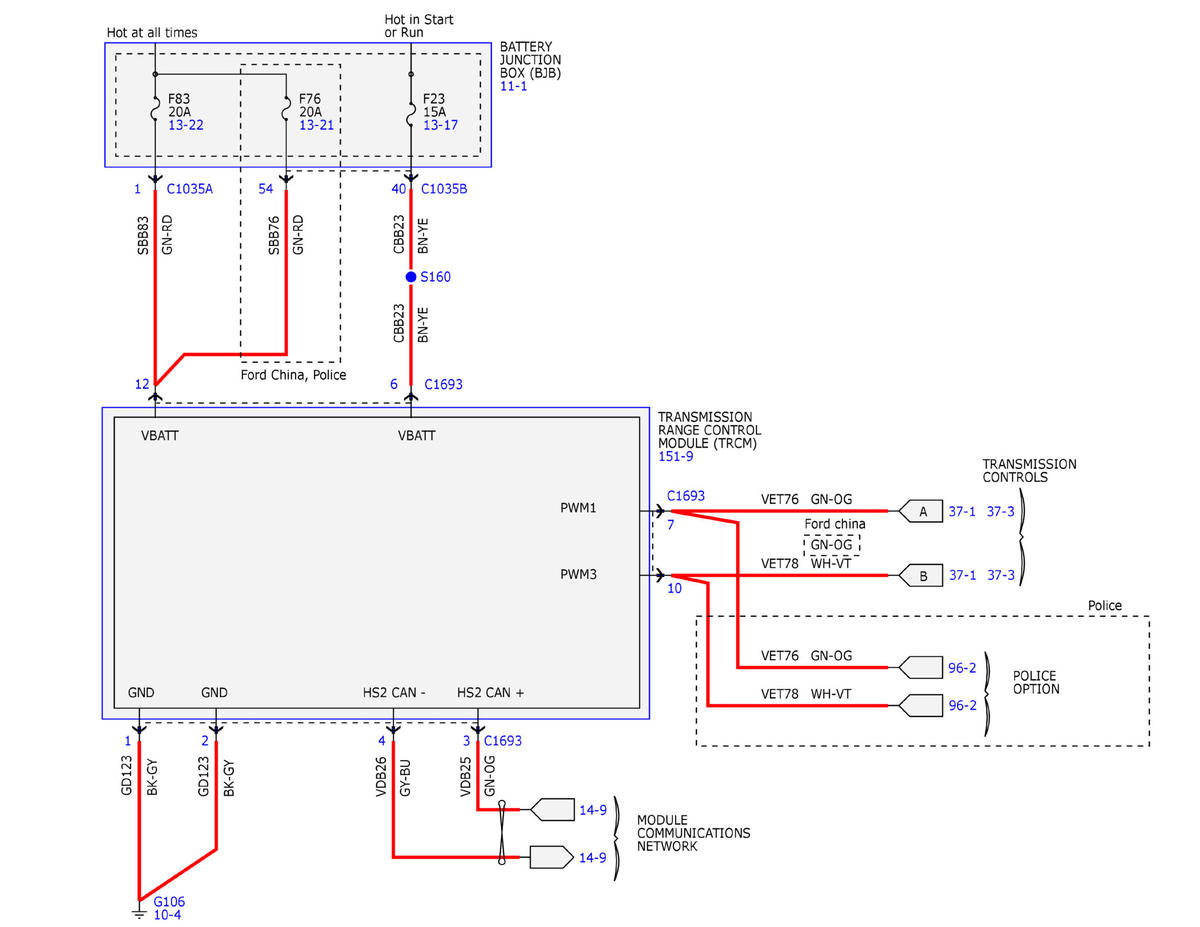

Fig 1: Shift Interlock Wiring Diagram (1 Of 4)
GFDWR89765Courtesy of FORD MOTOR COMPANY

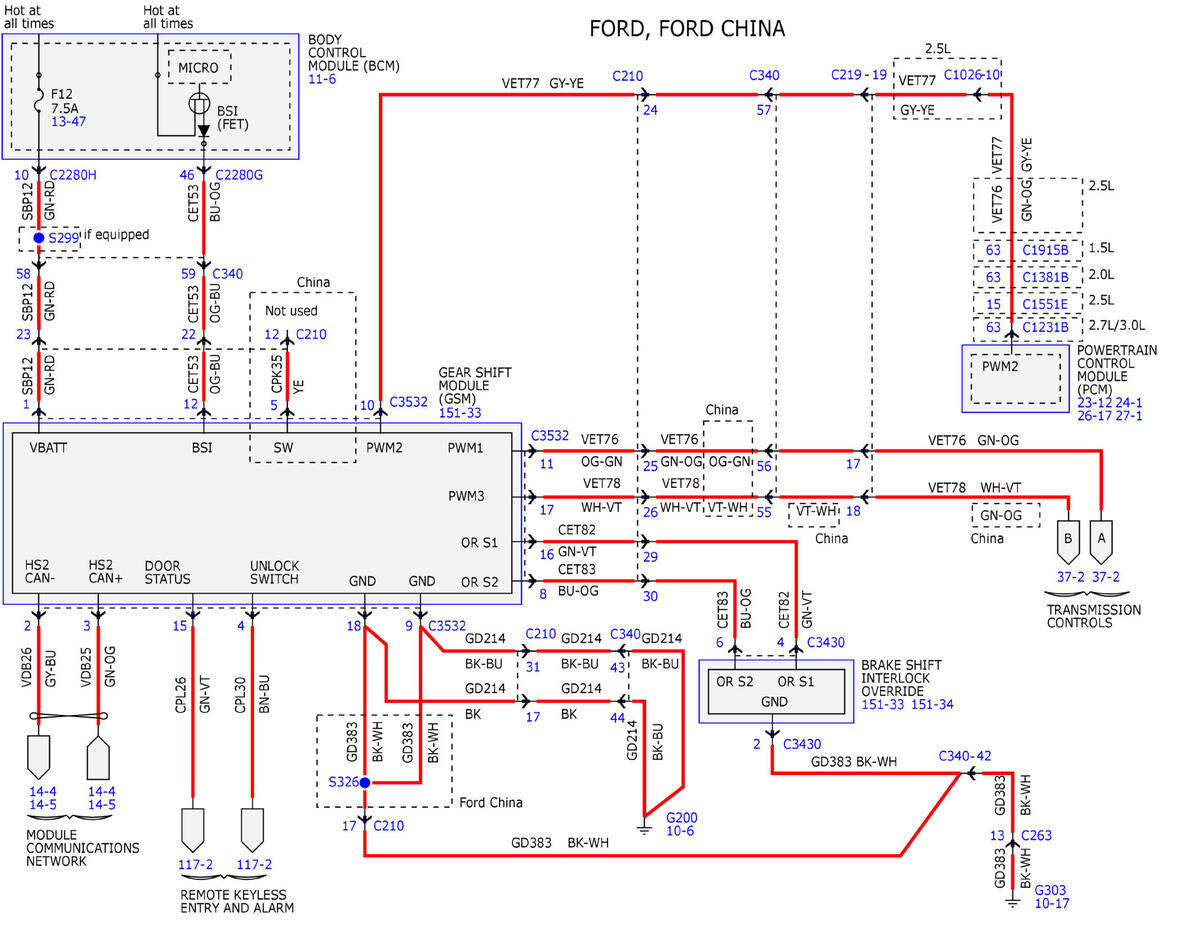

Fig 2: Shift Interlock Wiring Diagram (2 Of 4)
GFDWR89766Courtesy of FORD MOTOR COMPANY

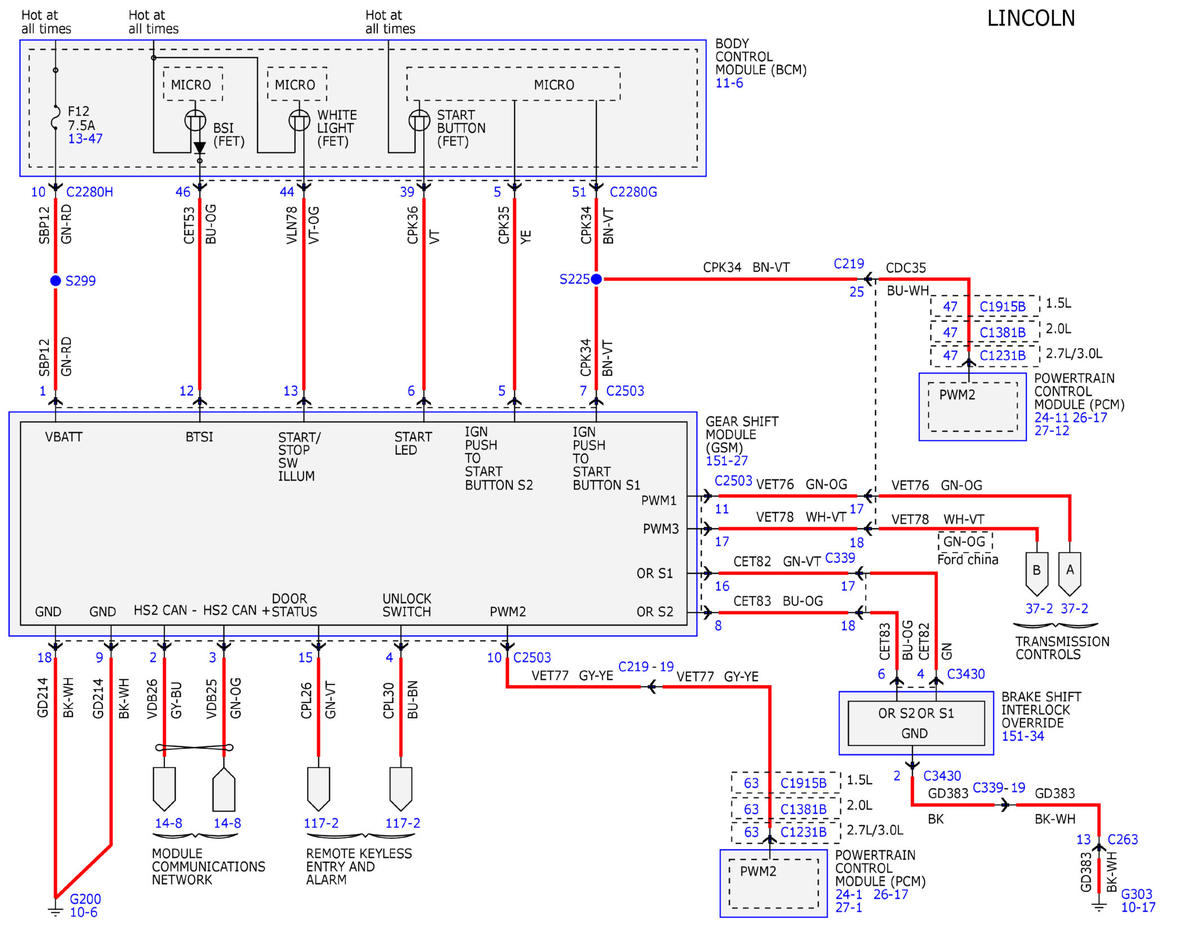

Fig 3: Shift Interlock Wiring Diagram (3 Of 4)
GFDWR89767Courtesy of FORD MOTOR COMPANY

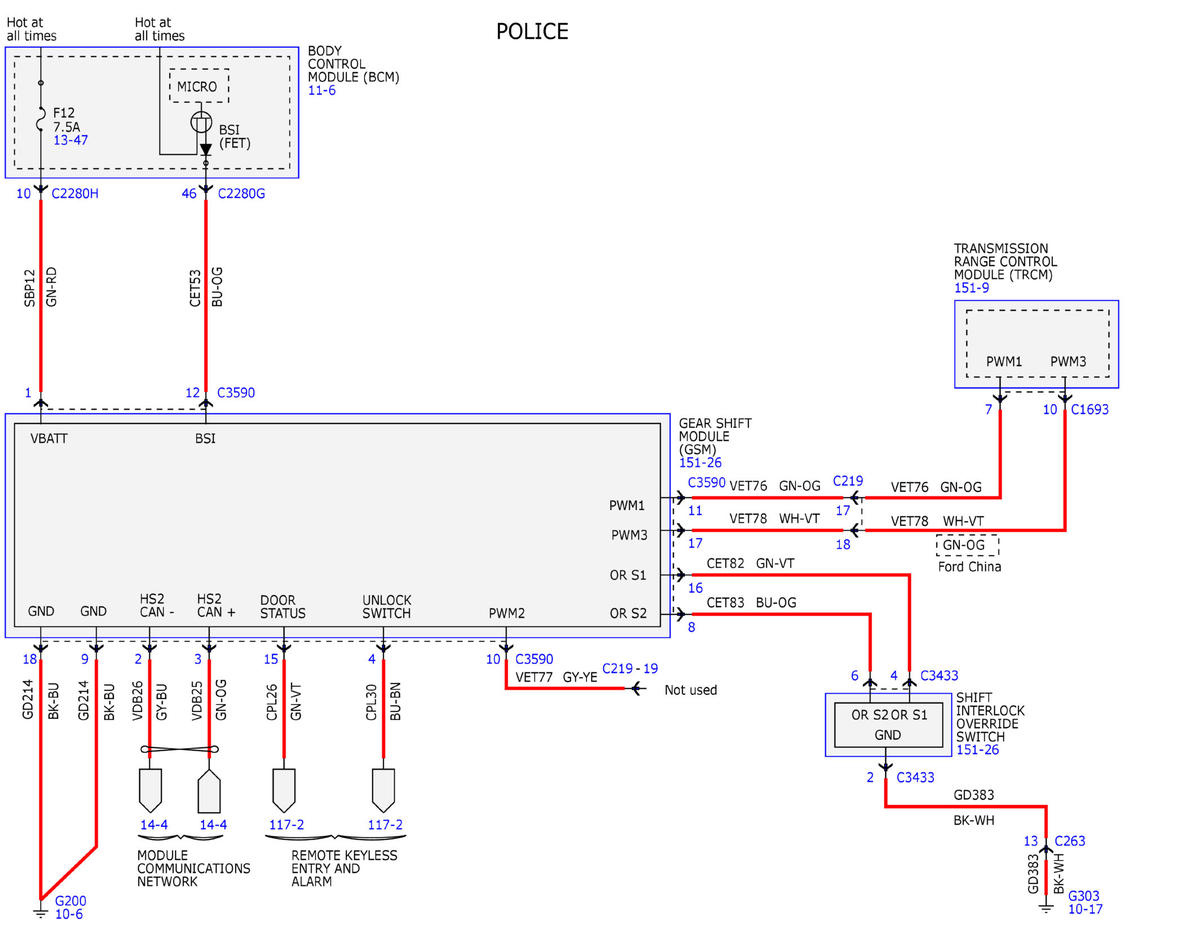

Fig 4: Shift Interlock Wiring Diagram (4 Of 4)
GFDWR89768Courtesy of FORD MOTOR COMPANY
