Roof Opening Panel

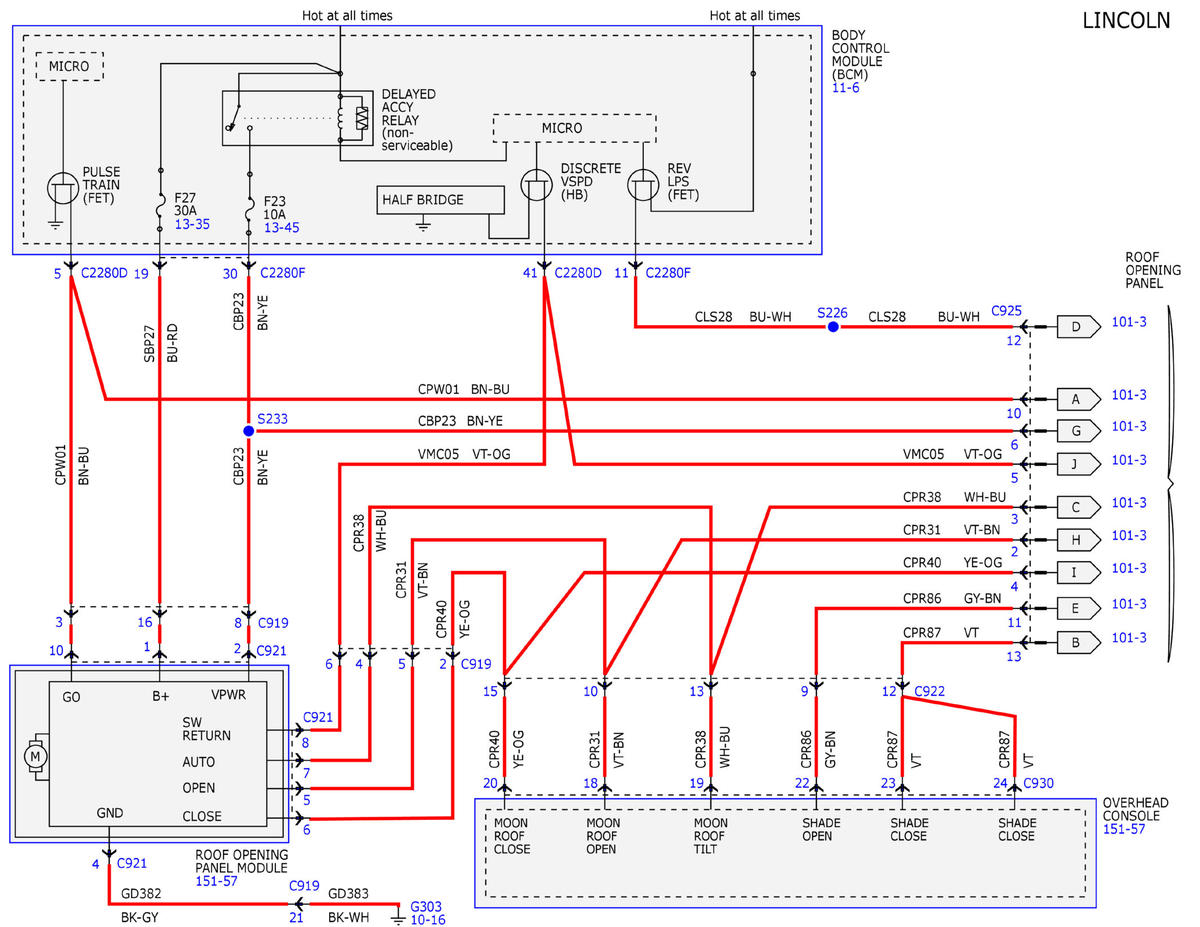

Fig 1: Roof Opening Panel Wiring Diagram (1 Of 3)
GFDWR89762Courtesy of FORD MOTOR COMPANY

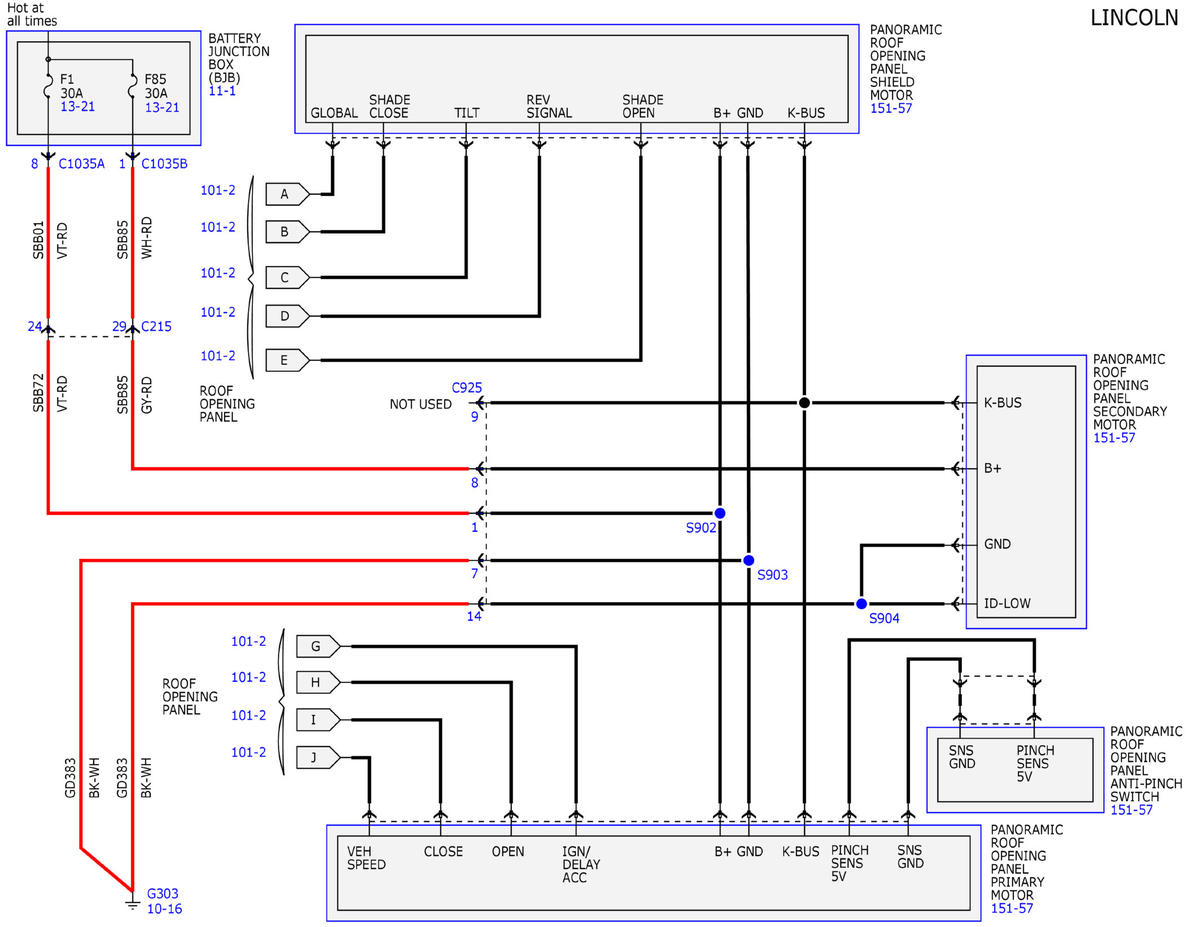

Fig 2: Roof Opening Panel Wiring Diagram (2 Of 3)
GFDWR89763Courtesy of FORD MOTOR COMPANY

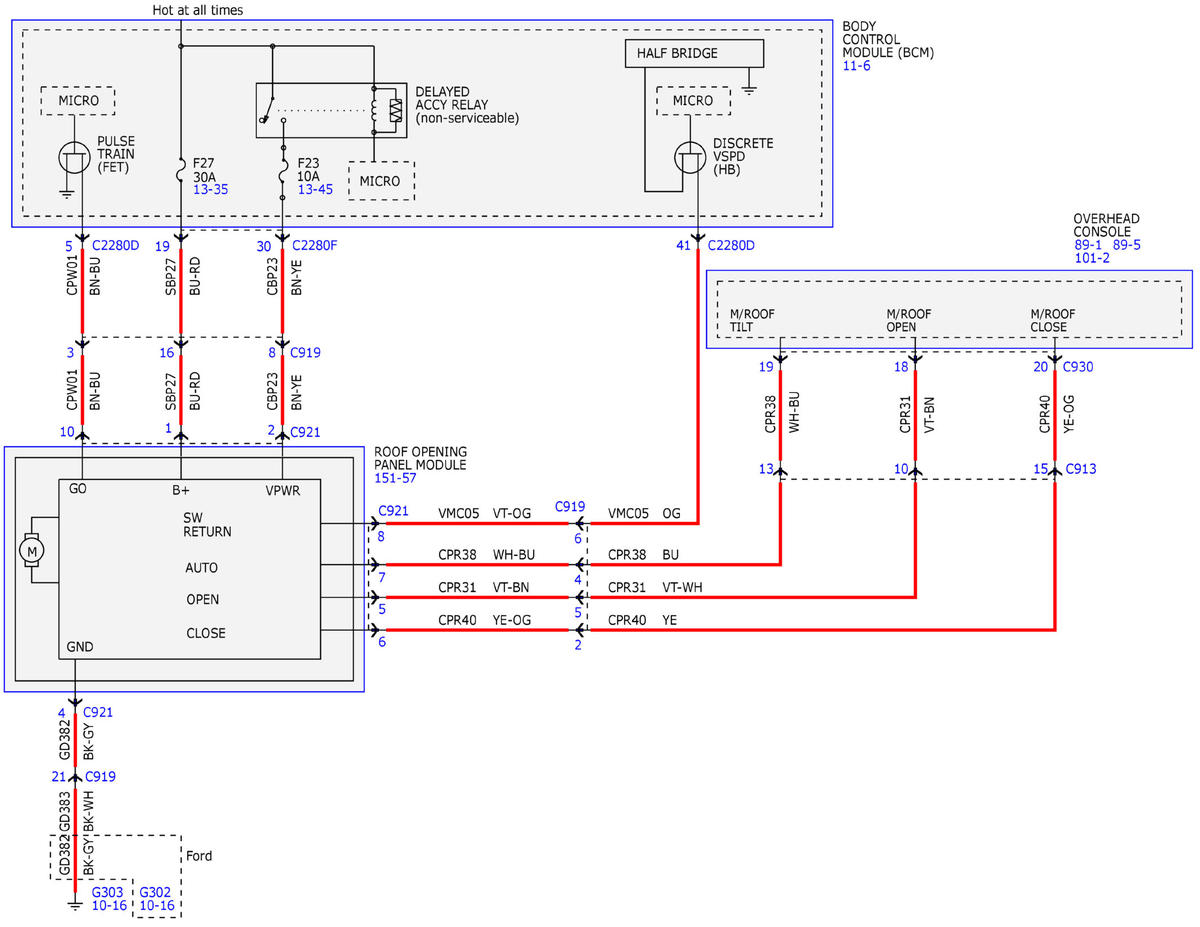

Fig 3: Roof Opening Panel Wiring Diagram (3 Of 3)
GFDWR89764Courtesy of FORD MOTOR COMPANY
