Power Mirrors

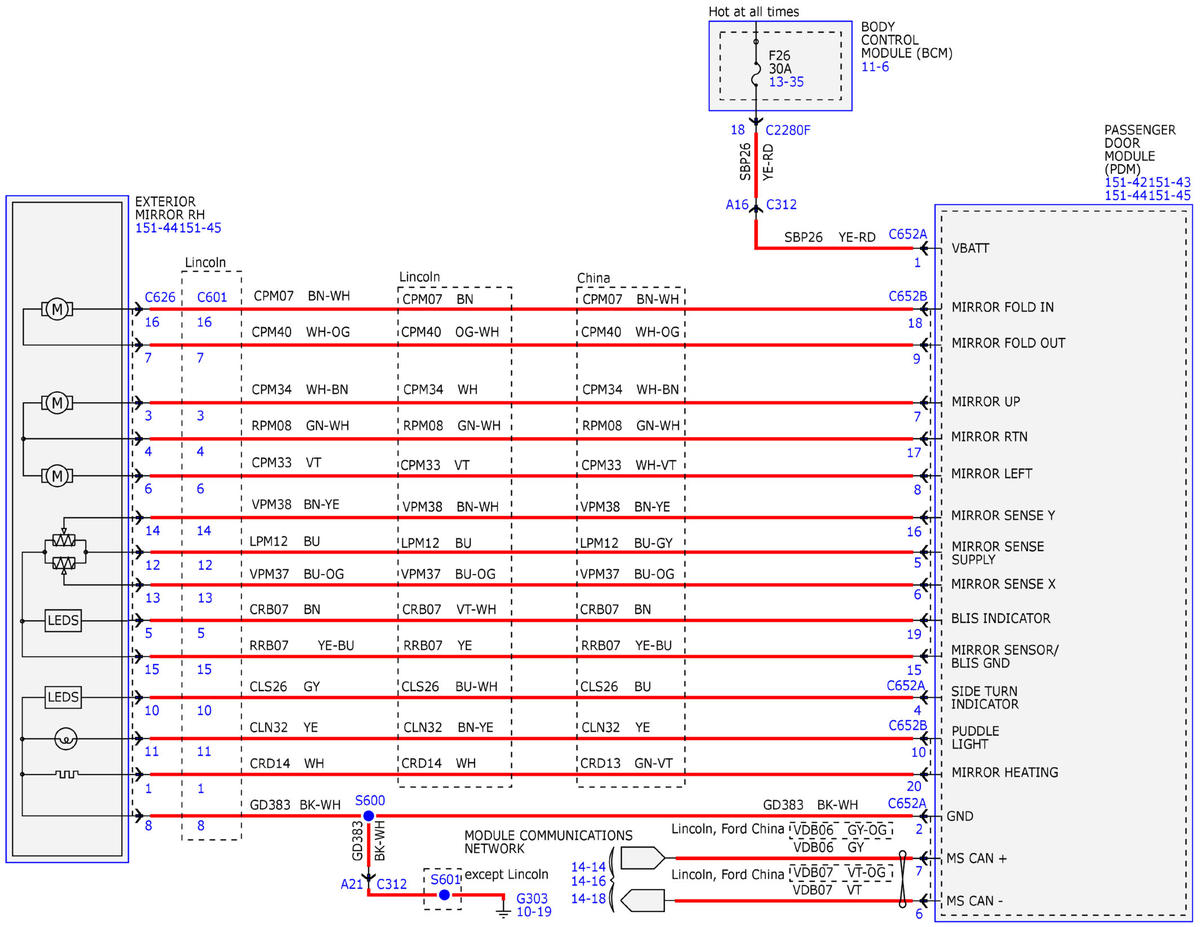

Fig 1: Power Mirrors Wiring Diagram (1 Of 7)
GFDWR89714Courtesy of FORD MOTOR COMPANY

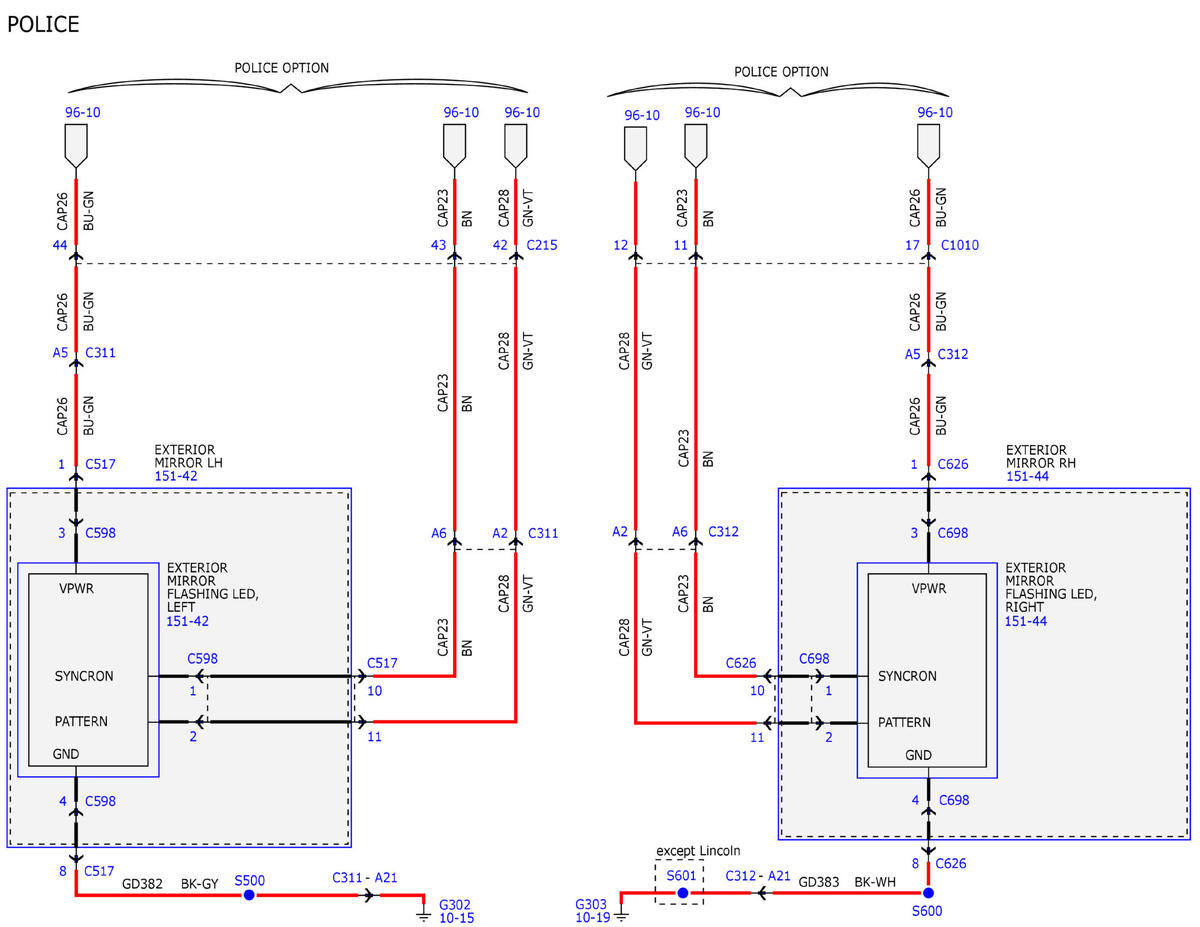

Fig 2: Power Mirrors Wiring Diagram (2 Of 7)
GFDWR89715Courtesy of FORD MOTOR COMPANY

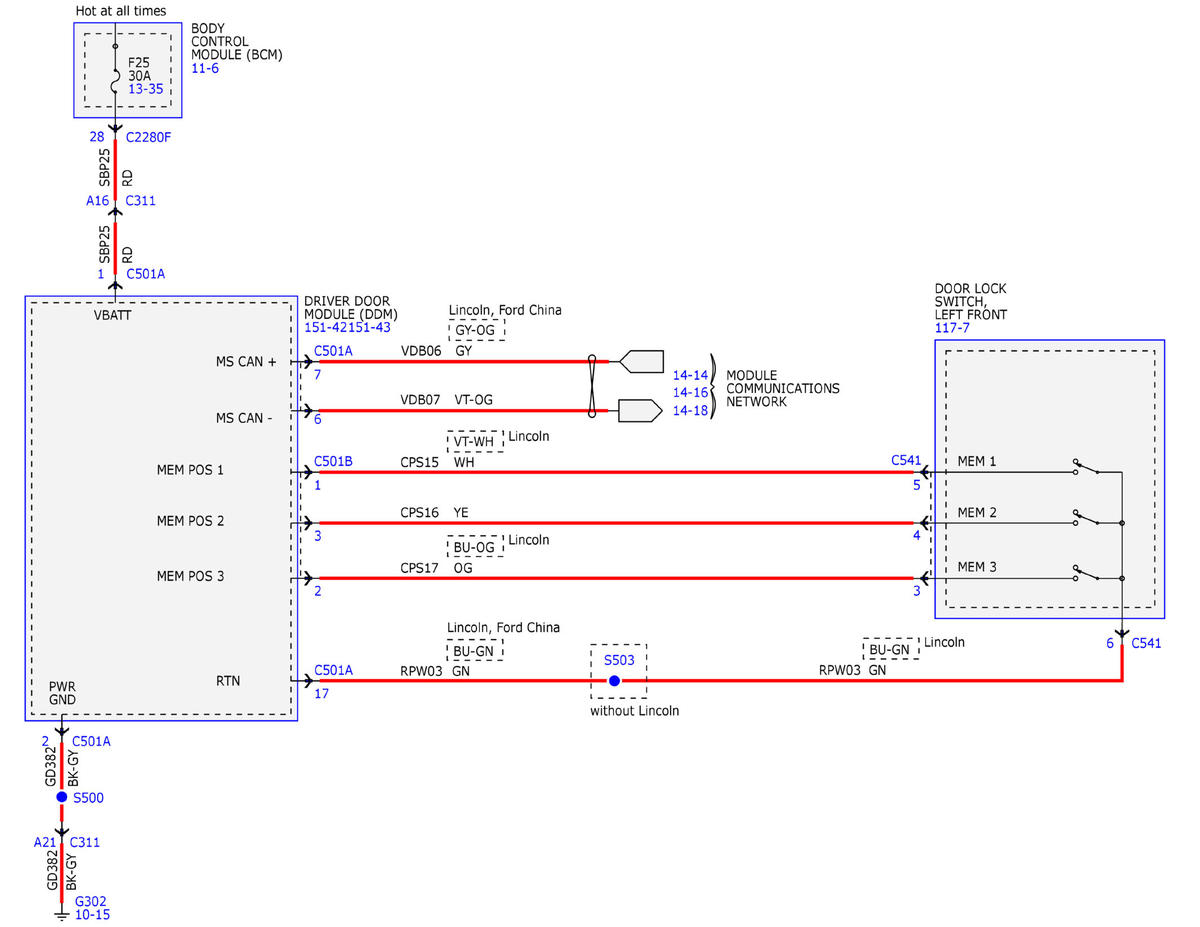

Fig 3: Power Mirrors Wiring Diagram (3 Of 7)
GFDWR89716Courtesy of FORD MOTOR COMPANY

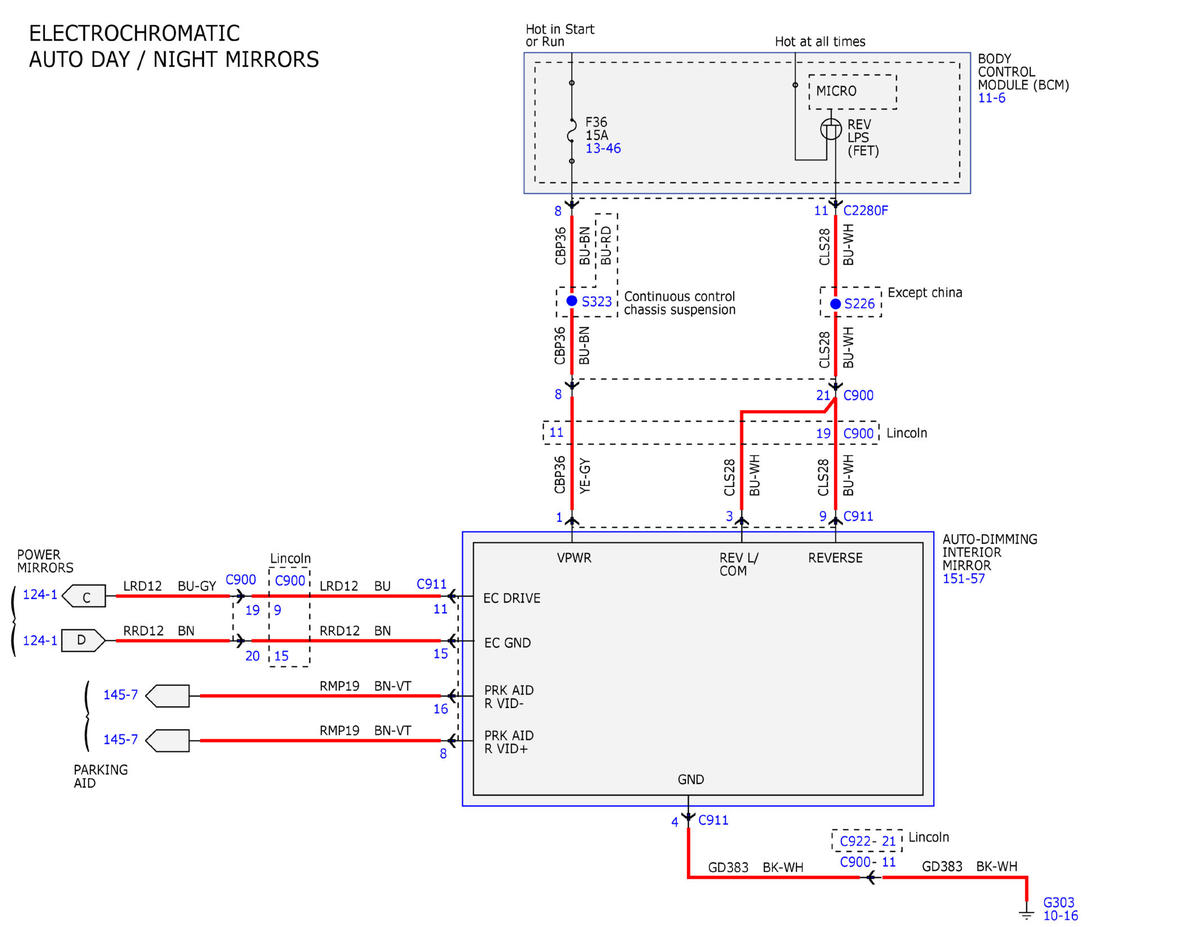

Fig 4: Power Mirrors Wiring Diagram (4 Of 7)
GFDWR89717Courtesy of FORD MOTOR COMPANY

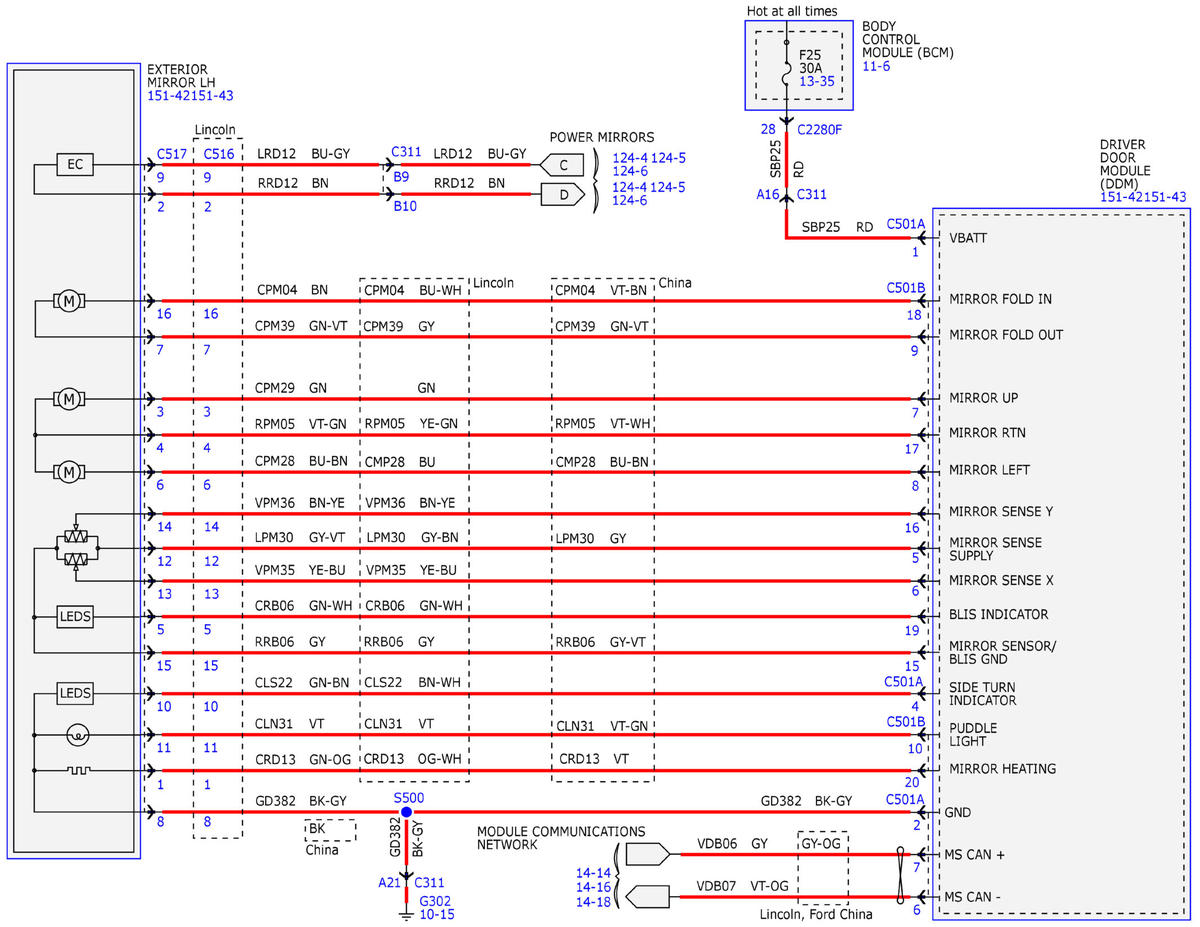

Fig 5: Power Mirrors Wiring Diagram (5 Of 7)
GFDWR89718Courtesy of FORD MOTOR COMPANY

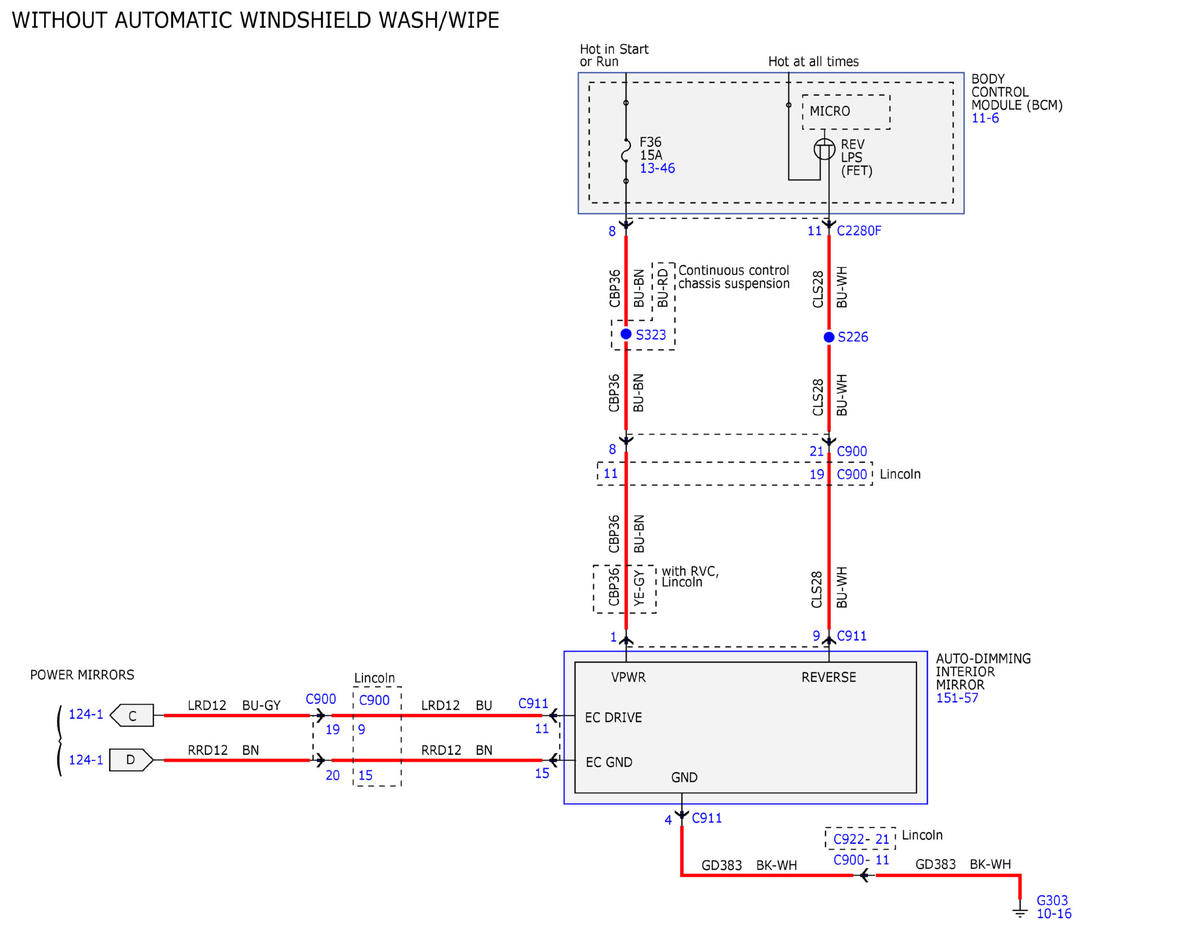

Fig 6: Power Mirrors Wiring Diagram (6 Of 7)
GFDWR89719Courtesy of FORD MOTOR COMPANY

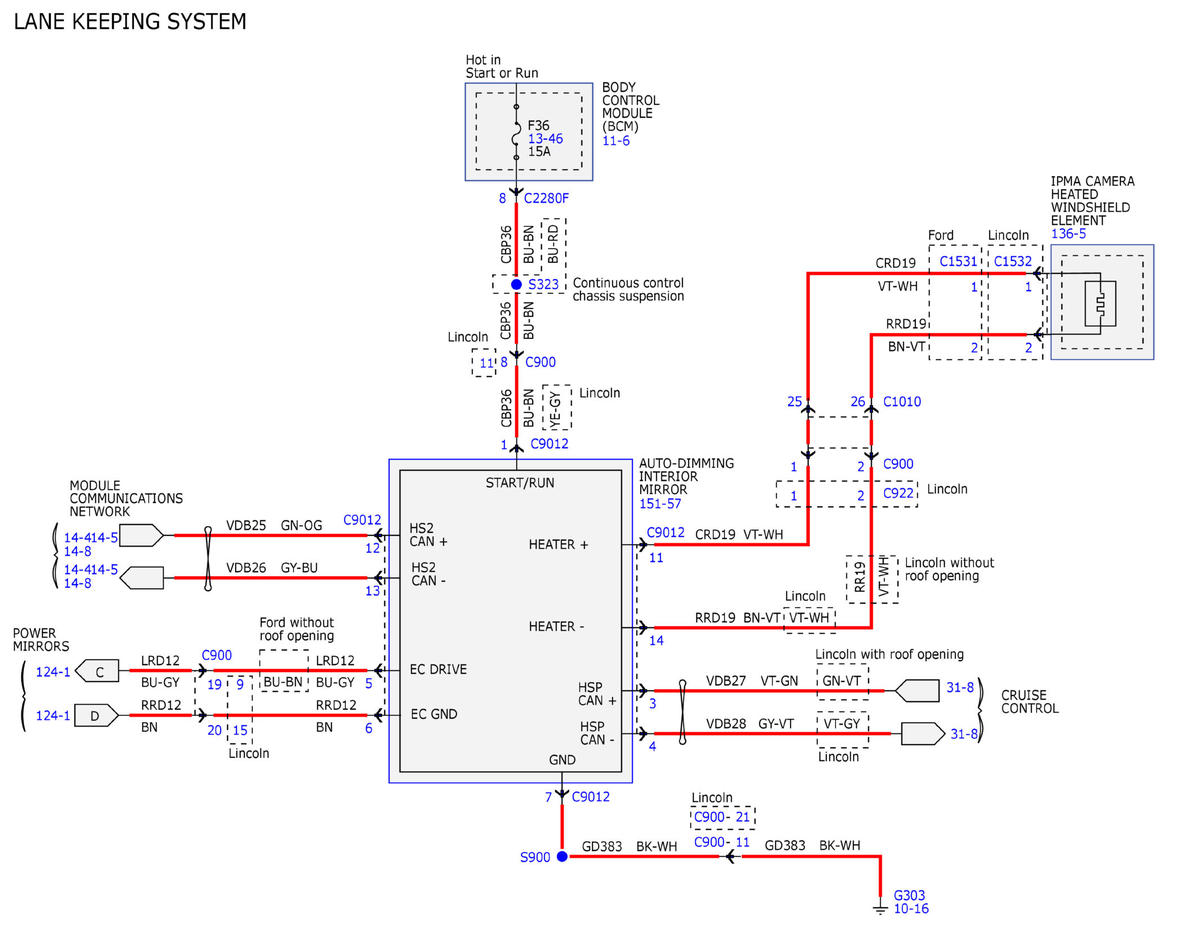

Fig 7: Power Mirrors Wiring Diagram (7 Of 7)
GFDWR89720Courtesy of FORD MOTOR COMPANY
