Power Distribution

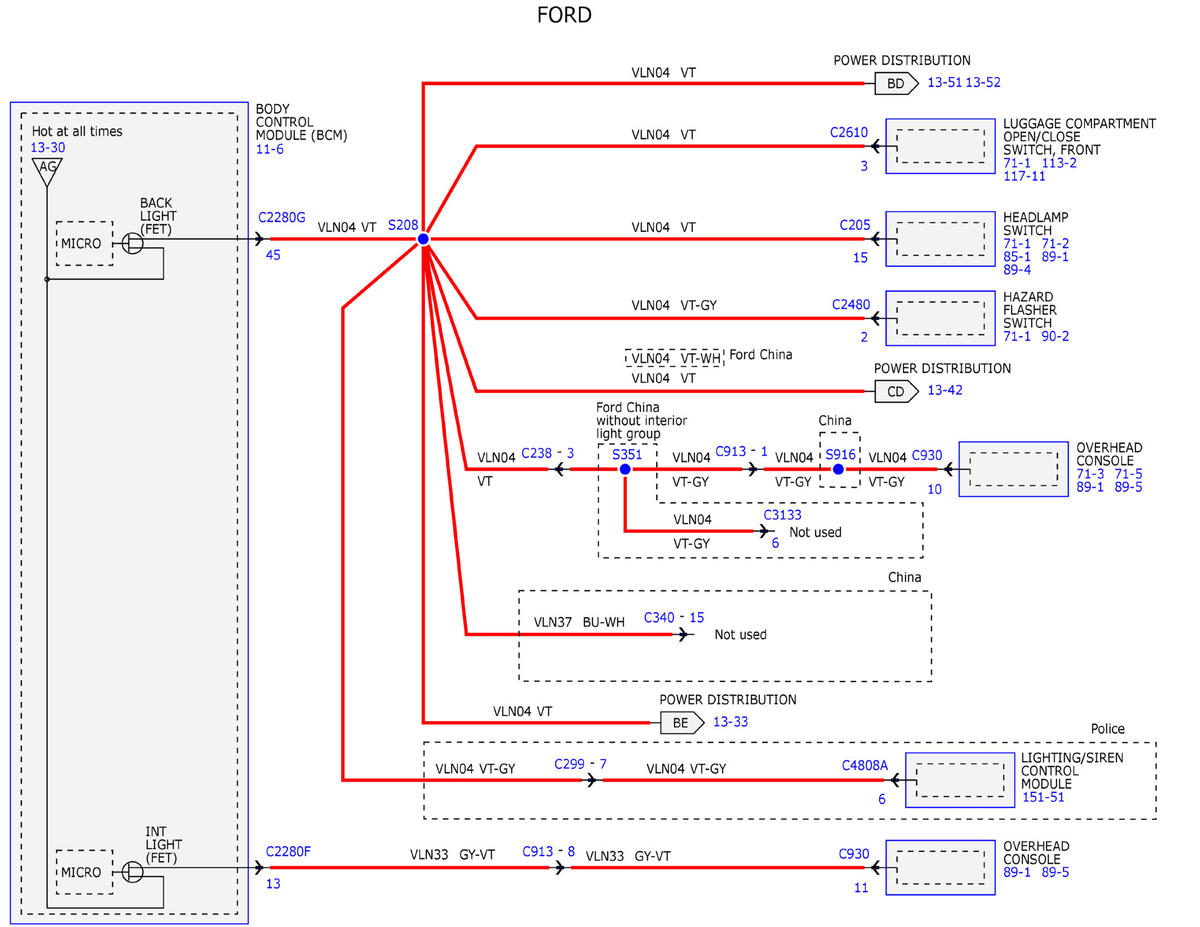

Fig 1: Power Distribution Wiring Diagram (1 Of 59)

GFDWR89655

Courtesy of FORD MOTOR COMPANY

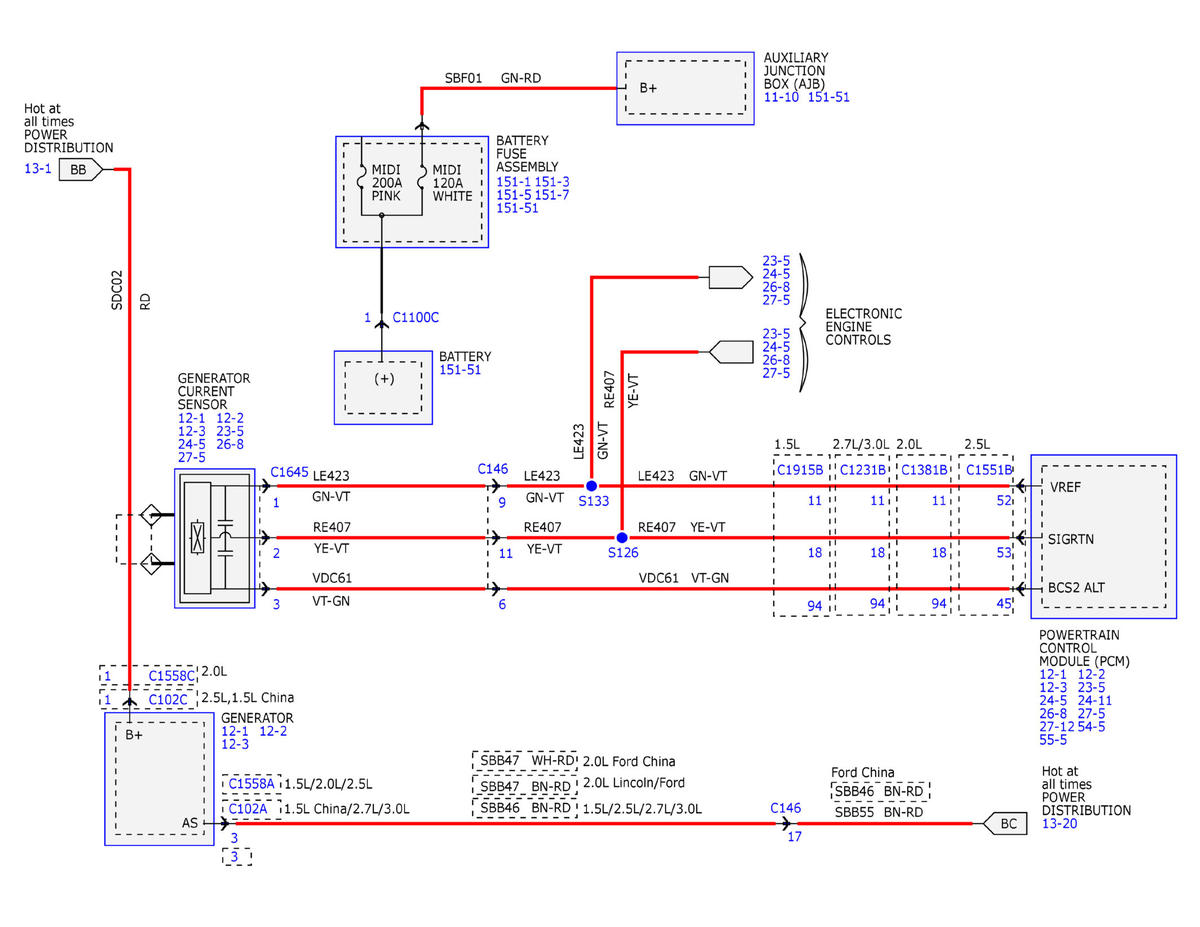

Fig 2: Power Distribution Wiring Diagram (2 Of 59)

GFDWR89656

Courtesy of FORD MOTOR COMPANY

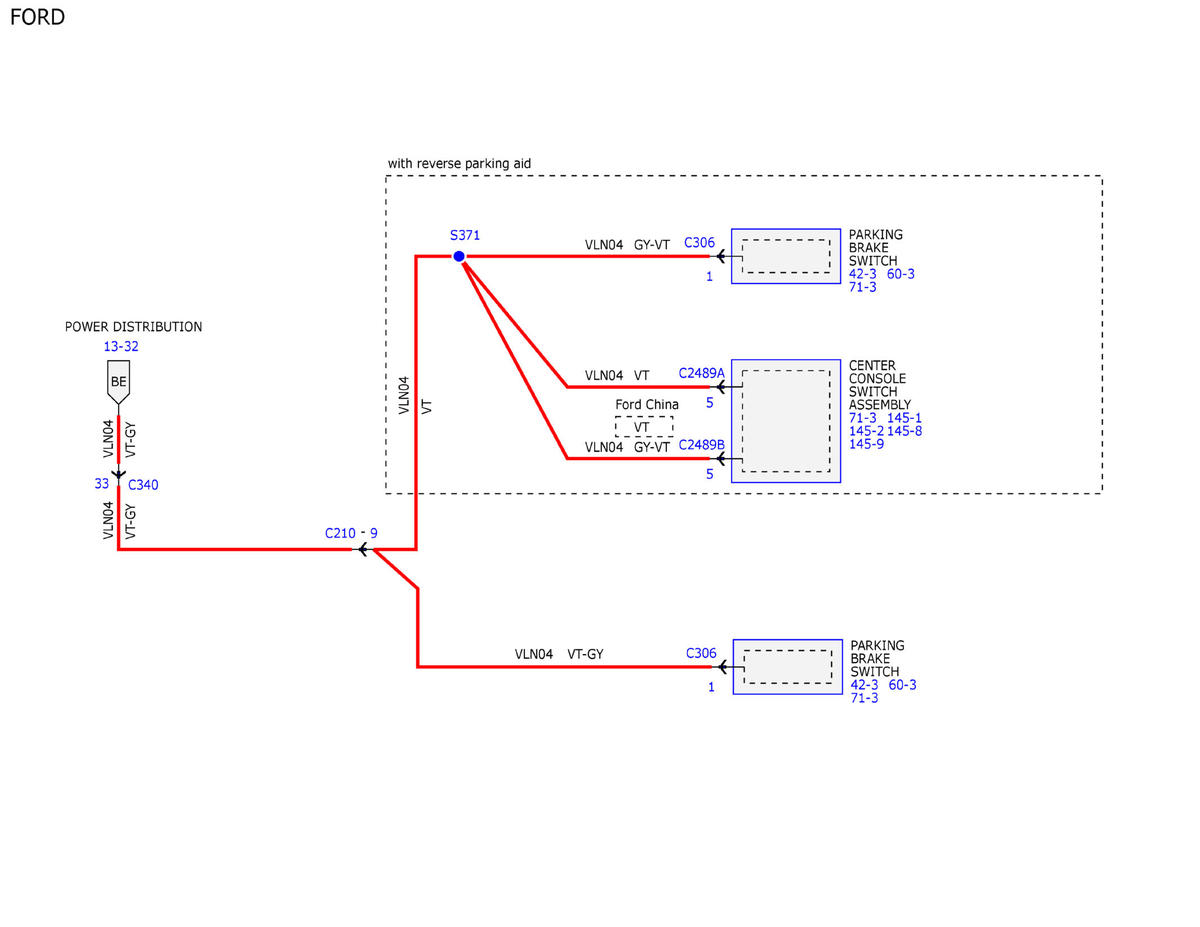

Fig 3: Power Distribution Wiring Diagram (3 Of 59)

GFDWR89657

Courtesy of FORD MOTOR COMPANY

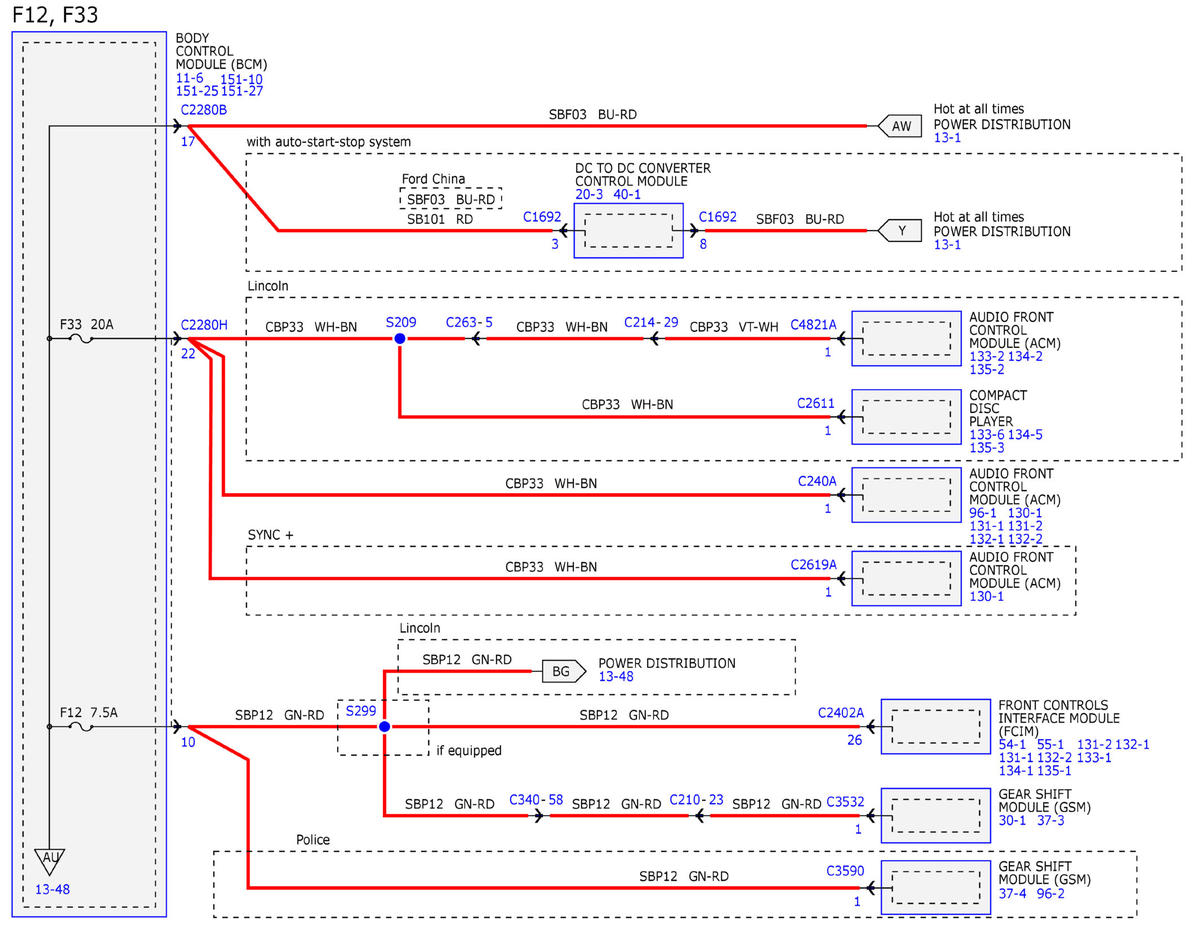

Fig 4: Power Distribution Wiring Diagram (4 Of 59)

GFDWR89658

Courtesy of FORD MOTOR COMPANY

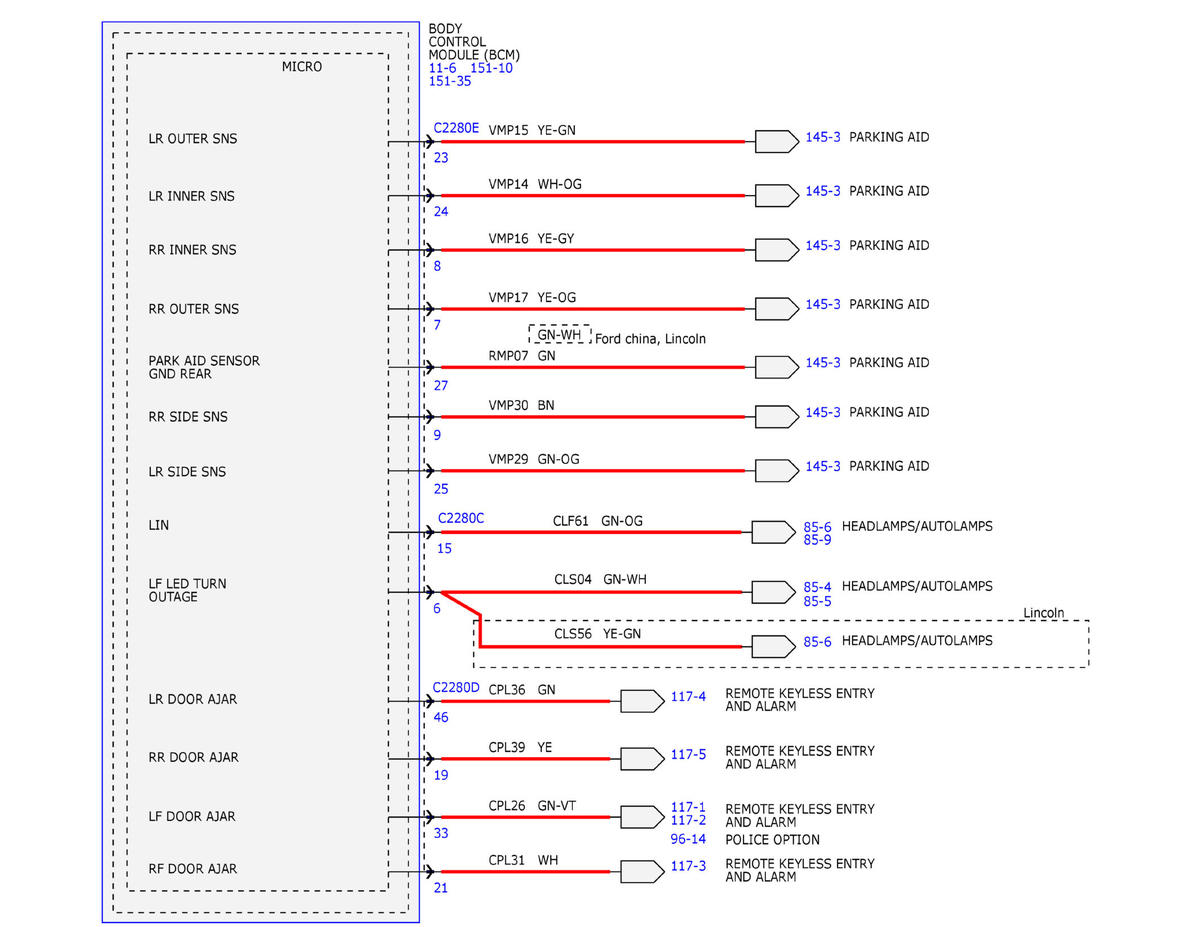

Fig 5: Power Distribution Wiring Diagram (5 Of 59)

GFDWR89659

Courtesy of FORD MOTOR COMPANY

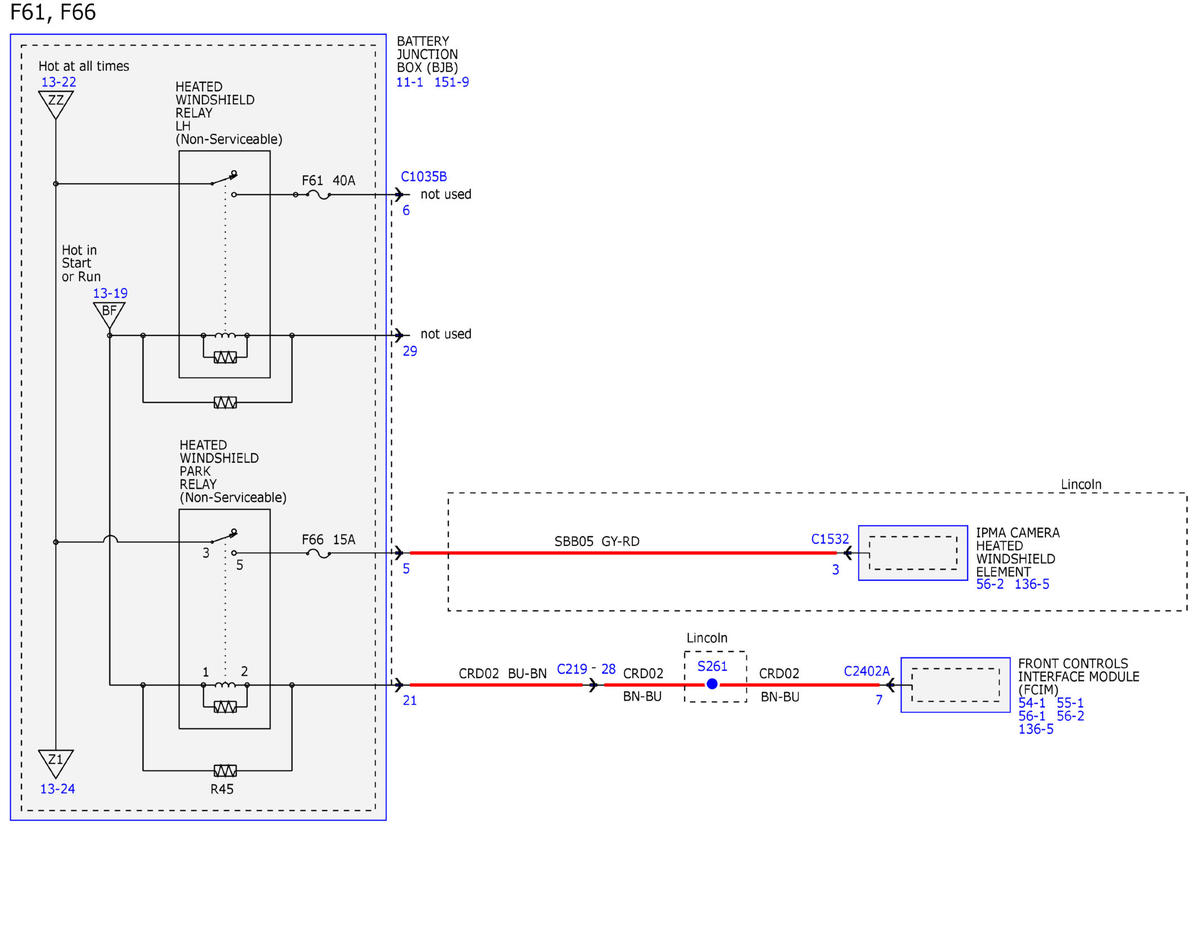

Fig 6: Power Distribution Wiring Diagram (6 Of 59)

GFDWR89660

Courtesy of FORD MOTOR COMPANY

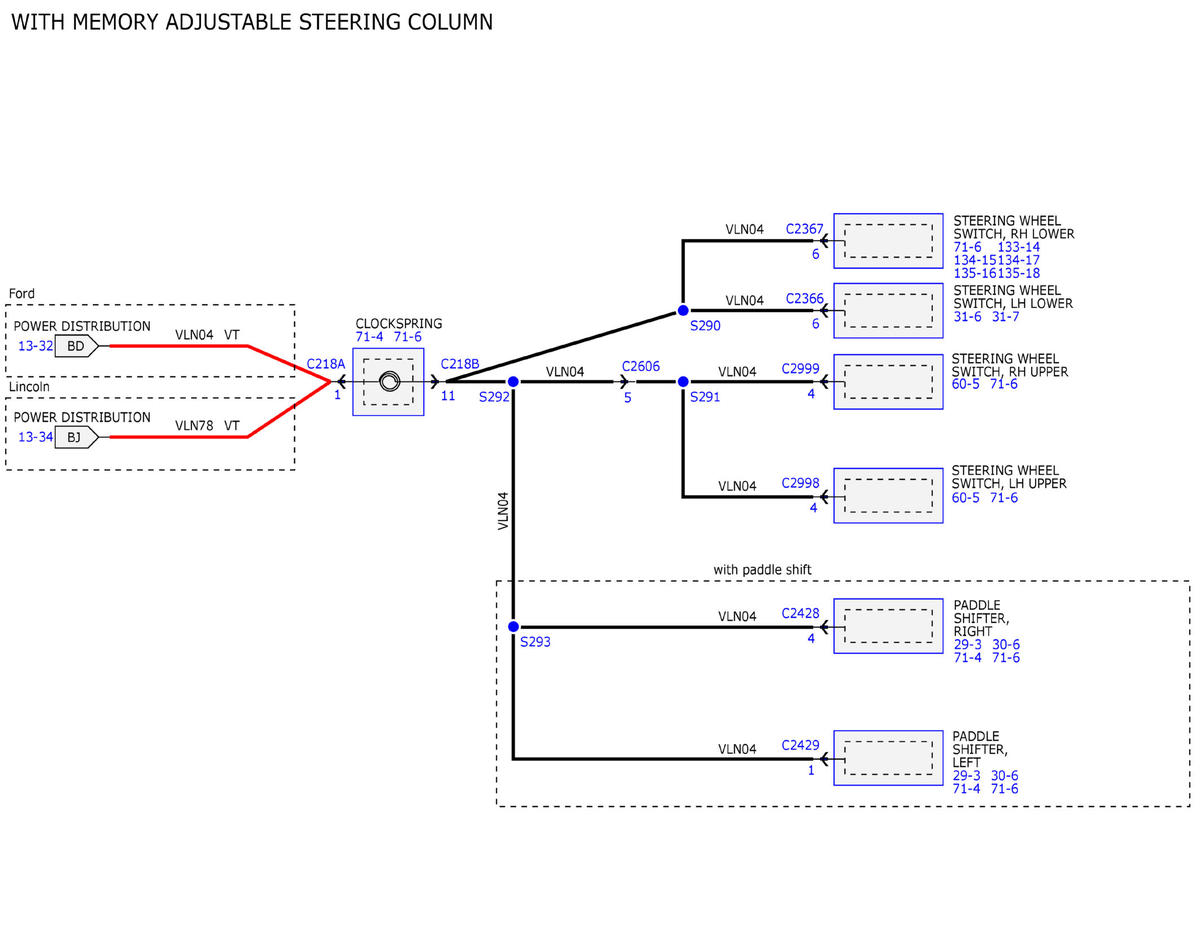

Fig 7: Power Distribution Wiring Diagram (7 Of 59)

GFDWR89661

Courtesy of FORD MOTOR COMPANY

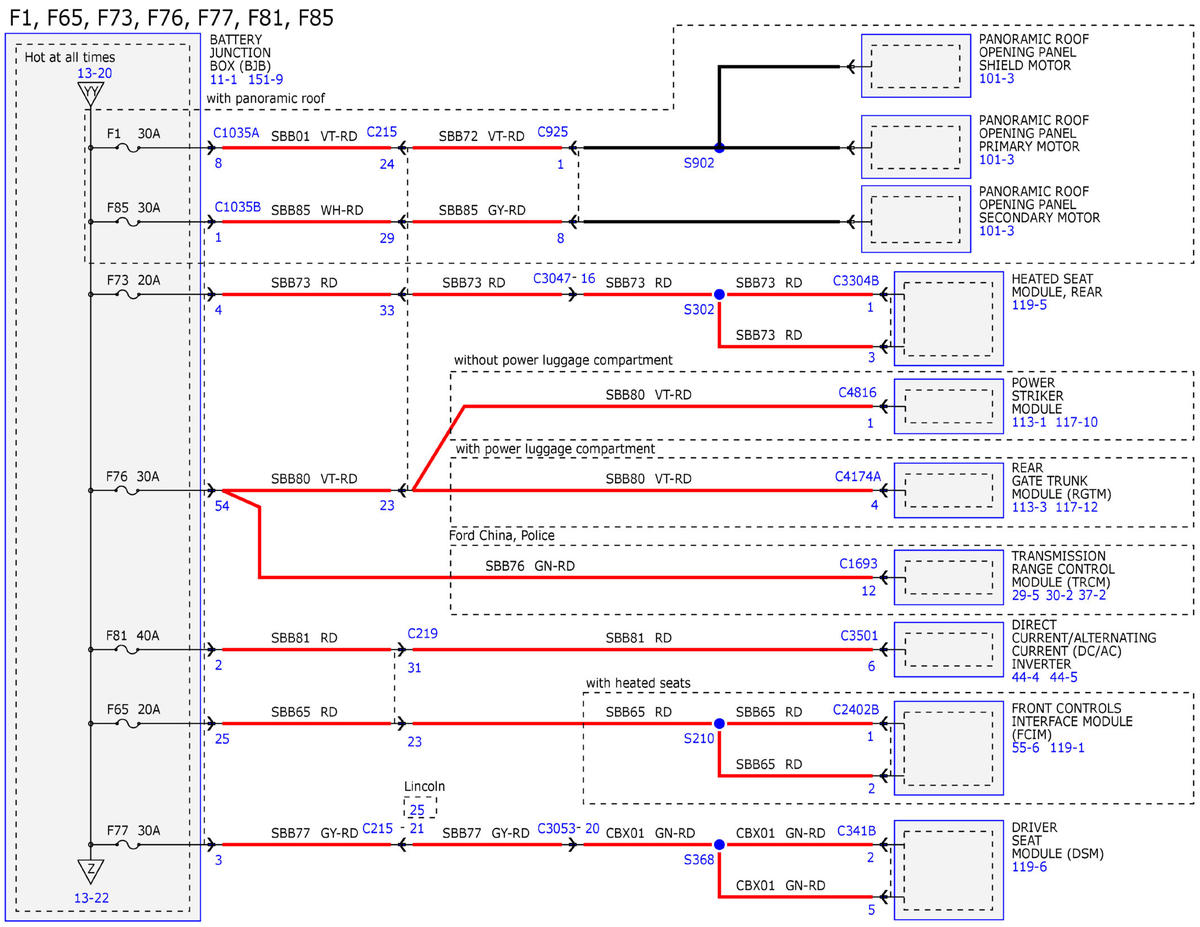

Fig 8: Power Distribution Wiring Diagram (8 Of 59)

GFDWR89662

Courtesy of FORD MOTOR COMPANY

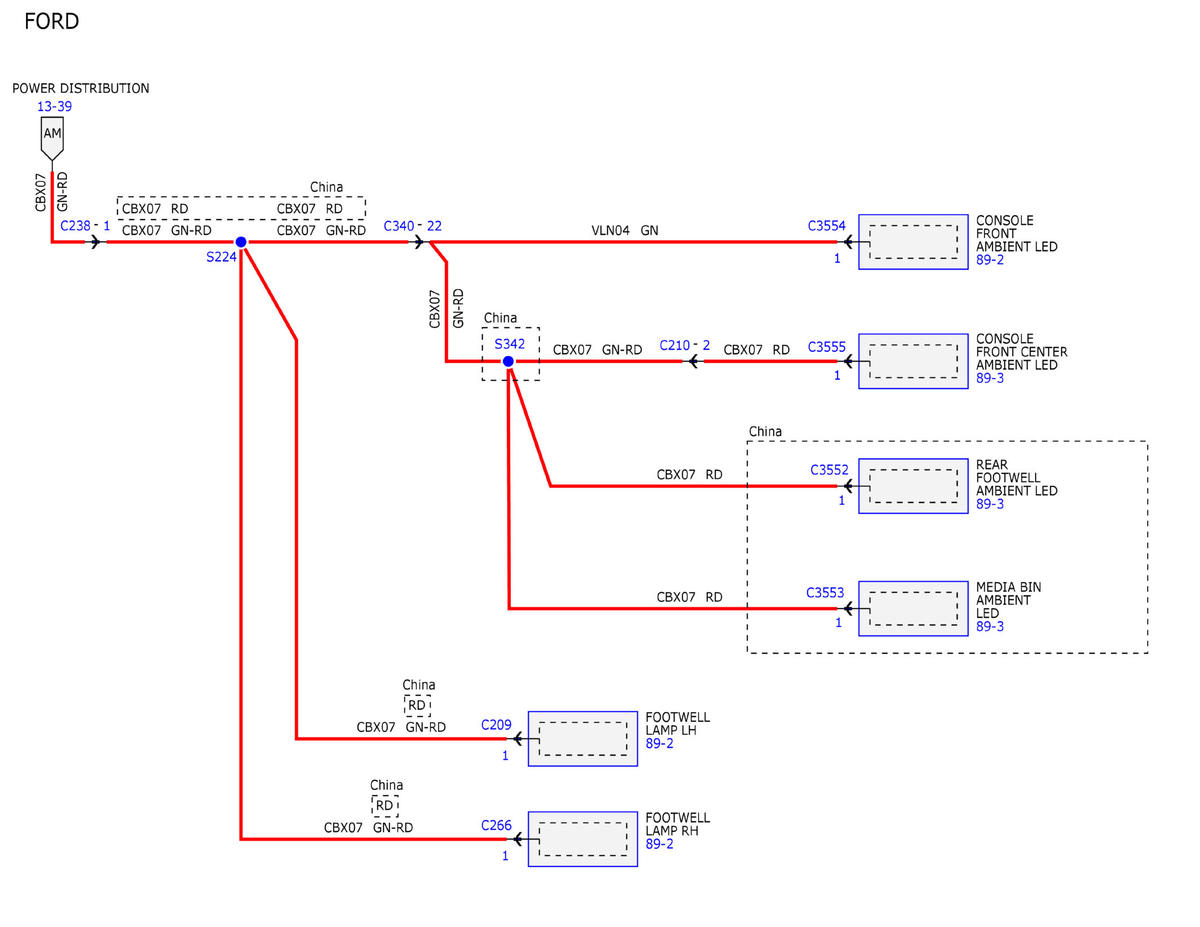

Fig 9: Power Distribution Wiring Diagram (9 Of 59)

GFDWR89663

Courtesy of FORD MOTOR COMPANY

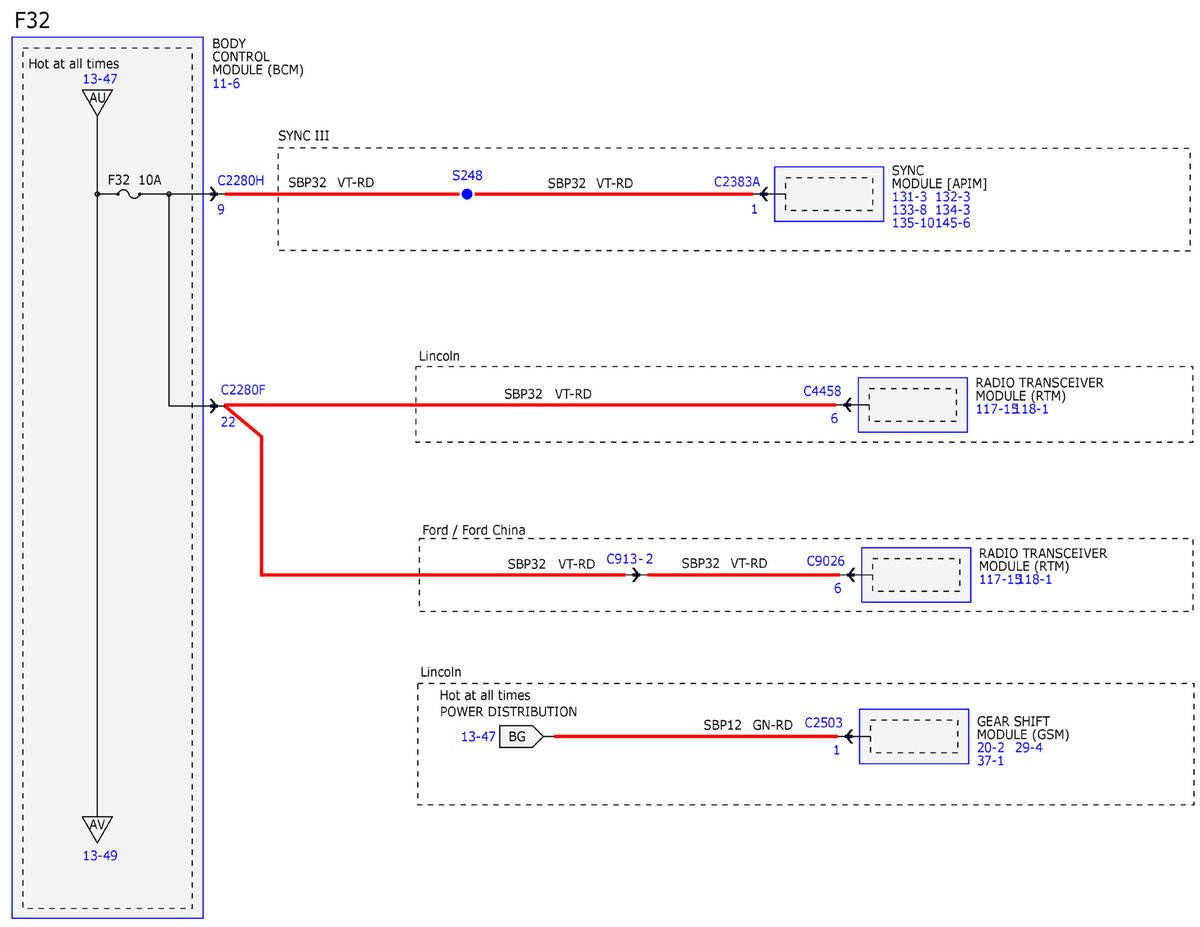

Fig 10: Power Distribution Wiring Diagram (10 Of 59)

GFDWR89664

Courtesy of FORD MOTOR COMPANY

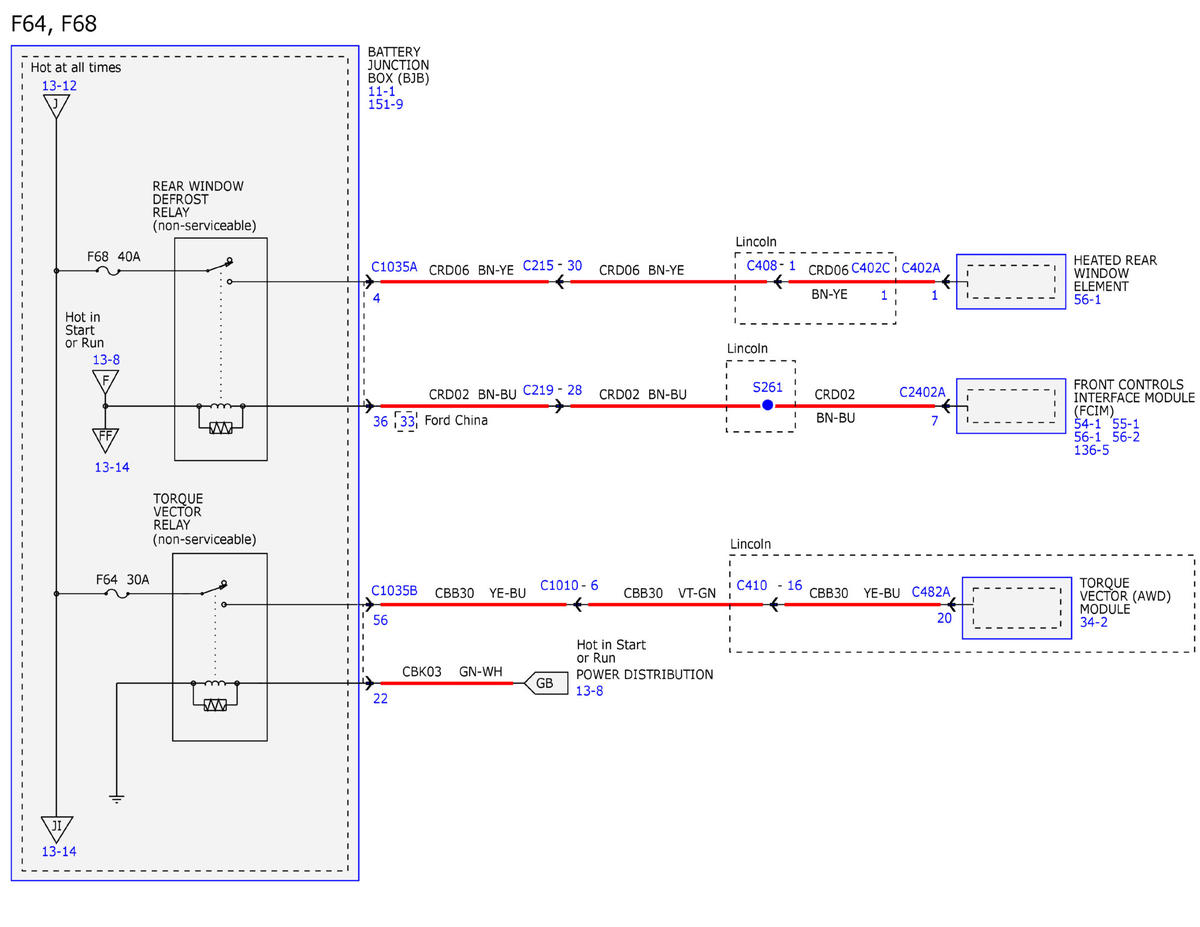

Fig 11: Power Distribution Wiring Diagram (11 Of 59)

GFDWR89665

Courtesy of FORD MOTOR COMPANY

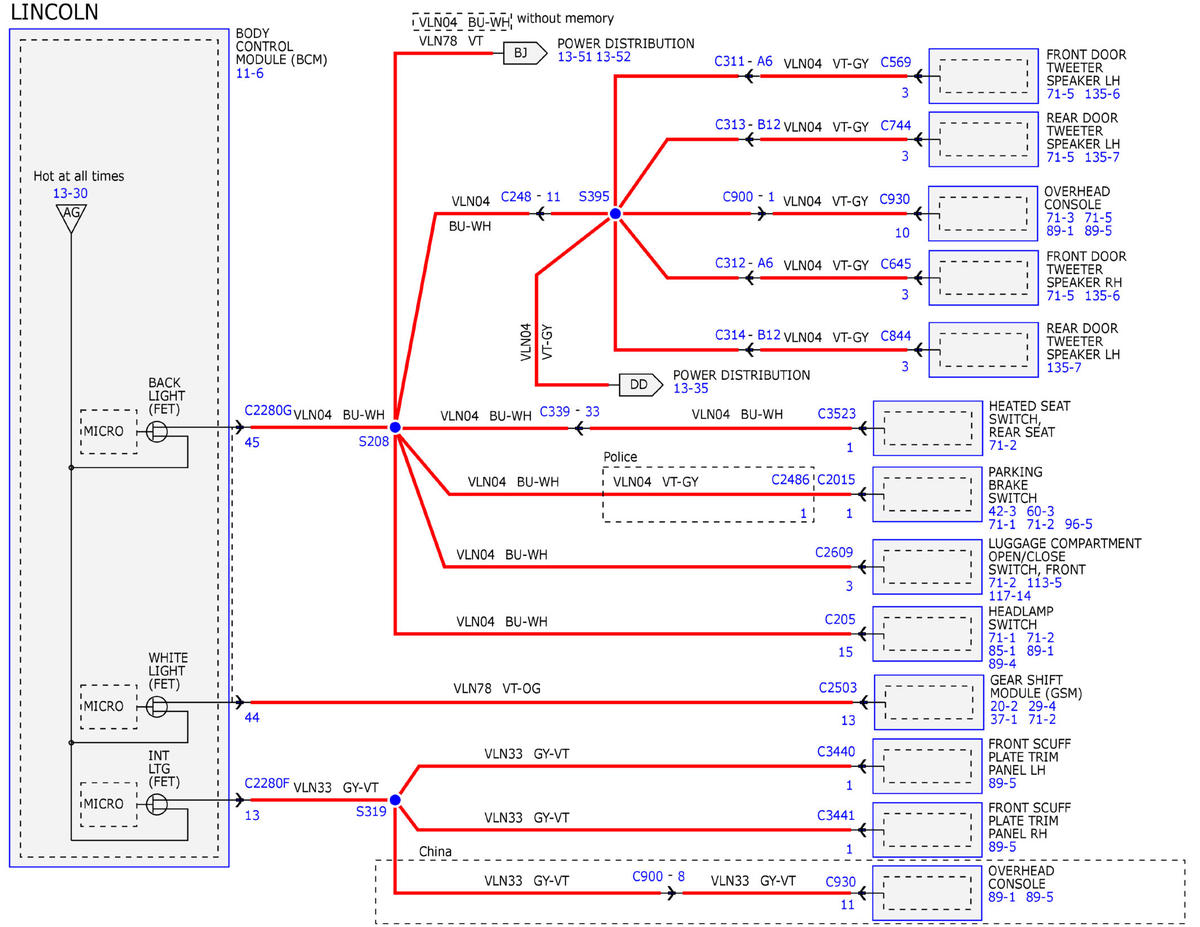

Fig 12: Power Distribution Wiring Diagram (12 Of 59)

GFDWR89666

Courtesy of FORD MOTOR COMPANY

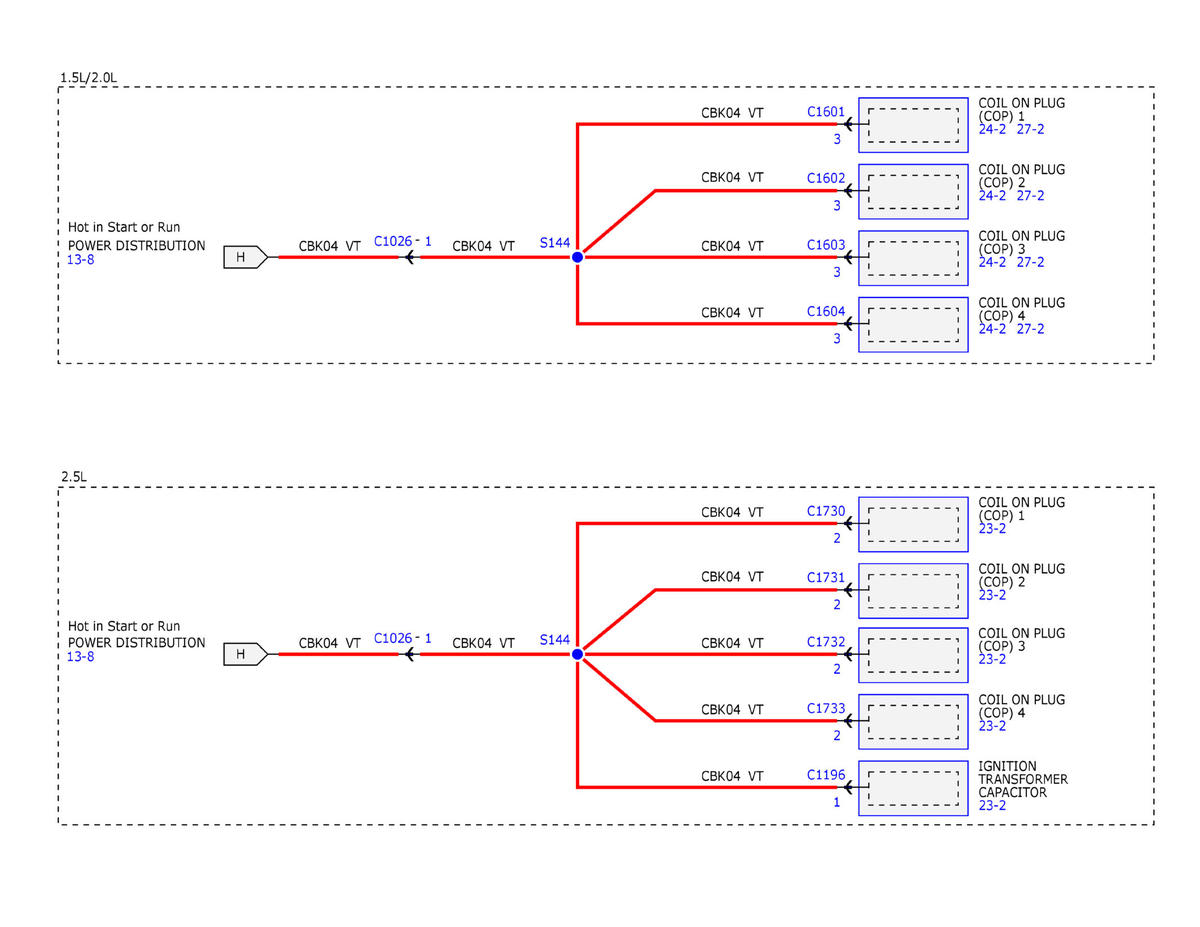

Fig 13: Power Distribution Wiring Diagram (13 Of 59)

GFDWR89667

Courtesy of FORD MOTOR COMPANY

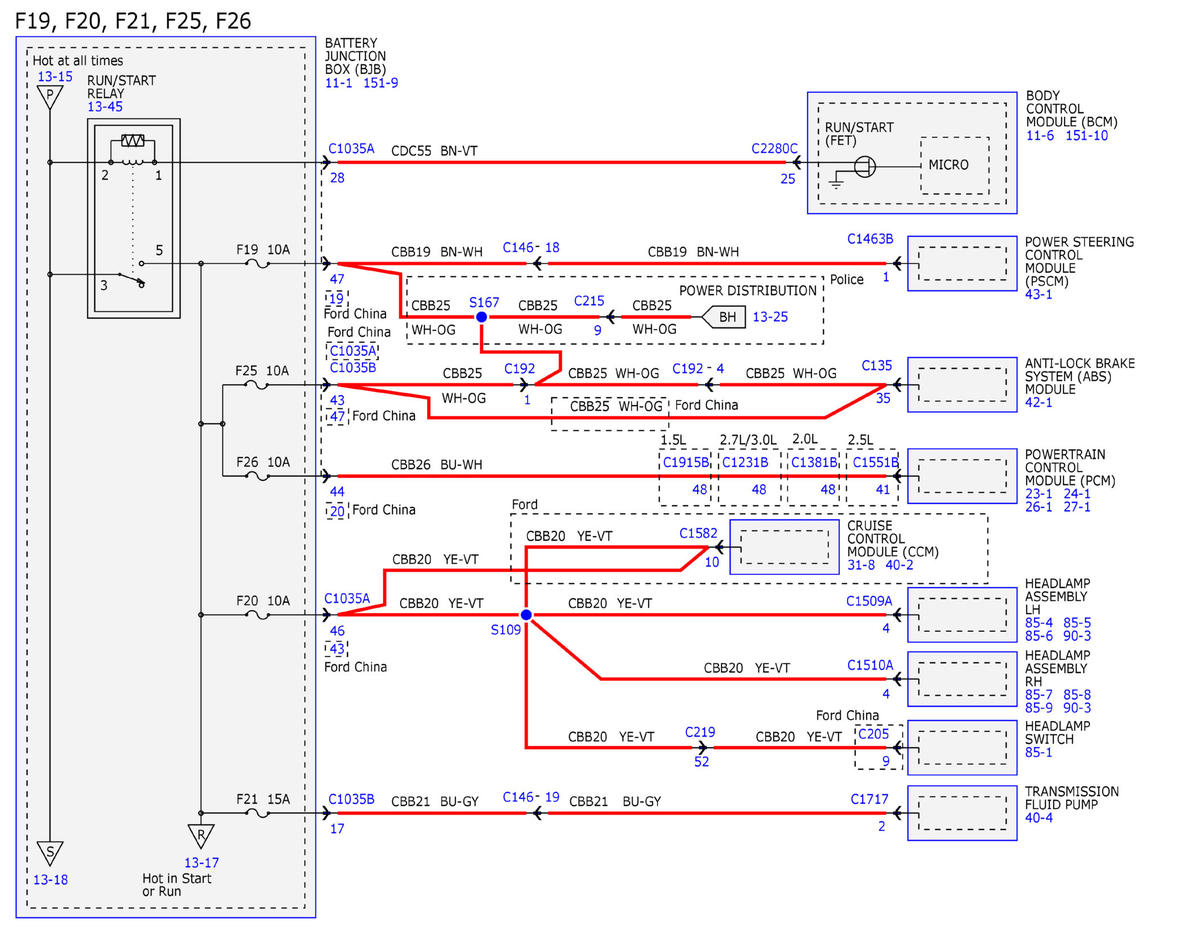

Fig 14: Power Distribution Wiring Diagram (14 Of 59)

GFDWR89668

Courtesy of FORD MOTOR COMPANY

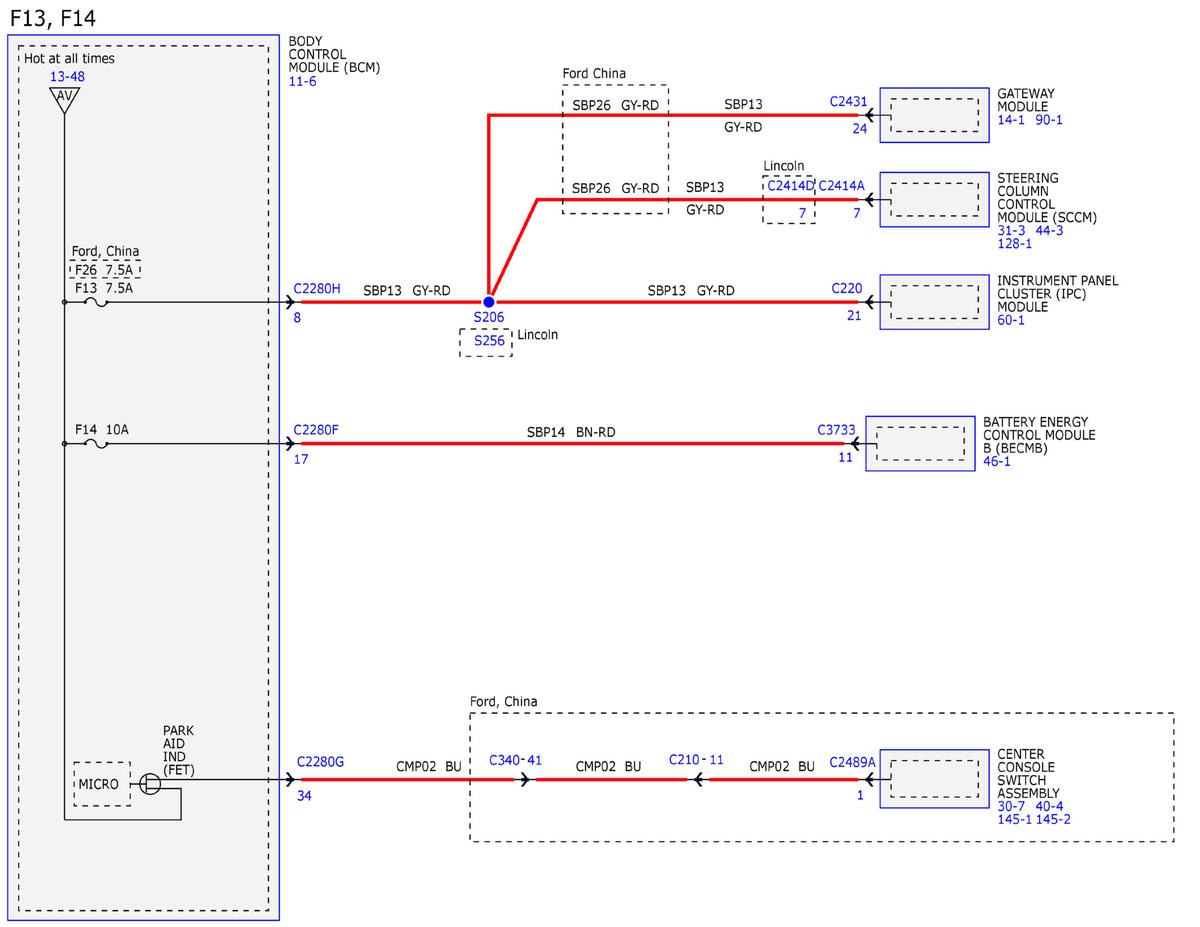

Fig 15: Power Distribution Wiring Diagram (15 Of 59)

GFDWR89669

Courtesy of FORD MOTOR COMPANY

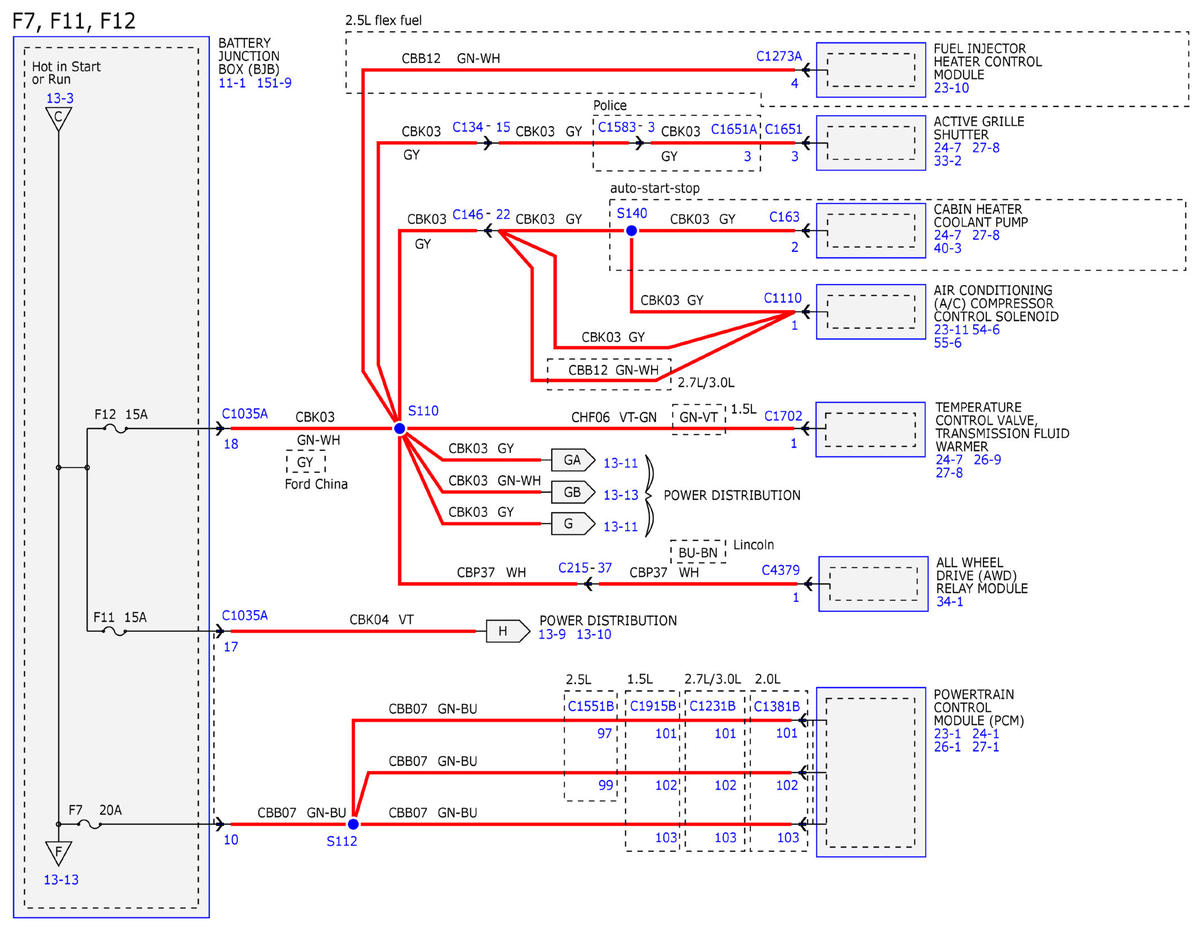

Fig 16: Power Distribution Wiring Diagram (16 Of 59)

GFDWR89670

Courtesy of FORD MOTOR COMPANY

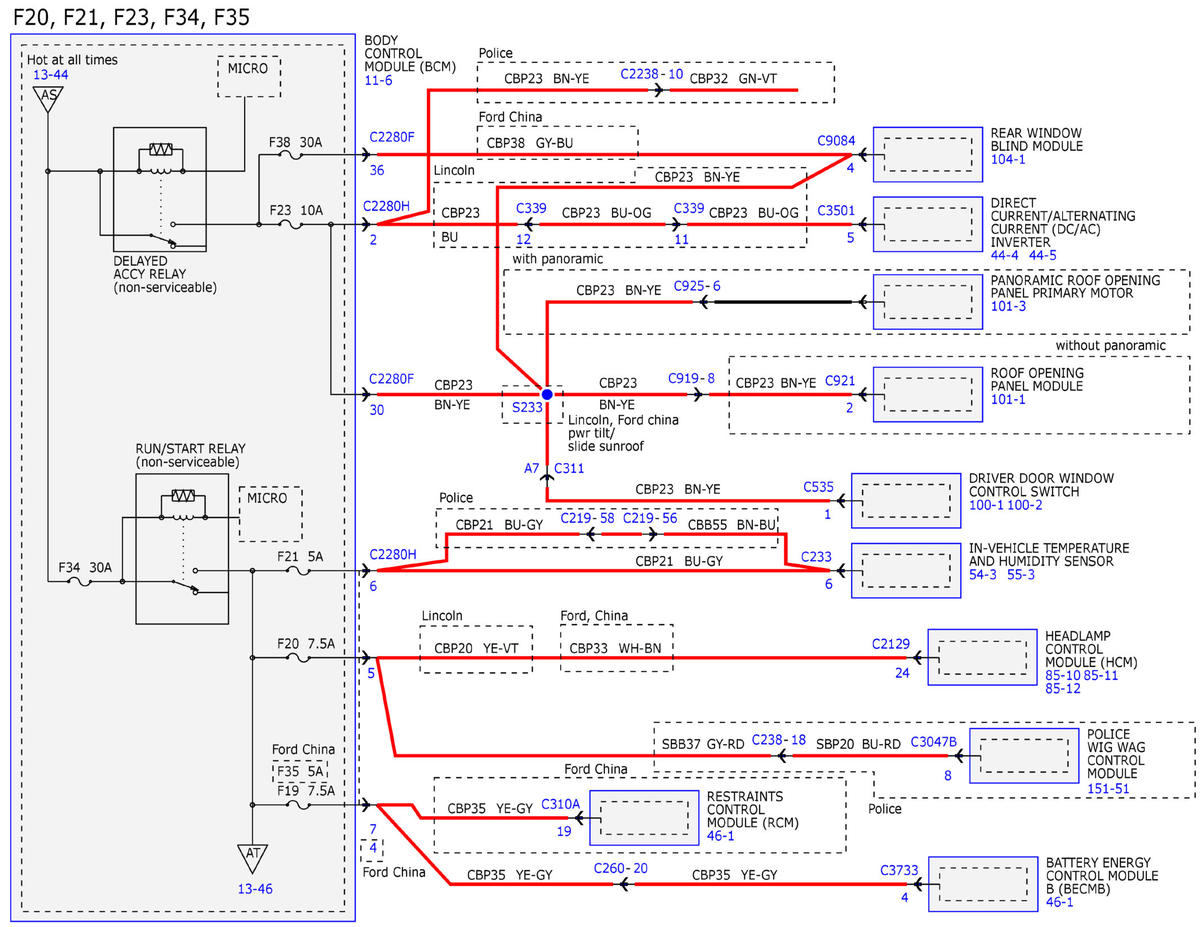

Fig 17: Power Distribution Wiring Diagram (17 Of 59)

GFDWR89671

Courtesy of FORD MOTOR COMPANY

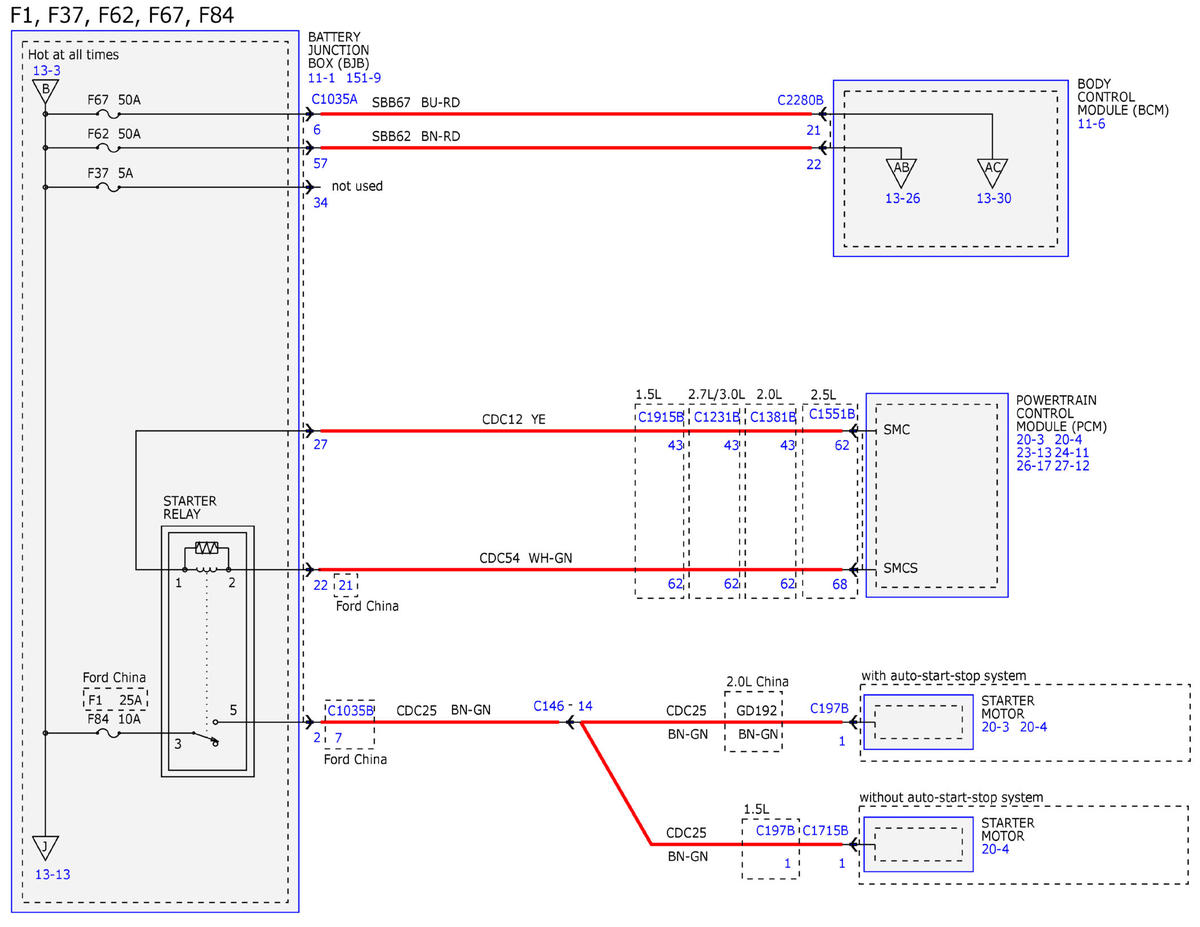

Fig 18: Power Distribution Wiring Diagram (18 Of 59)

GFDWR89672

Courtesy of FORD MOTOR COMPANY

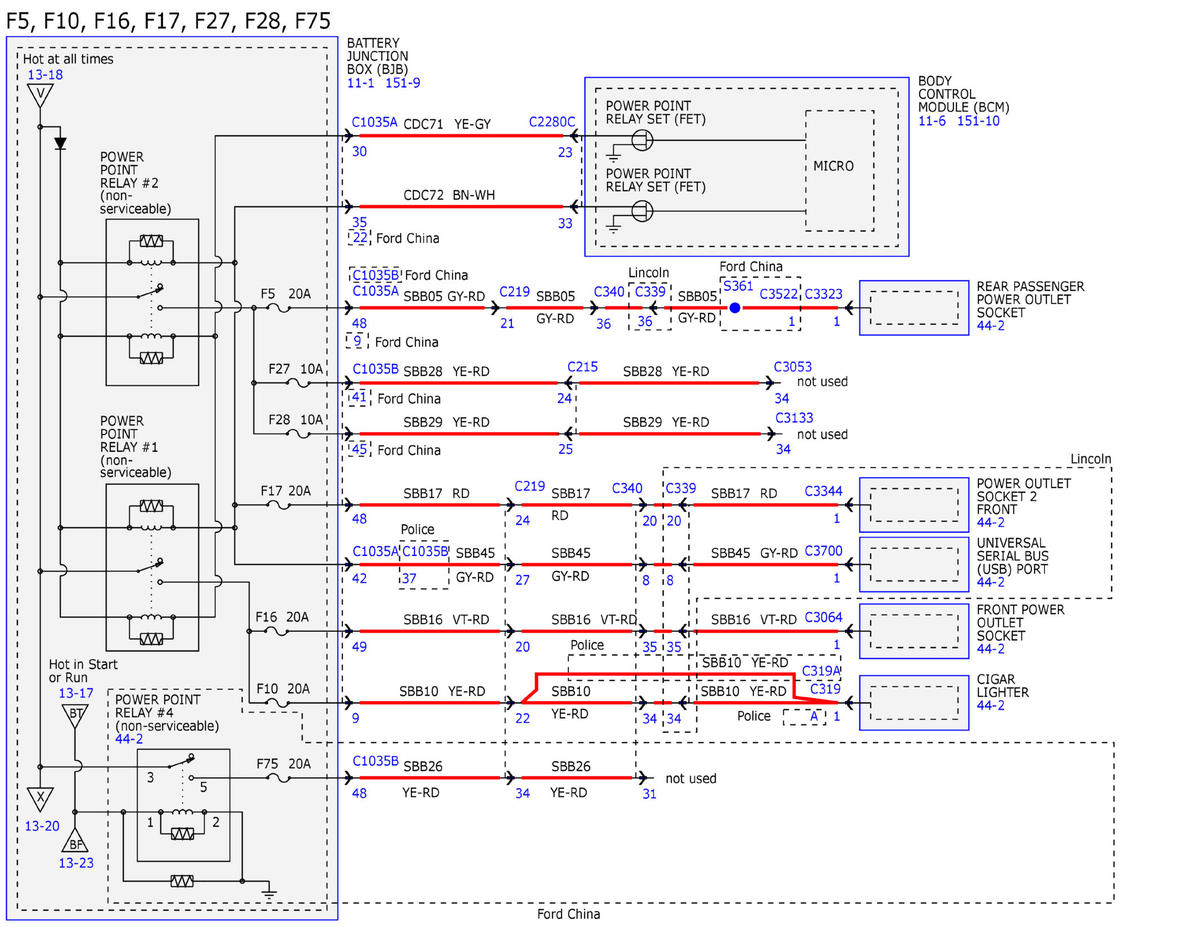

Fig 19: Power Distribution Wiring Diagram (19 Of 59)

GFDWR89673

Courtesy of FORD MOTOR COMPANY

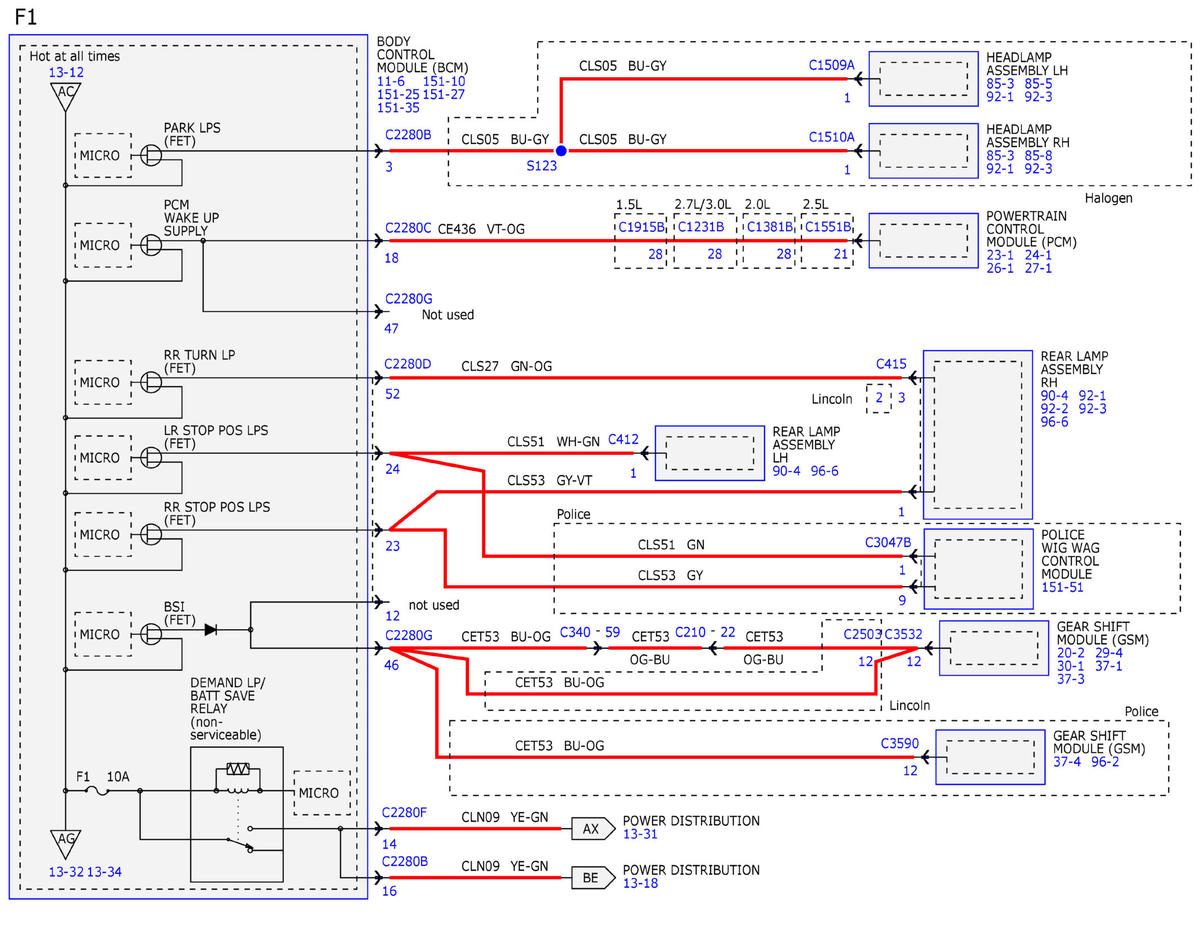

Fig 20: Power Distribution Wiring Diagram (20 Of 59)

GFDWR89674

Courtesy of FORD MOTOR COMPANY

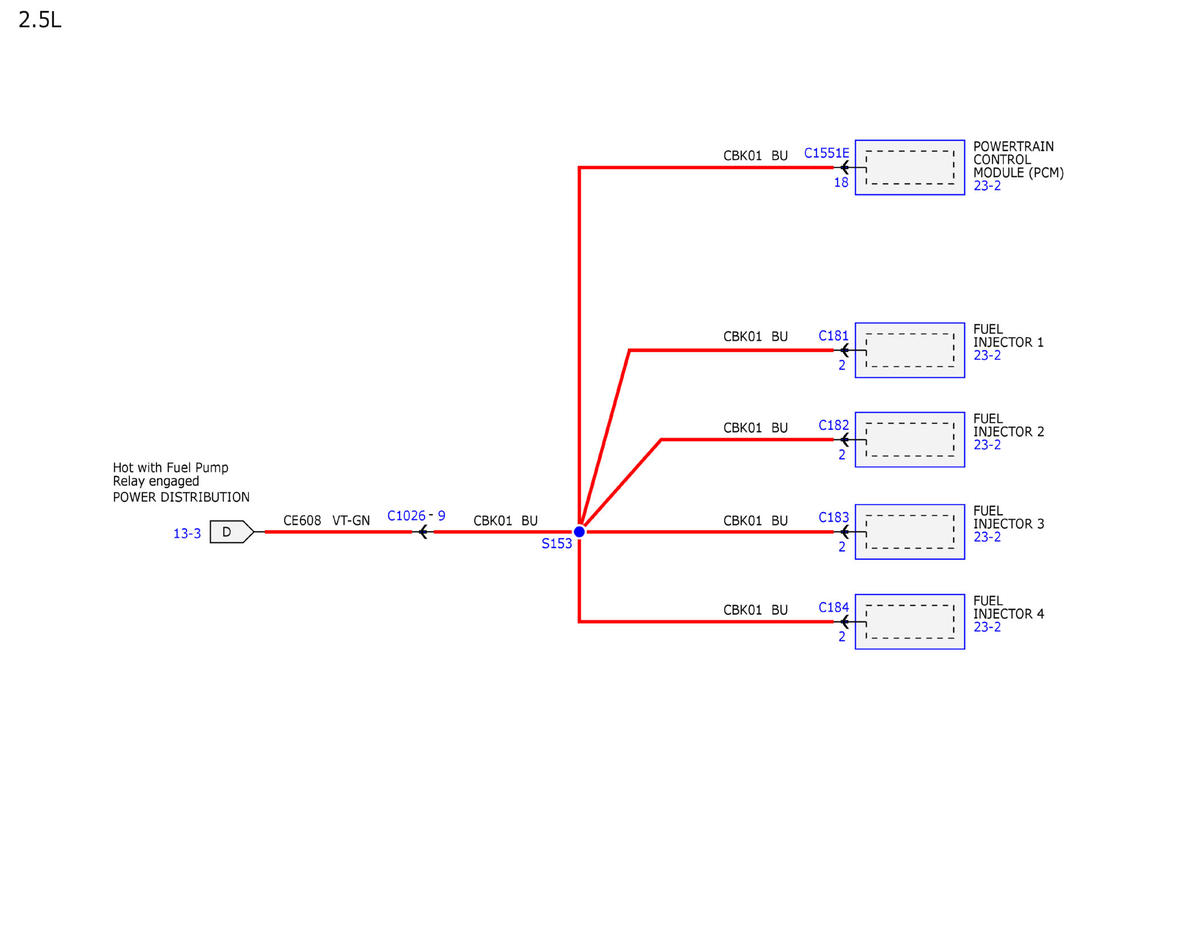

Fig 21: Power Distribution Wiring Diagram (21 Of 59)

GFDWR89675

Courtesy of FORD MOTOR COMPANY

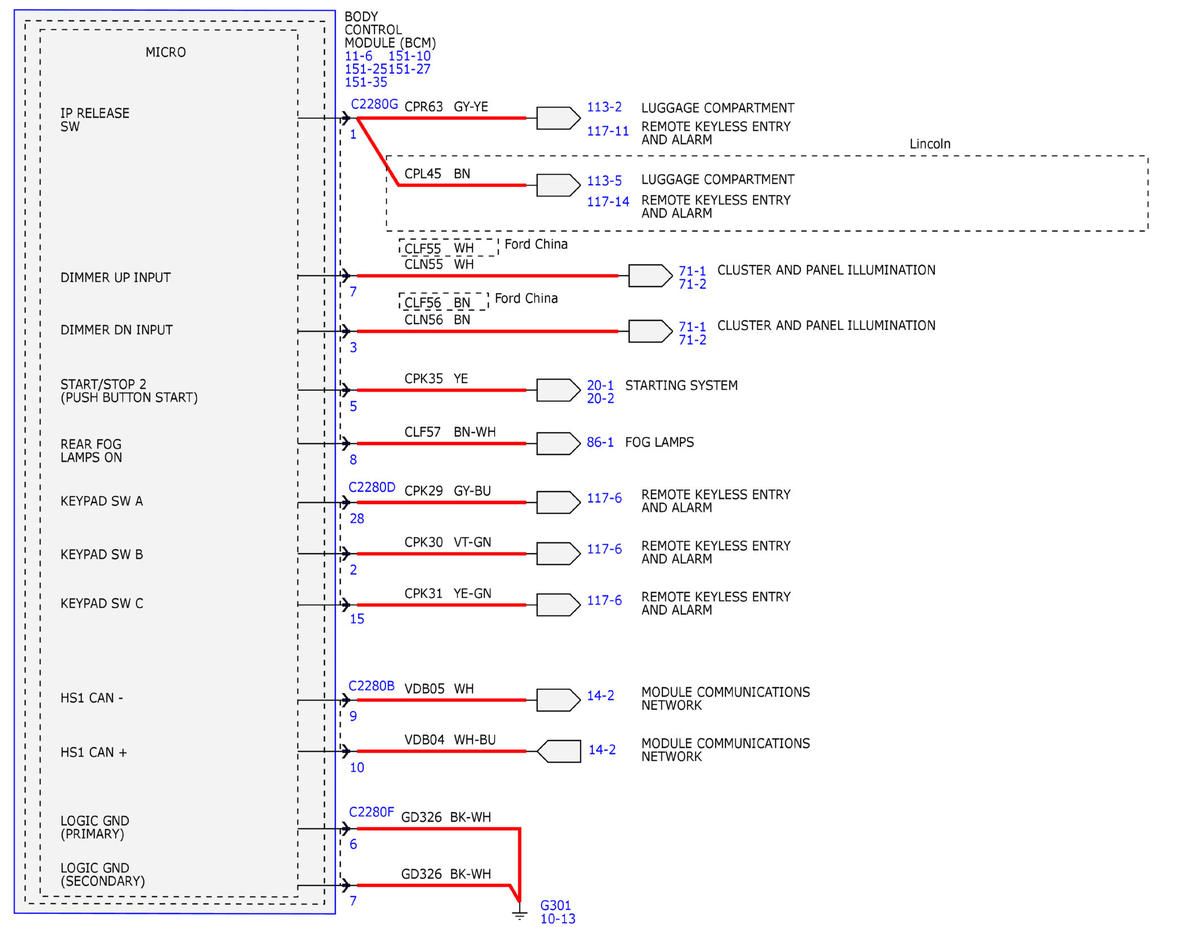

Fig 22: Power Distribution Wiring Diagram (22 Of 59)

GFDWR89676

Courtesy of FORD MOTOR COMPANY

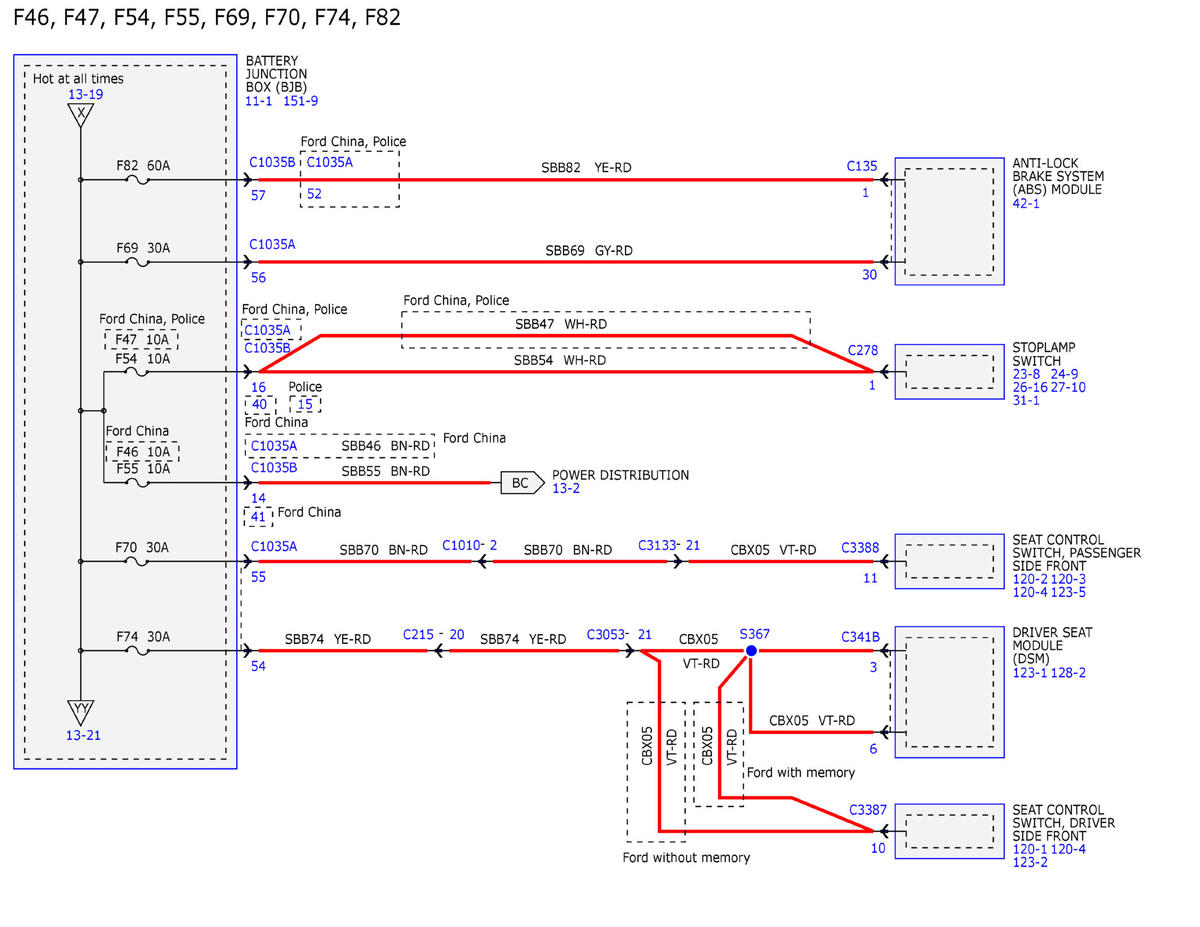

Fig 23: Power Distribution Wiring Diagram (23 Of 59)

GFDWR89677

Courtesy of FORD MOTOR COMPANY

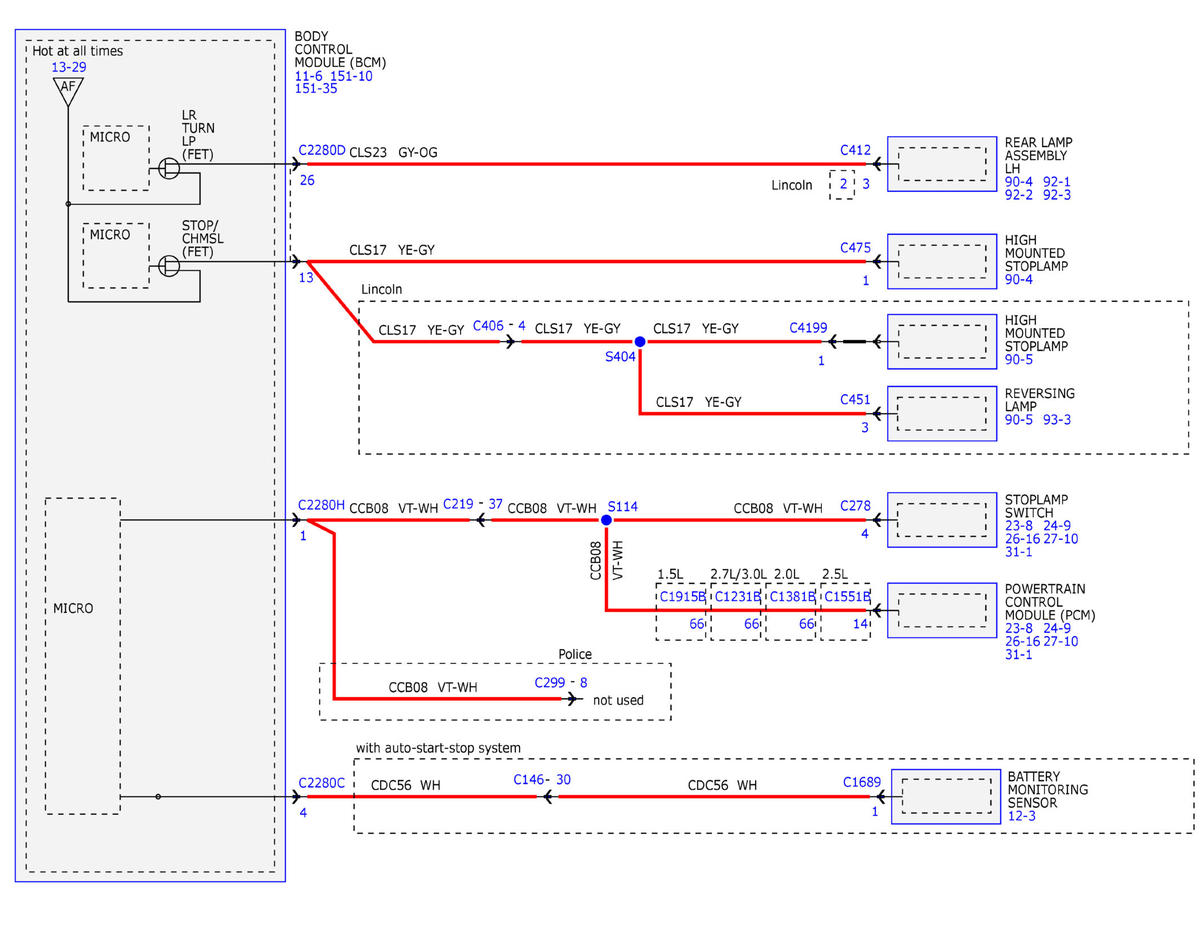

Fig 24: Power Distribution Wiring Diagram (24 Of 59)

GFDWR89678

Courtesy of FORD MOTOR COMPANY

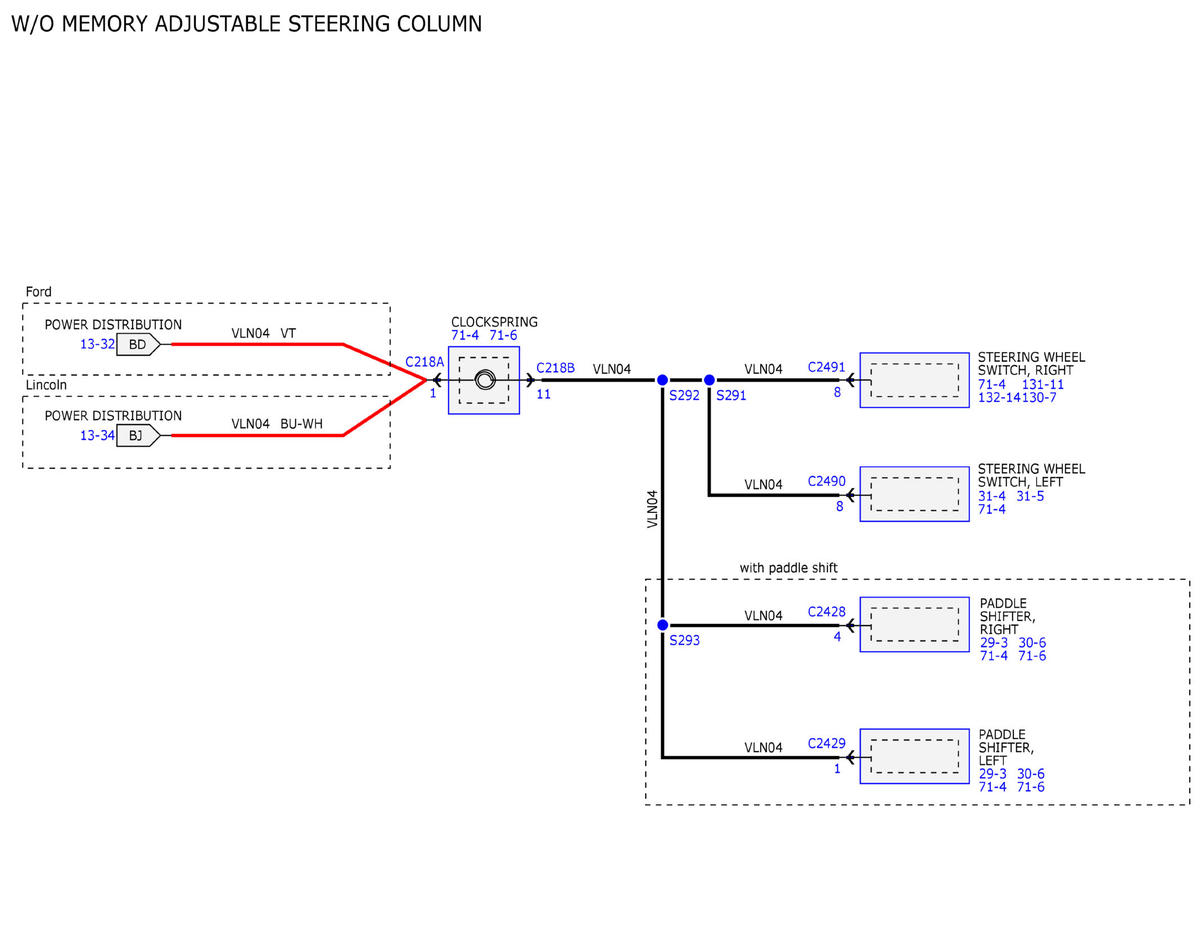

Fig 25: Power Distribution Wiring Diagram (25 Of 59)

GFDWR89679

Courtesy of FORD MOTOR COMPANY

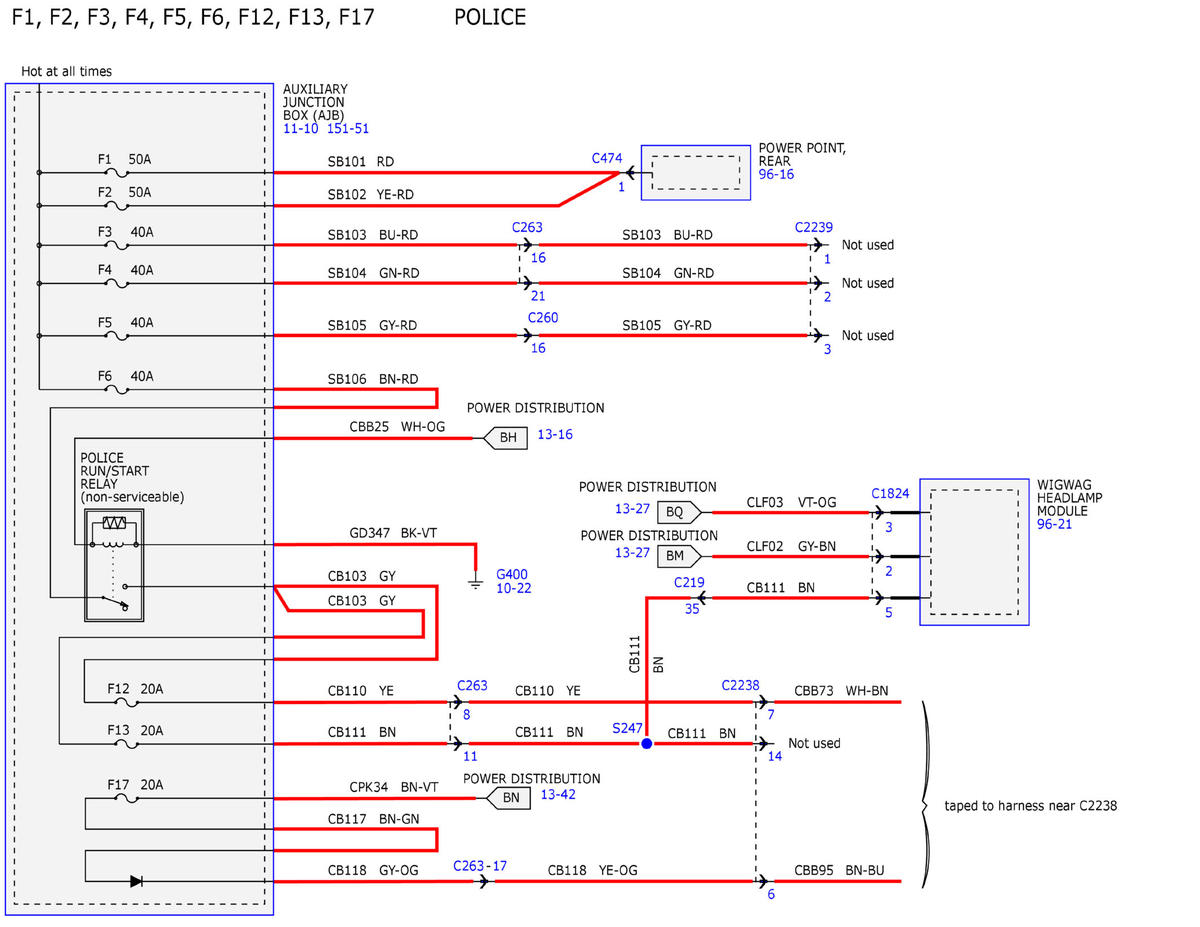

Fig 26: Power Distribution Wiring Diagram (26 Of 59)

GFDWR89680

Courtesy of FORD MOTOR COMPANY

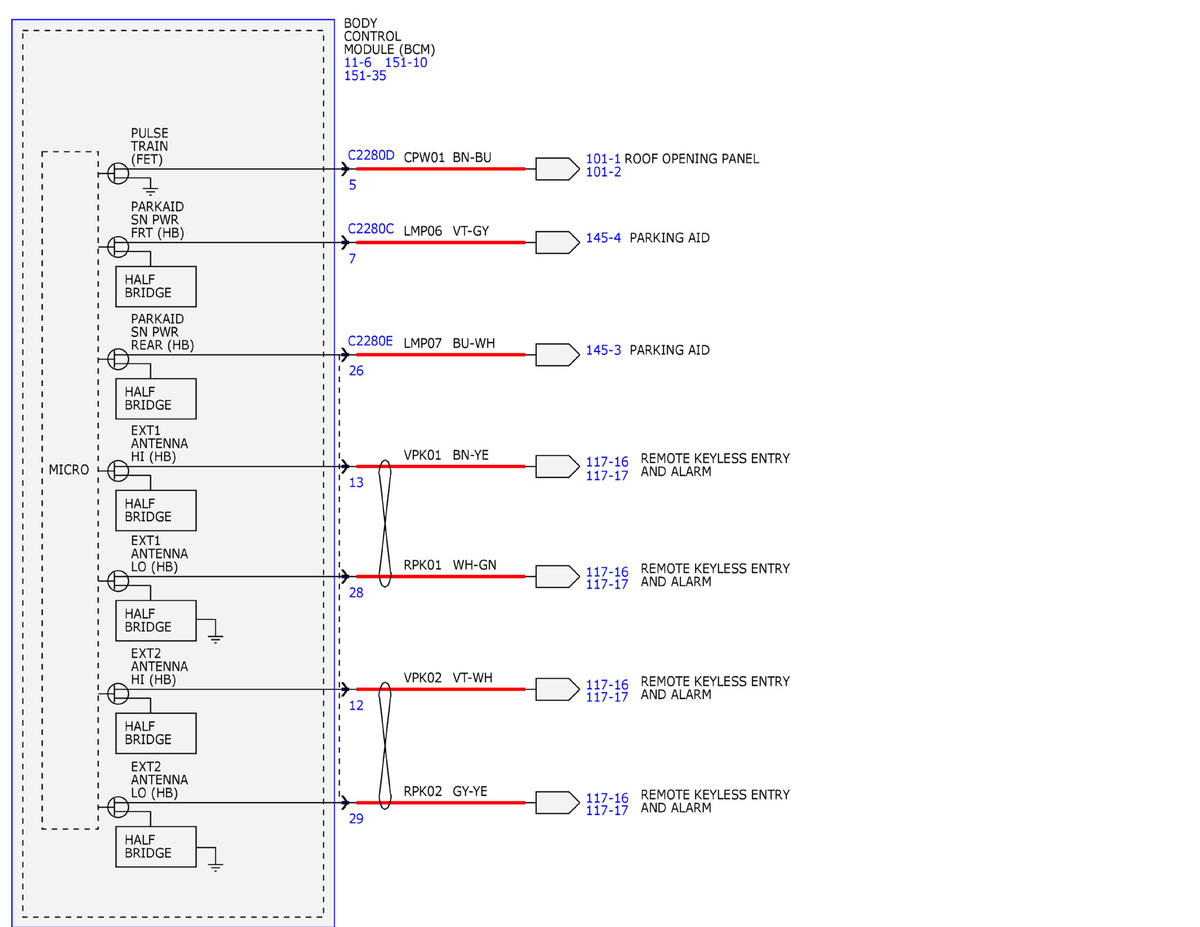

Fig 27: Power Distribution Wiring Diagram (27 Of 59)

GFDWR89681

Courtesy of FORD MOTOR COMPANY

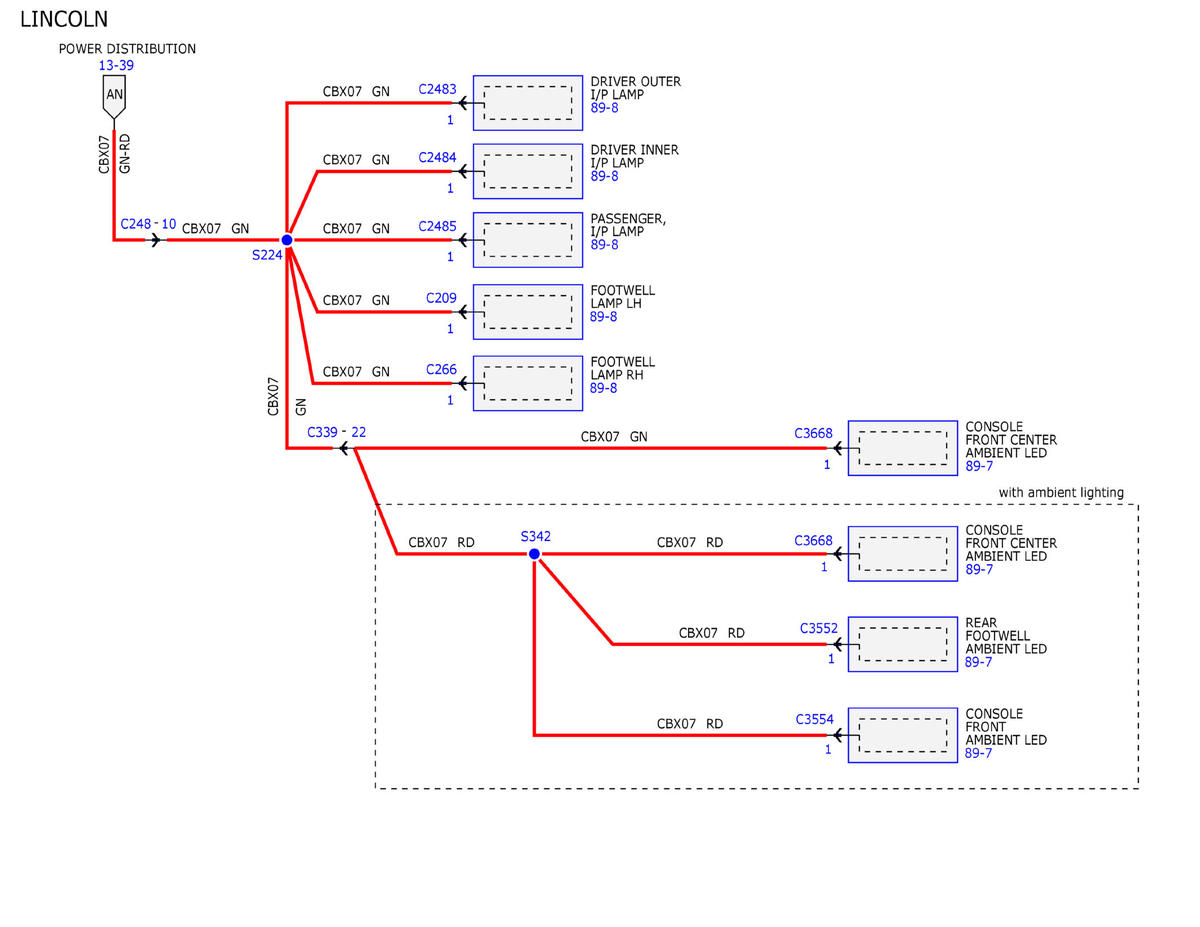

Fig 28: Power Distribution Wiring Diagram (28 Of 59)

GFDWR89682

Courtesy of FORD MOTOR COMPANY

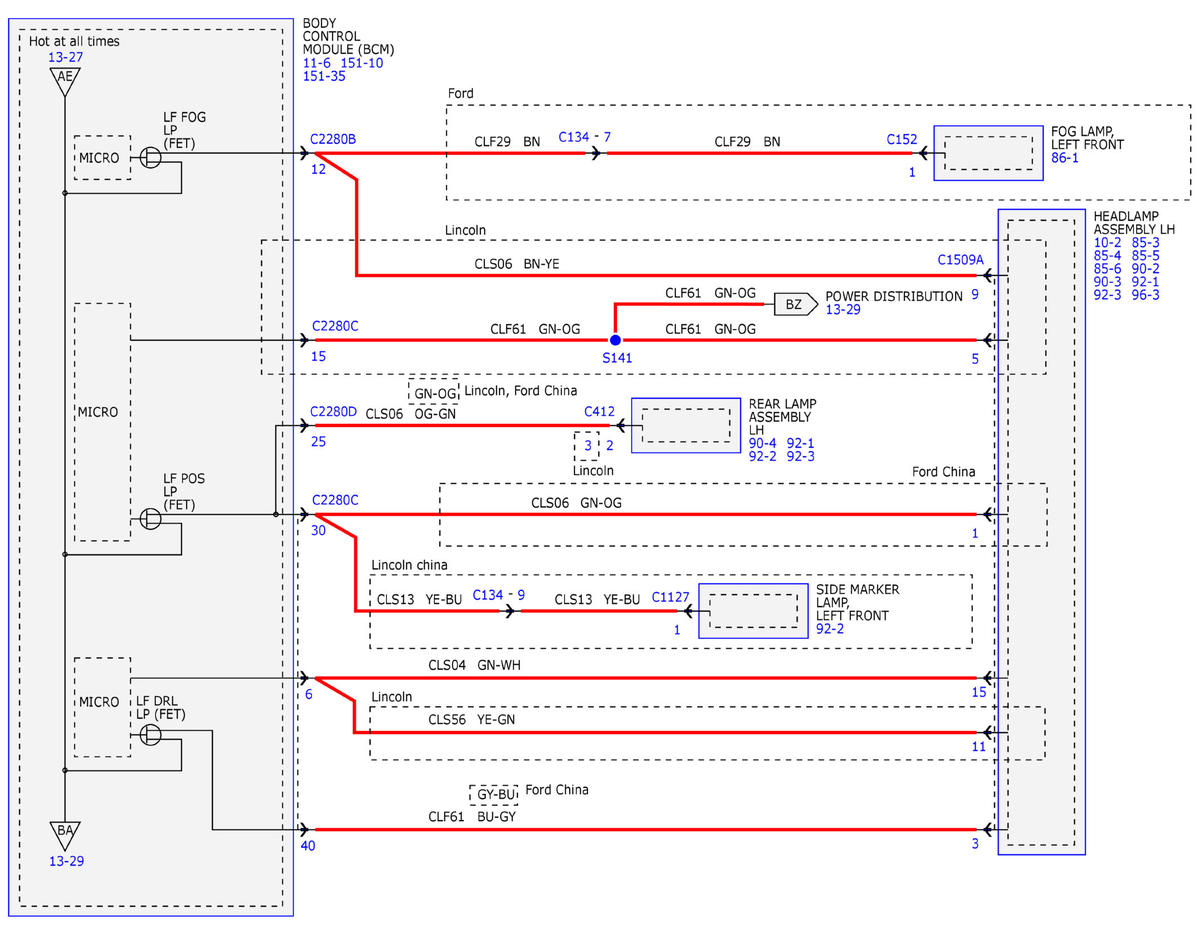

Fig 29: Power Distribution Wiring Diagram (29 Of 59)

GFDWR89683

Courtesy of FORD MOTOR COMPANY

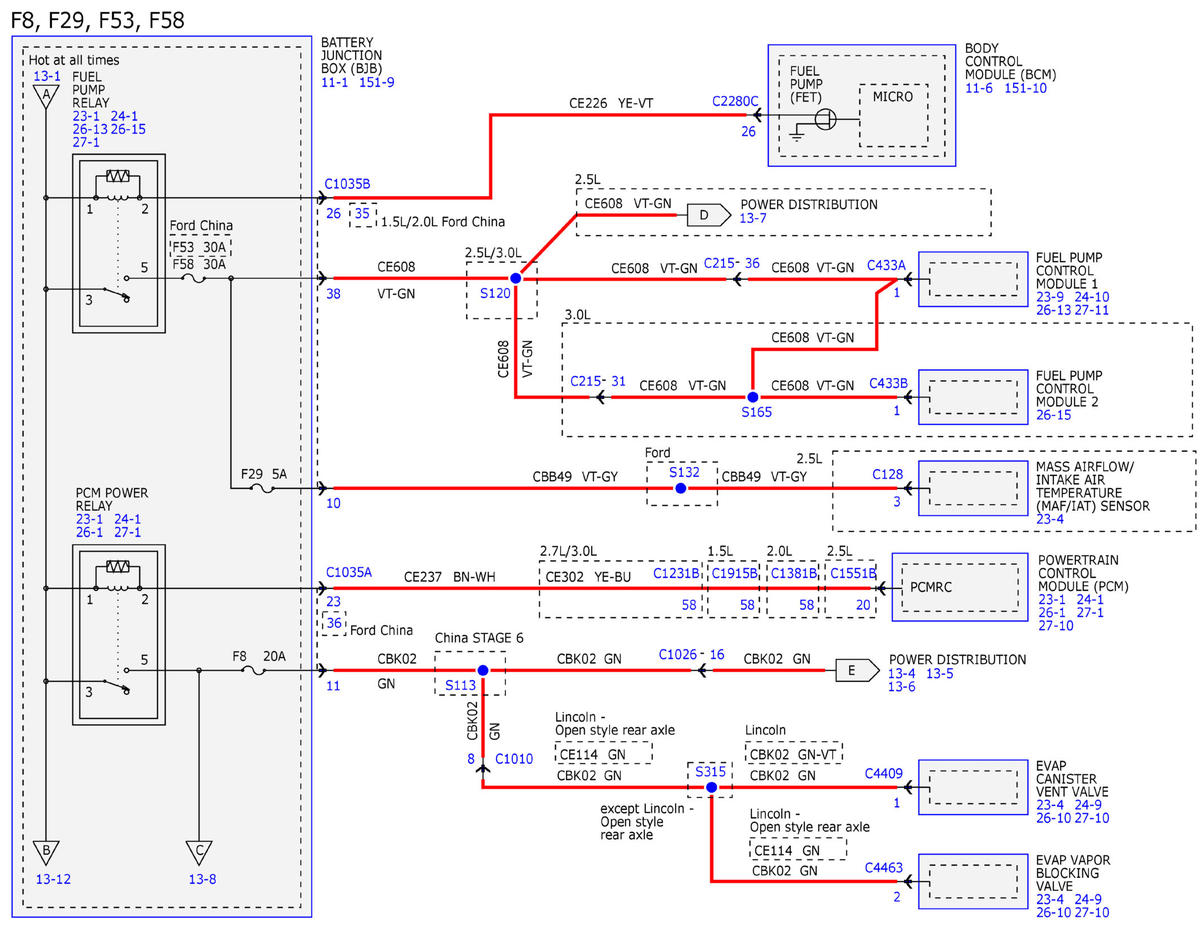

Fig 30: Power Distribution Wiring Diagram (30 Of 59)

GFDWR89684

Courtesy of FORD MOTOR COMPANY

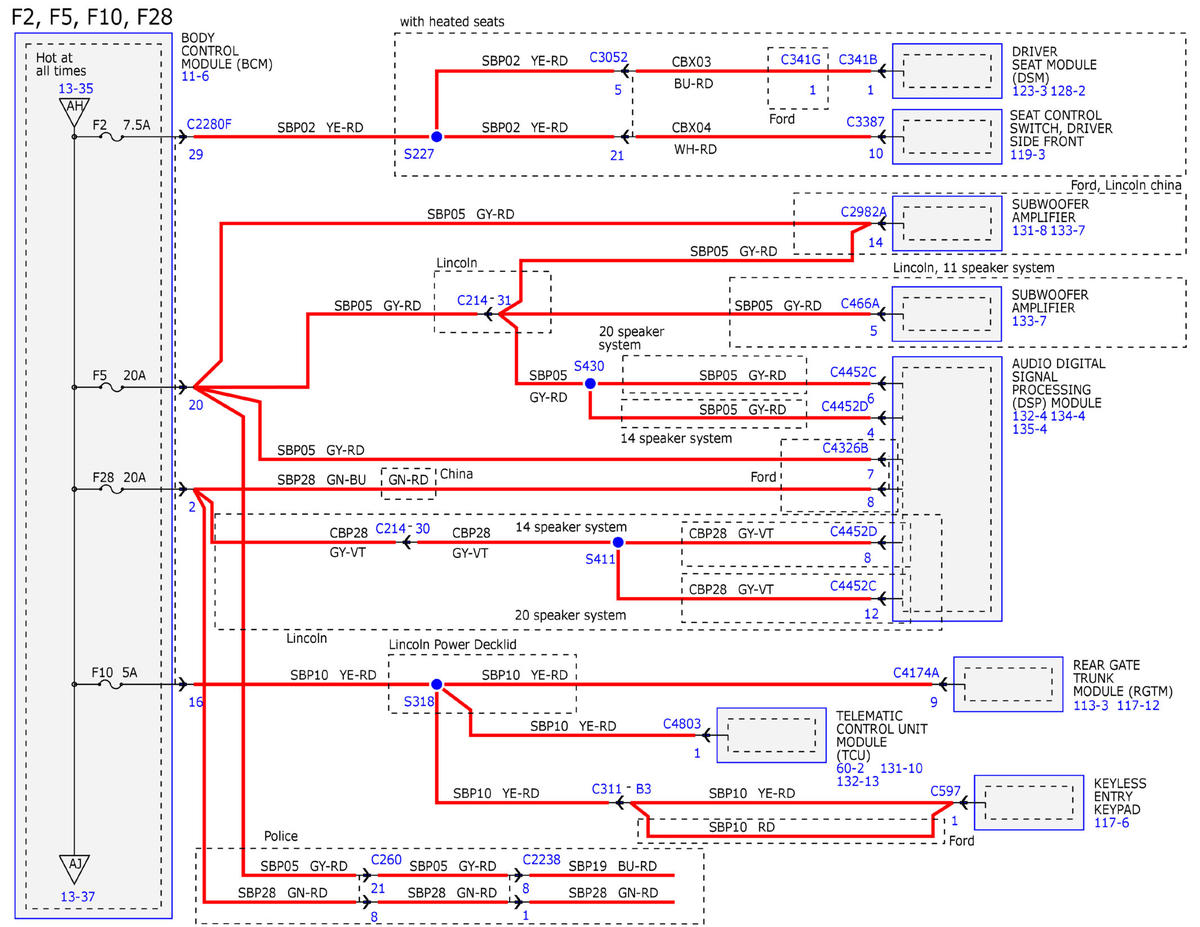

Fig 31: Power Distribution Wiring Diagram (31 Of 59)

GFDWR89685

Courtesy of FORD MOTOR COMPANY

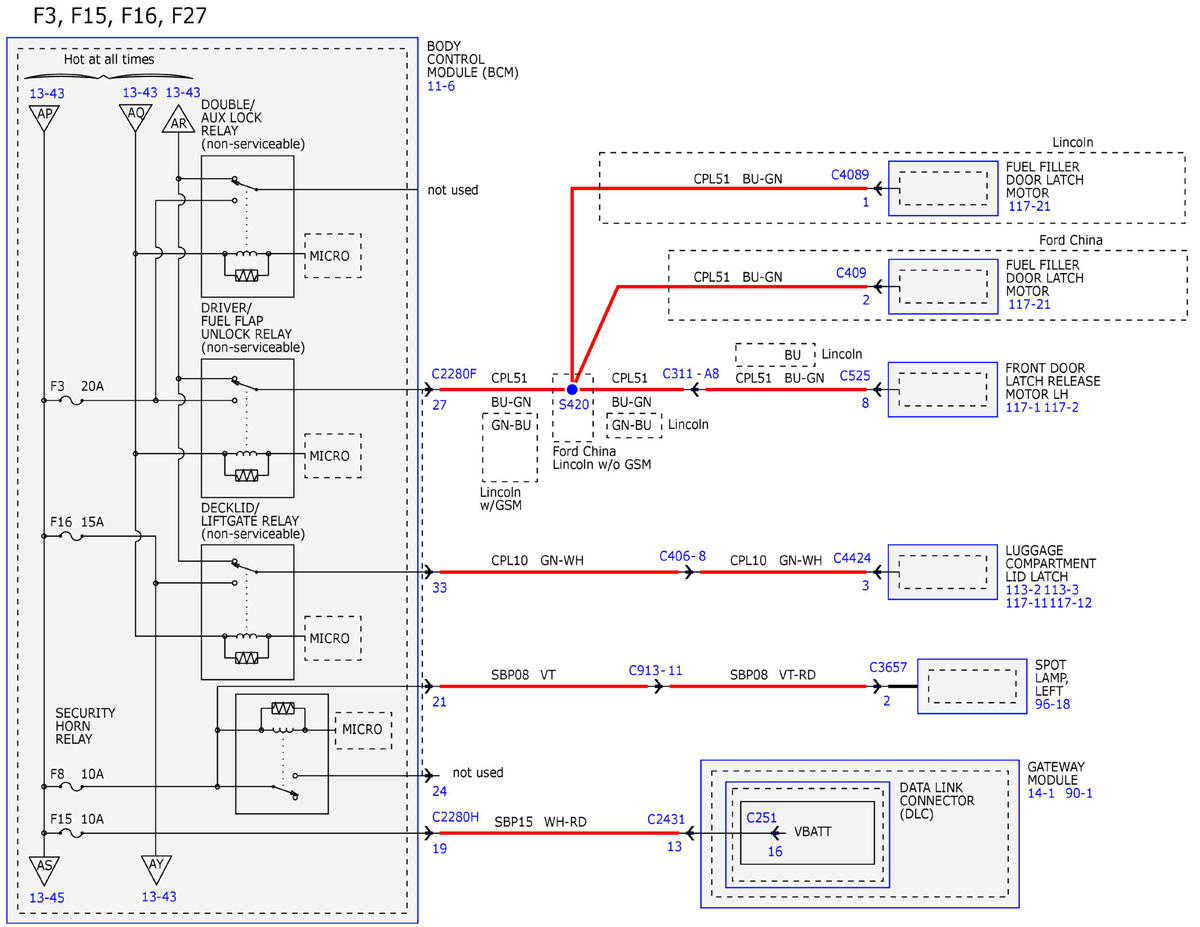

Fig 32: Power Distribution Wiring Diagram (32 Of 59)

GFDWR89686

Courtesy of FORD MOTOR COMPANY

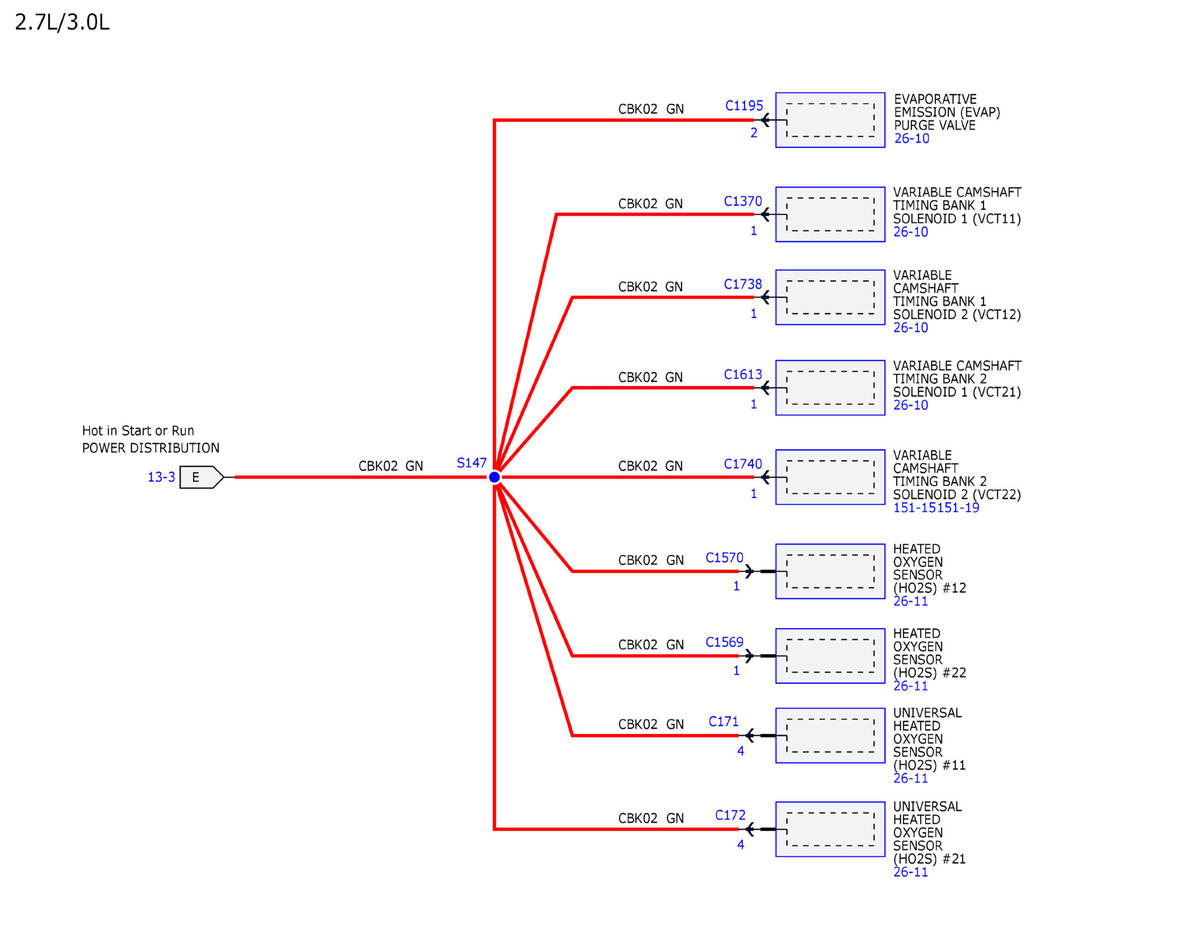

Fig 33: Power Distribution Wiring Diagram (33 Of 59)

GFDWR89687

Courtesy of FORD MOTOR COMPANY

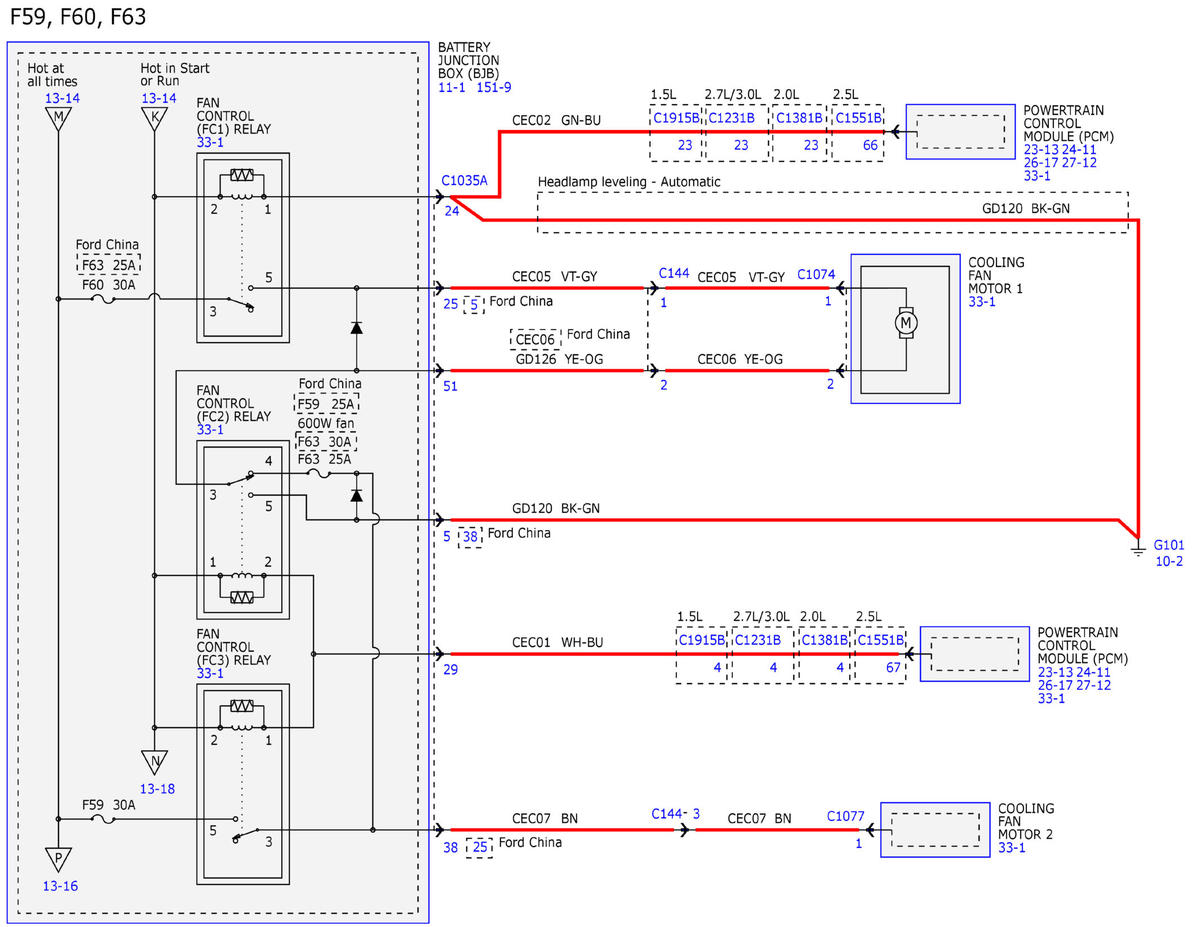

Fig 34: Power Distribution Wiring Diagram (34 Of 59)

GFDWR89688

Courtesy of FORD MOTOR COMPANY

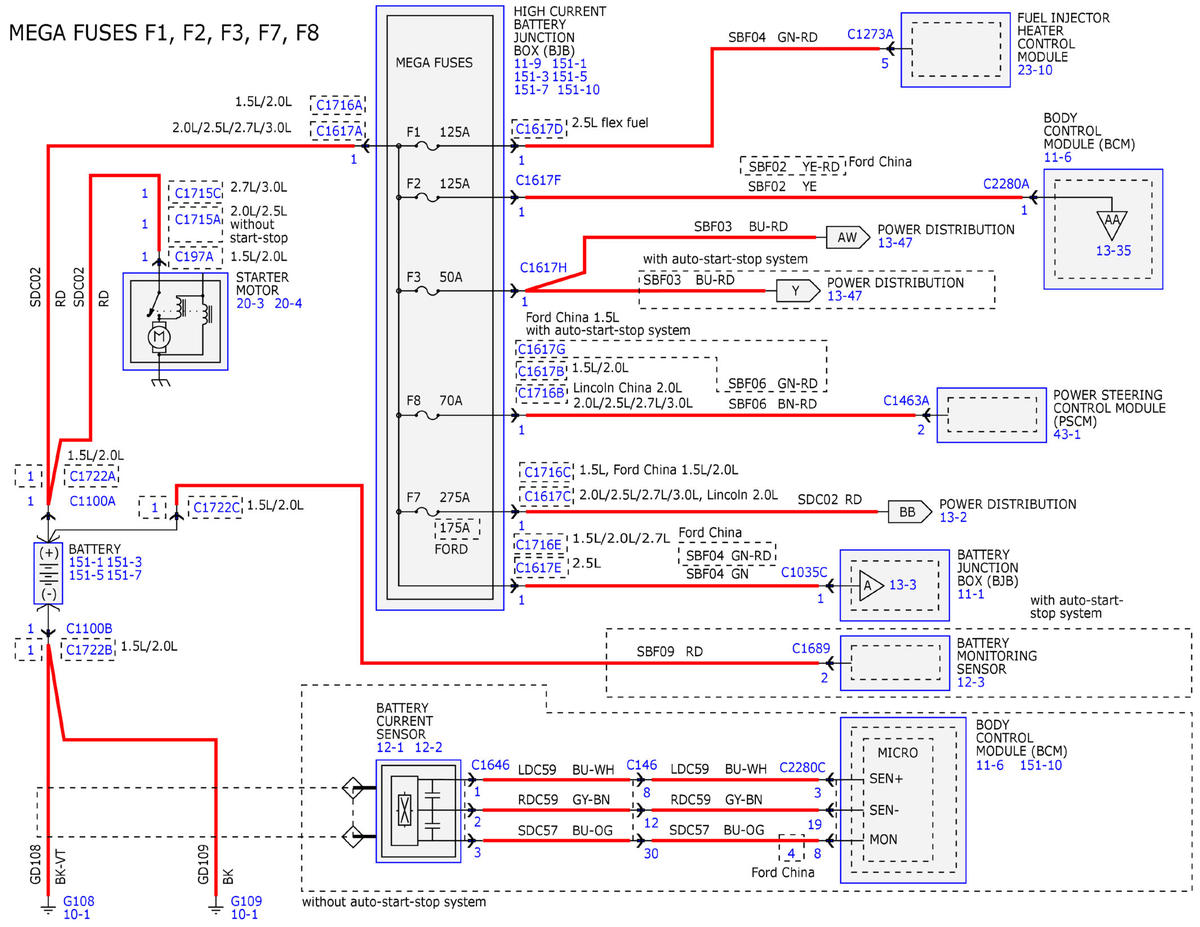

Fig 35: Power Distribution Wiring Diagram (35 Of 59)

GFDWR89689

Courtesy of FORD MOTOR COMPANY

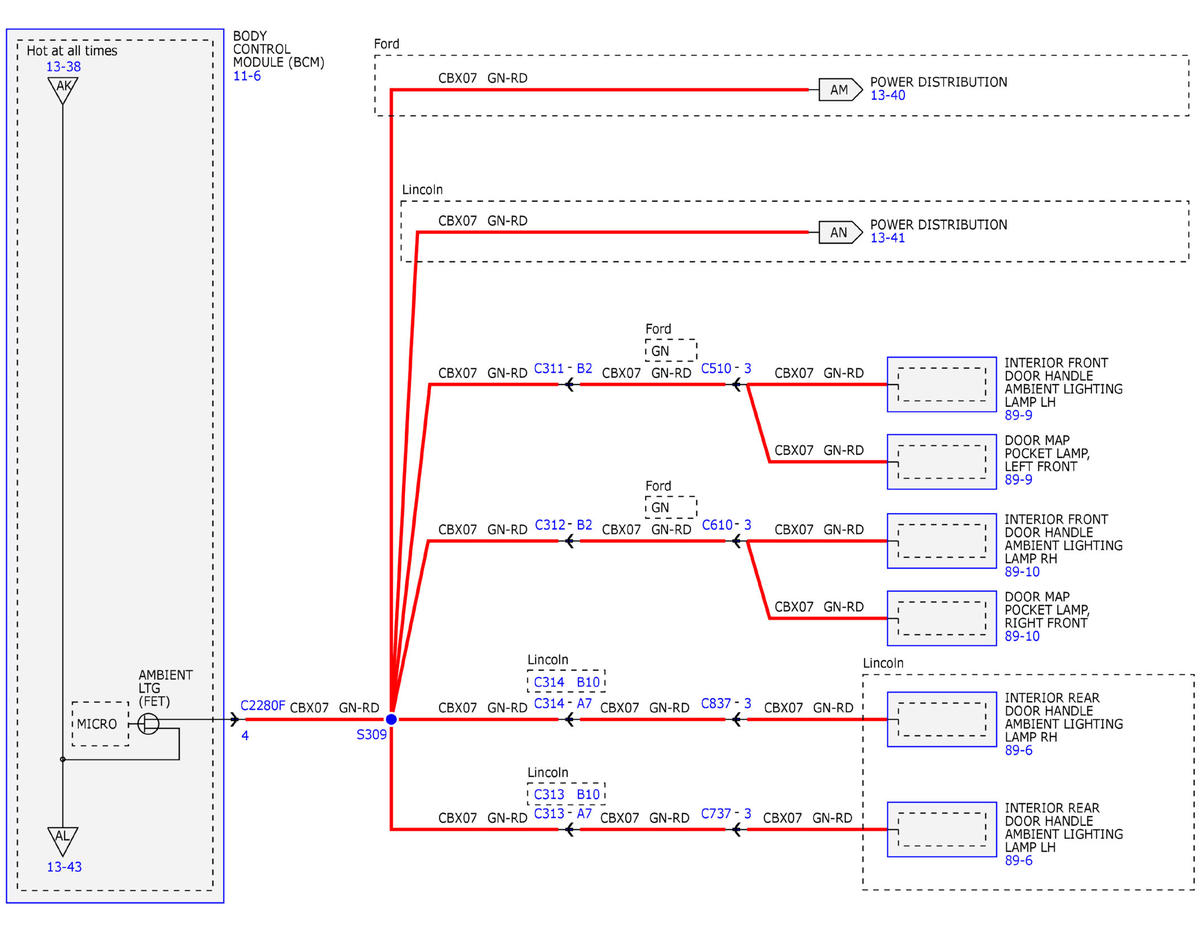

Fig 36: Power Distribution Wiring Diagram (36 Of 59)

GFDWR89690

Courtesy of FORD MOTOR COMPANY

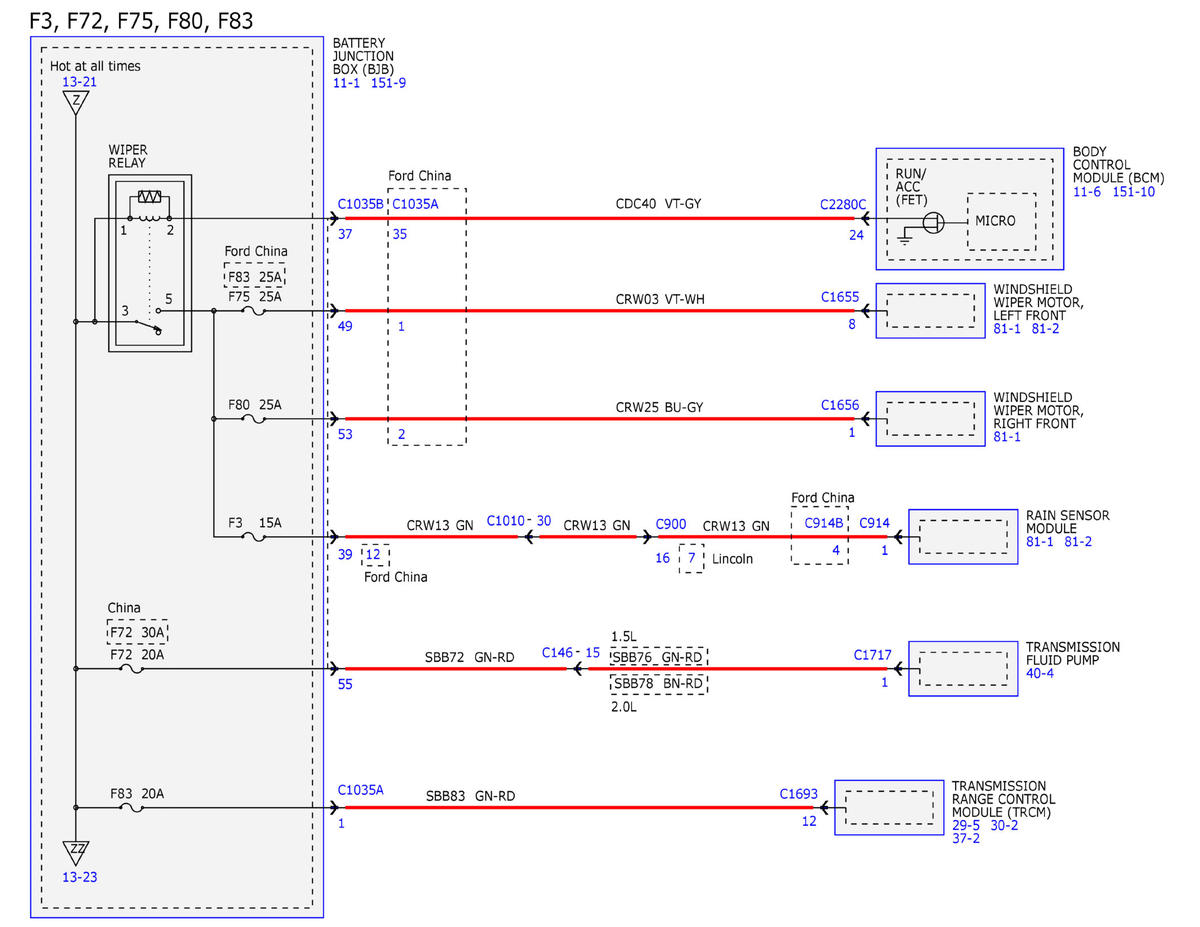

Fig 37: Power Distribution Wiring Diagram (37 Of 59)

GFDWR89691

Courtesy of FORD MOTOR COMPANY

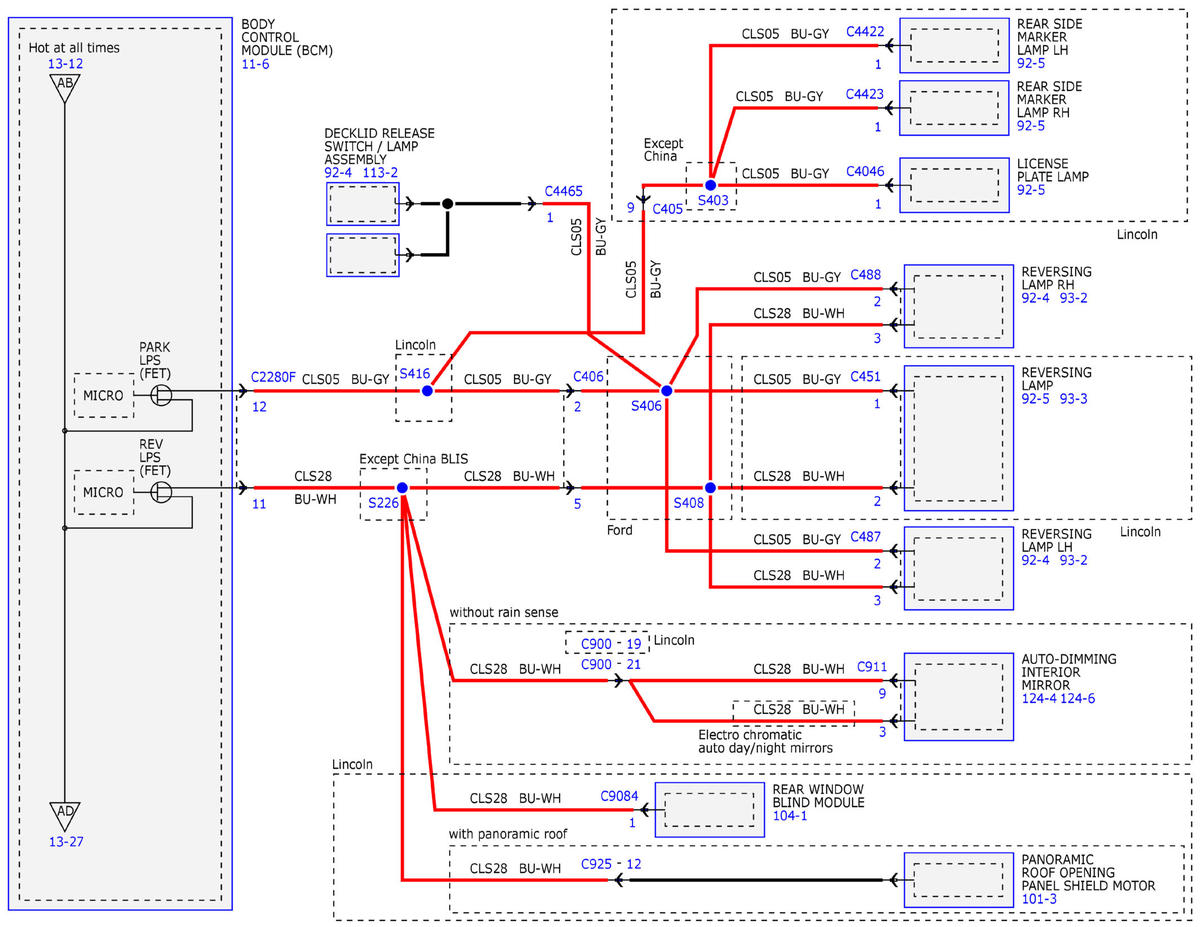

Fig 38: Power Distribution Wiring Diagram (38 Of 59)

GFDWR89692

Courtesy of FORD MOTOR COMPANY

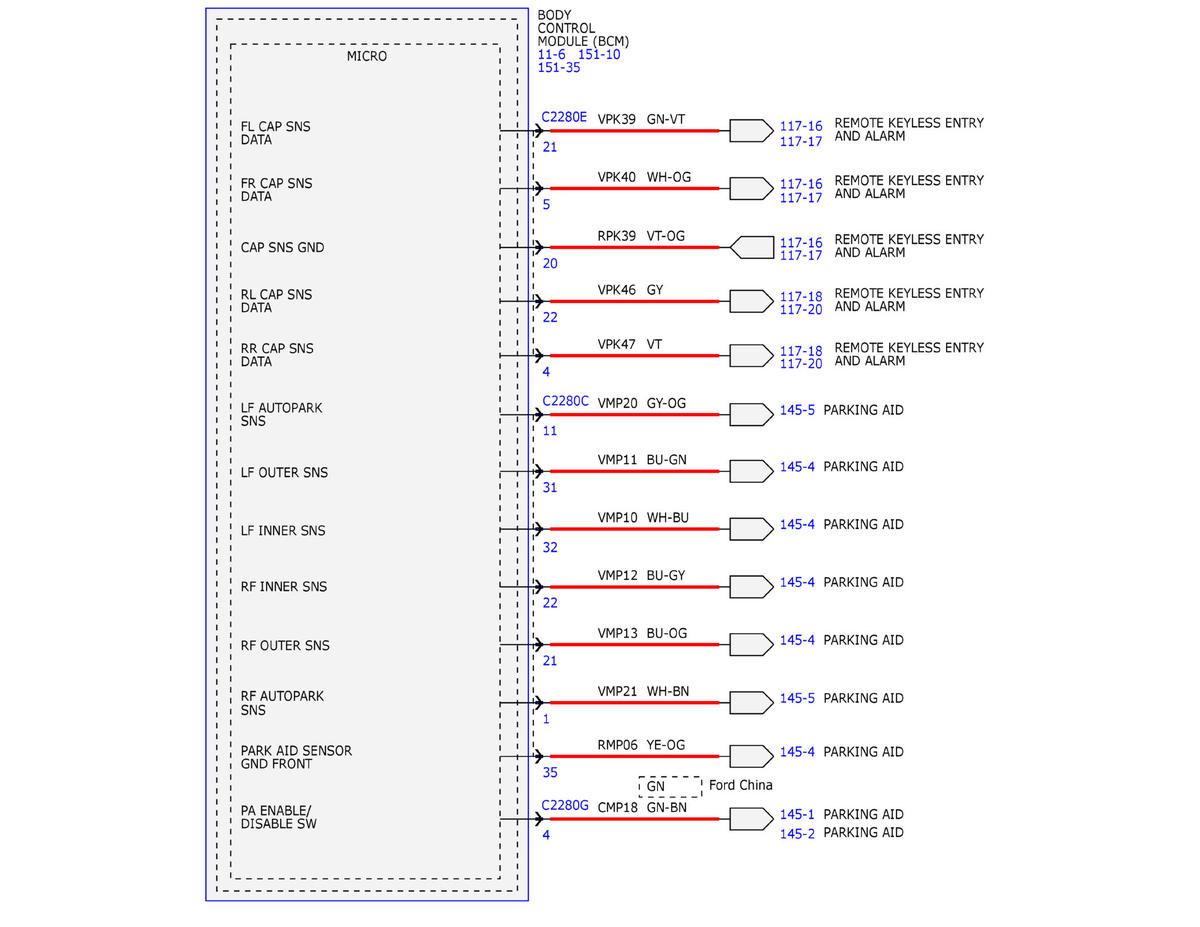

Fig 39: Power Distribution Wiring Diagram (39 Of 59)

GFDWR89693

Courtesy of FORD MOTOR COMPANY

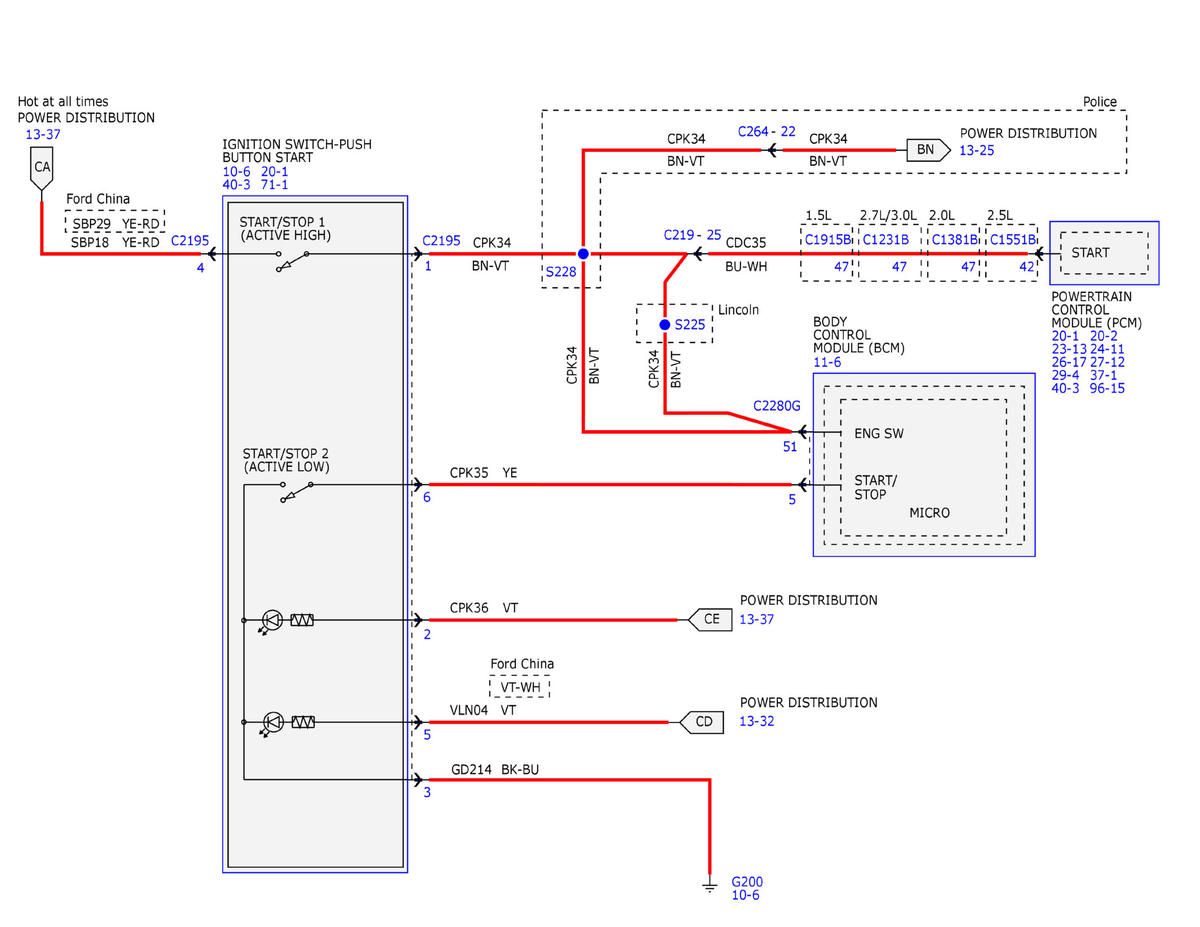

Fig 40: Power Distribution Wiring Diagram (40 Of 59)

GFDWR89694

Courtesy of FORD MOTOR COMPANY

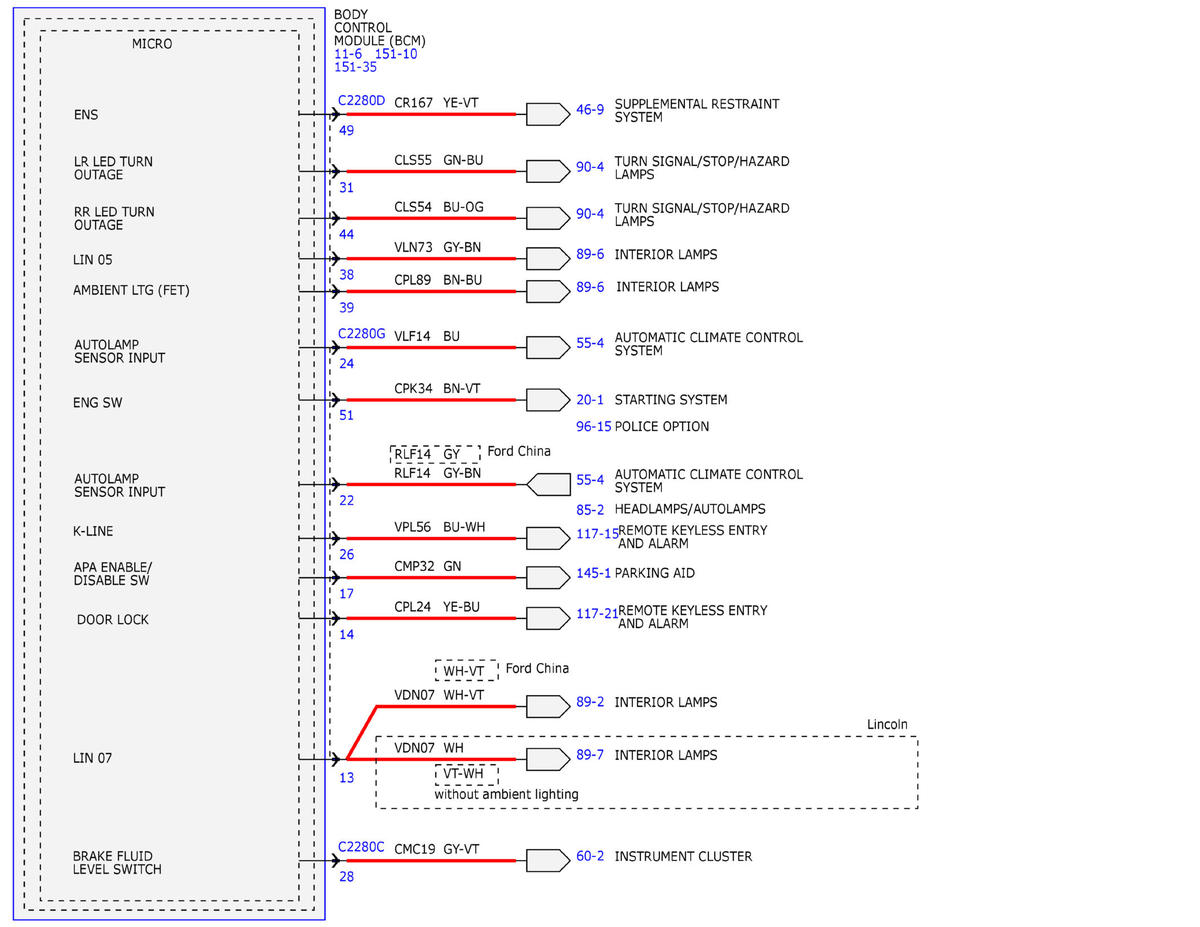

Fig 41: Power Distribution Wiring Diagram (41 Of 59)

GFDWR89695

Courtesy of FORD MOTOR COMPANY

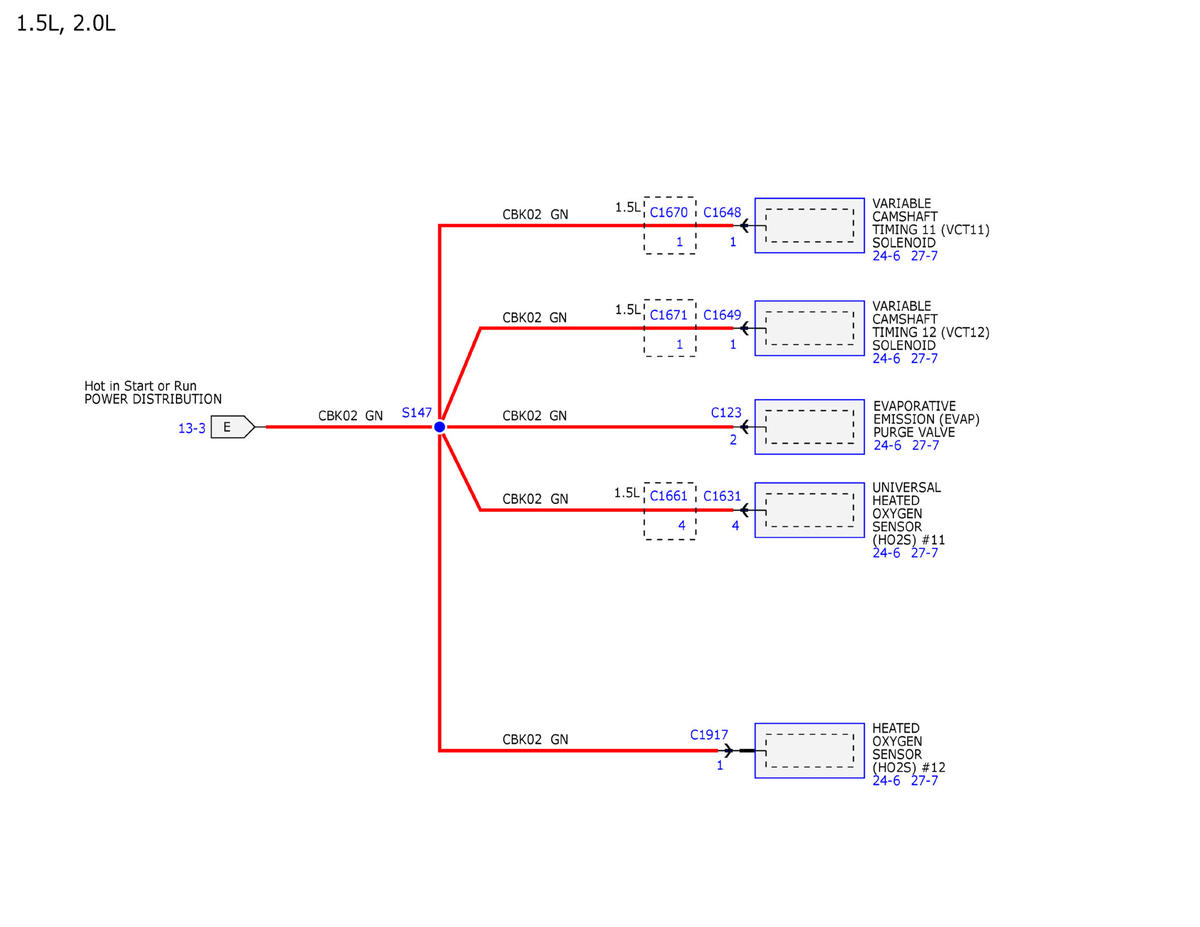

Fig 42: Power Distribution Wiring Diagram (42 Of 59)

GFDWR89696

Courtesy of FORD MOTOR COMPANY

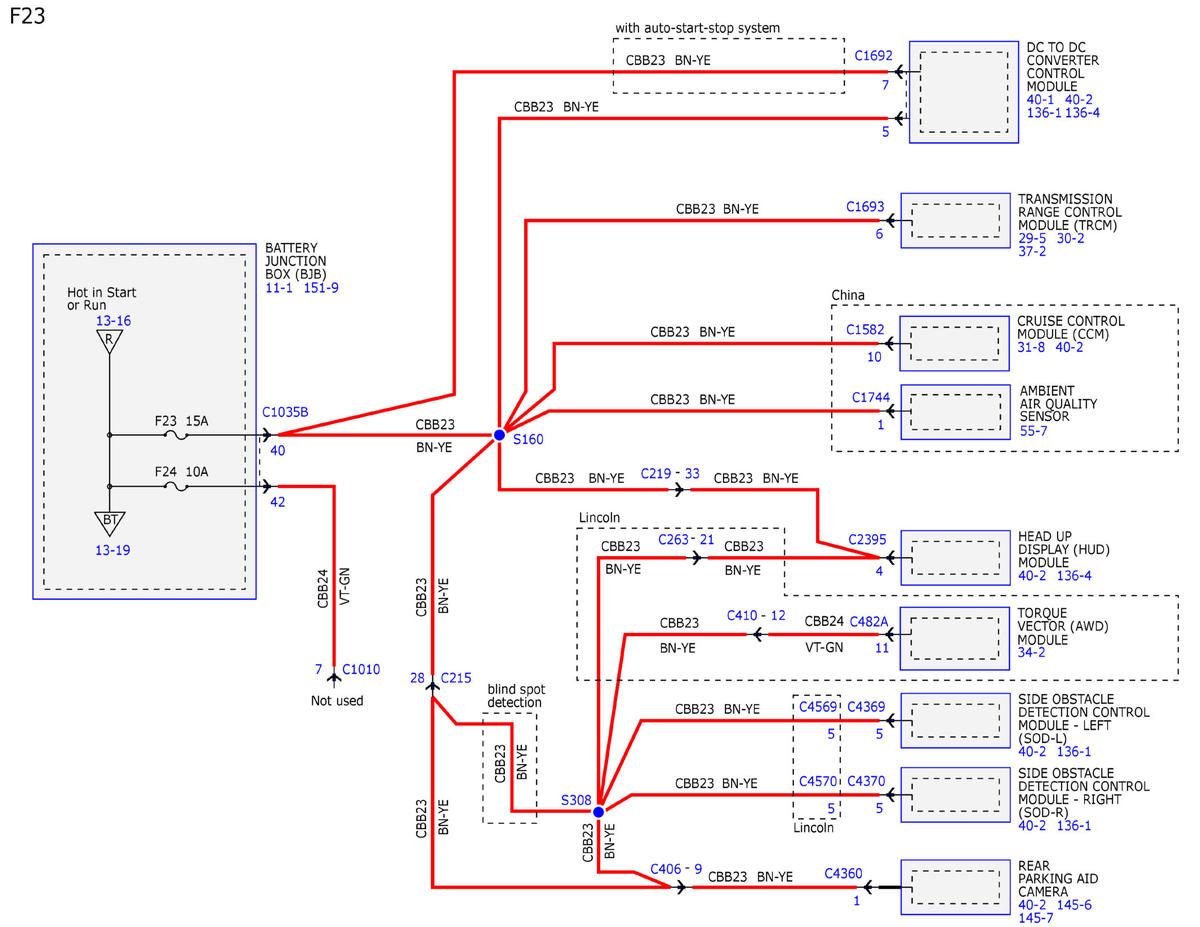

Fig 43: Power Distribution Wiring Diagram (43 Of 59)

GFDWR89697

Courtesy of FORD MOTOR COMPANY

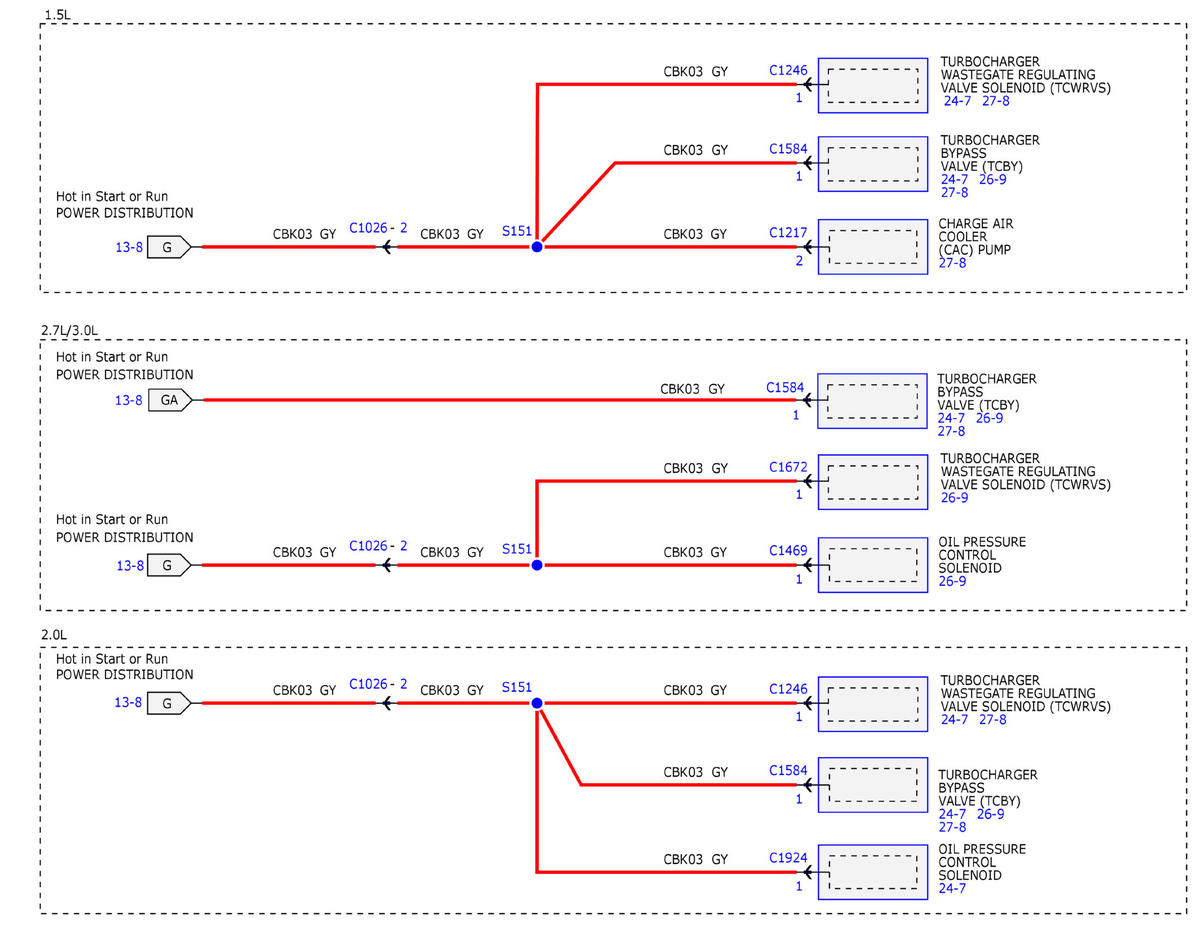

Fig 44: Power Distribution Wiring Diagram (44 Of 59)

GFDWR89698

Courtesy of FORD MOTOR COMPANY

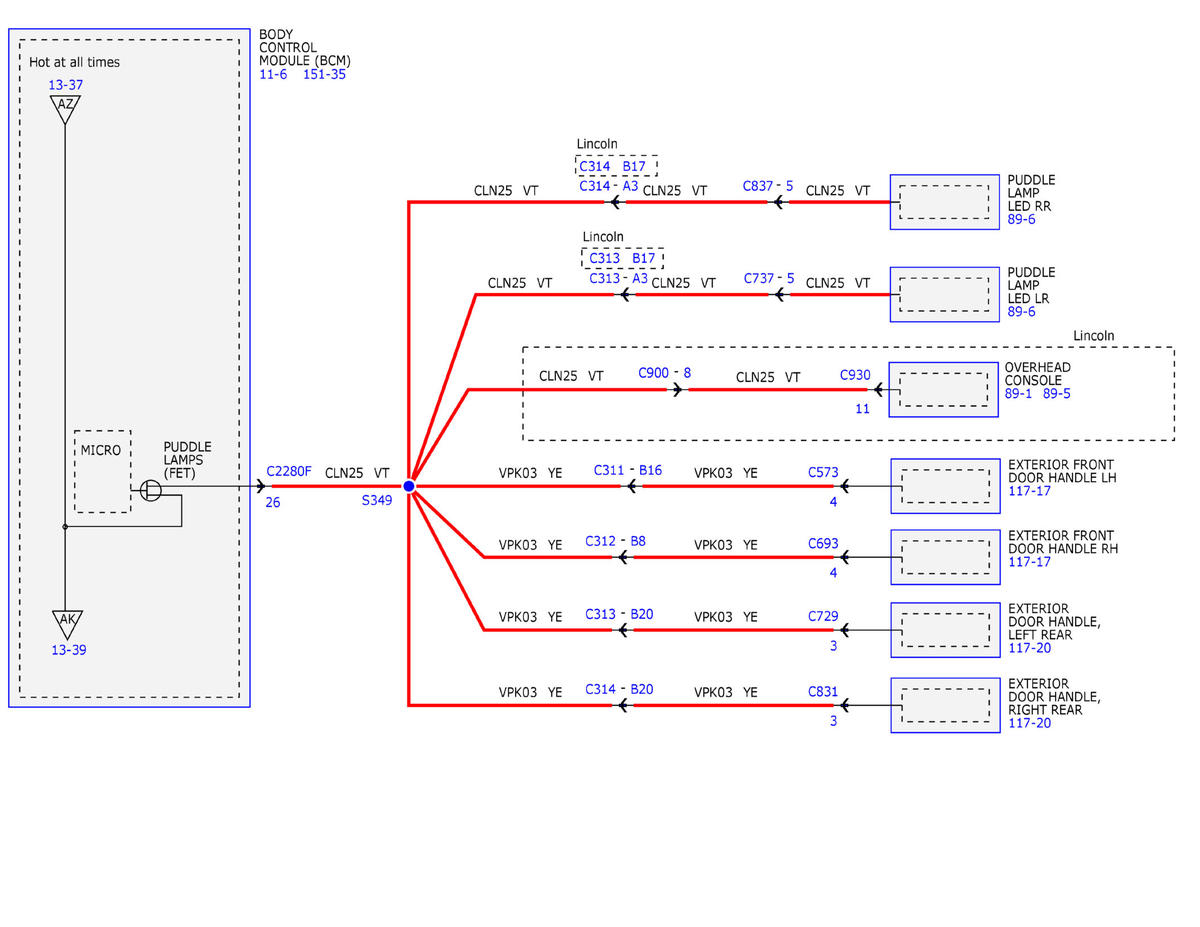

Fig 45: Power Distribution Wiring Diagram (45 Of 59)

GFDWR89699

Courtesy of FORD MOTOR COMPANY

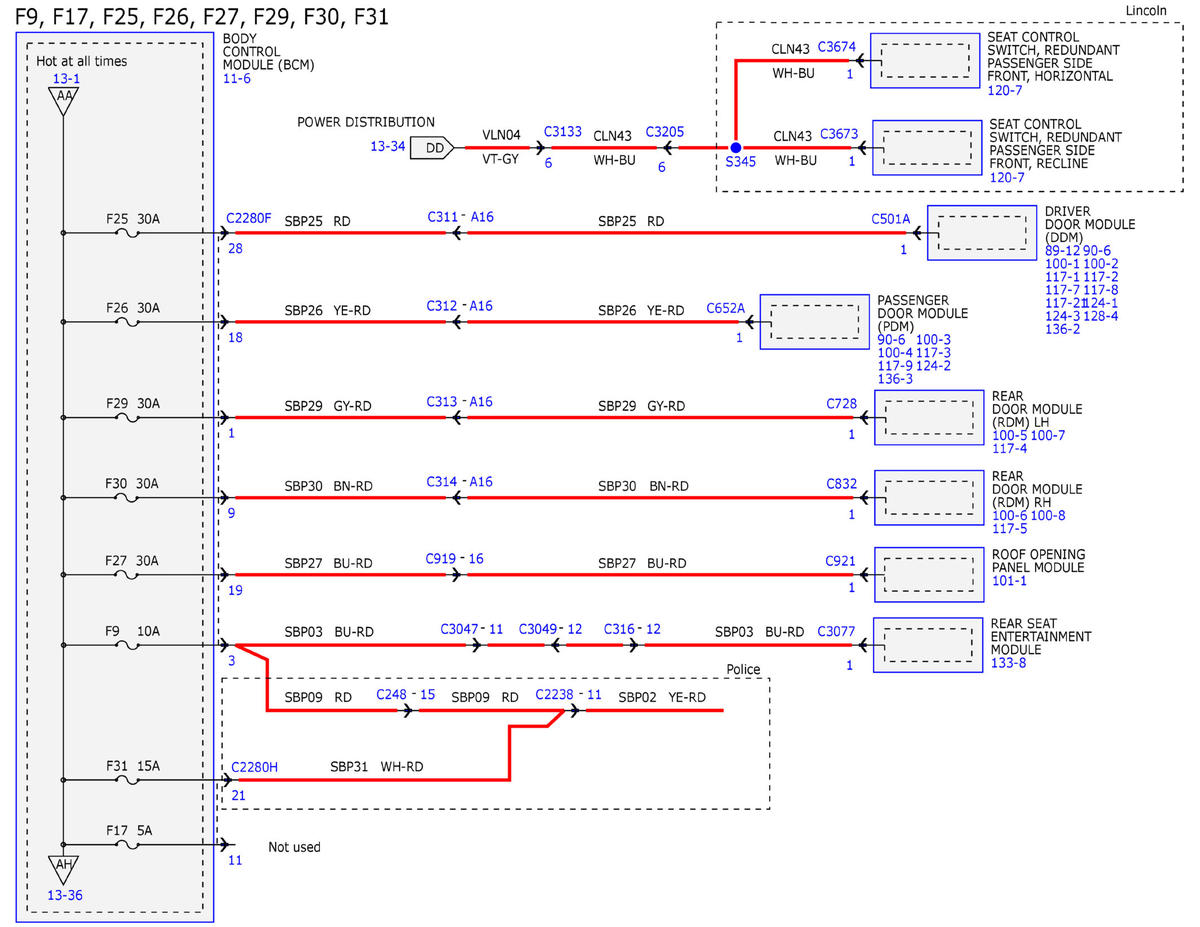

Fig 46: Power Distribution Wiring Diagram (46 Of 59)

GFDWR89700

Courtesy of FORD MOTOR COMPANY

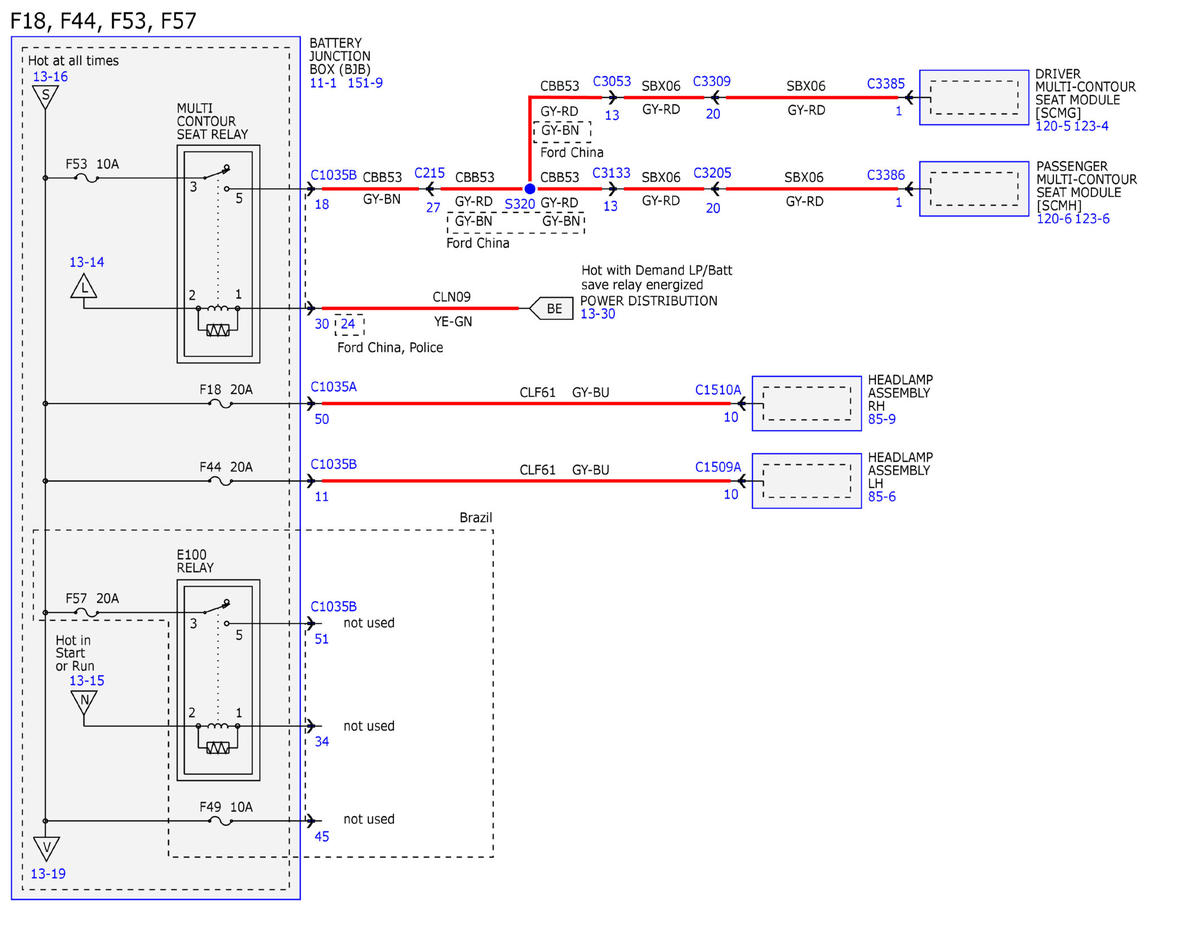

Fig 47: Power Distribution Wiring Diagram (47 Of 59)

GFDWR89701

Courtesy of FORD MOTOR COMPANY

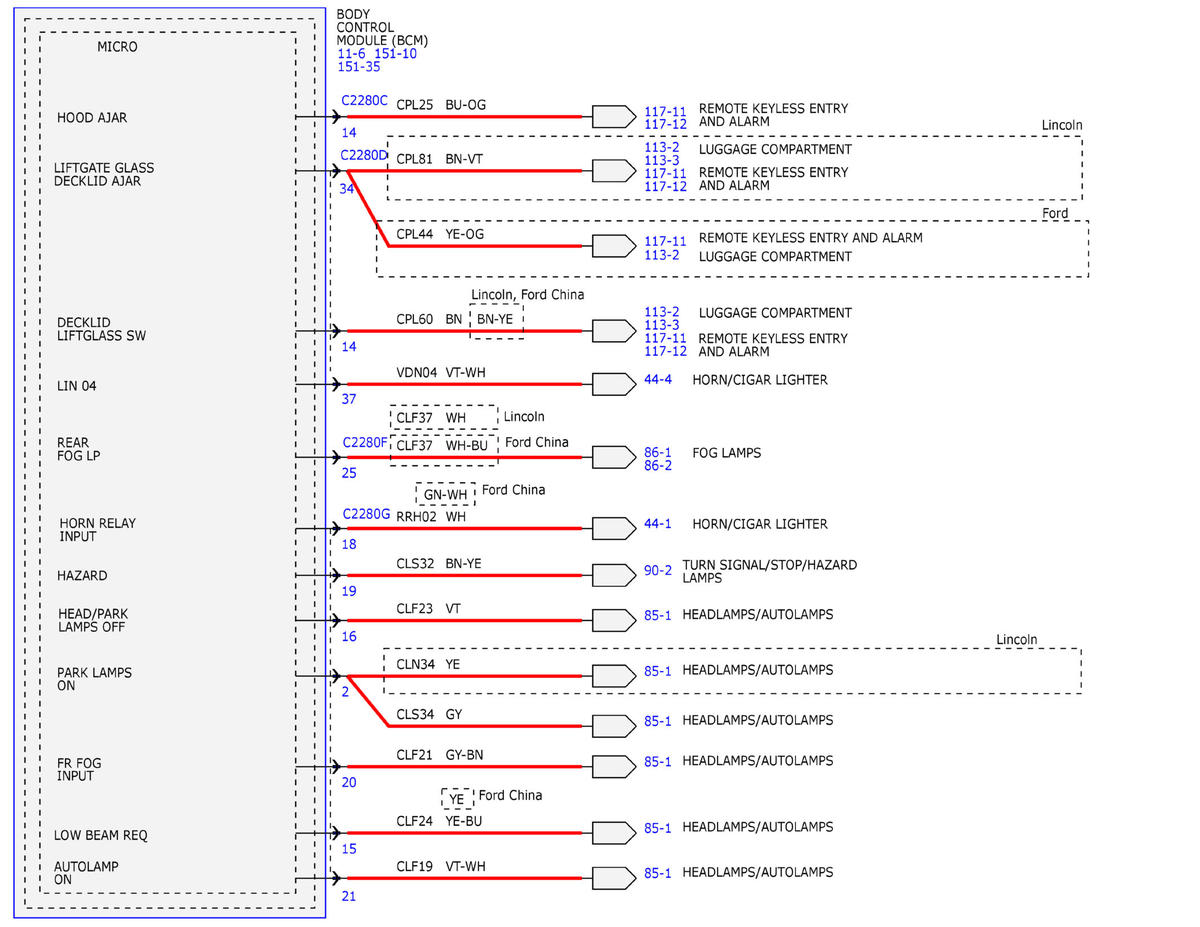

Fig 48: Power Distribution Wiring Diagram (48 Of 59)

GFDWR89702

Courtesy of FORD MOTOR COMPANY

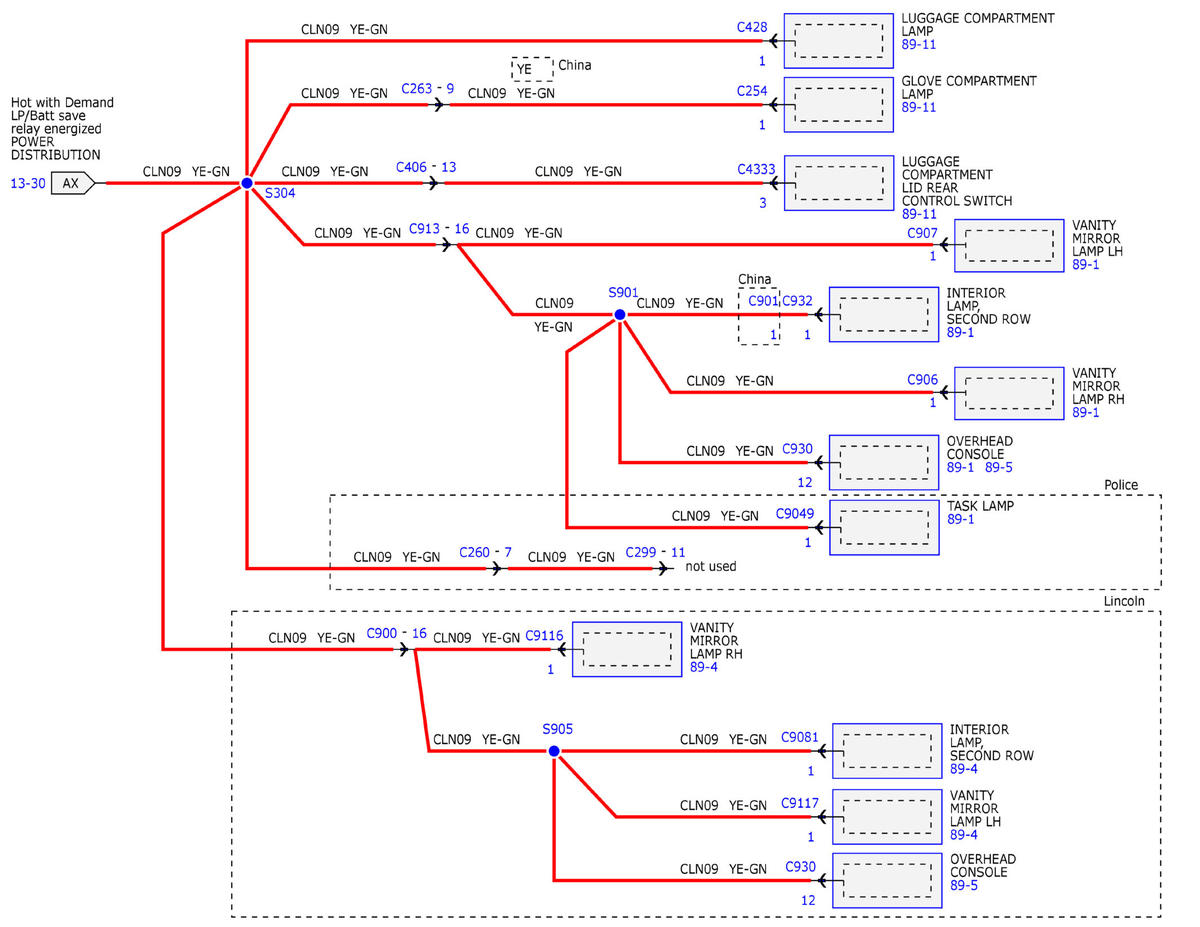

Fig 49: Power Distribution Wiring Diagram (49 Of 59)

GFDWR89703

Courtesy of FORD MOTOR COMPANY

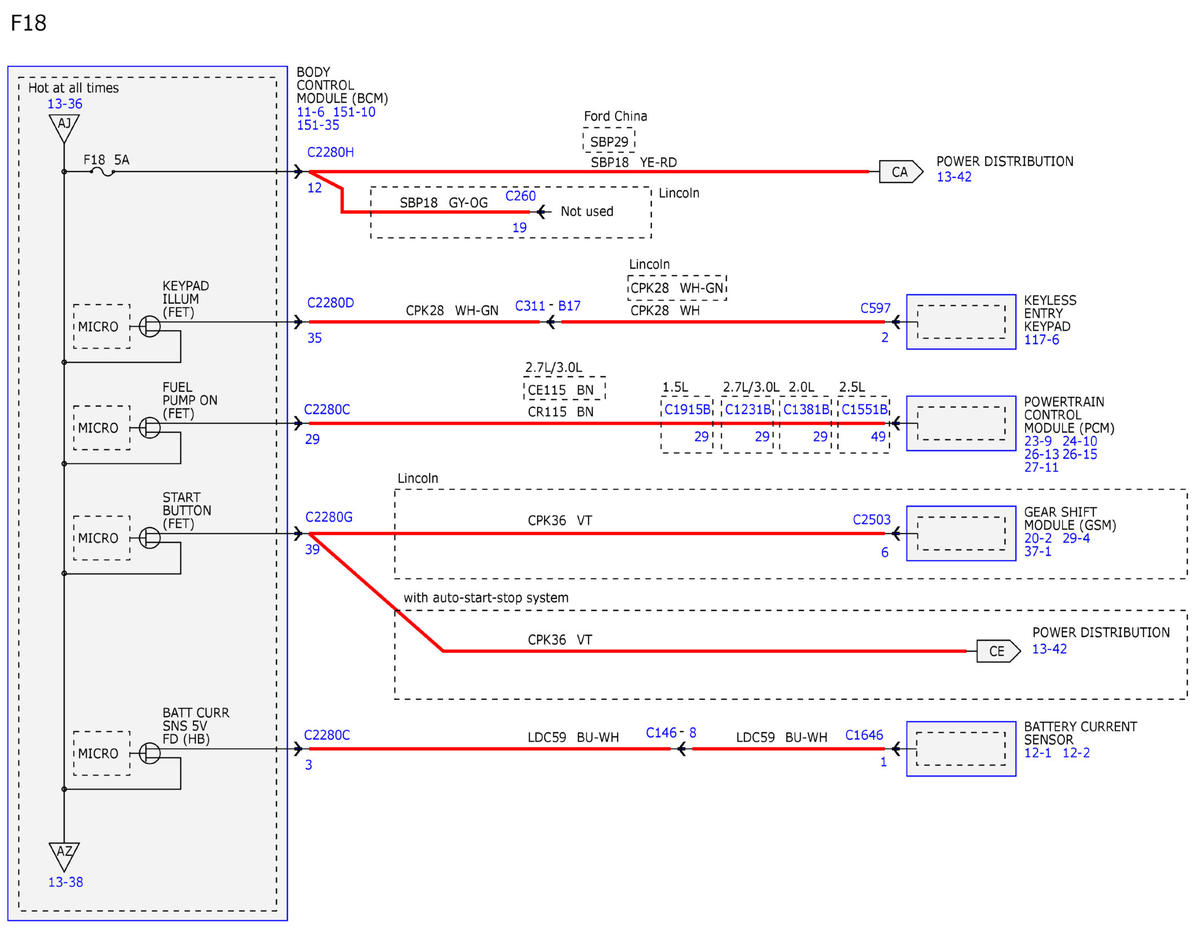

Fig 50: Power Distribution Wiring Diagram (50 Of 59)

GFDWR89704

Courtesy of FORD MOTOR COMPANY

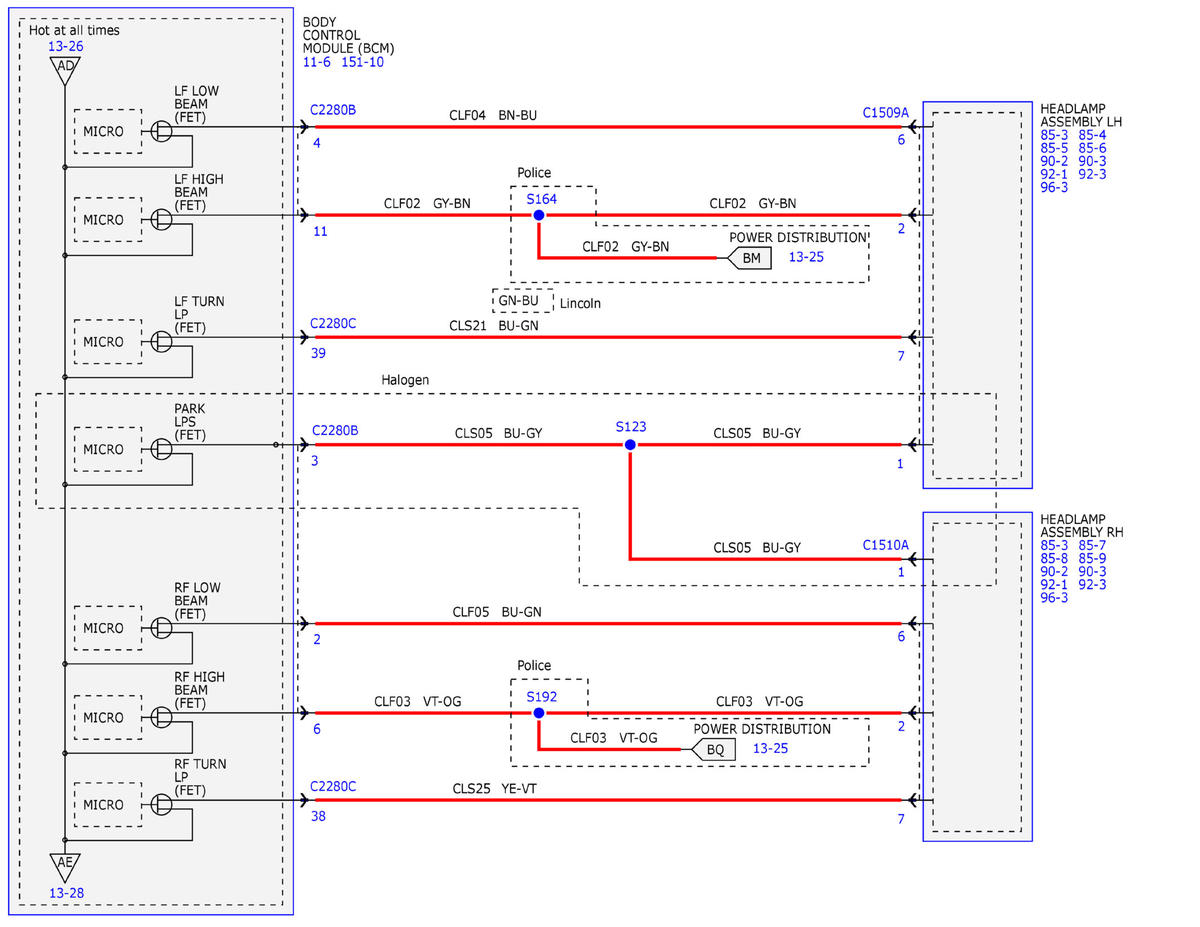

Fig 51: Power Distribution Wiring Diagram (51 Of 59)

GFDWR89705

Courtesy of FORD MOTOR COMPANY

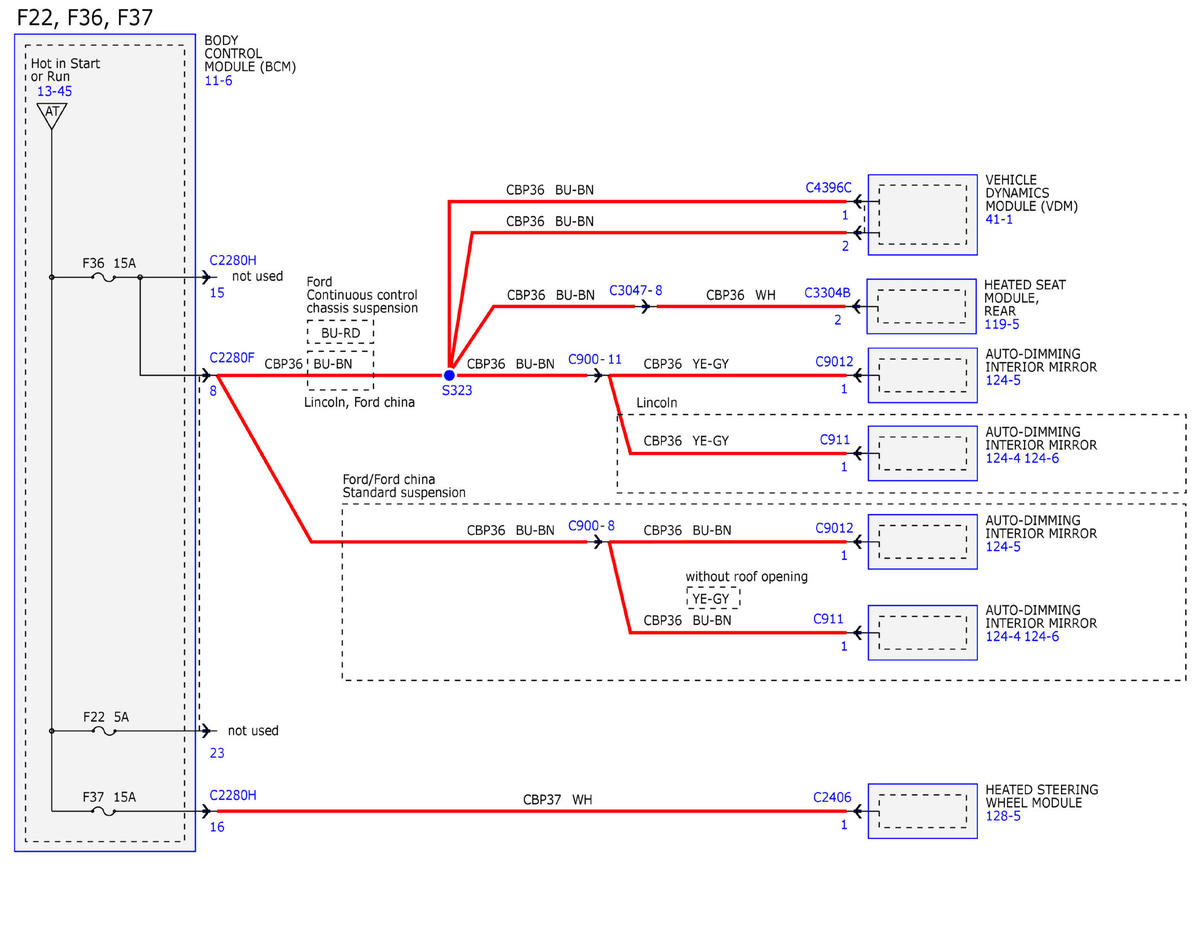

Fig 52: Power Distribution Wiring Diagram (52 Of 59)

GFDWR89706

Courtesy of FORD MOTOR COMPANY

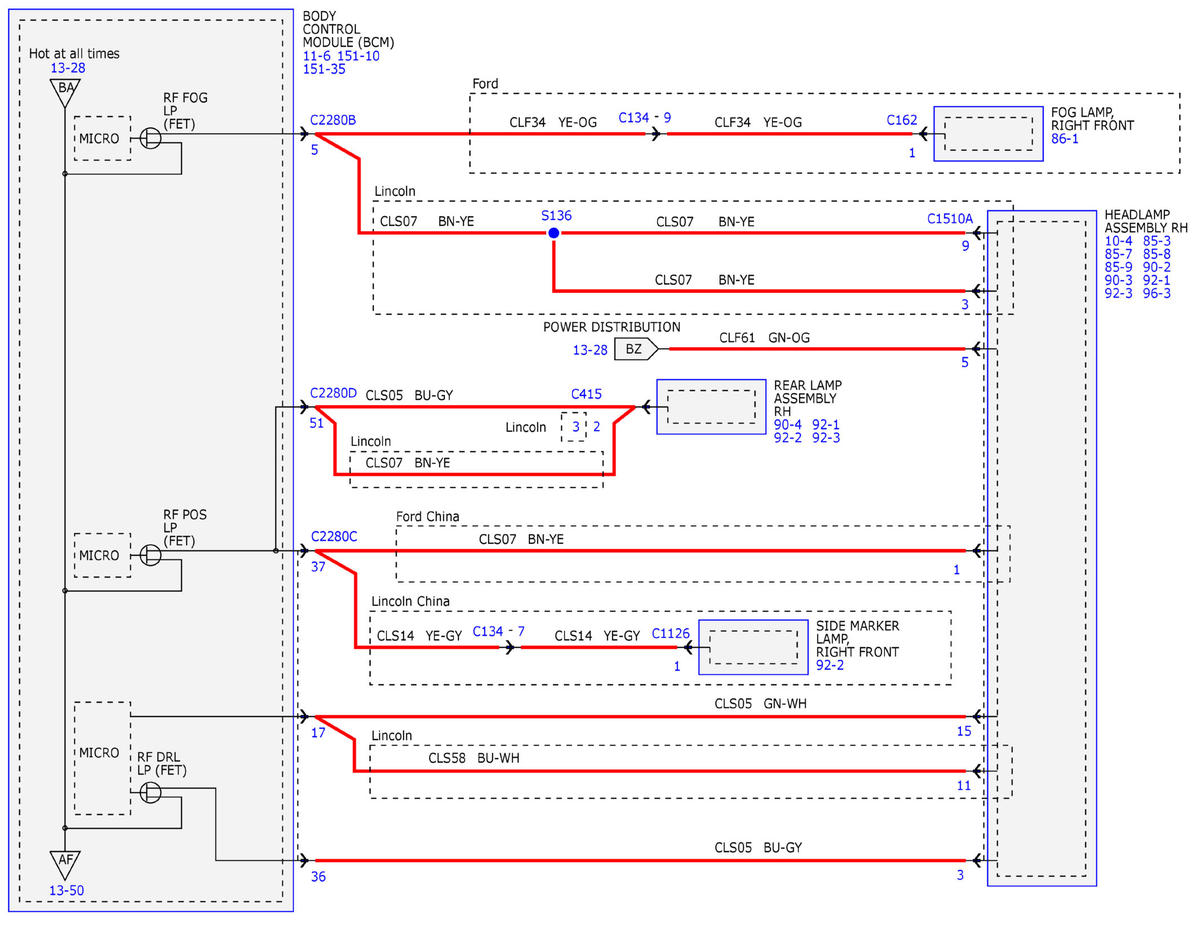

Fig 53: Power Distribution Wiring Diagram (53 Of 59)

GFDWR89707

Courtesy of FORD MOTOR COMPANY

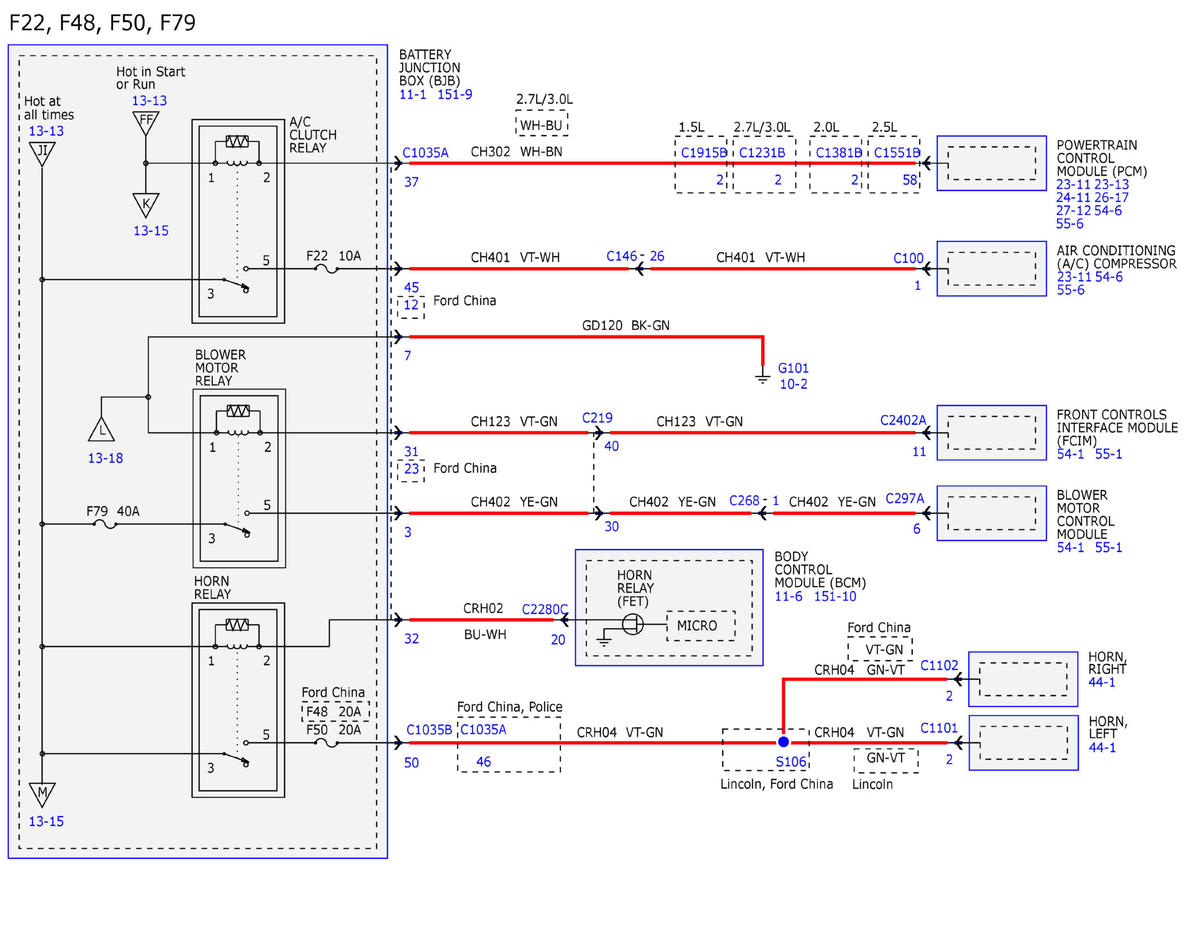

Fig 54: Power Distribution Wiring Diagram (54 Of 59)

GFDWR89708

Courtesy of FORD MOTOR COMPANY

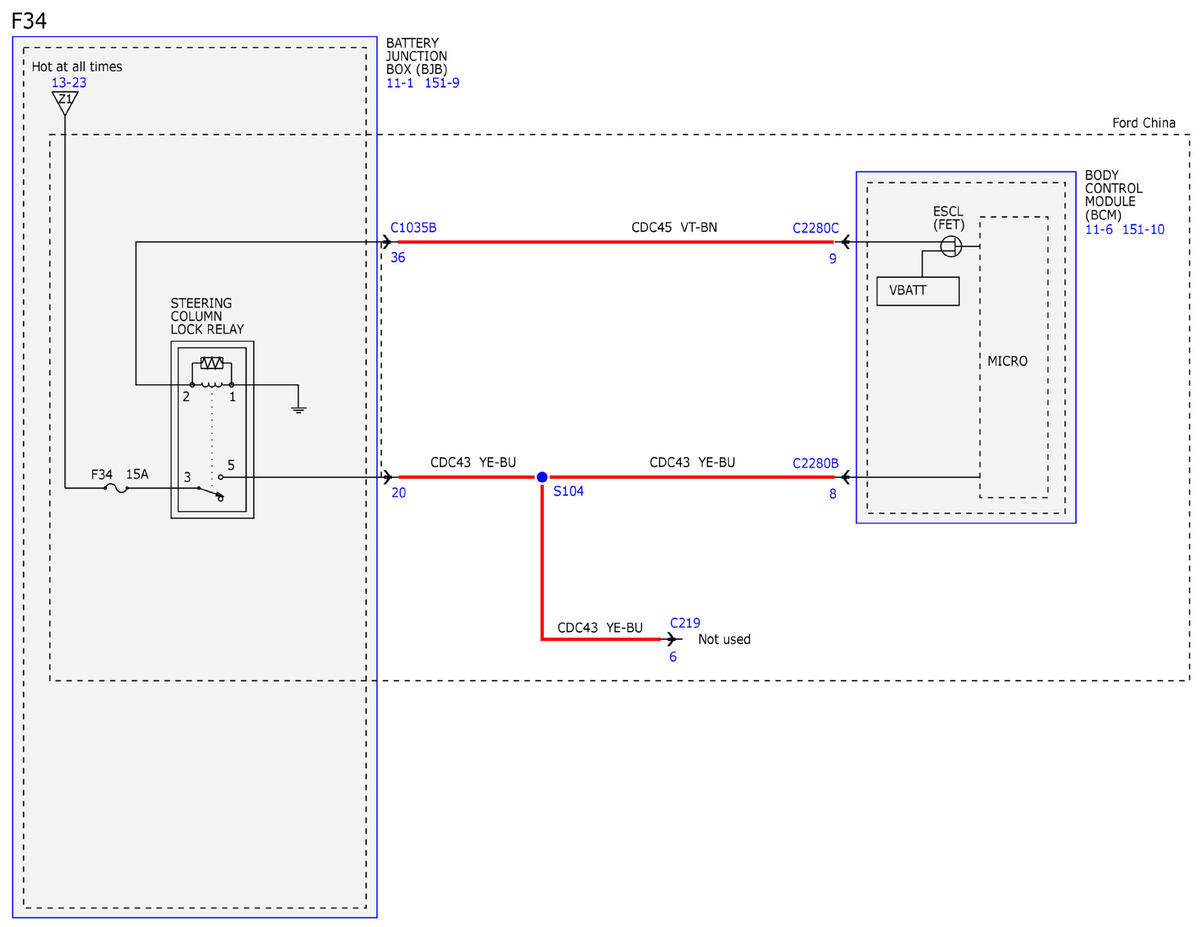

Fig 55: Power Distribution Wiring Diagram (55 Of 59)

GFDWR89709

Courtesy of FORD MOTOR COMPANY

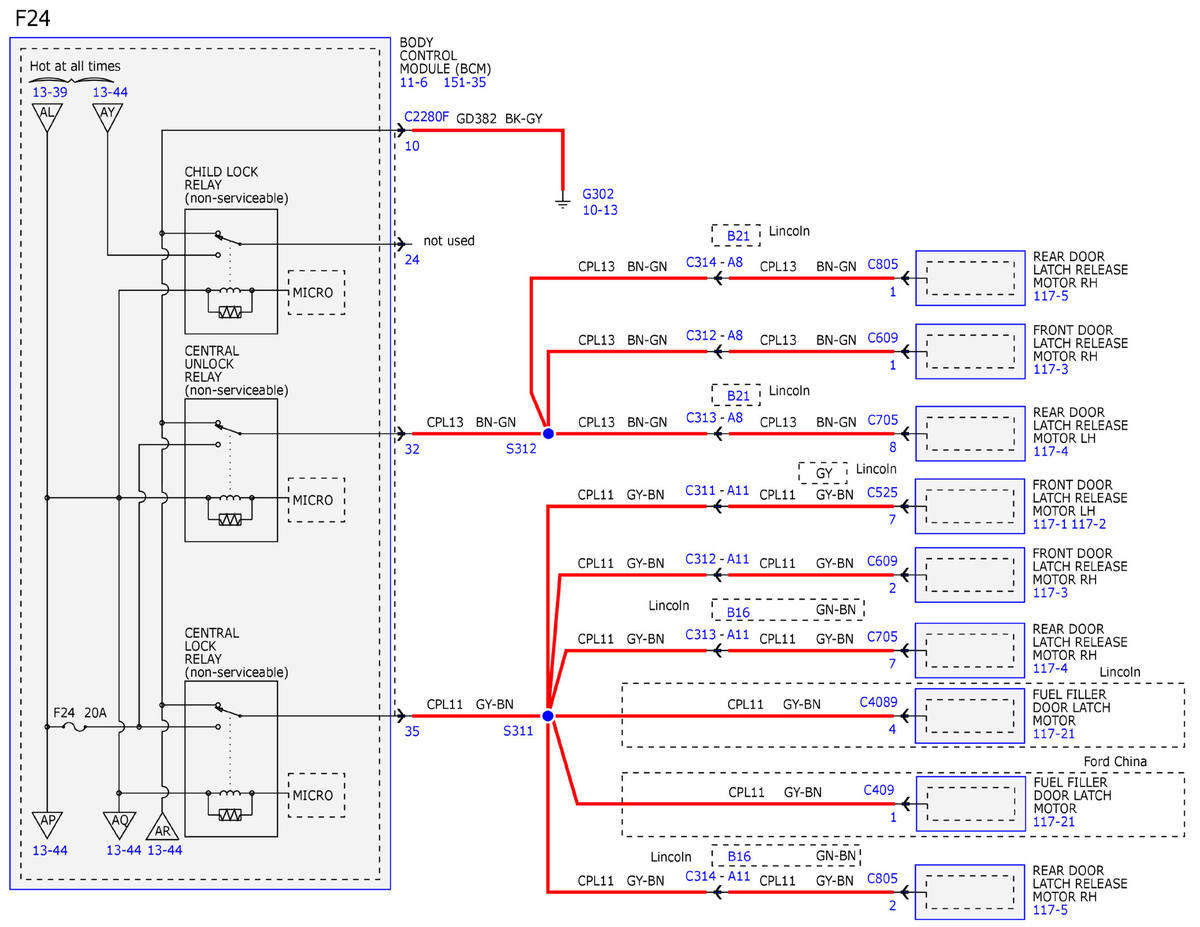

Fig 56: Power Distribution Wiring Diagram (56 Of 59)

GFDWR89710

Courtesy of FORD MOTOR COMPANY

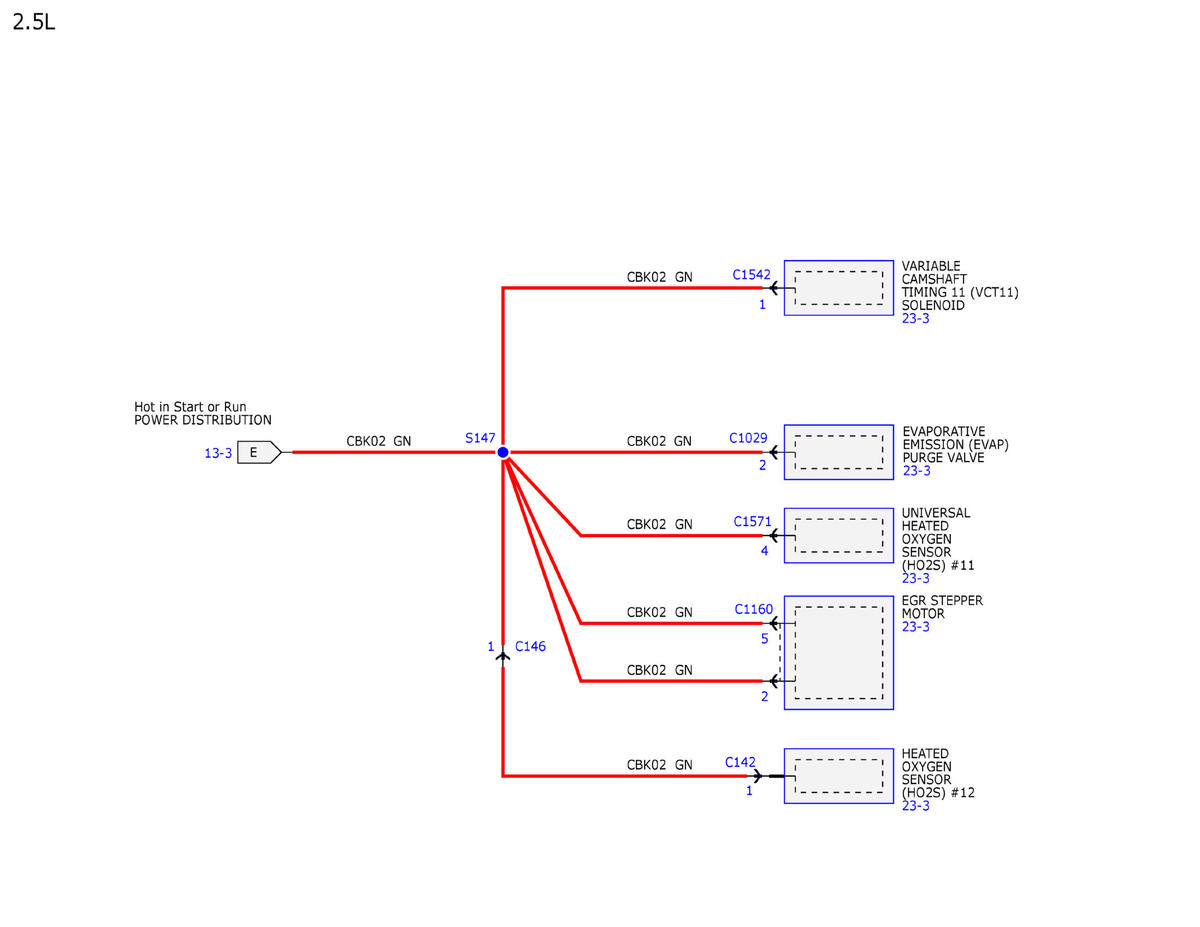

Fig 57: Power Distribution Wiring Diagram (57 Of 59)

GFDWR89711

Courtesy of FORD MOTOR COMPANY

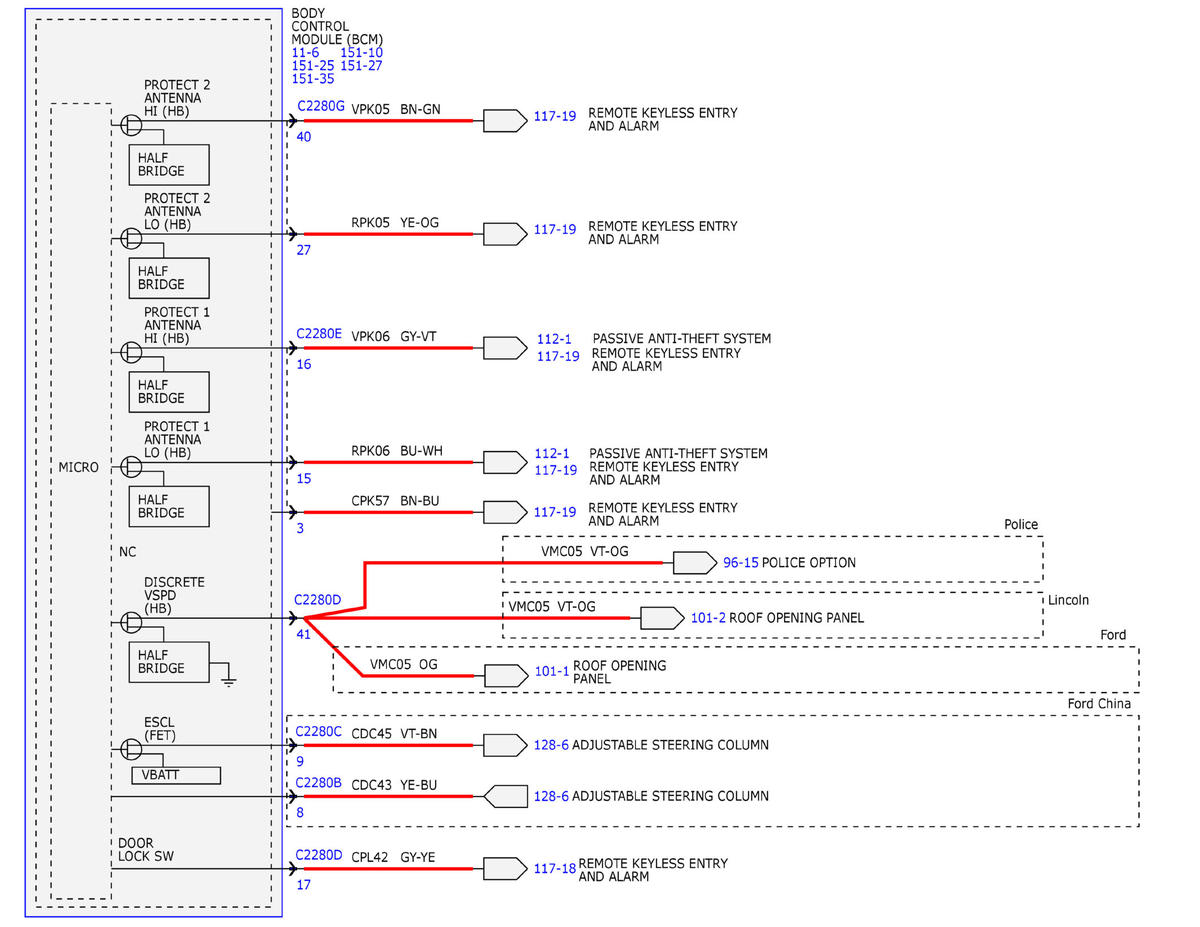

Fig 58: Power Distribution Wiring Diagram (58 Of 59)

GFDWR89712

Courtesy of FORD MOTOR COMPANY

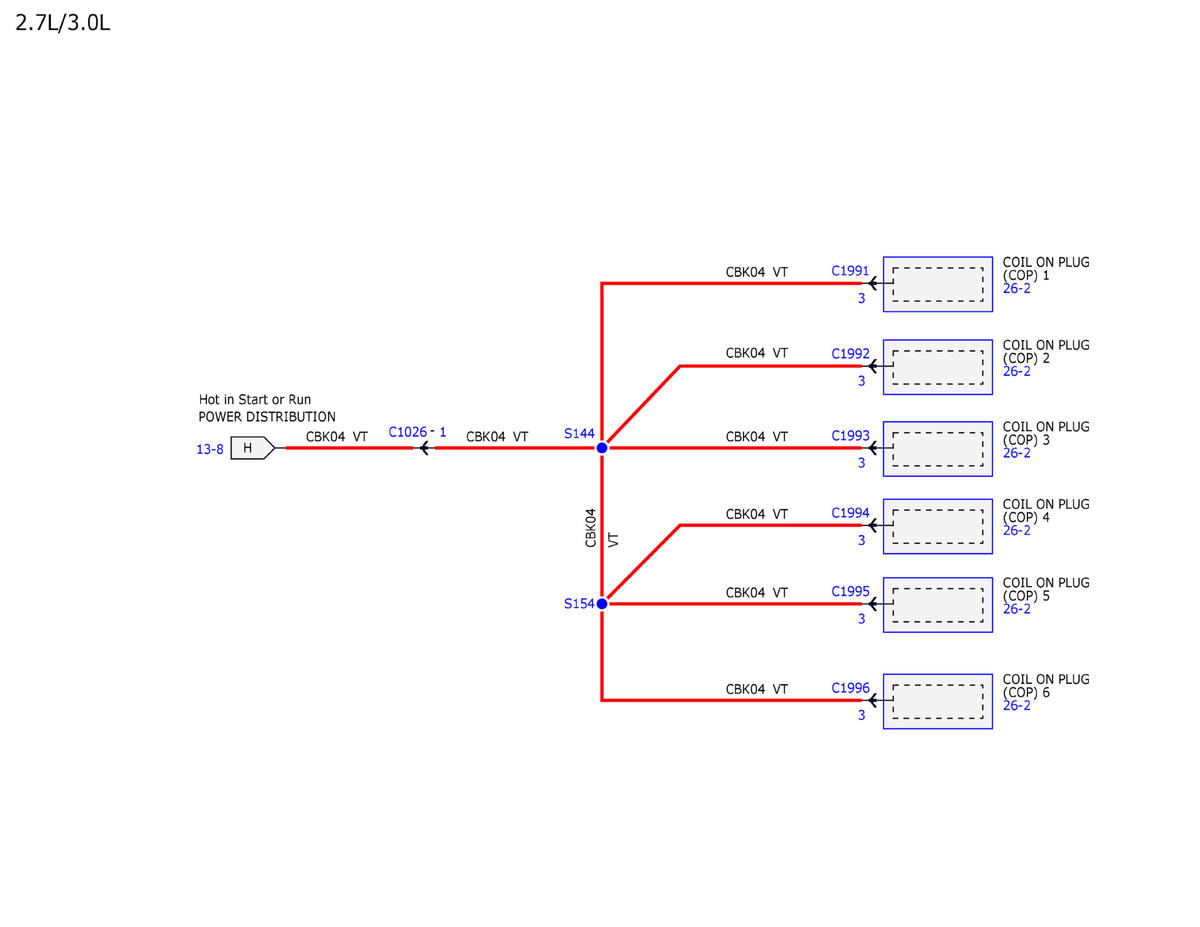

Fig 59: Power Distribution Wiring Diagram (59 Of 59)

GFDWR89713

Courtesy of FORD MOTOR COMPANY
