Police Option

Fig 1: Police Option Wiring Diagram (1 Of 21)

GFDWR89634

Courtesy of FORD MOTOR COMPANY

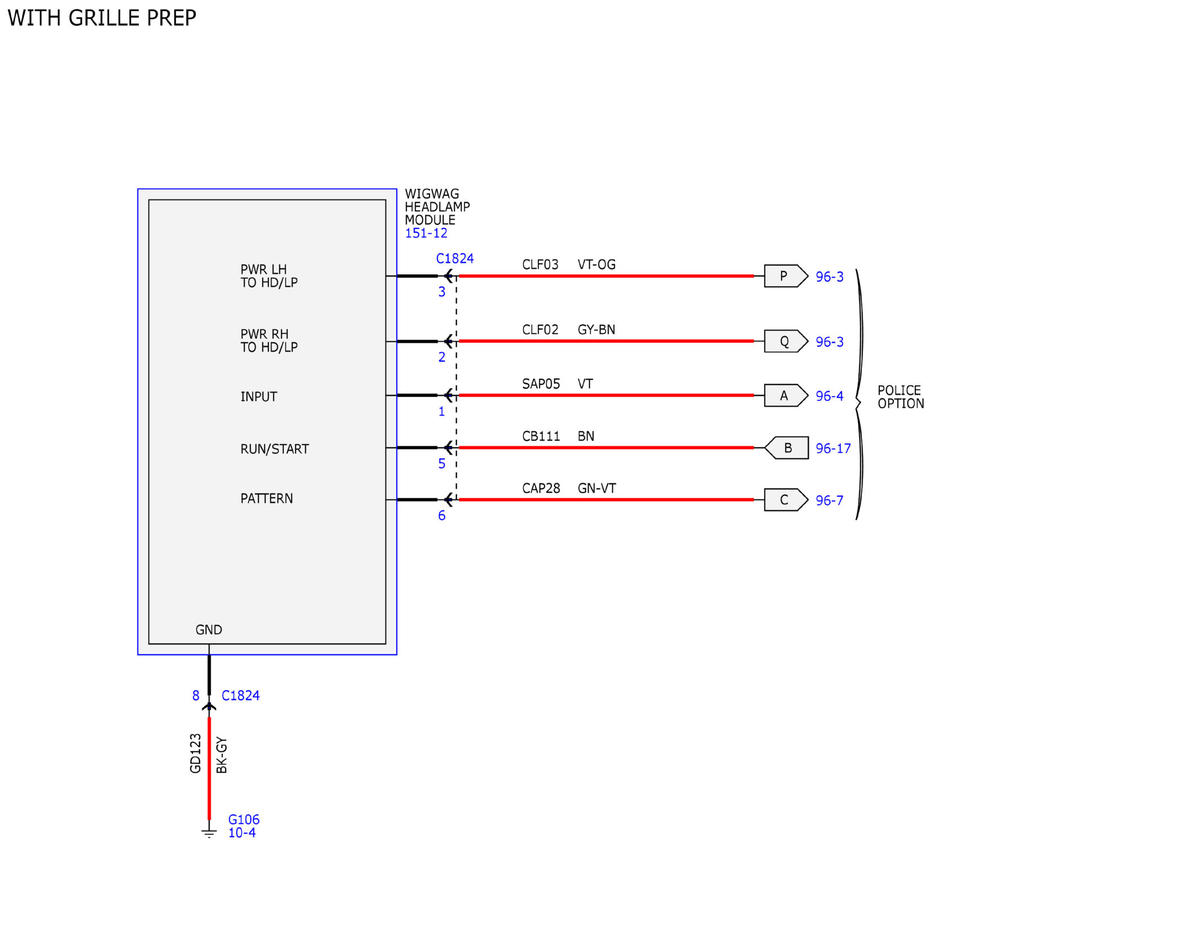

Fig 2: Police Option Wiring Diagram (2 Of 21)

GFDWR89635

Courtesy of FORD MOTOR COMPANY

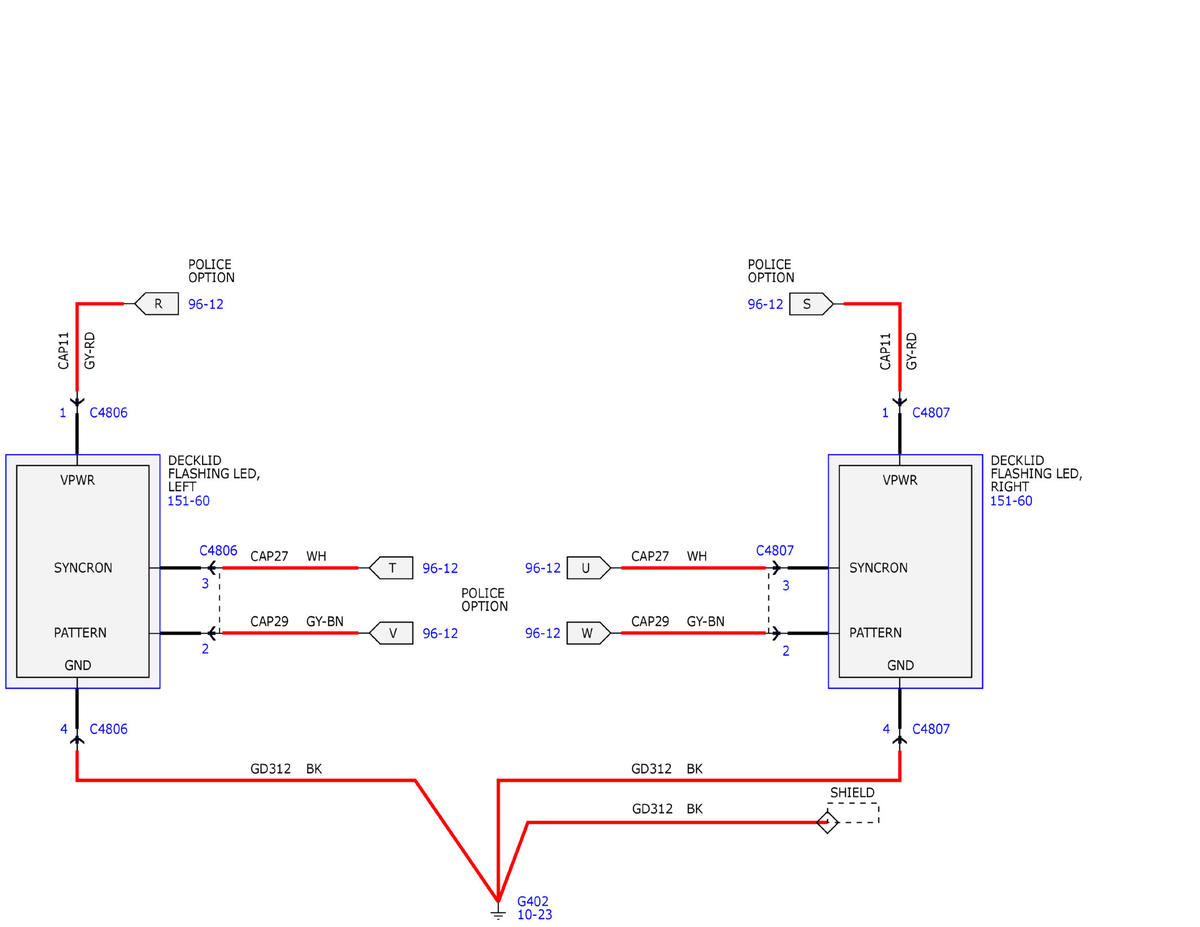

Fig 3: Police Option Wiring Diagram (3 Of 21)

GFDWR89636

Courtesy of FORD MOTOR COMPANY

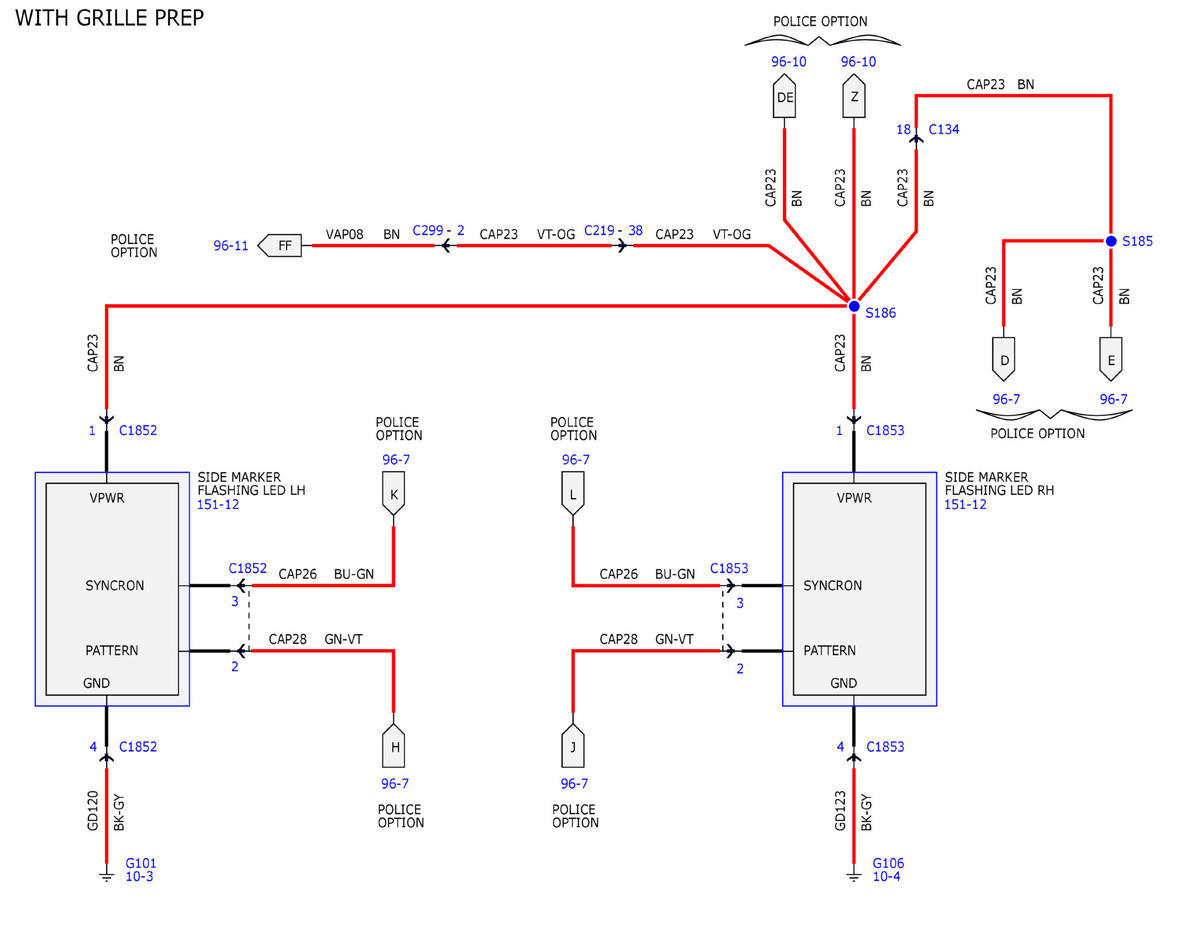

Fig 4: Police Option Wiring Diagram (4 Of 21)

GFDWR89637

Courtesy of FORD MOTOR COMPANY

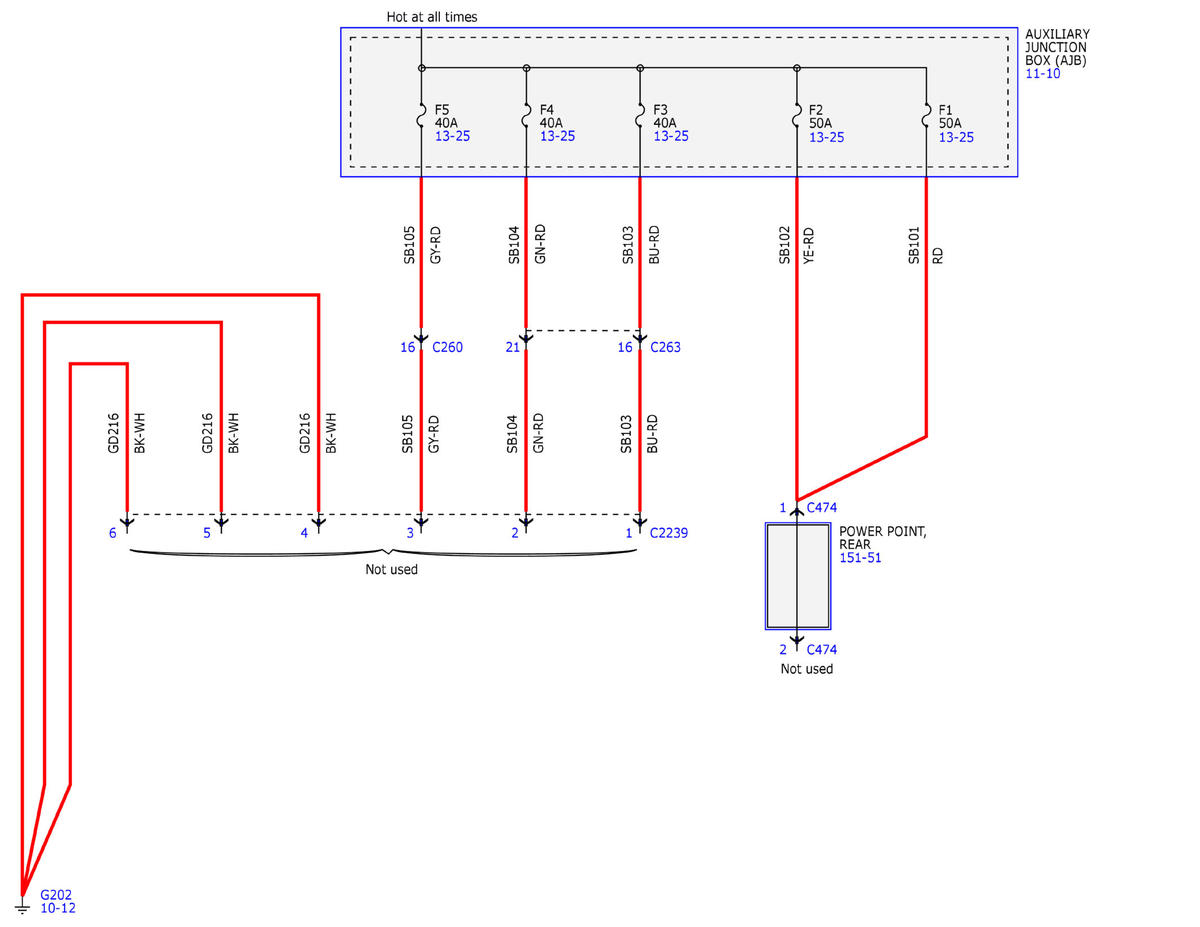

Fig 5: Police Option Wiring Diagram (5 Of 21)

GFDWR89638

Courtesy of FORD MOTOR COMPANY

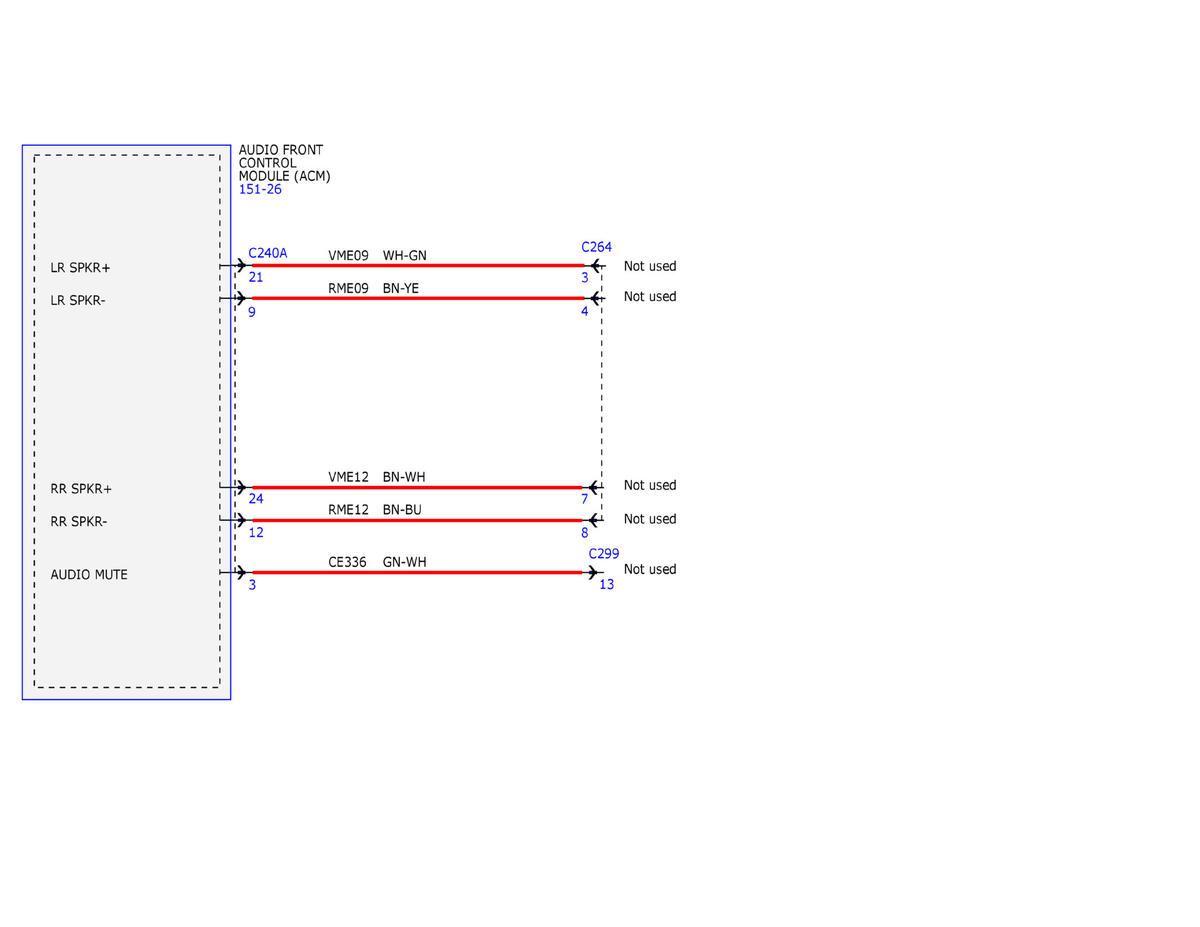

Fig 6: Police Option Wiring Diagram (6 Of 21)

GFDWR89639

Courtesy of FORD MOTOR COMPANY

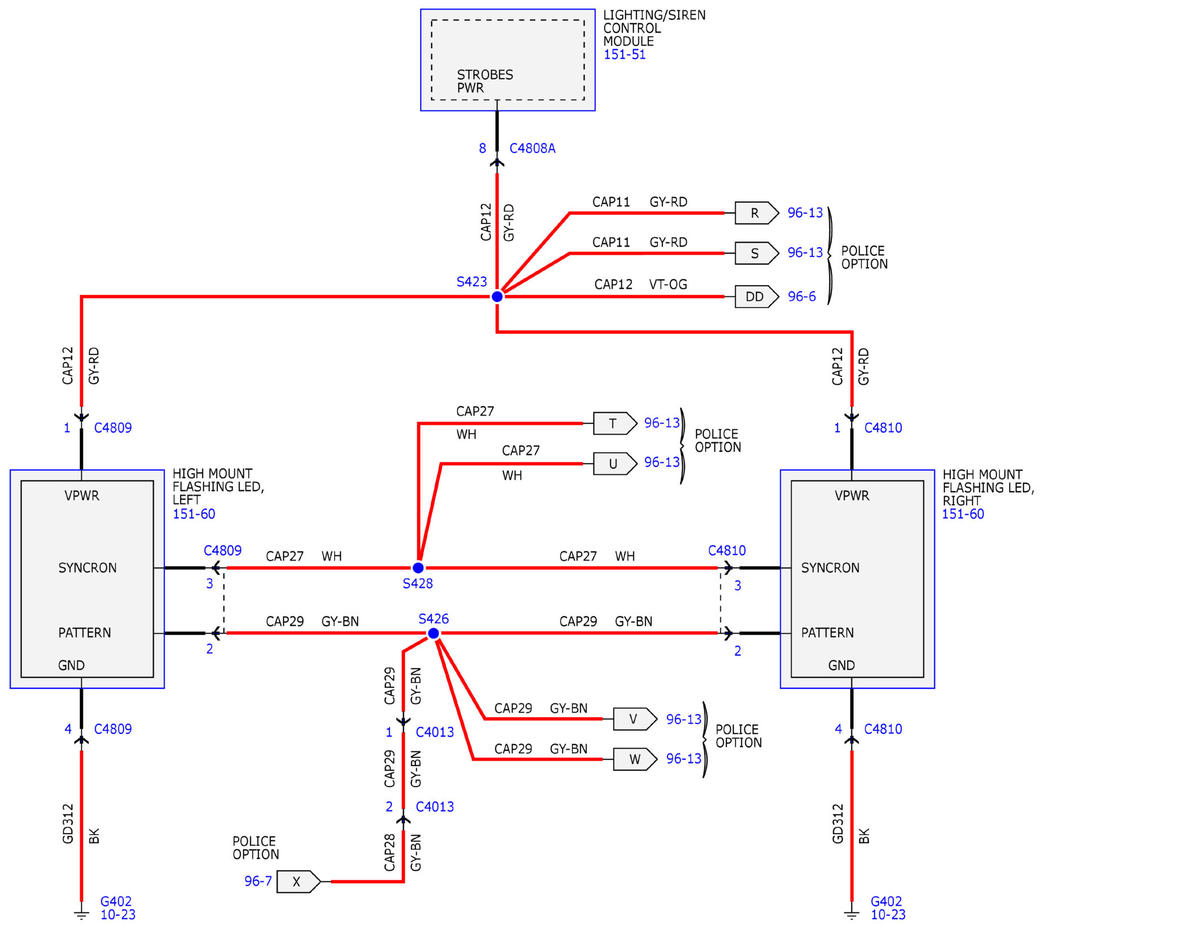

Fig 7: Police Option Wiring Diagram (7 Of 21)

GFDWR89640

Courtesy of FORD MOTOR COMPANY

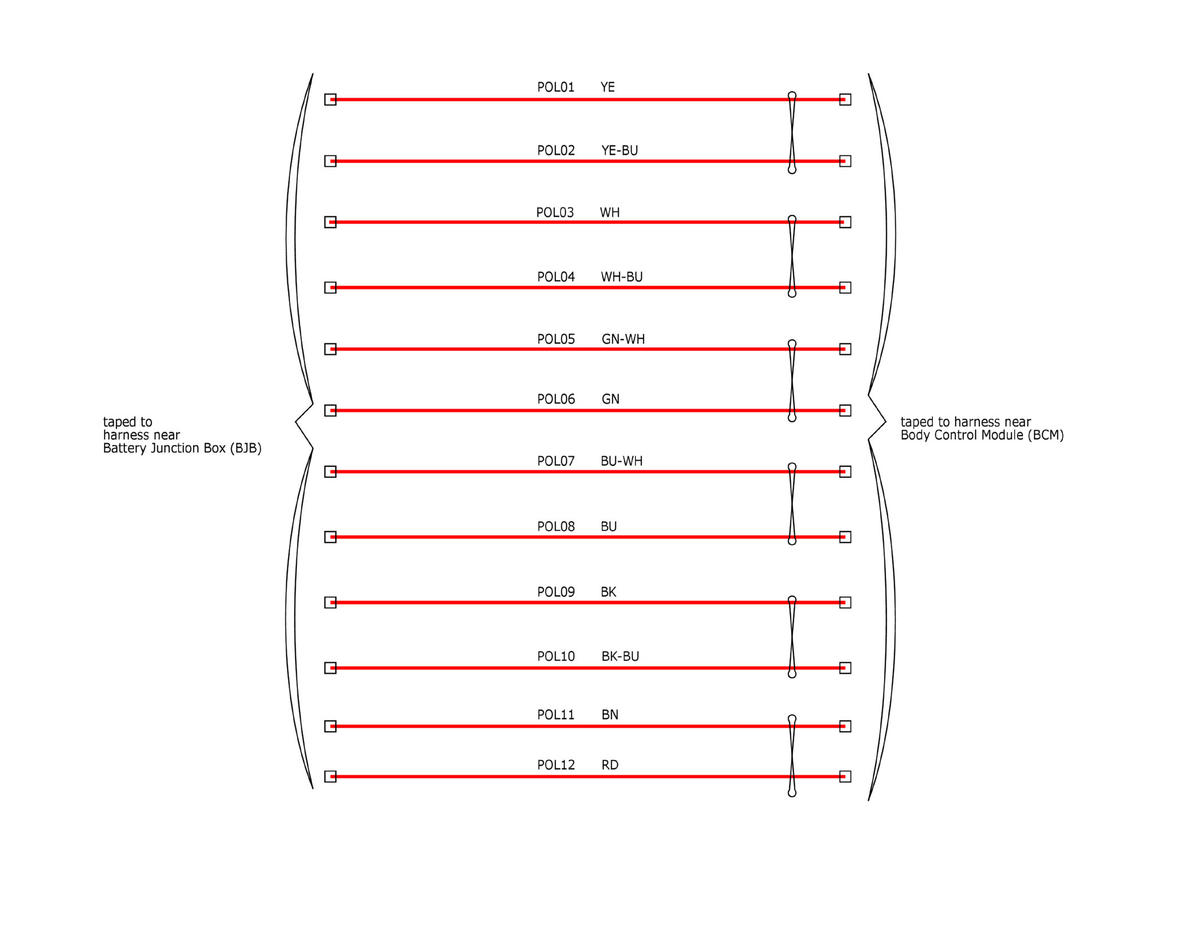

Fig 8: Police Option Wiring Diagram (8 Of 21)

GFDWR89641

Courtesy of FORD MOTOR COMPANY

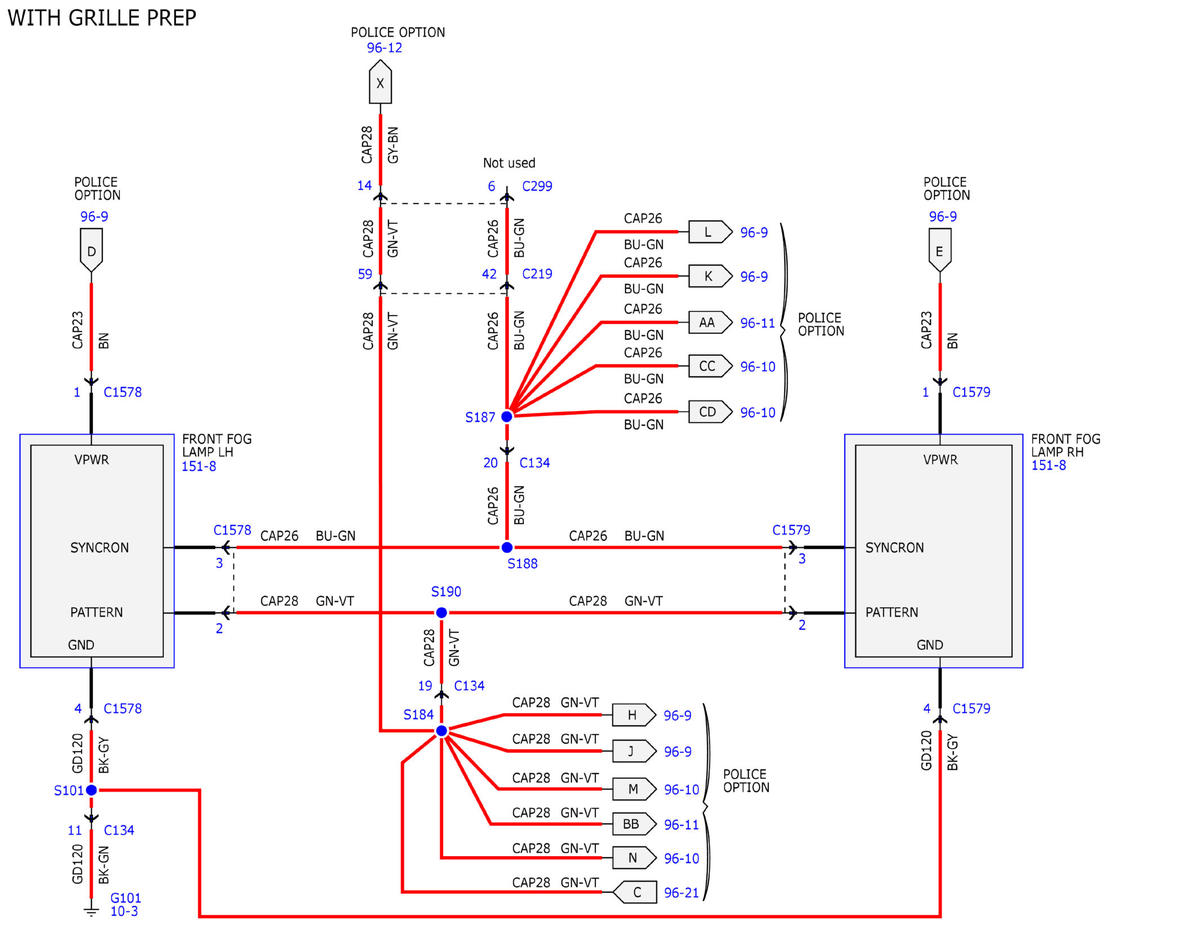

Fig 9: Police Option Wiring Diagram (9 Of 21)

GFDWR89642

Courtesy of FORD MOTOR COMPANY

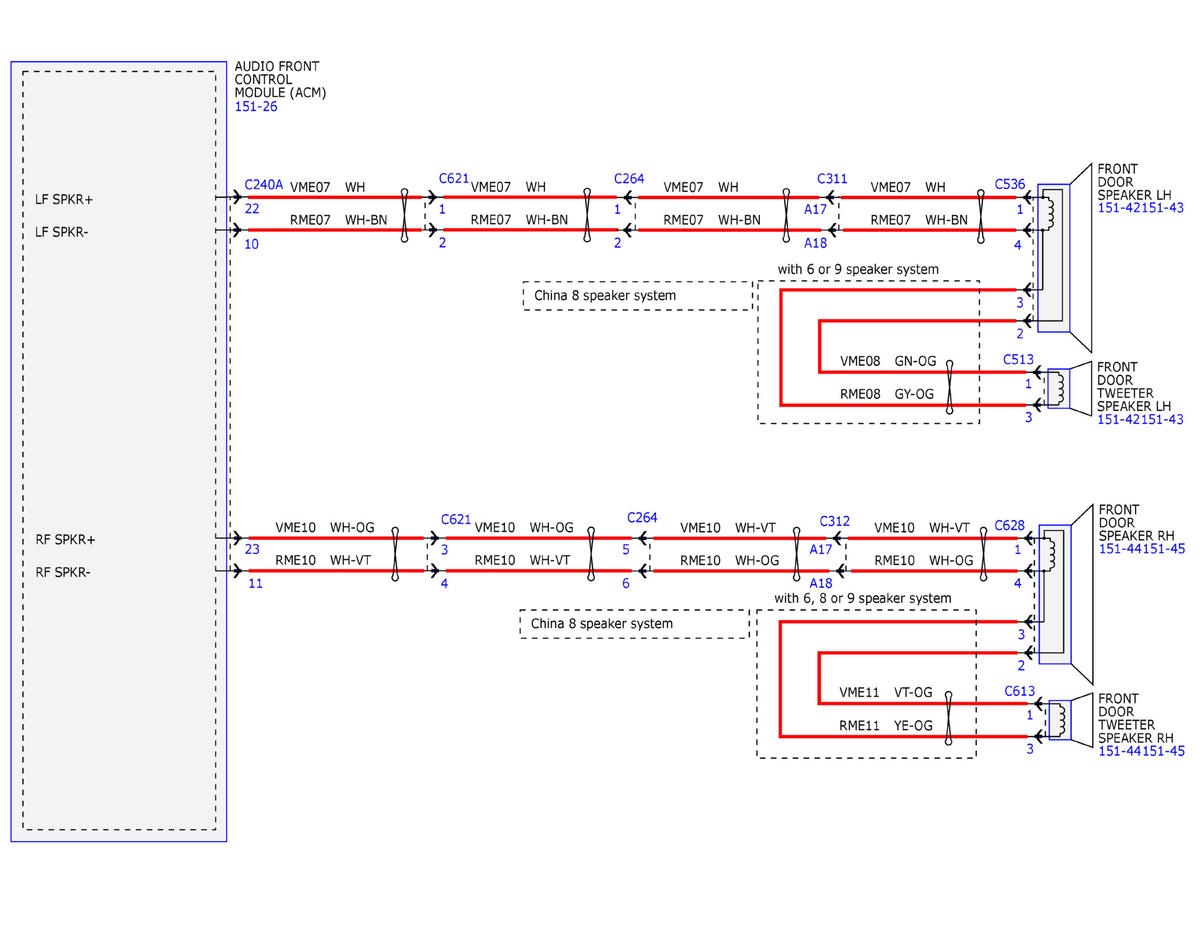

Fig 10: Police Option Wiring Diagram (10 Of 21)

GFDWR89643

Courtesy of FORD MOTOR COMPANY

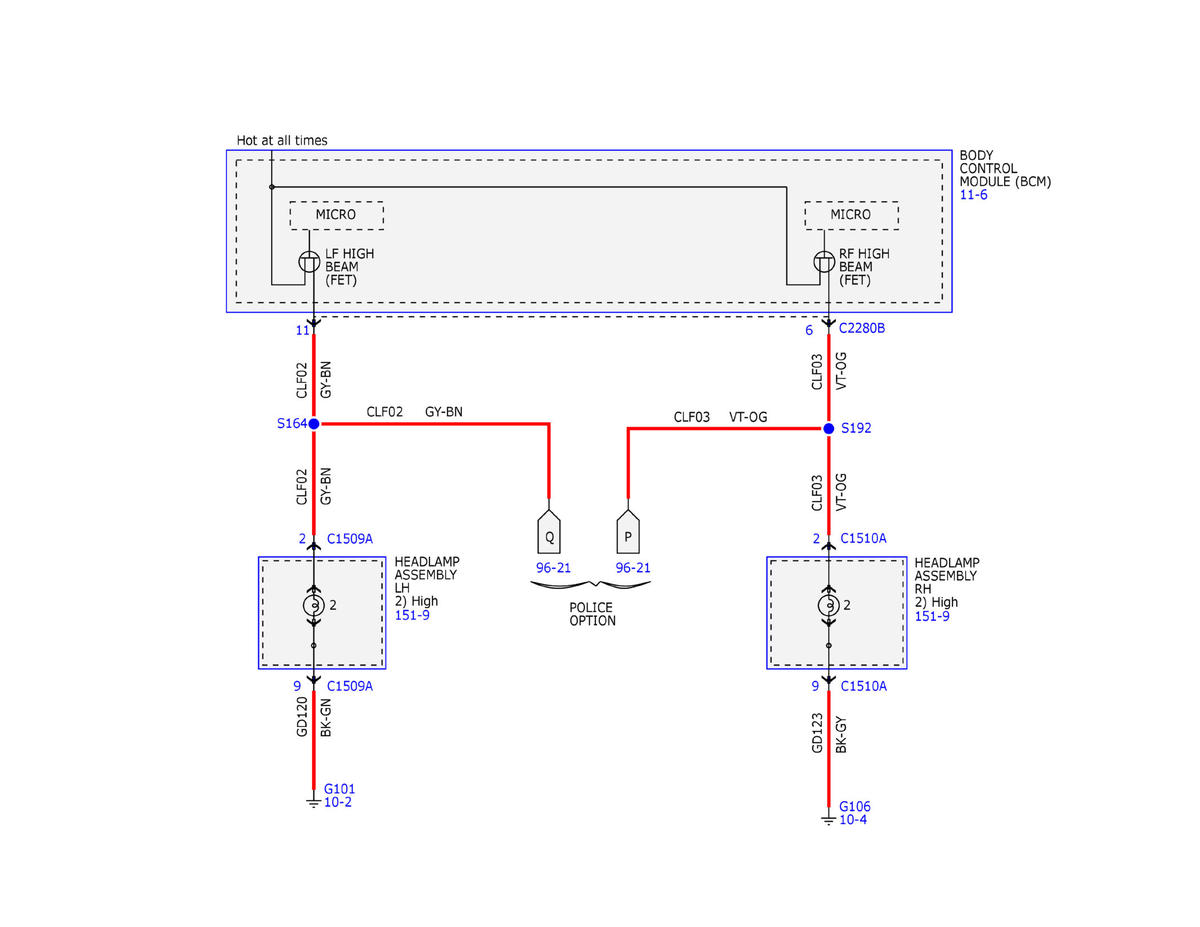

Fig 11: Police Option Wiring Diagram (11 Of 21)

GFDWR89644

Courtesy of FORD MOTOR COMPANY

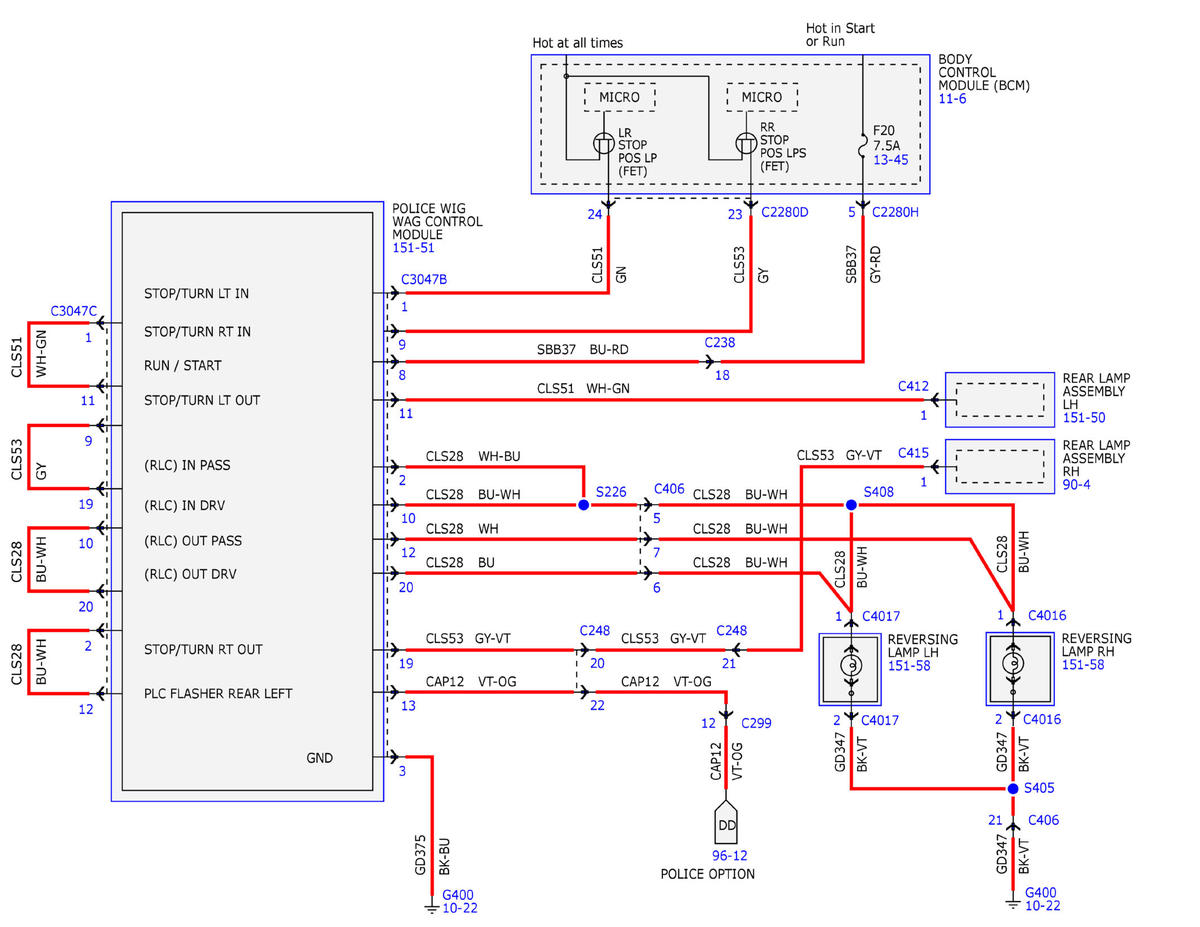

Fig 12: Police Option Wiring Diagram (12 Of 21)

GFDWR89645

Courtesy of FORD MOTOR COMPANY

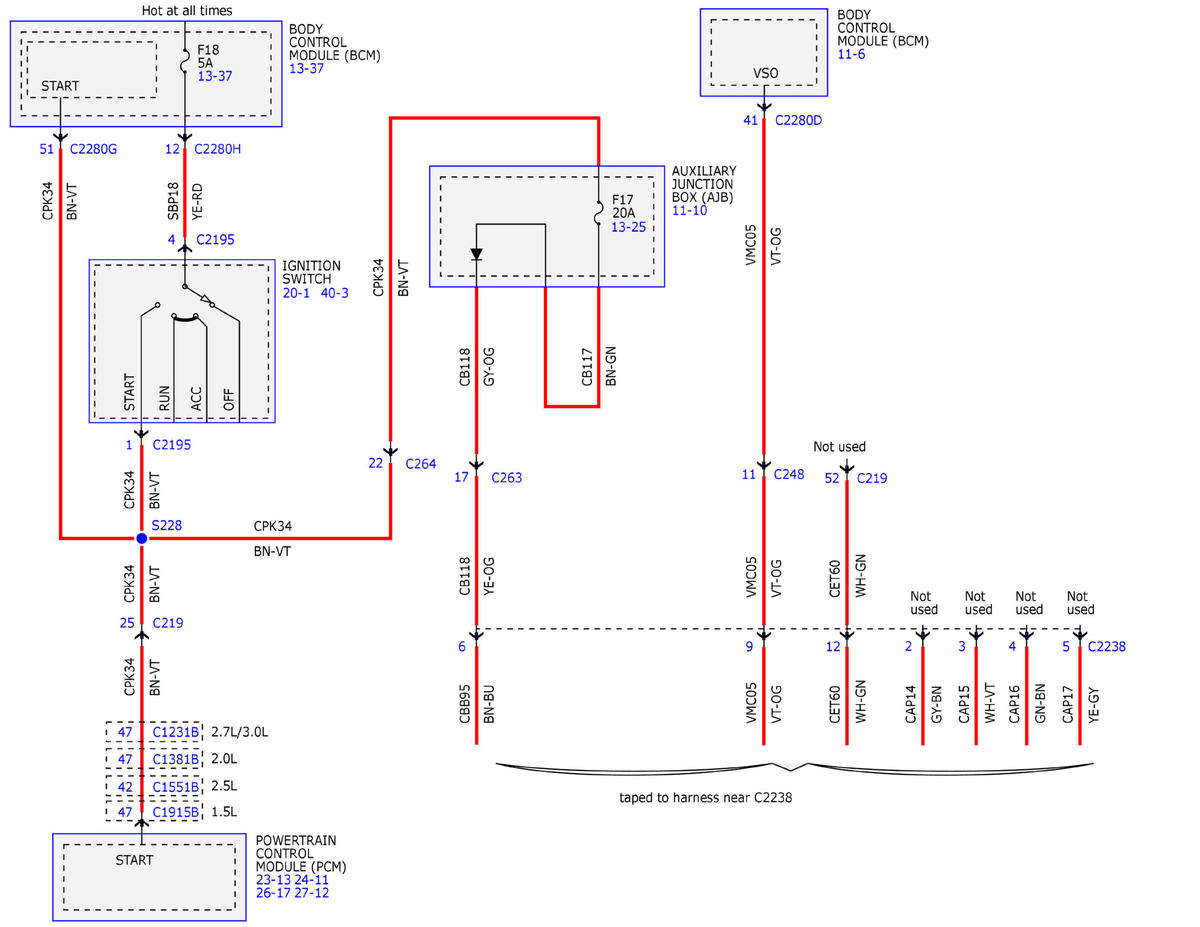

Fig 13: Police Option Wiring Diagram (13 Of 21)

GFDWR89646

Courtesy of FORD MOTOR COMPANY

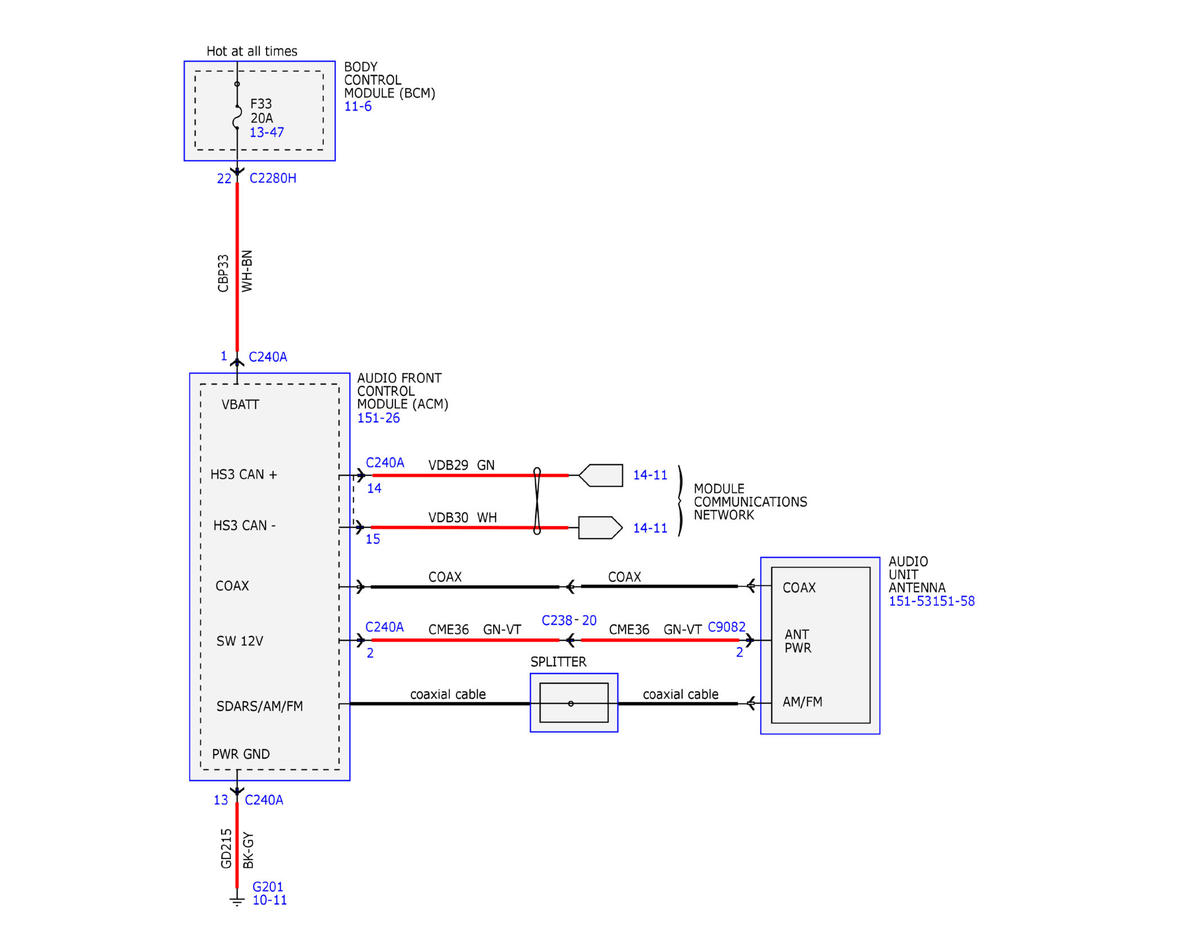

Fig 14: Police Option Wiring Diagram (14 Of 21)

GFDWR89647

Courtesy of FORD MOTOR COMPANY

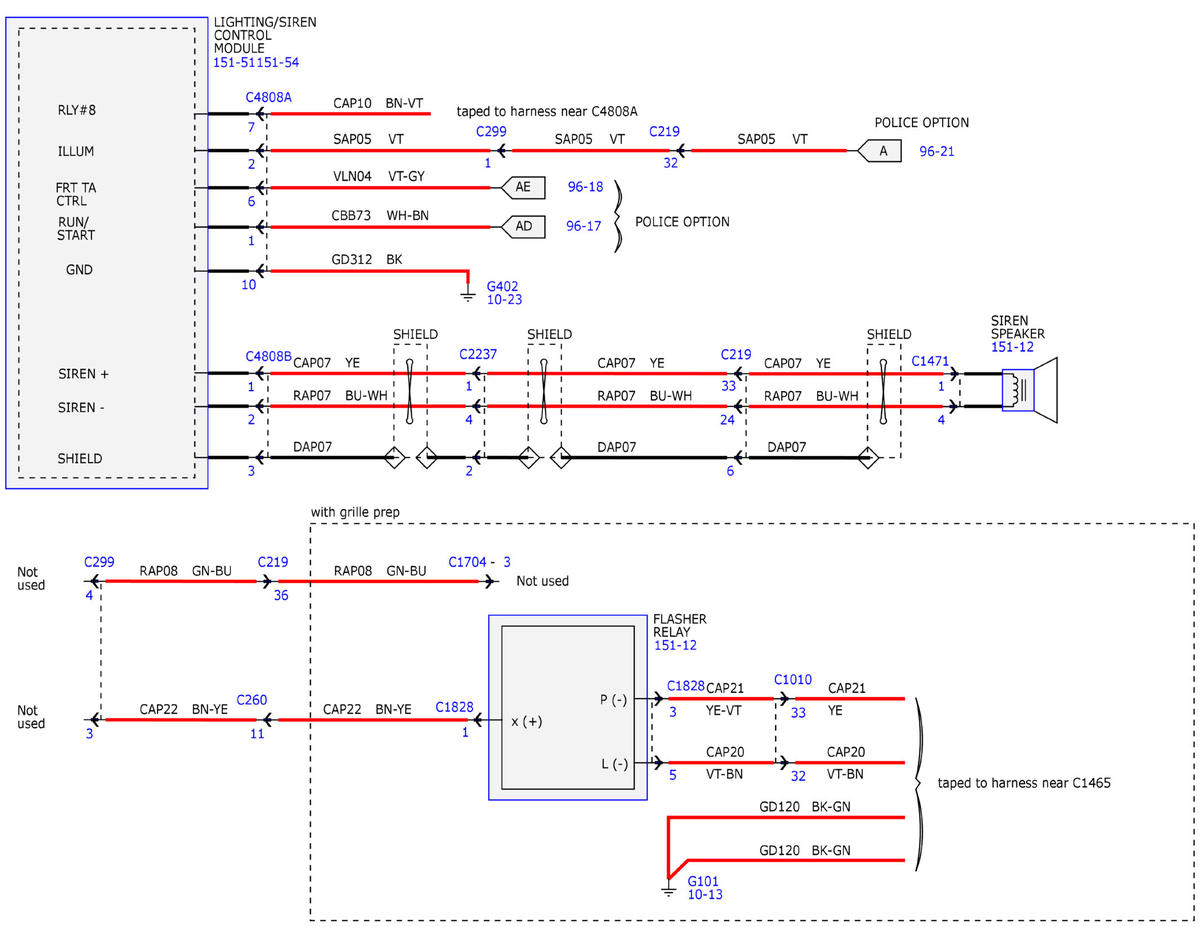

Fig 15: Police Option Wiring Diagram (15 Of 21)

GFDWR89648

Courtesy of FORD MOTOR COMPANY

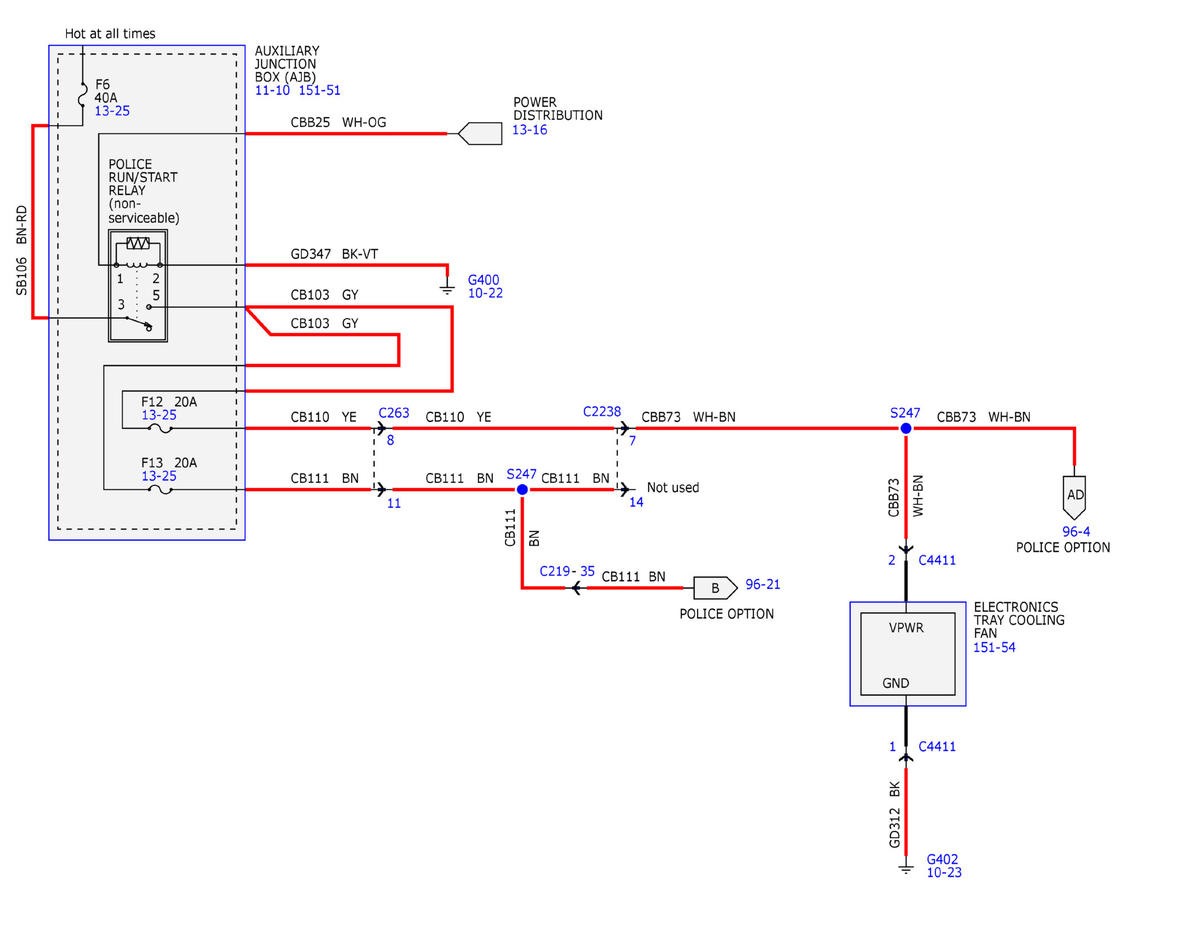

Fig 16: Police Option Wiring Diagram (16 Of 21)

GFDWR89649

Courtesy of FORD MOTOR COMPANY

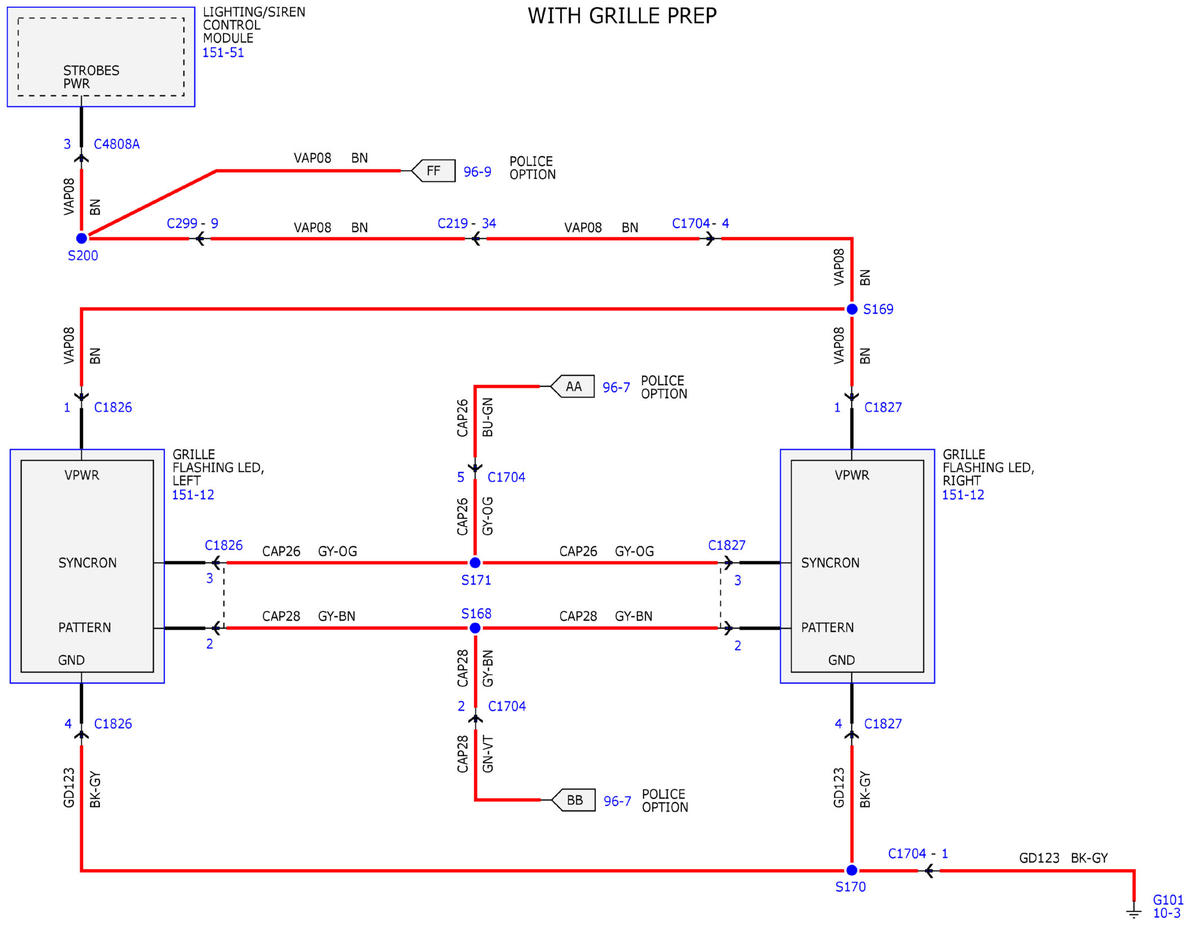

Fig 17: Police Option Wiring Diagram (17 Of 21)

GFDWR89650

Courtesy of FORD MOTOR COMPANY

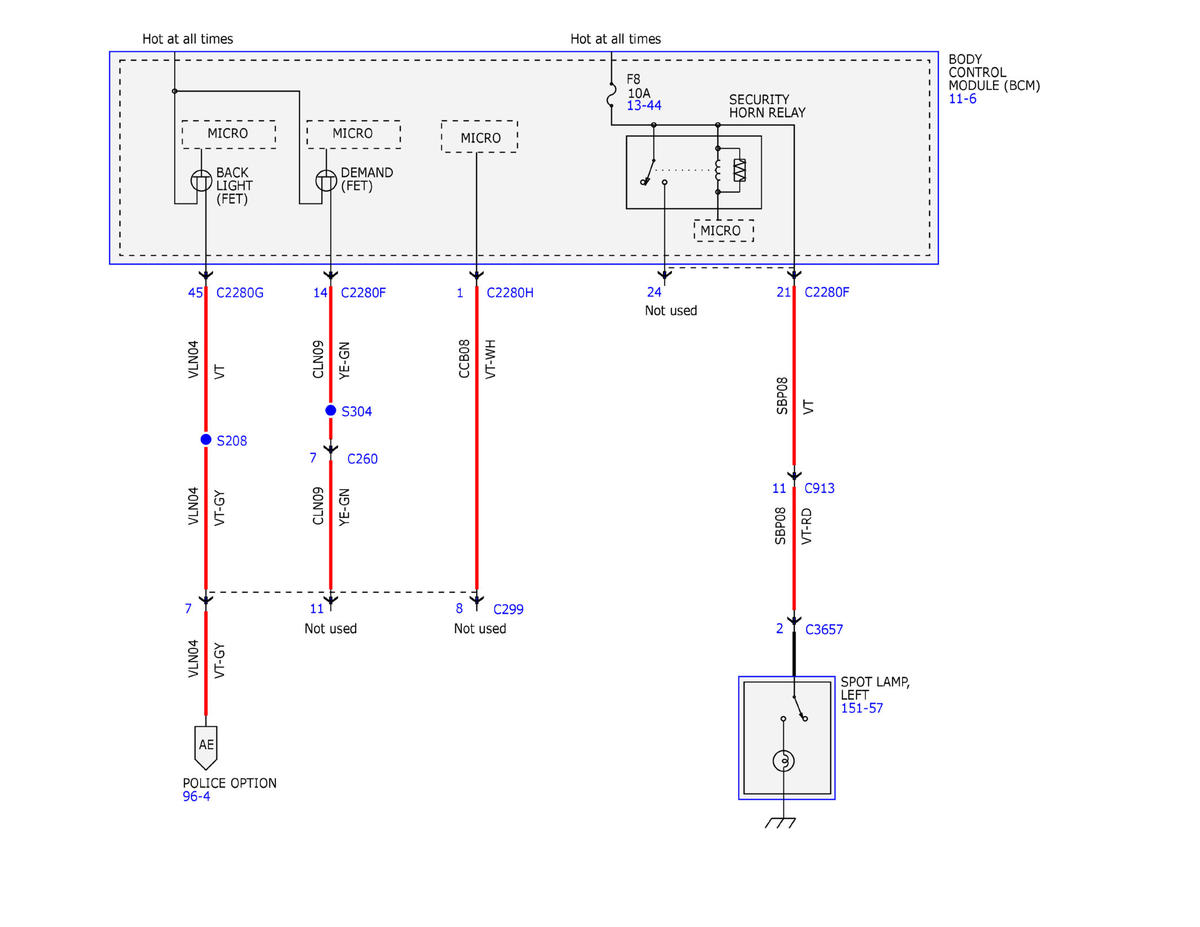

Fig 18: Police Option Wiring Diagram (18 Of 21)

GFDWR89651

Courtesy of FORD MOTOR COMPANY

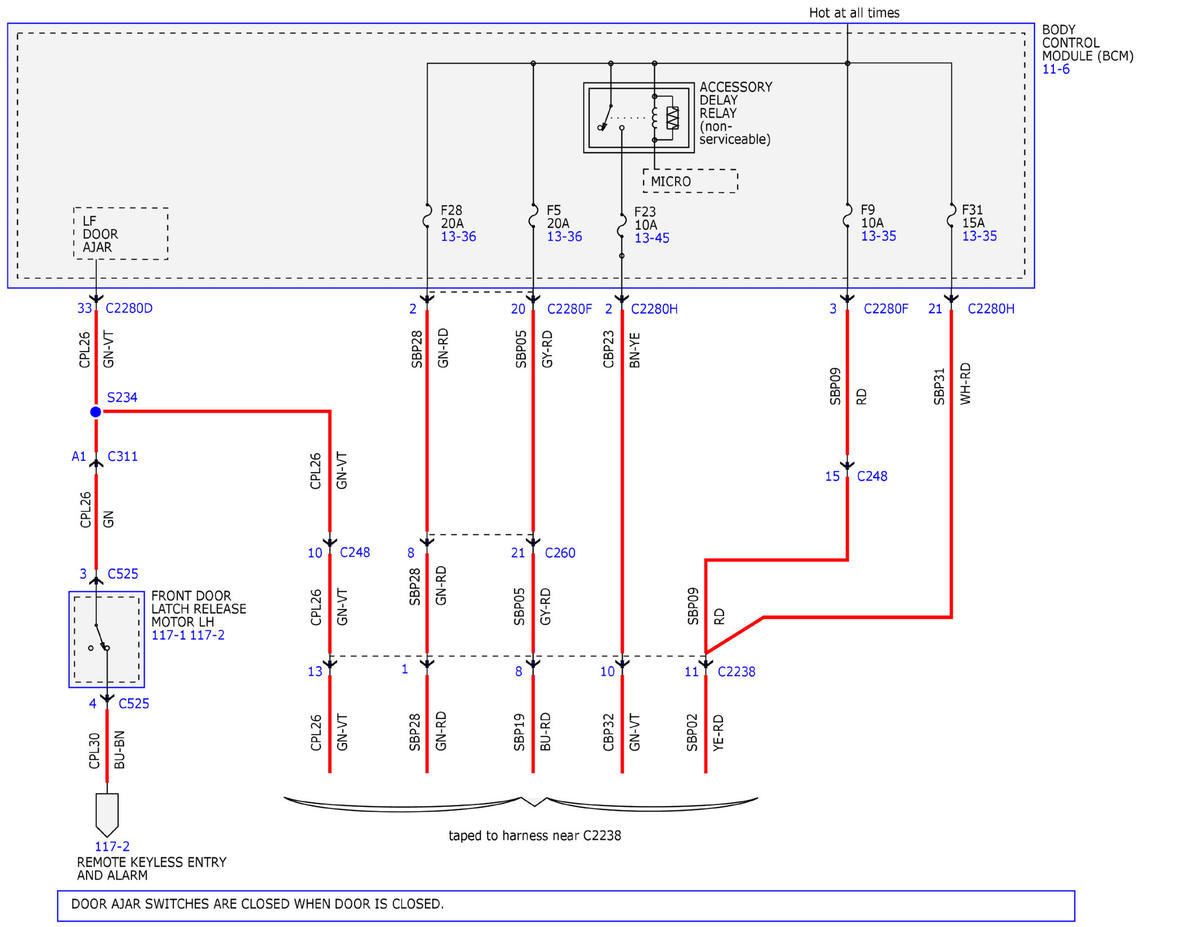

Fig 19: Police Option Wiring Diagram (19 Of 21)

GFDWR89652

Courtesy of FORD MOTOR COMPANY

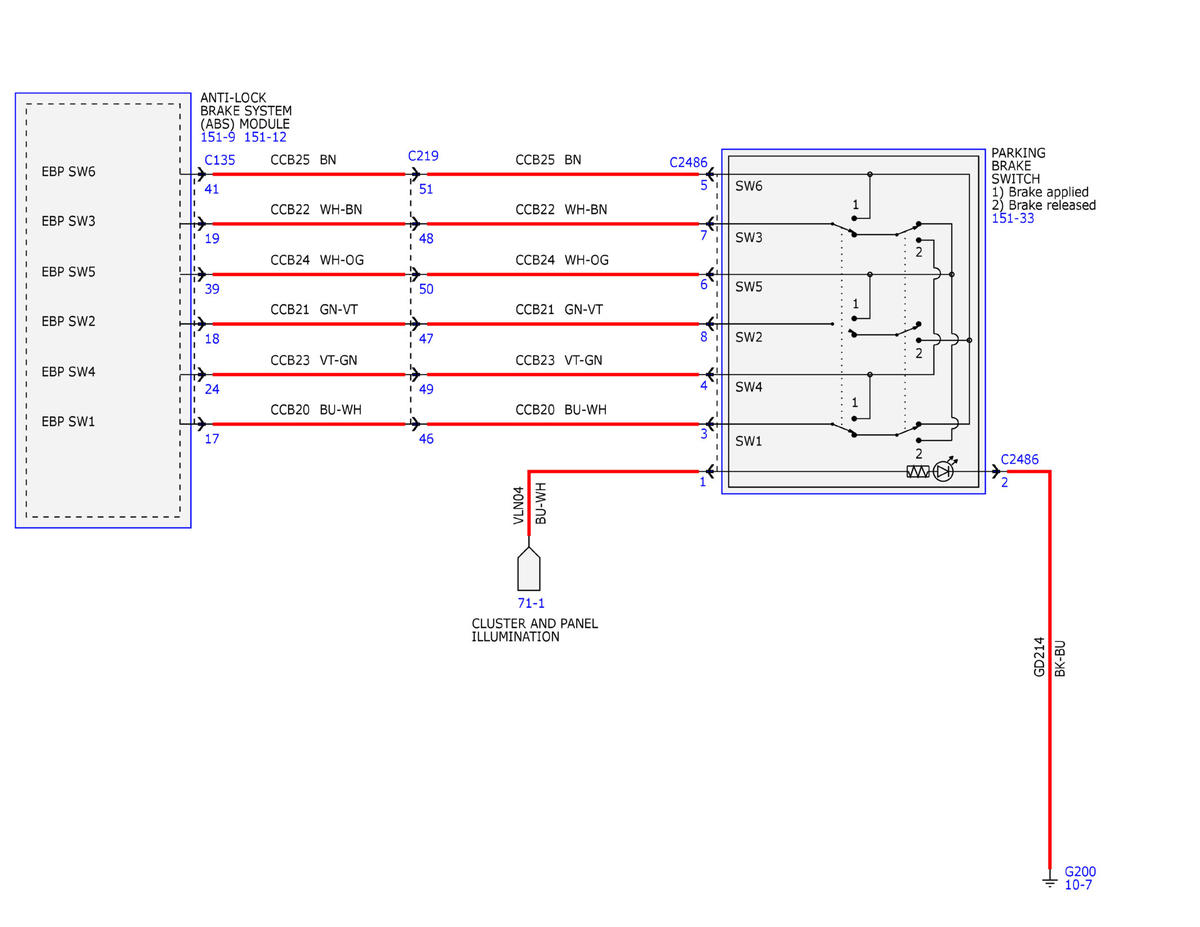

Fig 20: Police Option Wiring Diagram (20 Of 21)

GFDWR89653

Courtesy of FORD MOTOR COMPANY

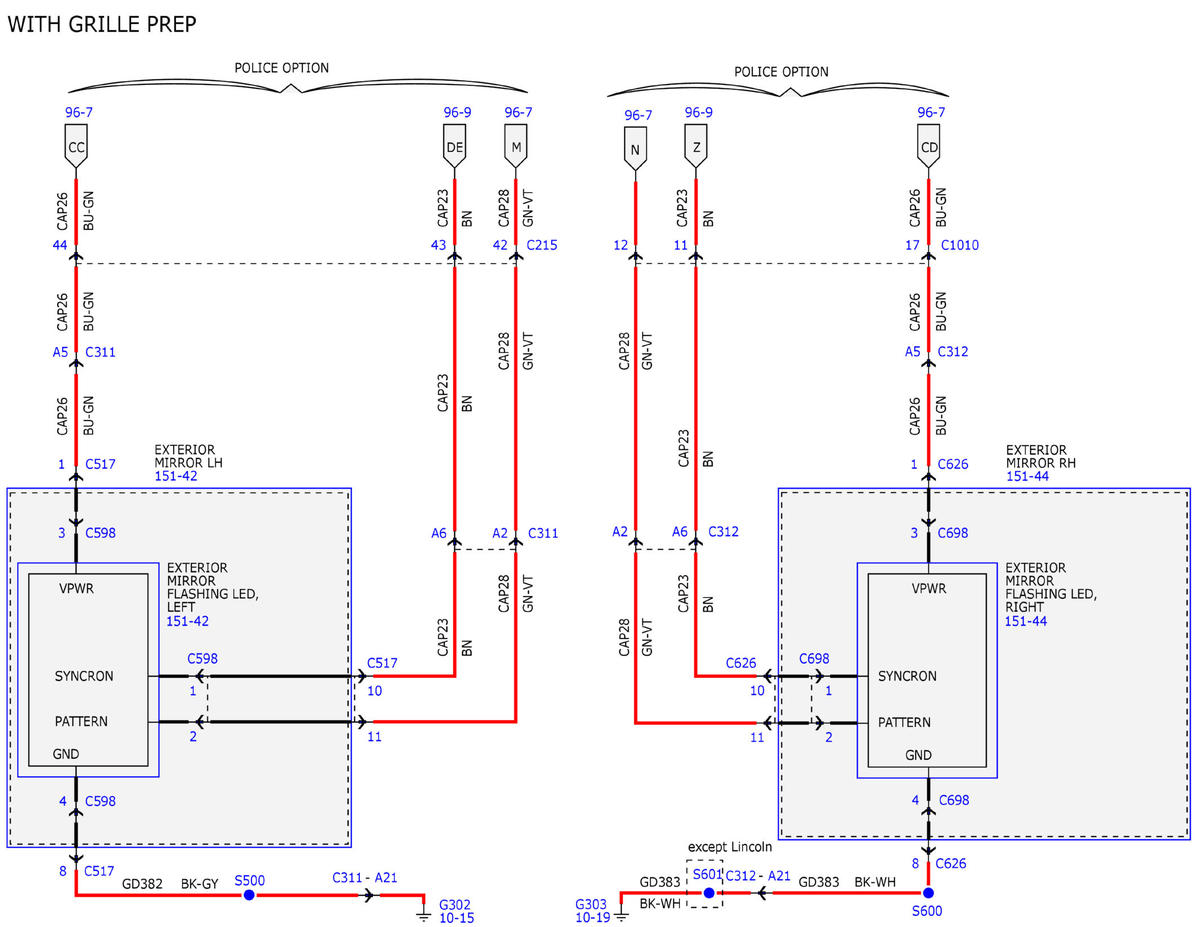

Fig 21: Police Option Wiring Diagram (21 Of 21)

GFDWR89654

Courtesy of FORD MOTOR COMPANY
