Electronic Engine Controls - 2.7L/3.0L

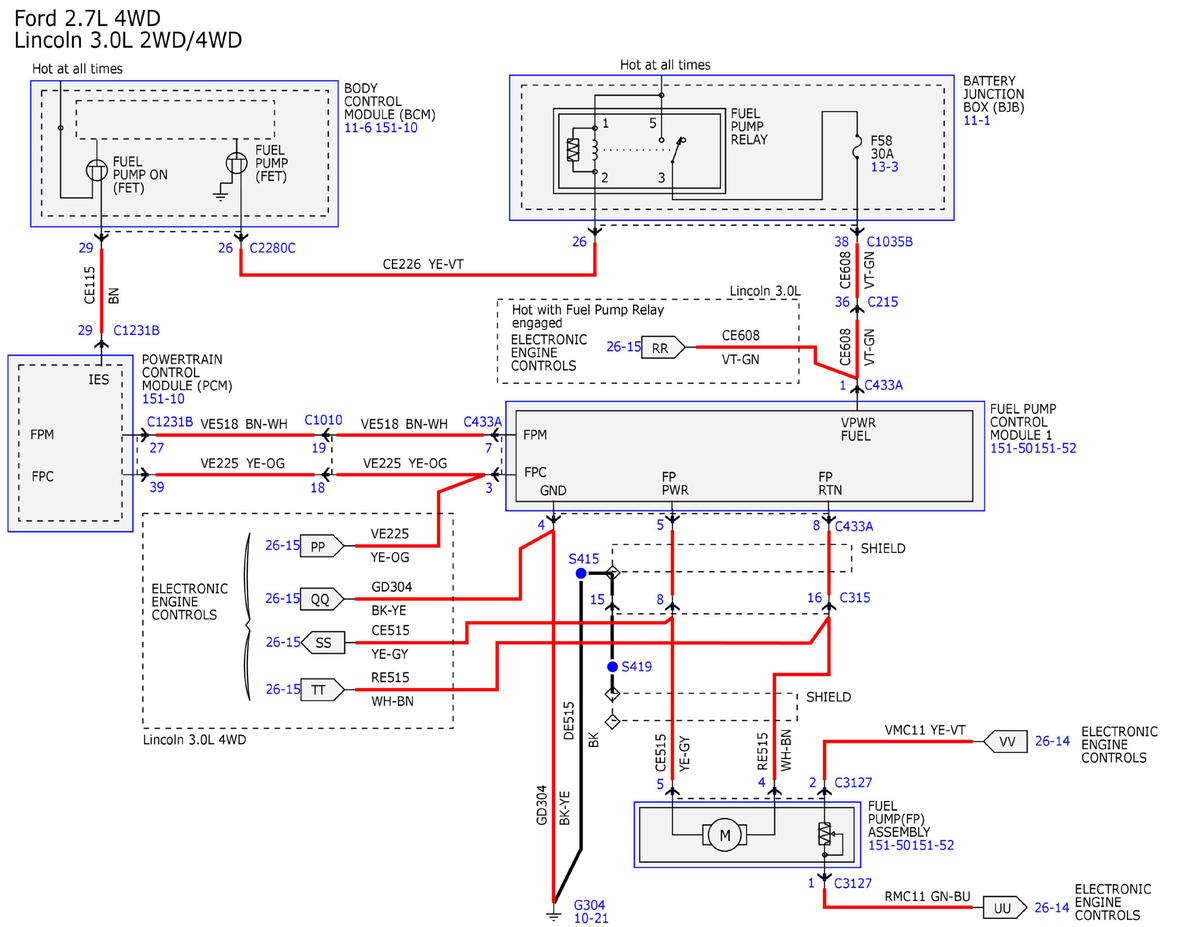

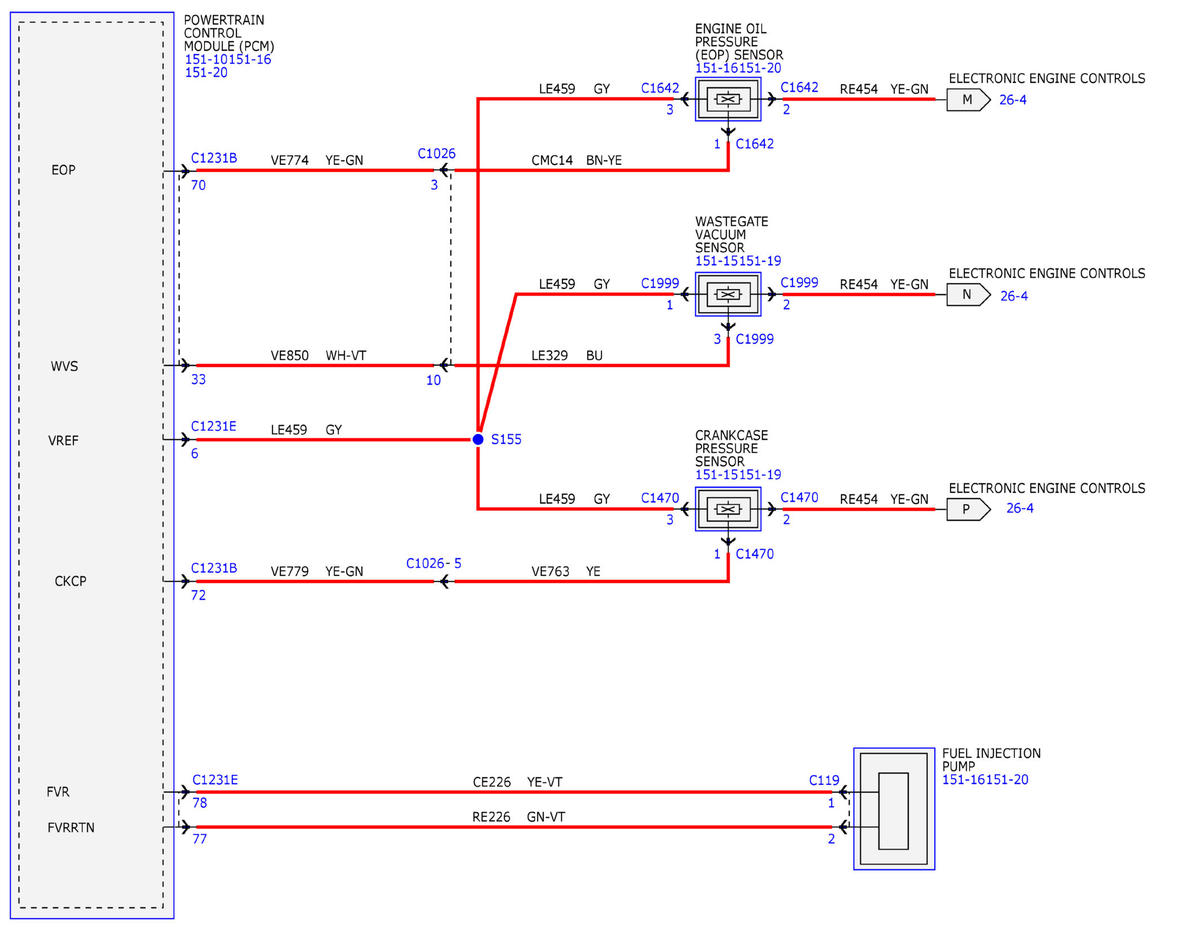

Fig 1: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (1 Of 19)

Courtesy of FORD MOTOR COMPANY

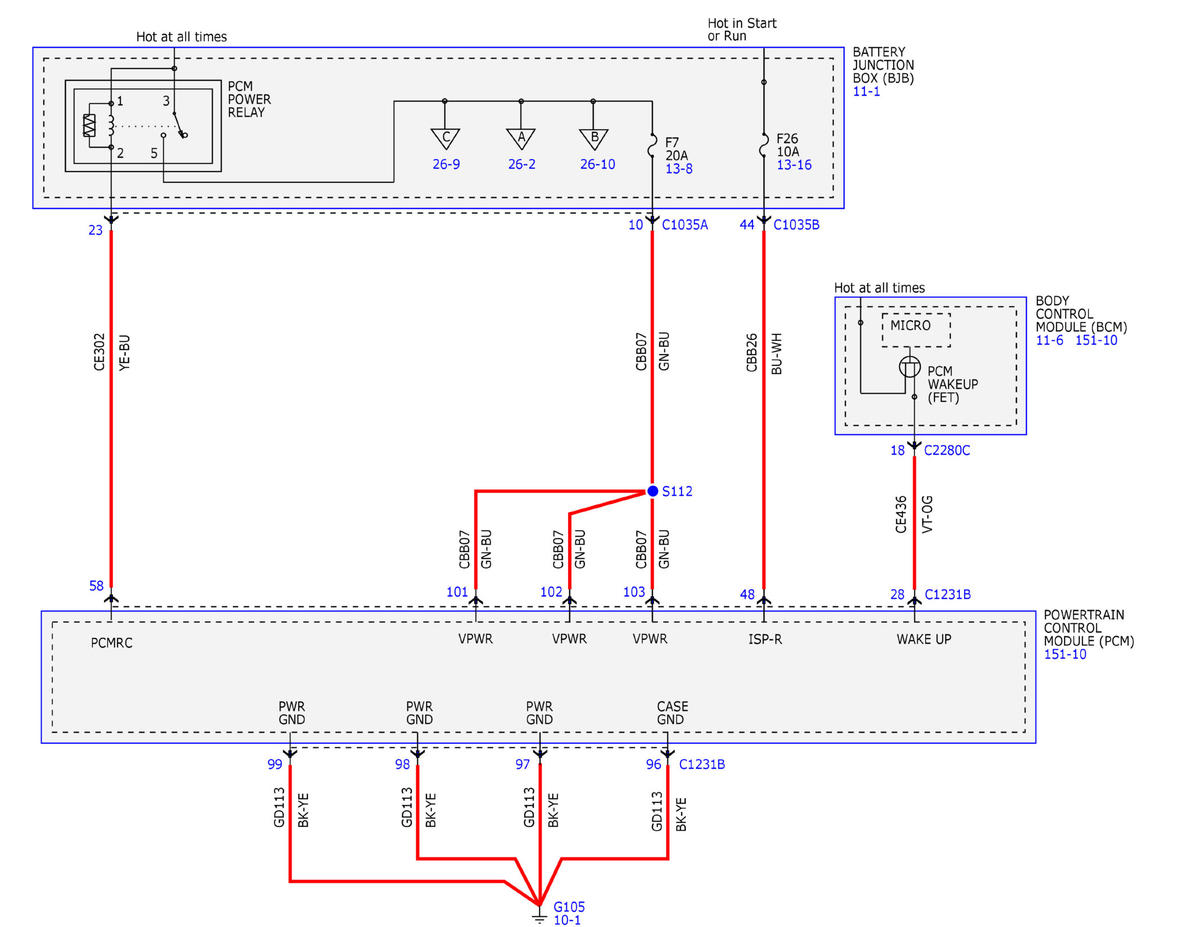

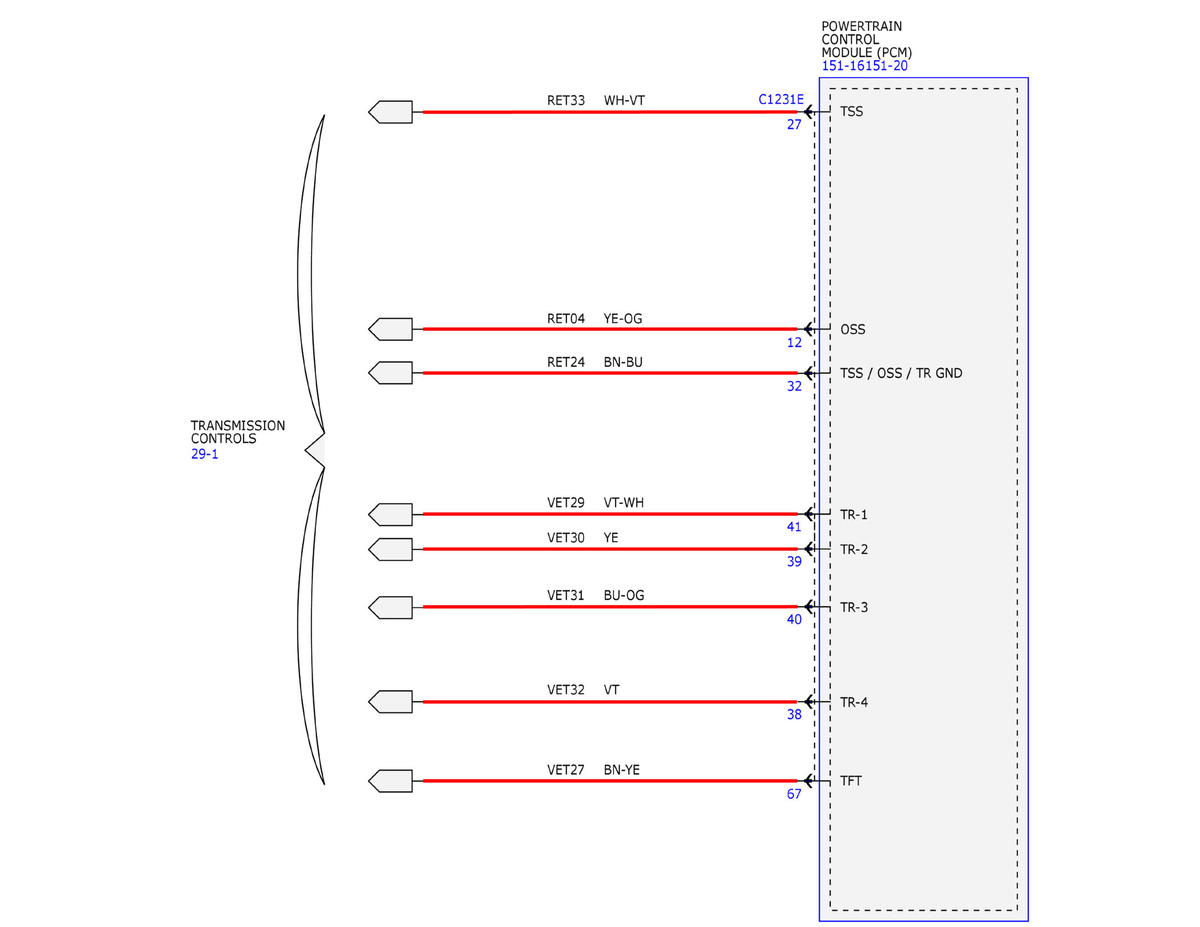

Fig 2: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (2 Of 19)

Courtesy of FORD MOTOR COMPANY

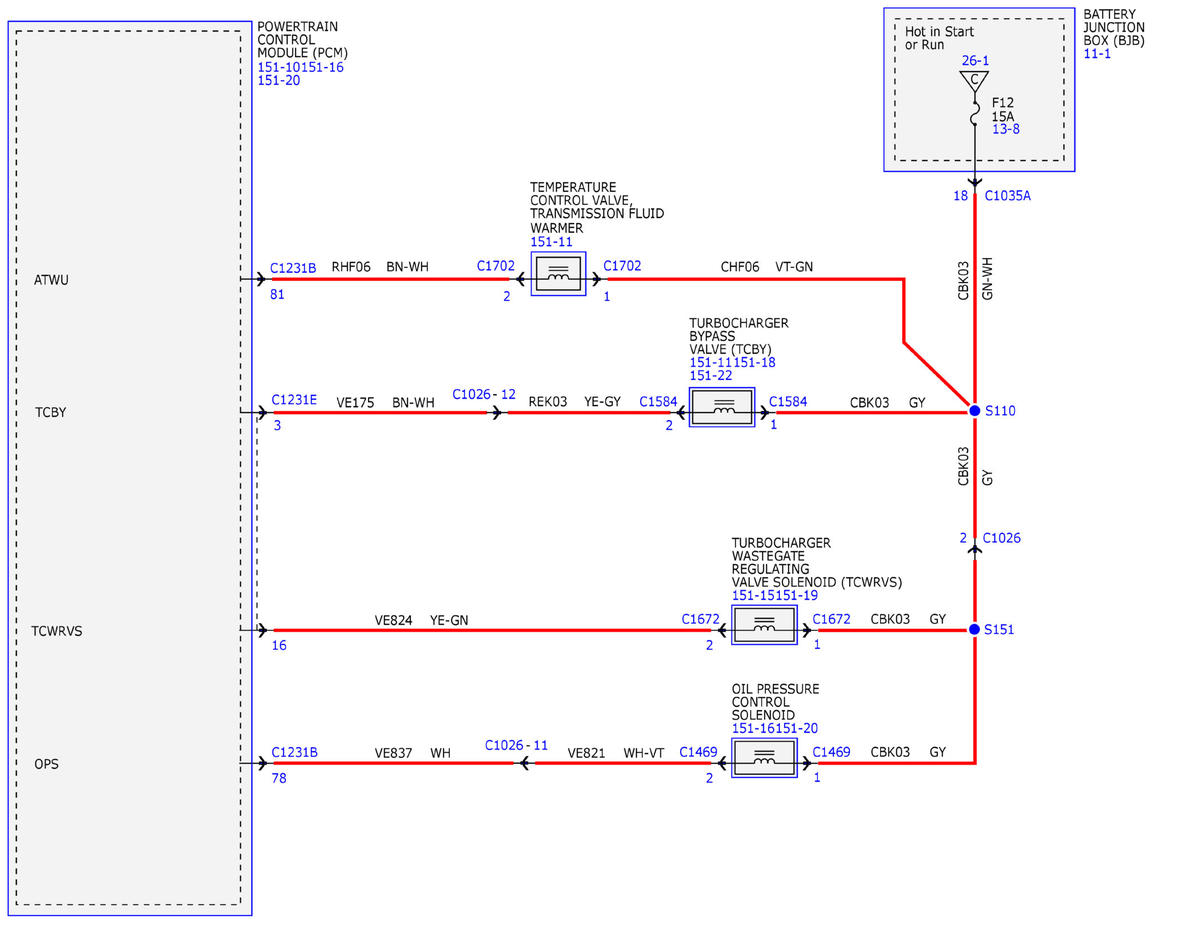

Fig 3: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (3 Of 19)

Courtesy of FORD MOTOR COMPANY

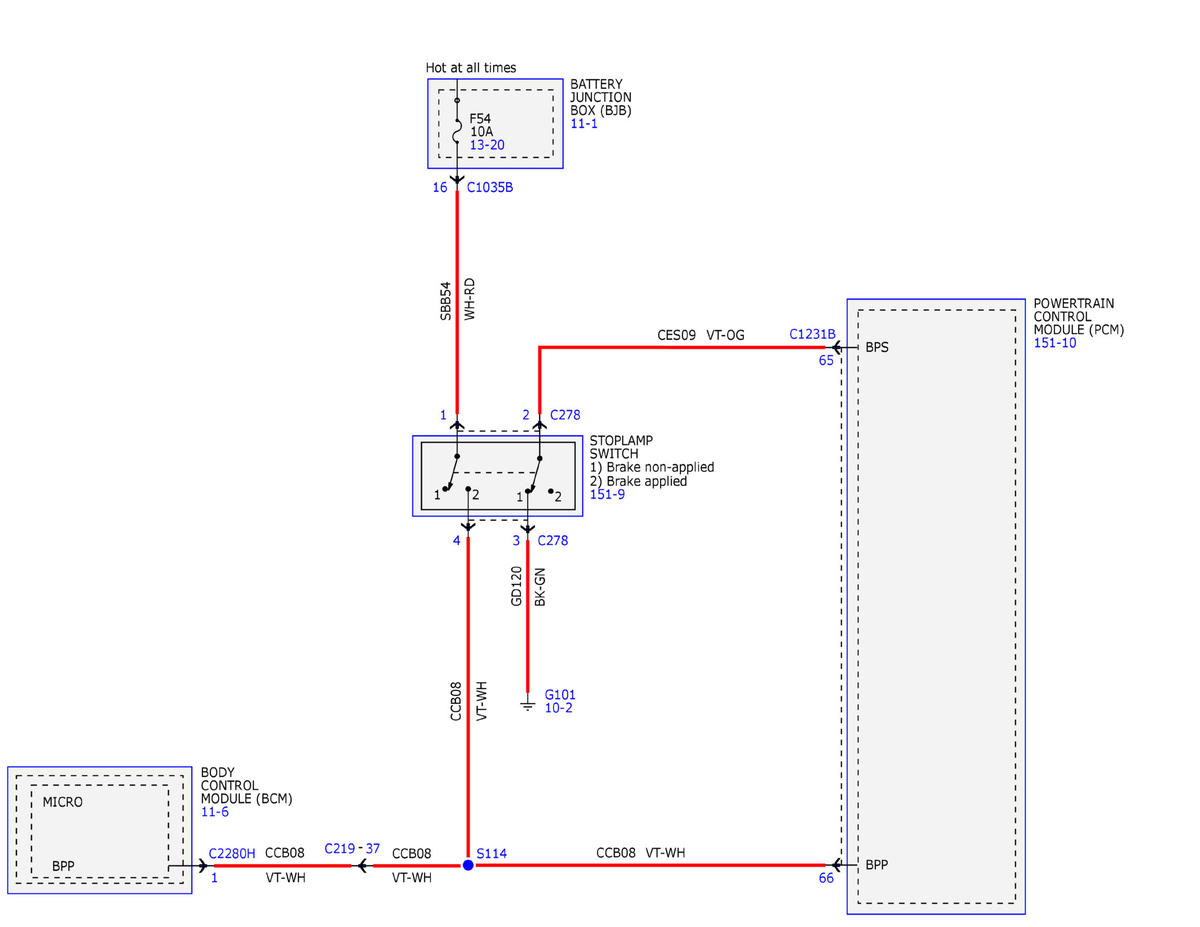

Fig 4: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (4 Of 19)

Courtesy of FORD MOTOR COMPANY

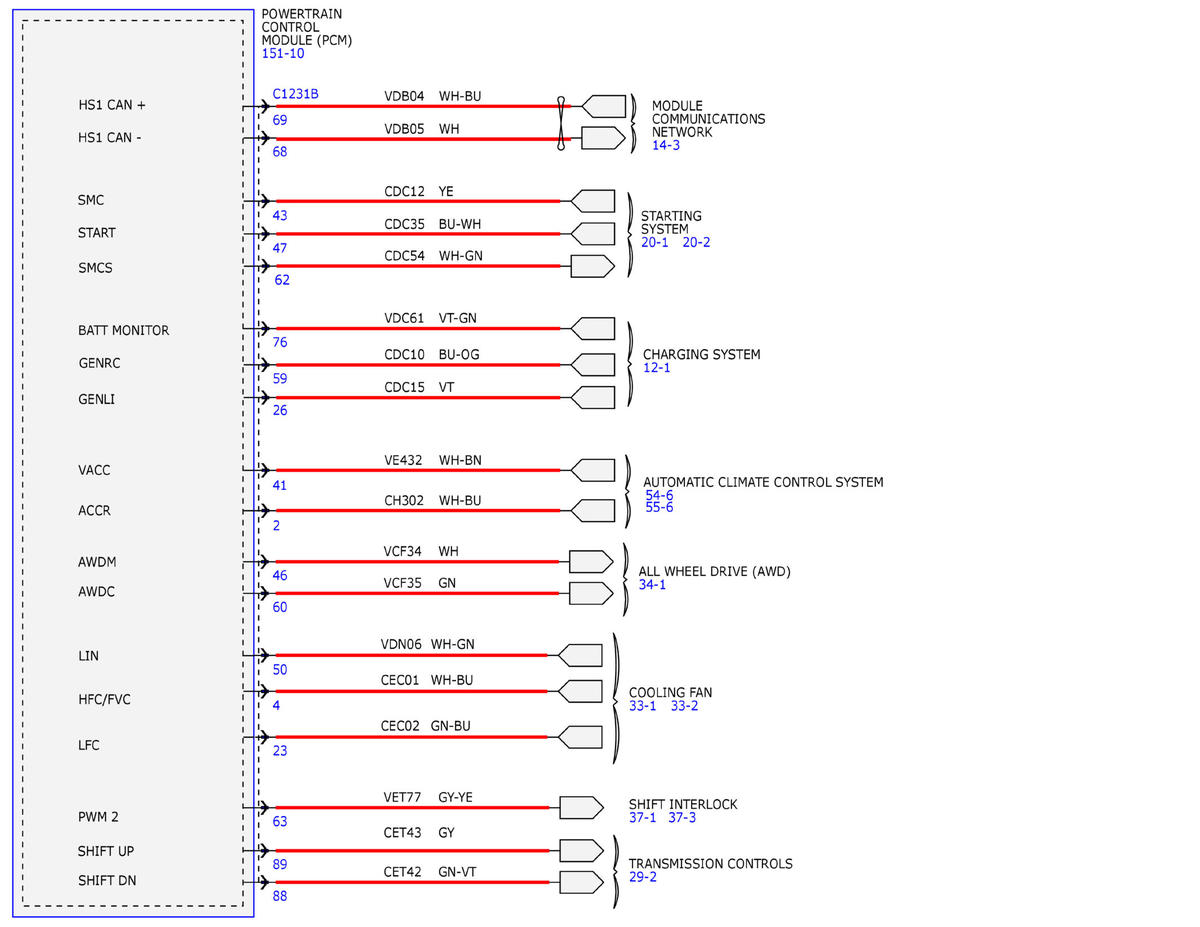

Fig 5: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (5 Of 19)

Courtesy of FORD MOTOR COMPANY

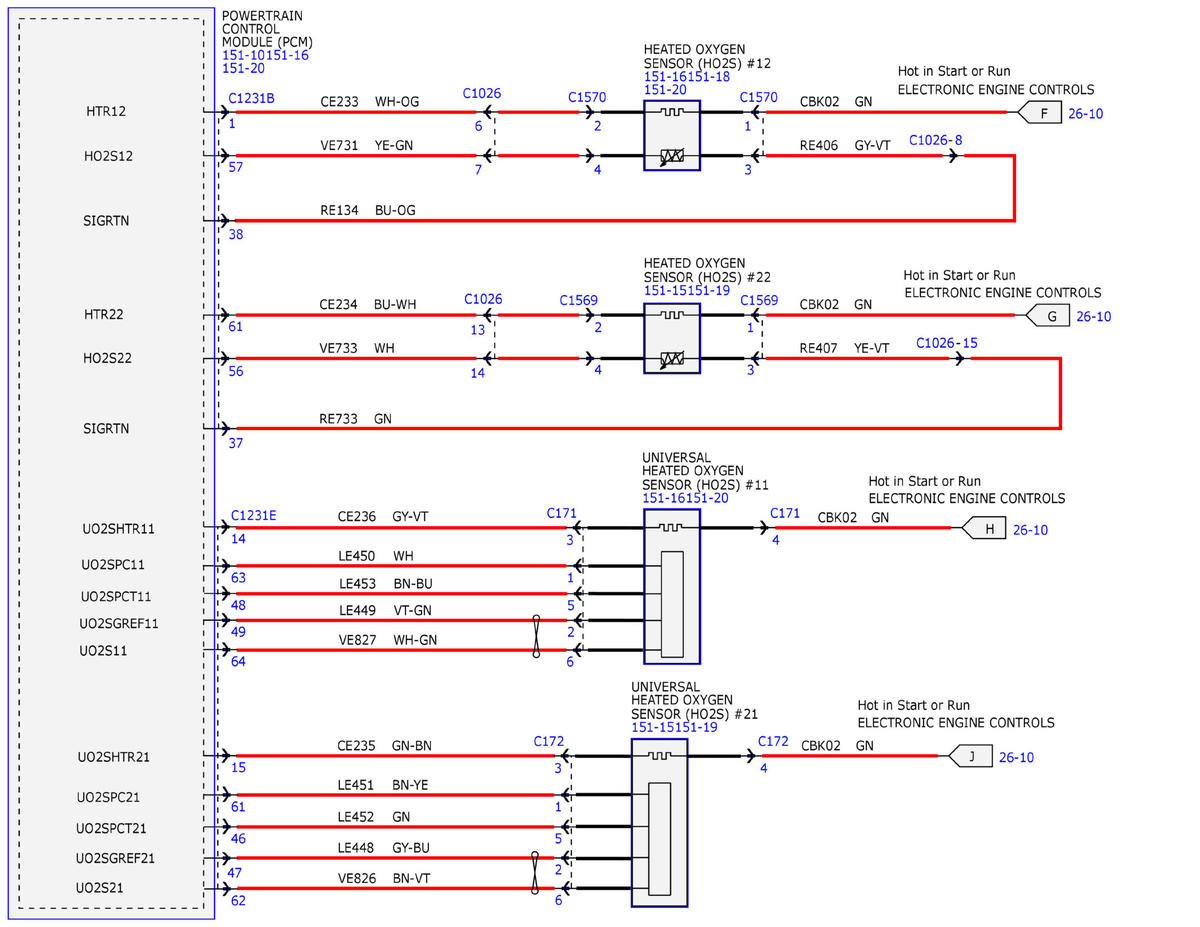

Fig 6: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (6 Of 19)

Courtesy of FORD MOTOR COMPANY

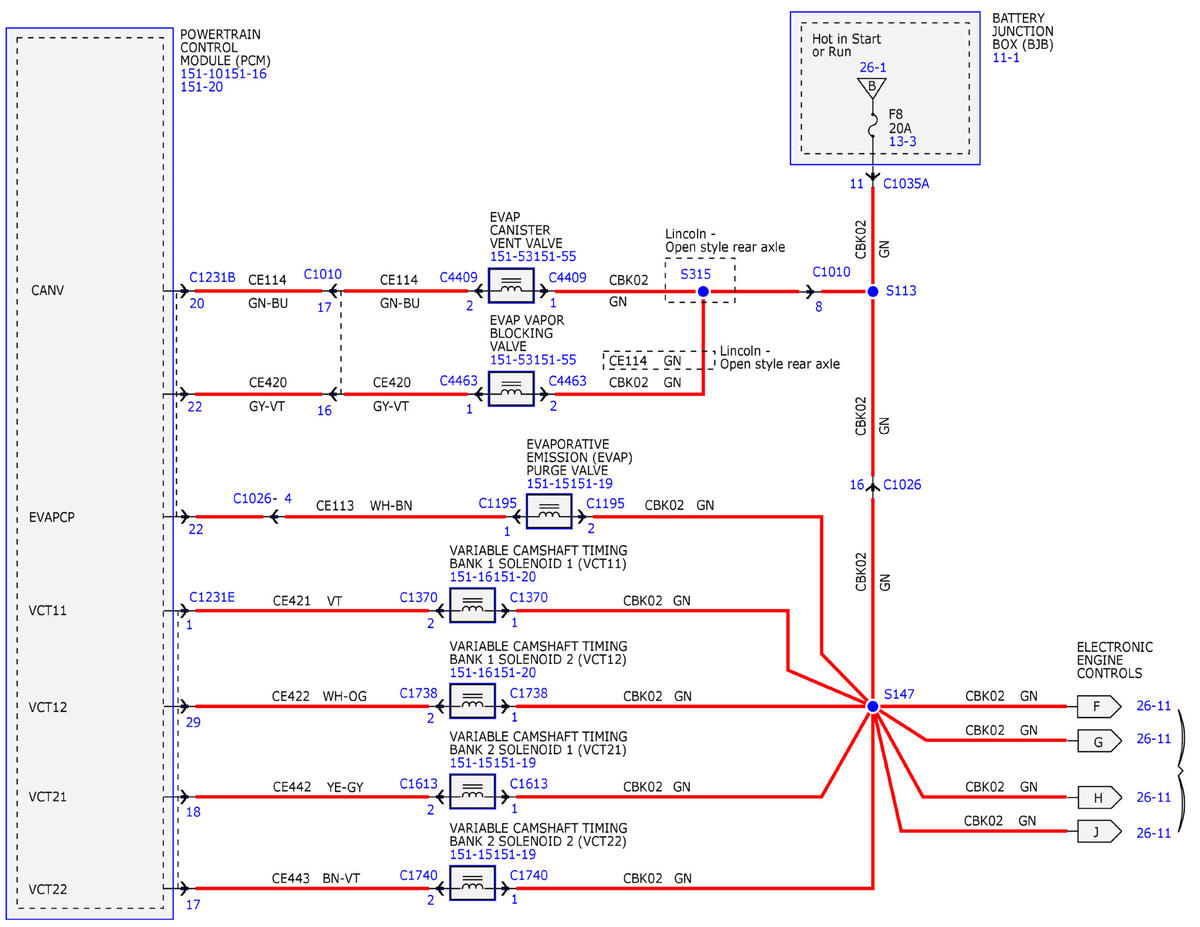

Fig 7: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (7 Of 19)

Courtesy of FORD MOTOR COMPANY

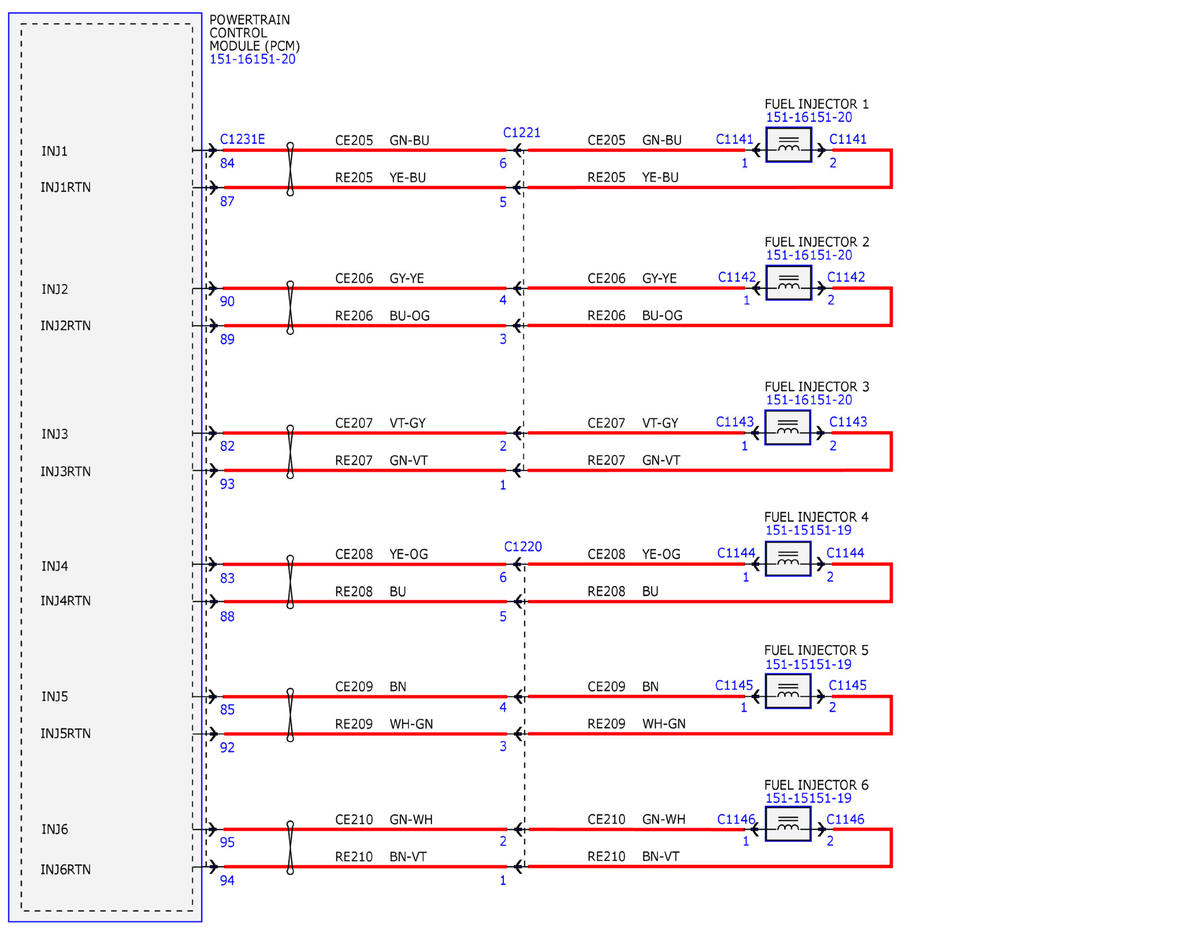

Fig 8: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (8 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (9 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (10 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (11 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (12 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 13: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (13 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 14: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (14 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 15: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (15 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 16: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (16 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 17: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (17 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 18: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (18 Of 19)

Courtesy of FORD MOTOR COMPANY

Fig 19: Electronic Engine Controls - 2.7L/3.0L Wiring Diagram (19 Of 19)

Courtesy of FORD MOTOR COMPANY
