Electronic Engine Controls - 2.0L

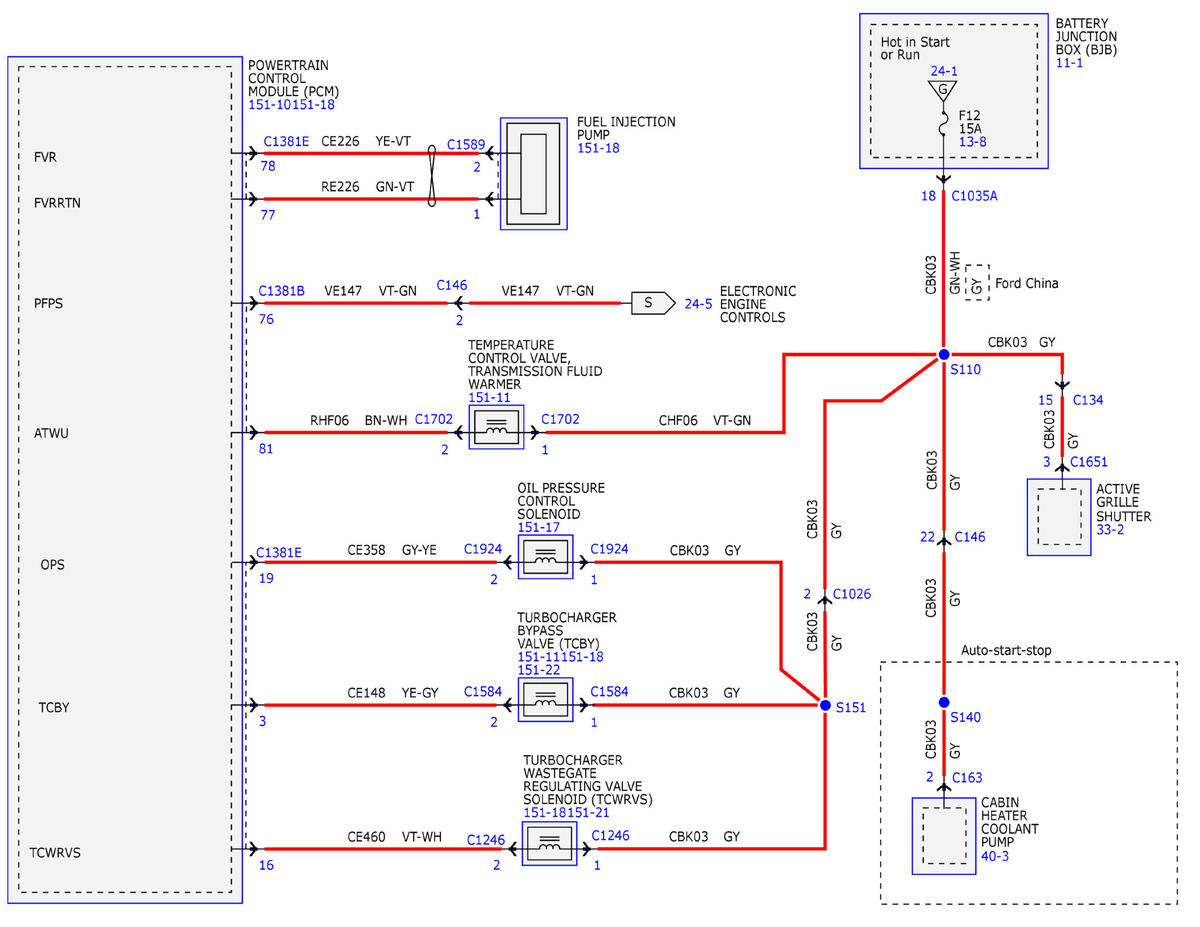

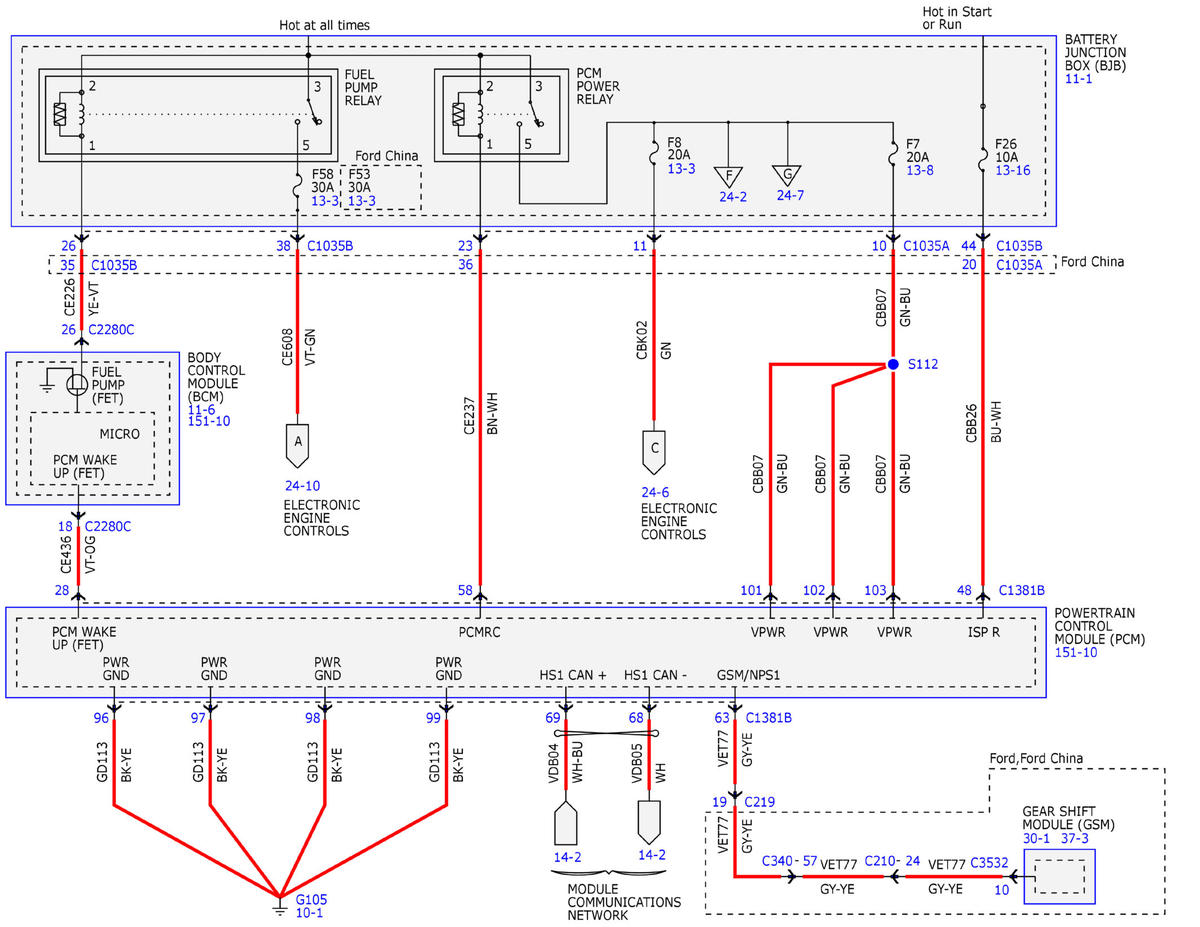

Fig 1: Electronic Engine Controls - 2.0L Wiring Diagram (1 Of 12)

Courtesy of FORD MOTOR COMPANY

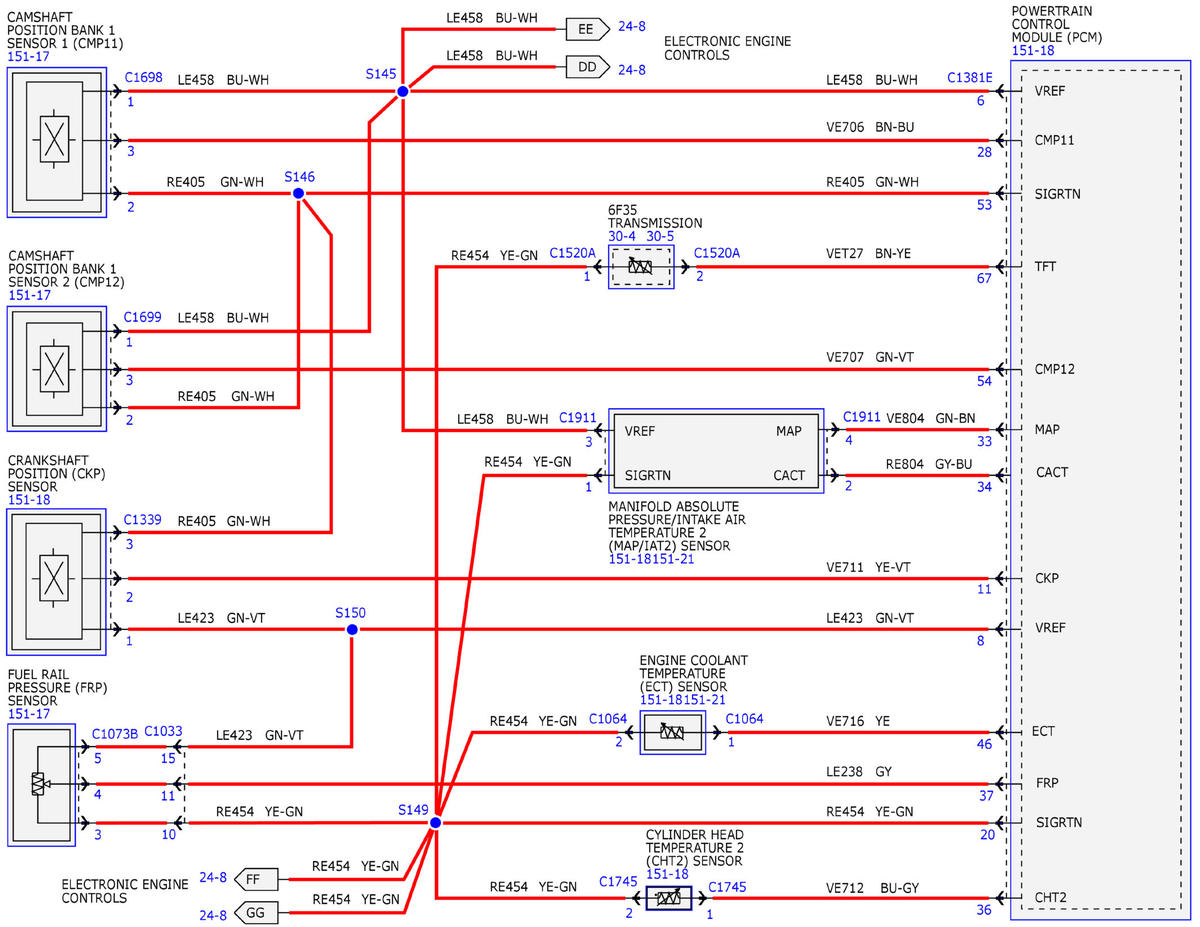

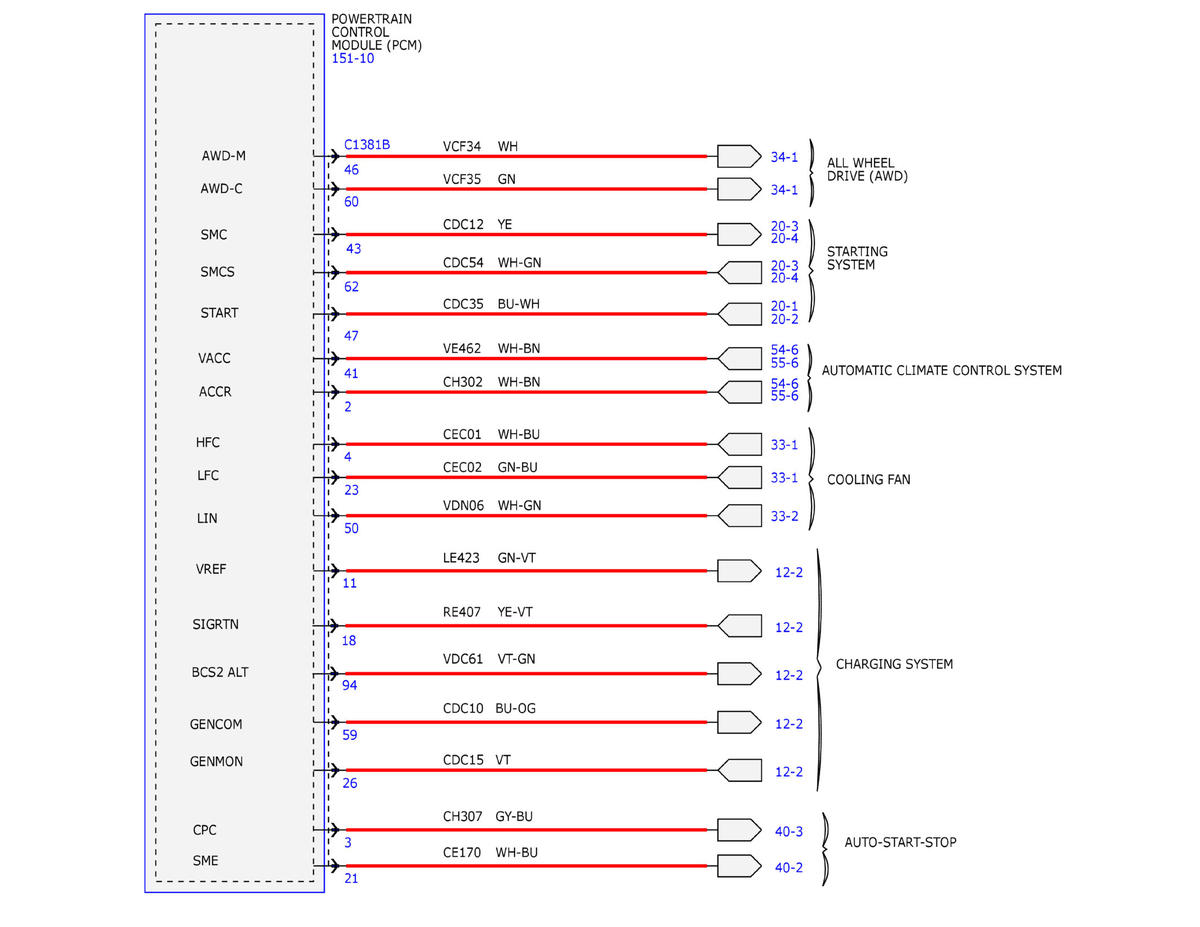

Fig 2: Electronic Engine Controls - 2.0L Wiring Diagram (2 Of 12)

Courtesy of FORD MOTOR COMPANY

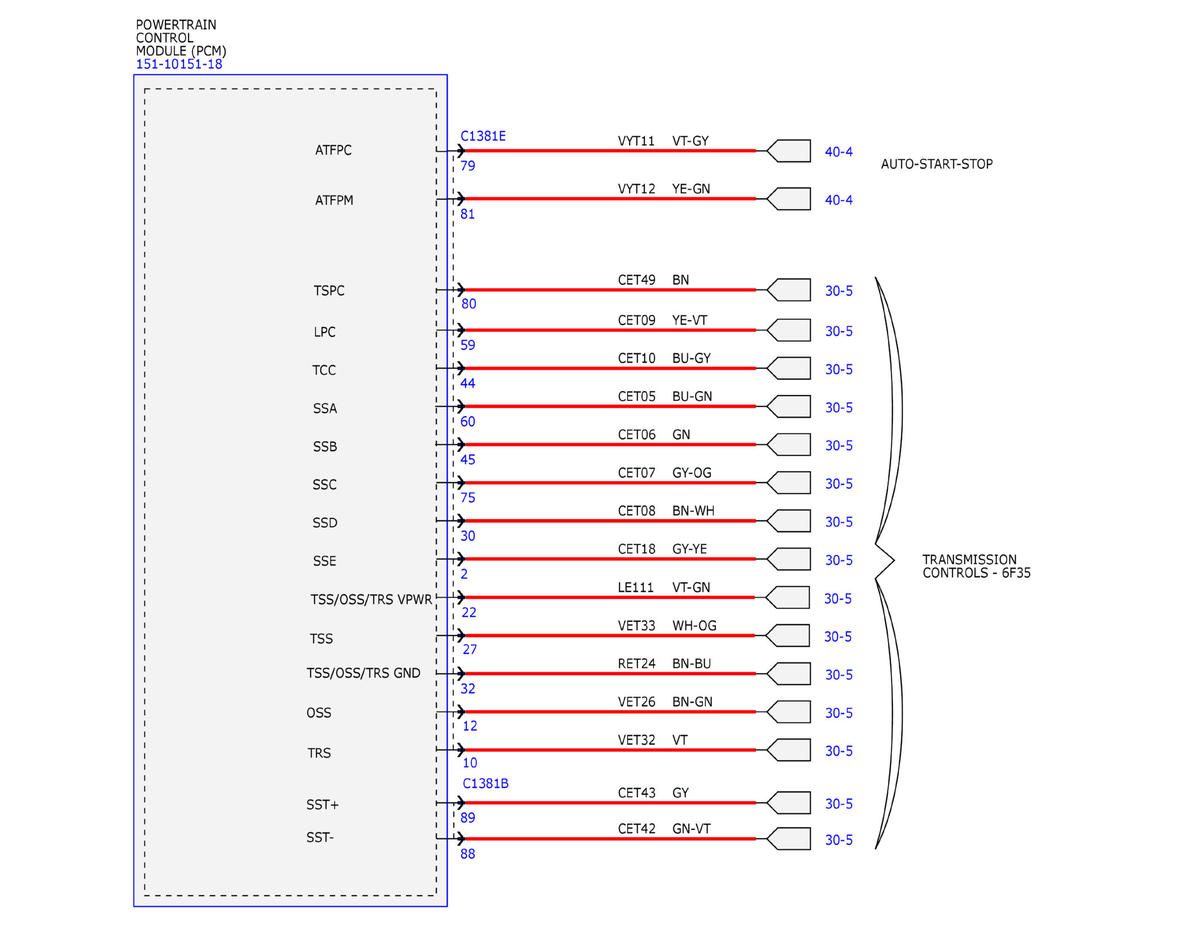

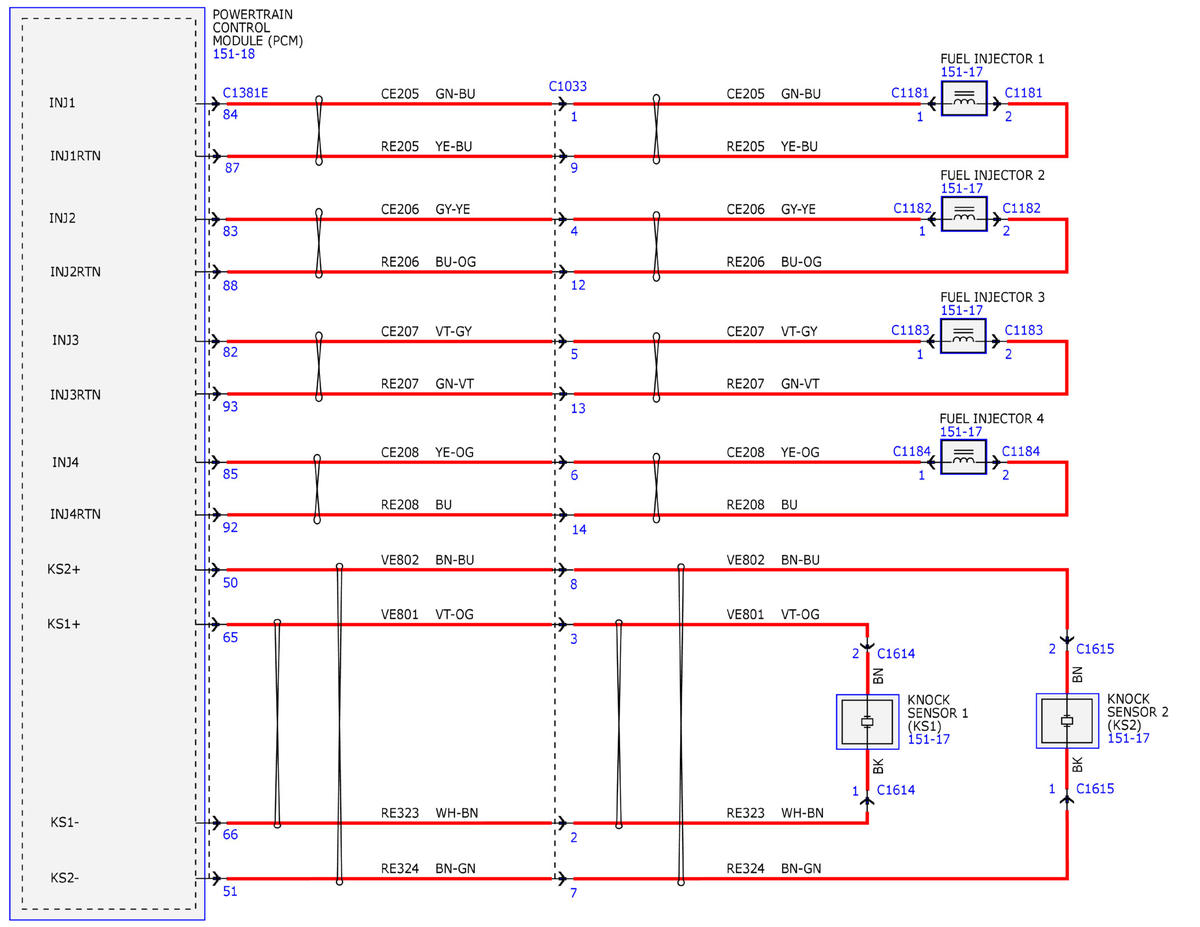

Fig 3: Electronic Engine Controls - 2.0L Wiring Diagram (3 Of 12)

Courtesy of FORD MOTOR COMPANY

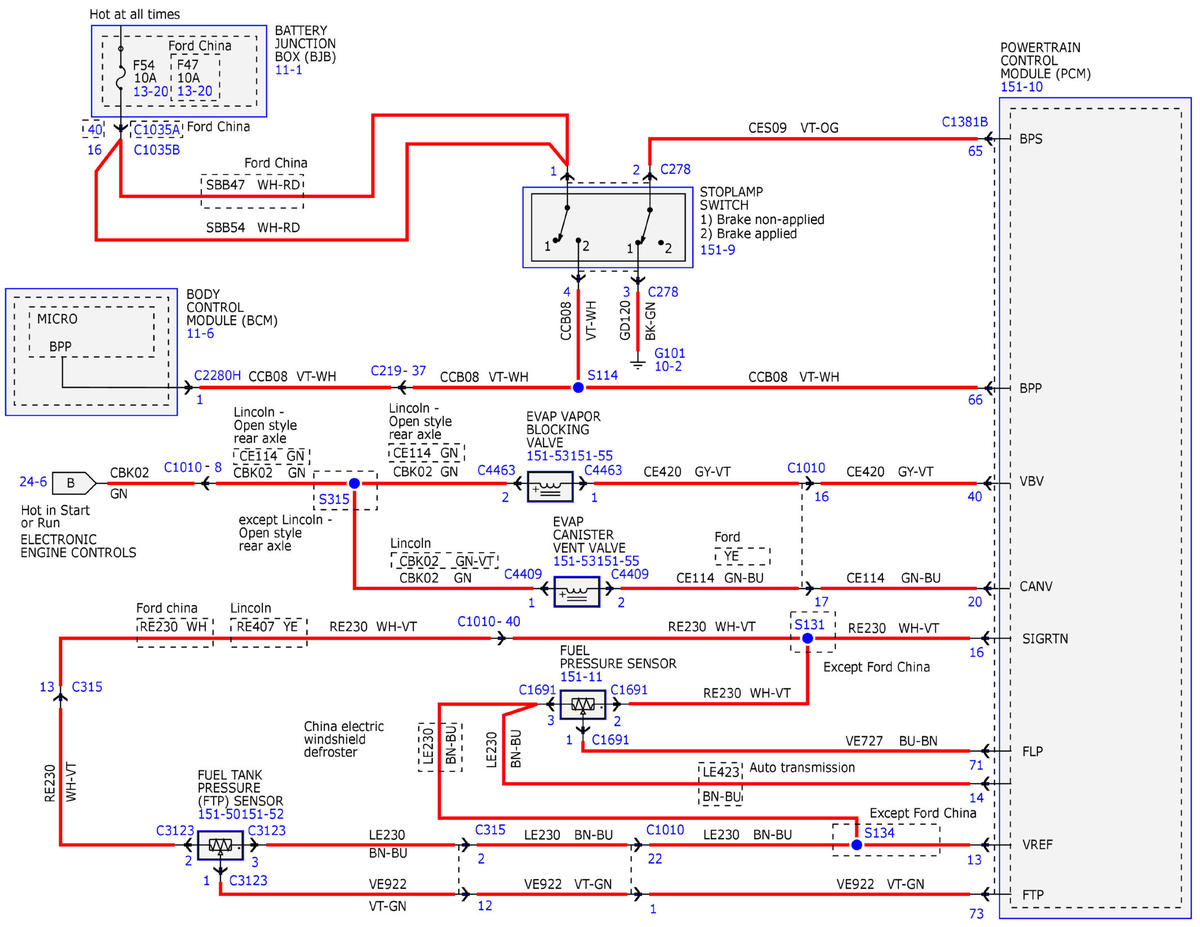

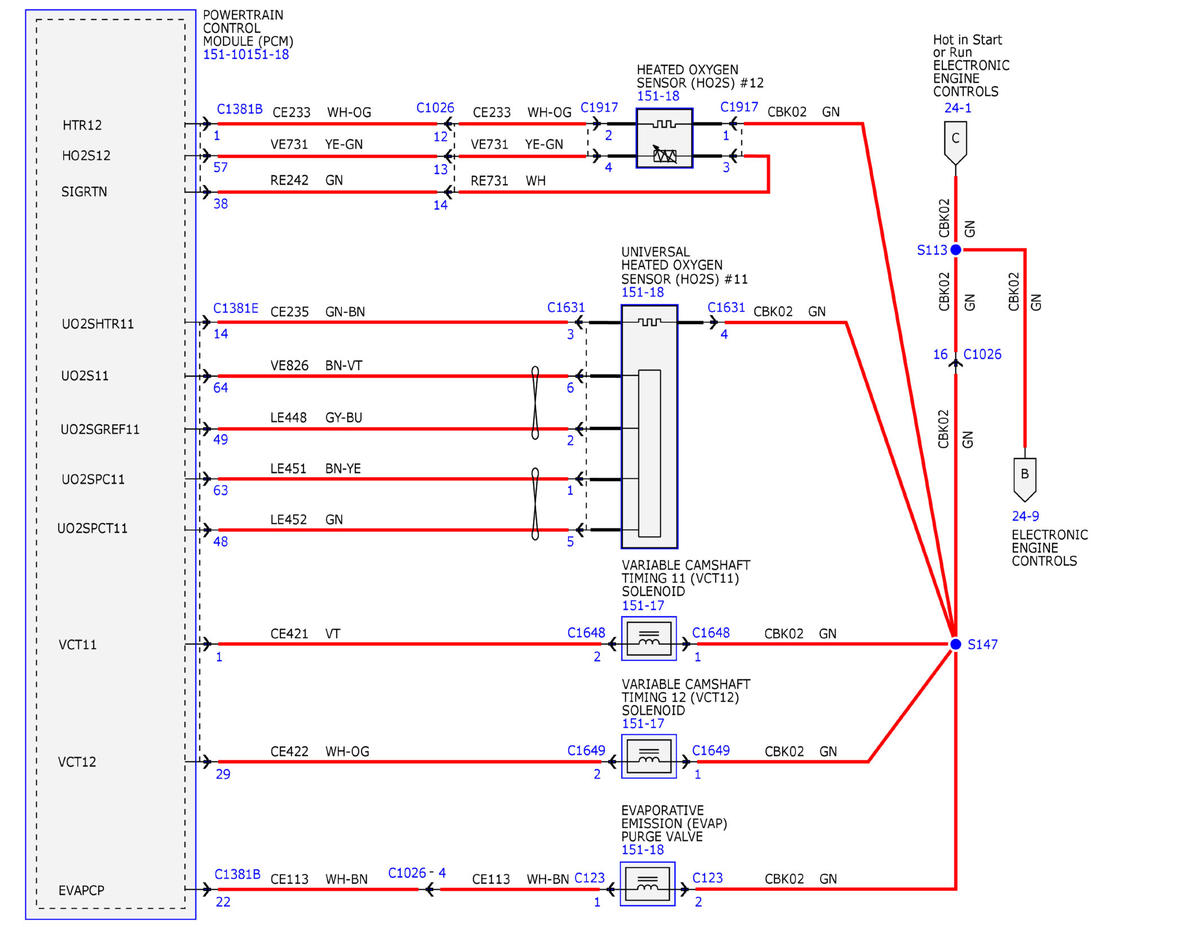

Fig 4: Electronic Engine Controls - 2.0L Wiring Diagram (4 Of 12)

Courtesy of FORD MOTOR COMPANY

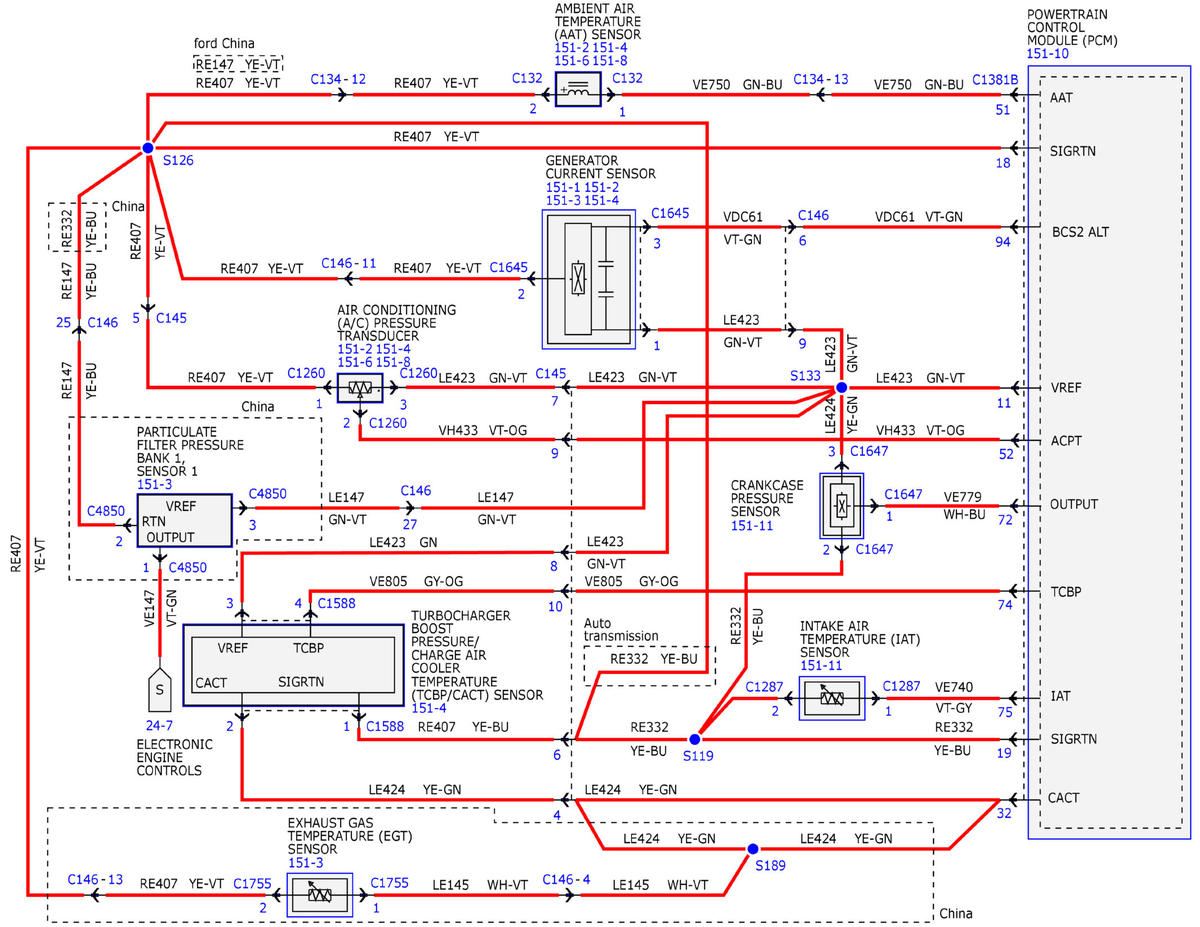

Fig 5: Electronic Engine Controls - 2.0L Wiring Diagram (5 Of 12)

Courtesy of FORD MOTOR COMPANY

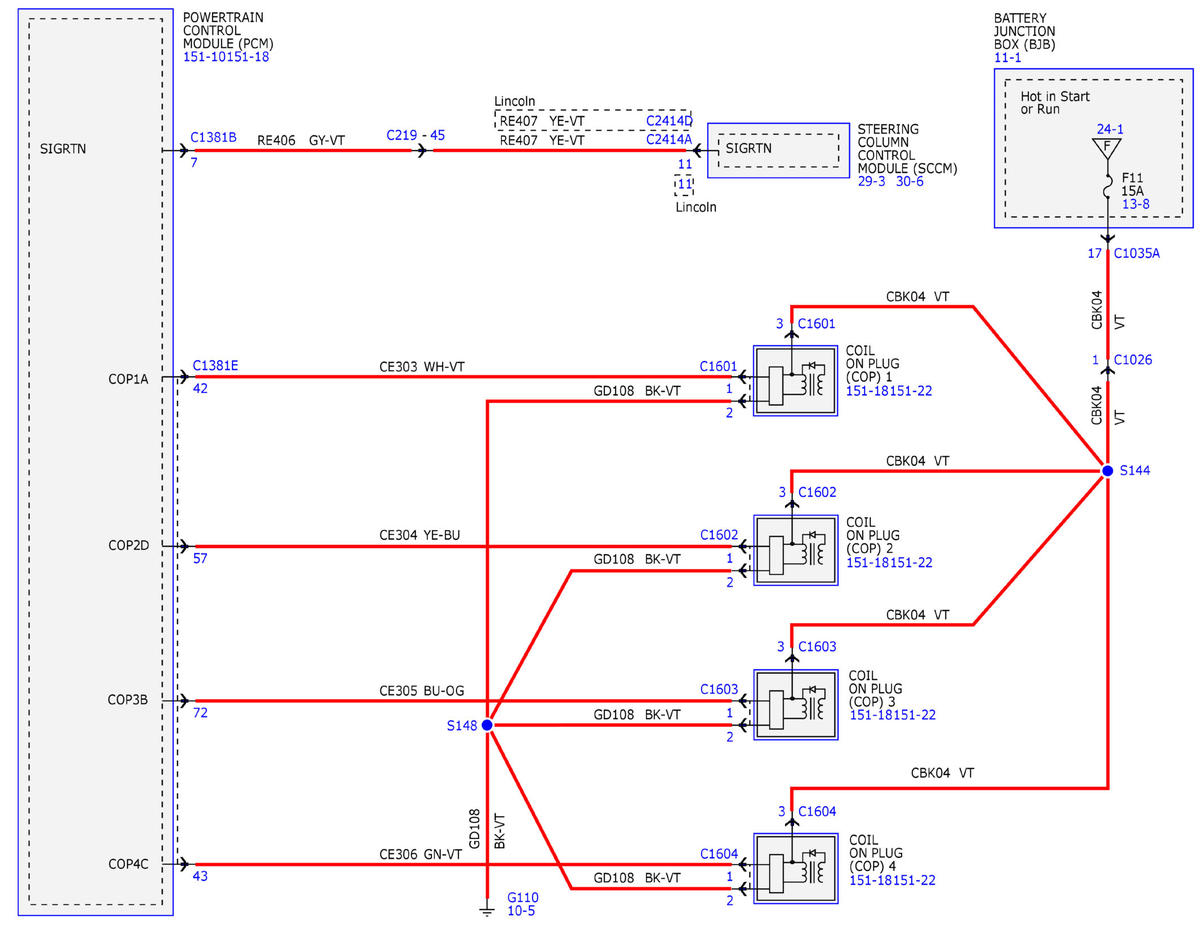

Fig 6: Electronic Engine Controls - 2.0L Wiring Diagram (6 Of 12)

Courtesy of FORD MOTOR COMPANY

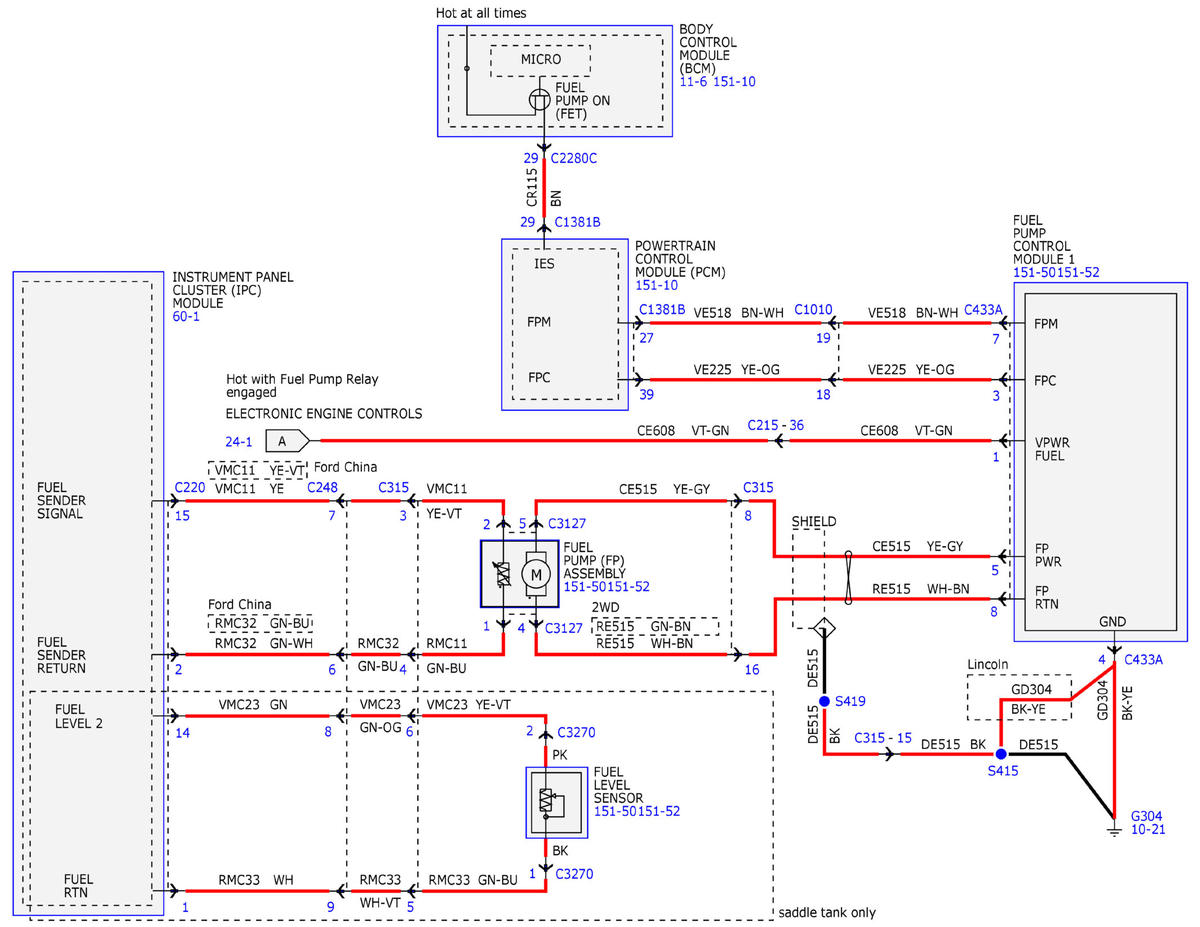

Fig 7: Electronic Engine Controls - 2.0L Wiring Diagram (7 Of 12)

Courtesy of FORD MOTOR COMPANY

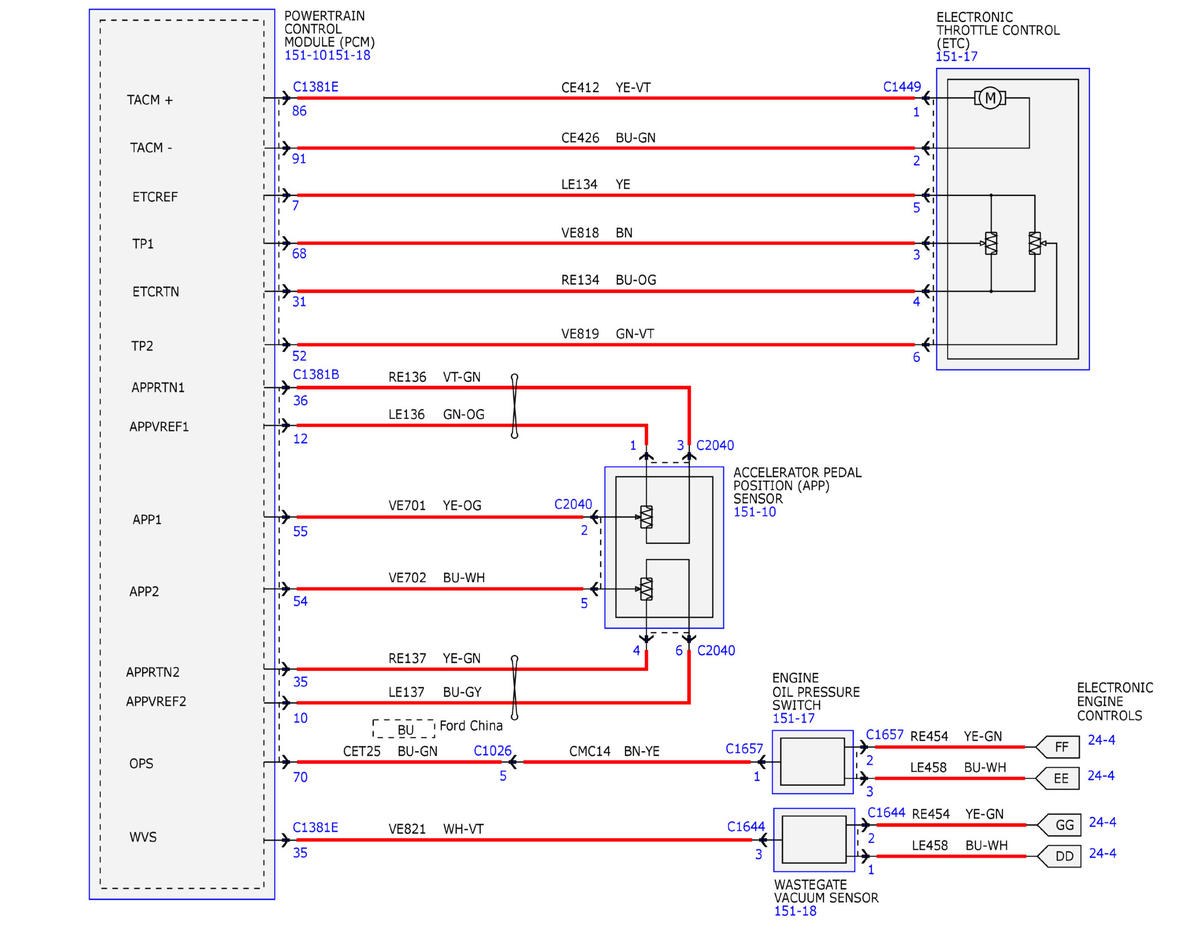

Fig 8: Electronic Engine Controls - 2.0L Wiring Diagram (8 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls - 2.0L Wiring Diagram (9 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls - 2.0L Wiring Diagram (10 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls - 2.0L Wiring Diagram (11 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls - 2.0L Wiring Diagram (12 Of 12)

Courtesy of FORD MOTOR COMPANY
