Auto-Start-Stop System
Auto-Start-Stop System

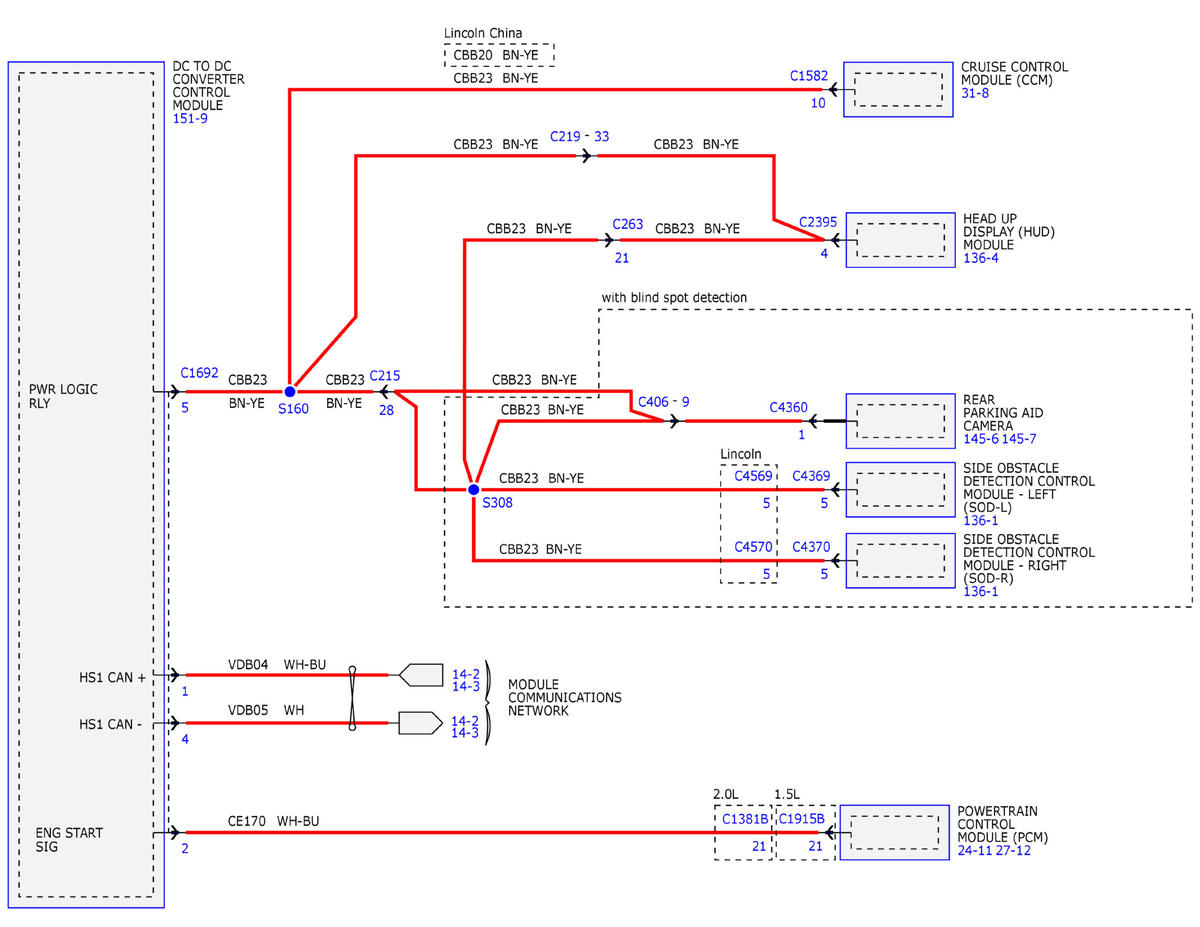

Fig 1: Auto-Start-Stop System Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR COMPANY

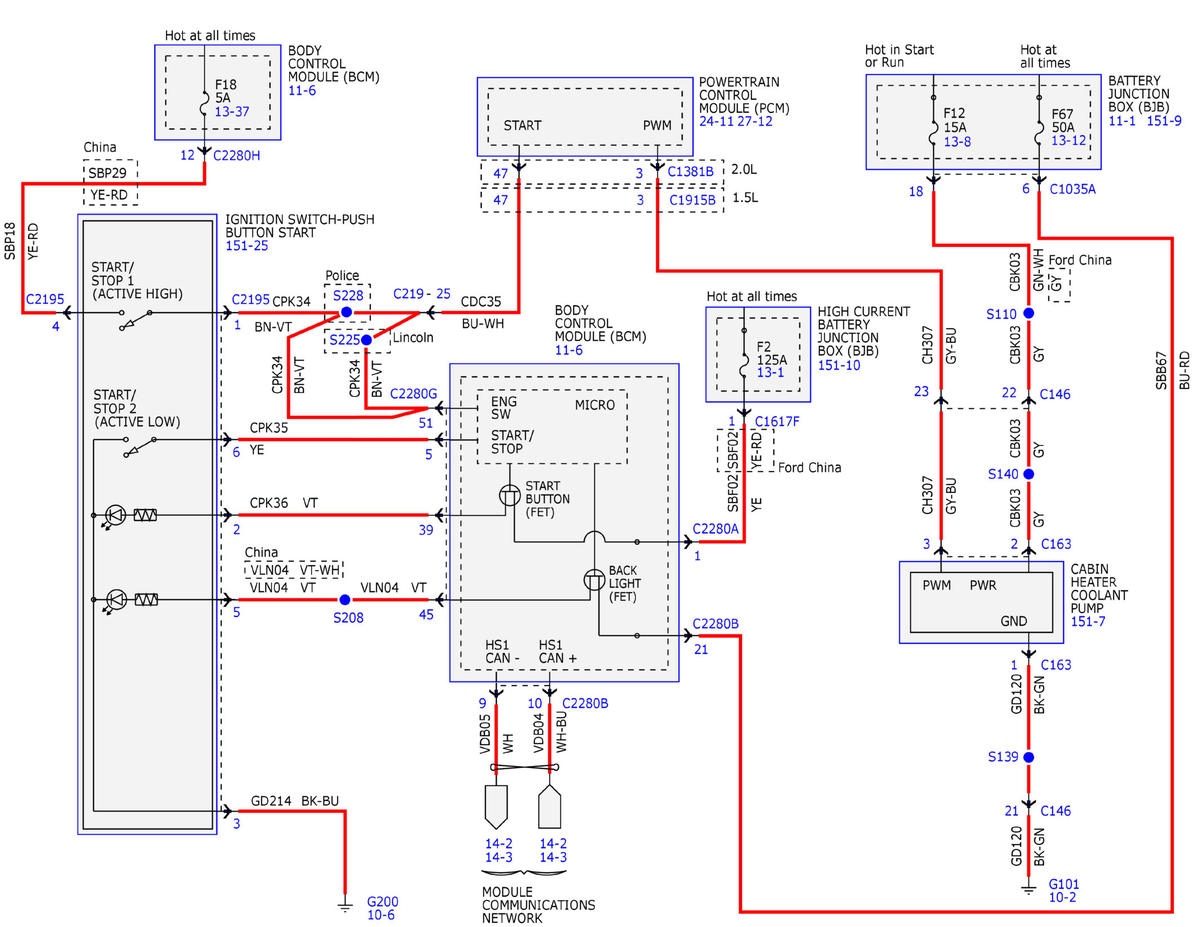

Fig 2: Auto-Start-Stop System Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR COMPANY

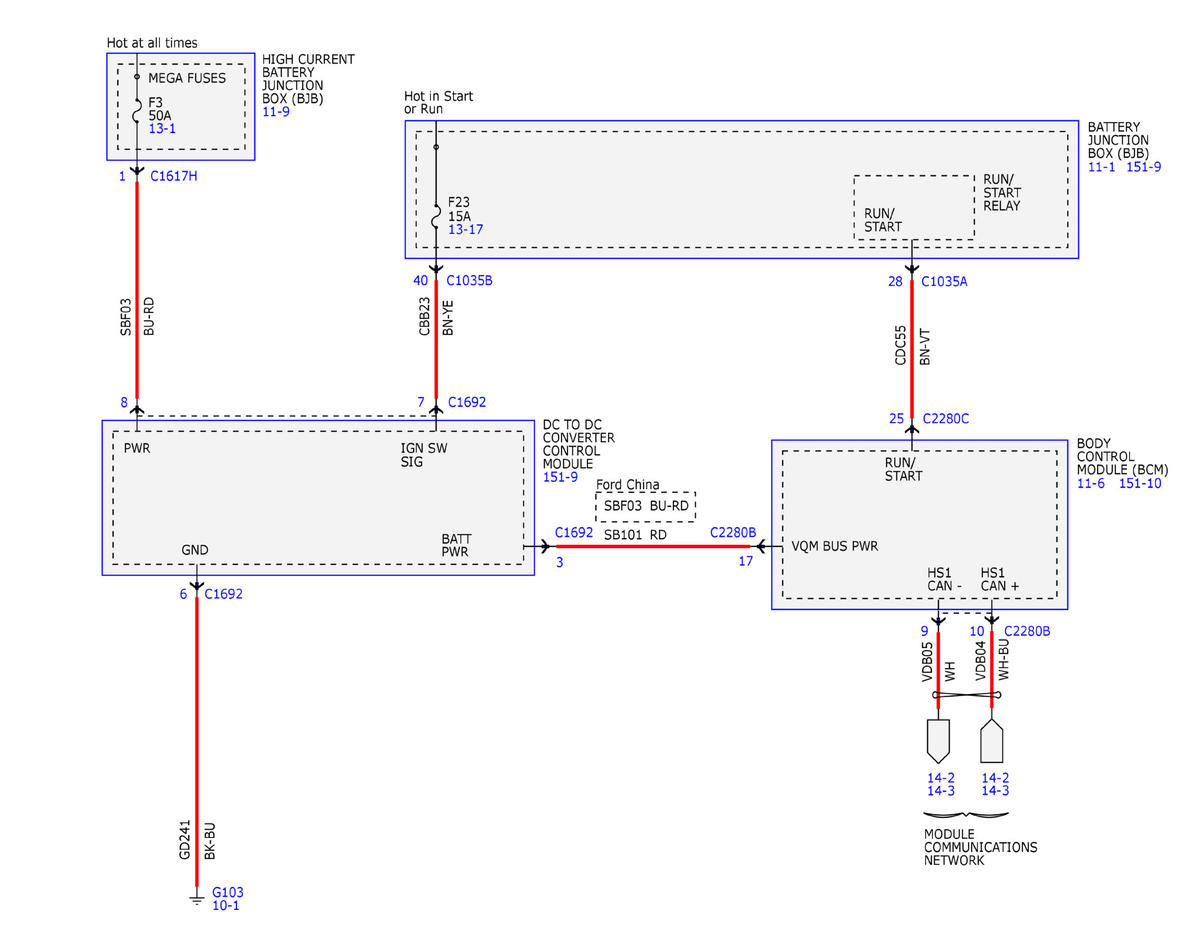

Fig 3: Auto-Start-Stop System Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR COMPANY

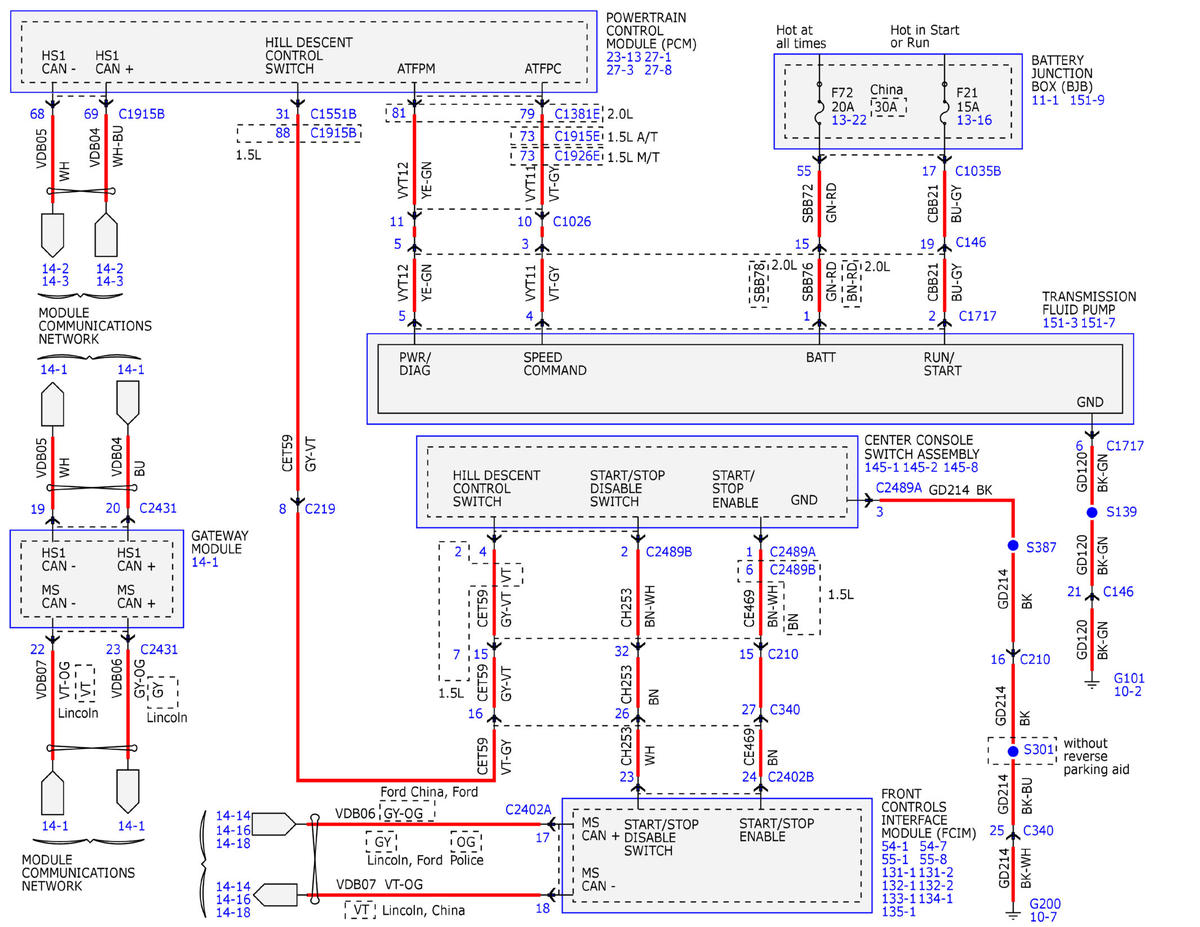

Fig 4: Auto-Start-Stop System Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR COMPANY
