Audio System/Navigation - Sync+

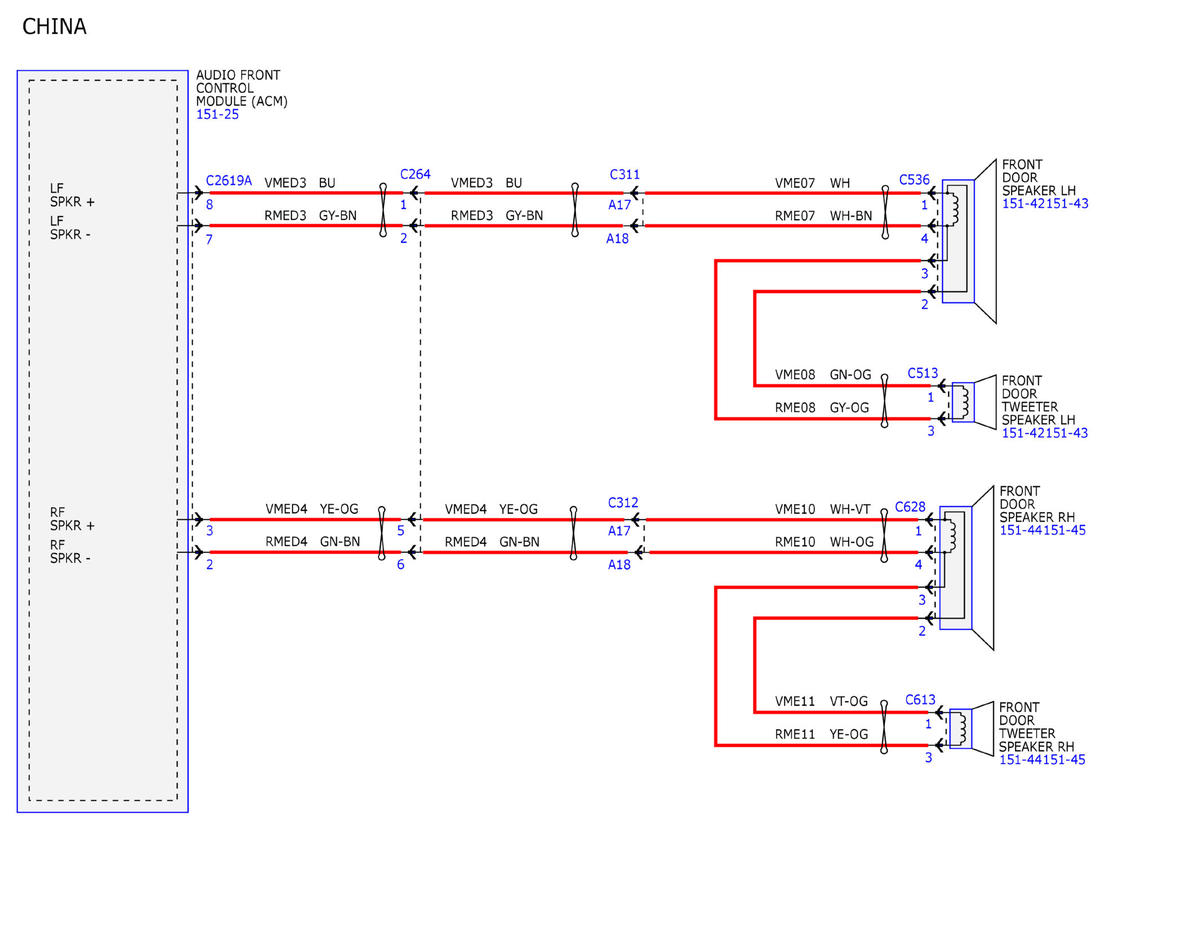

Fig 1: Audio System/Navigation - Sync+ Wiring Diagram (1 Of 8)
GFDWR89436Courtesy of FORD MOTOR COMPANY

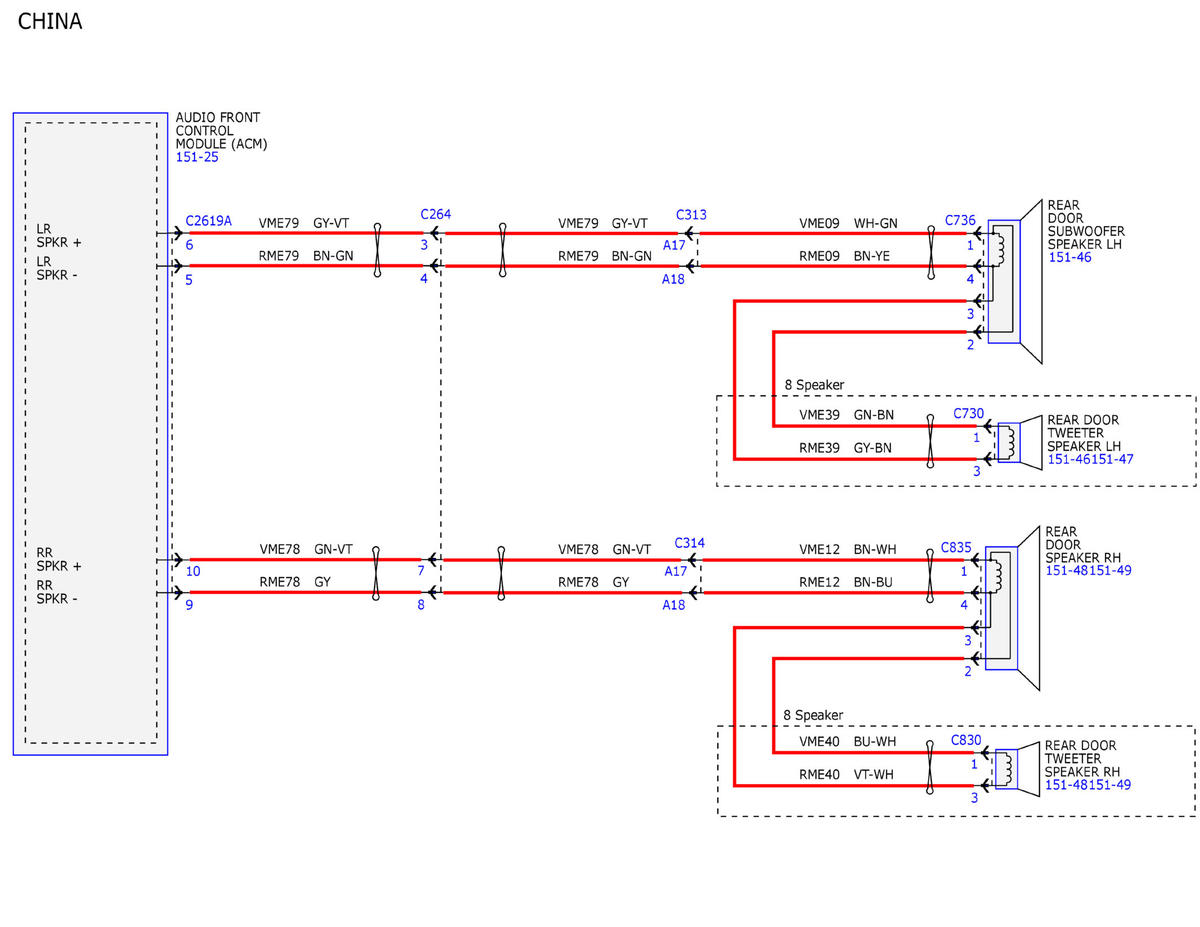

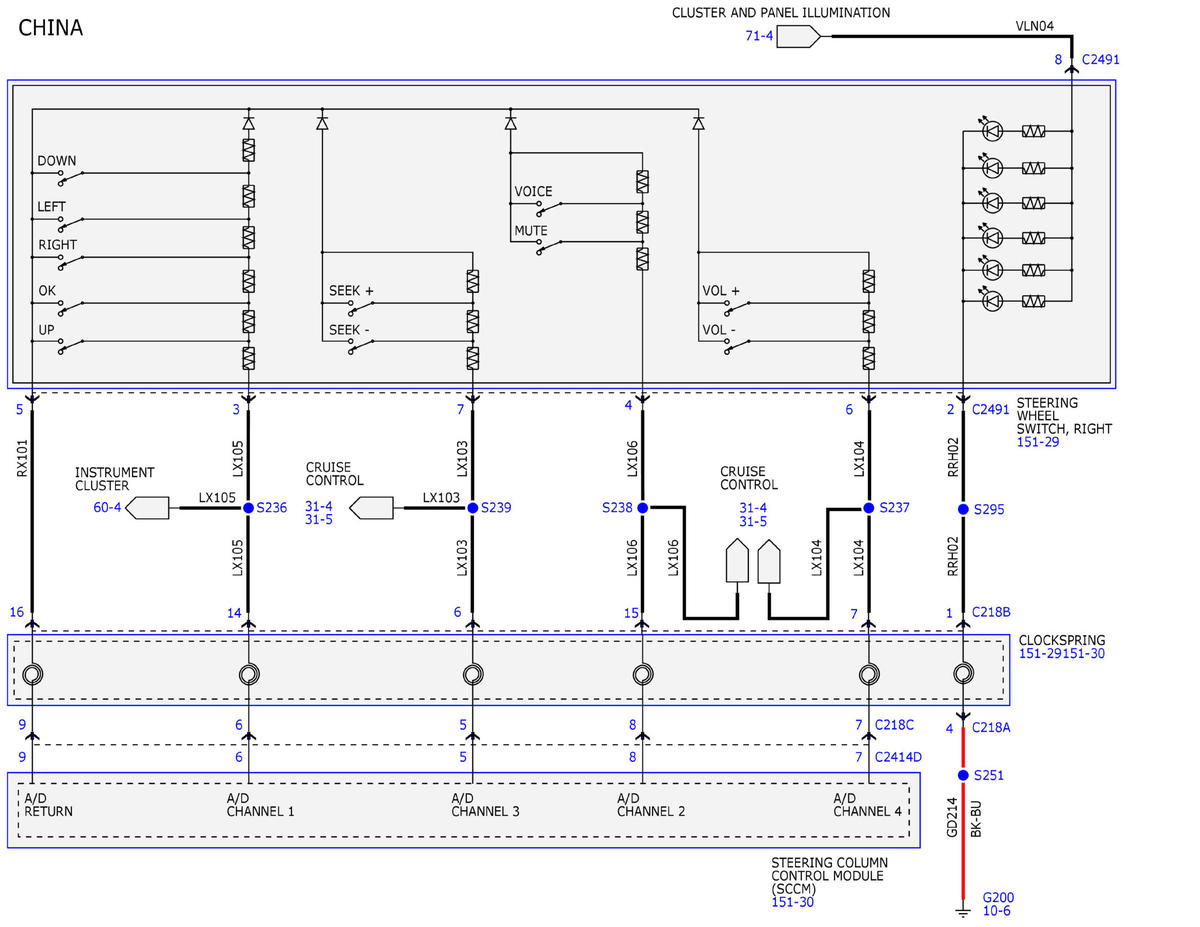

Fig 2: Audio System/Navigation - Sync+ Wiring Diagram (2 Of 8)
GFDWR89437Courtesy of FORD MOTOR COMPANY

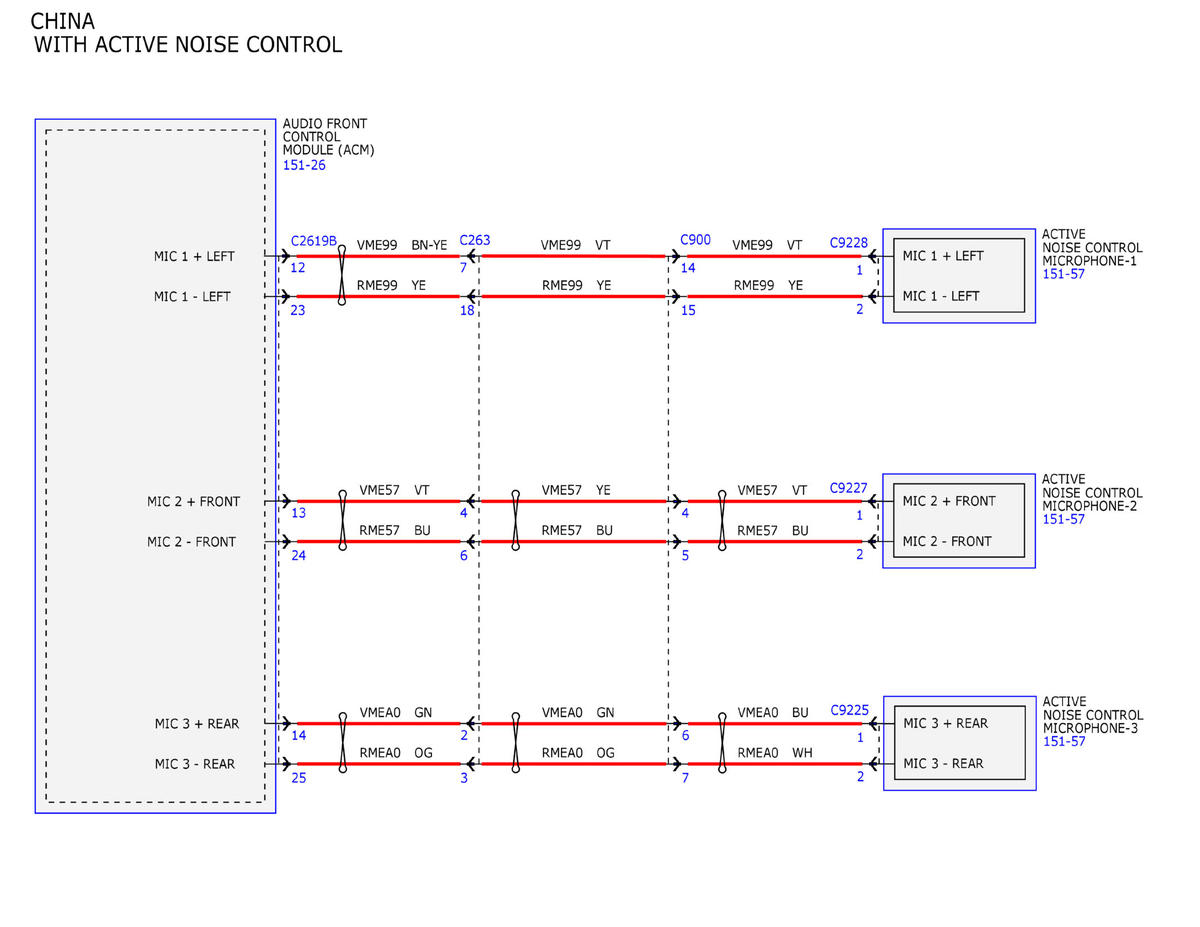

Fig 3: Audio System/Navigation - Sync+ Wiring Diagram (3 Of 8)
GFDWR89438Courtesy of FORD MOTOR COMPANY
Fig 4: Audio System/Navigation - Sync+ Wiring Diagram (4 Of 8)
GFDWR89439Courtesy of FORD MOTOR COMPANY

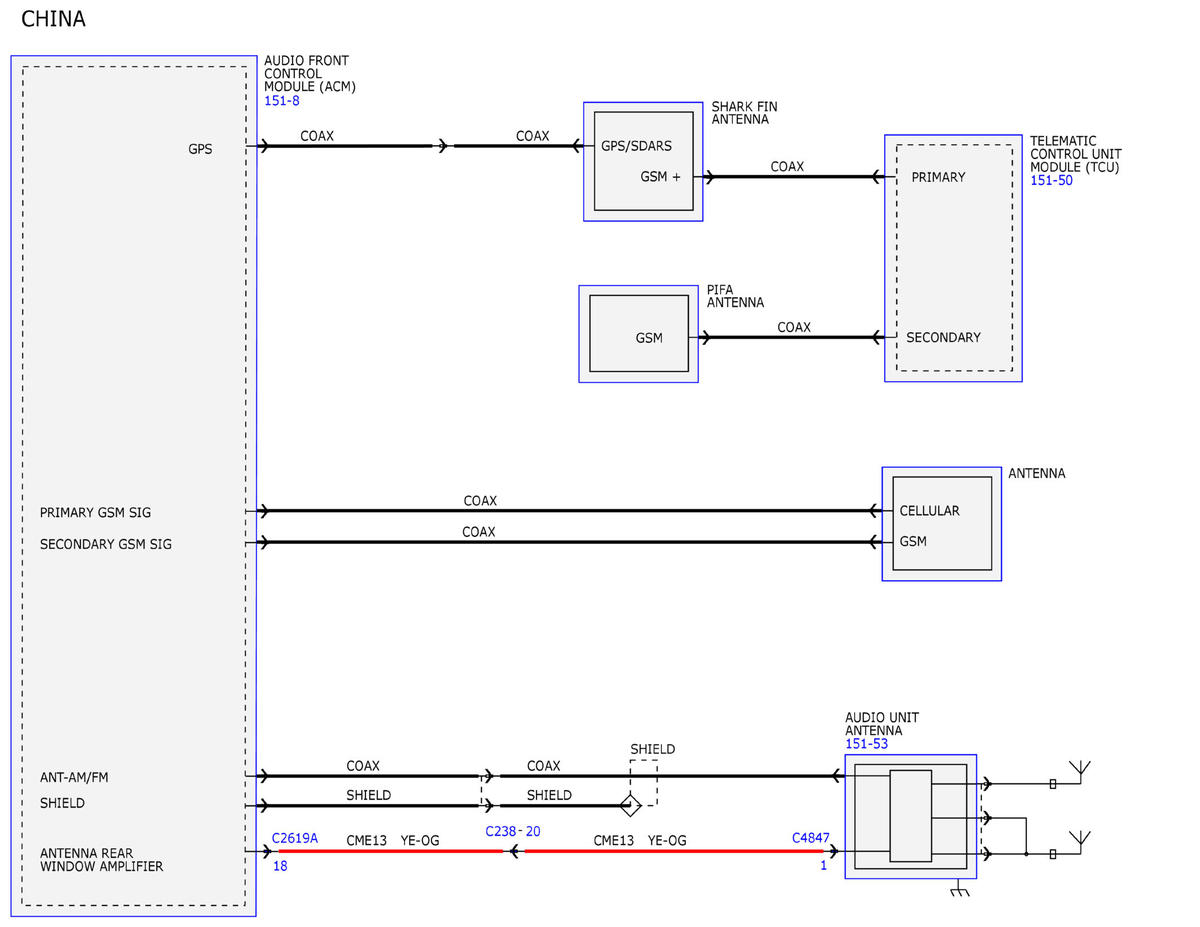

Fig 5: Audio System/Navigation - Sync+ Wiring Diagram (5 Of 8)
GFDWR89440Courtesy of FORD MOTOR COMPANY

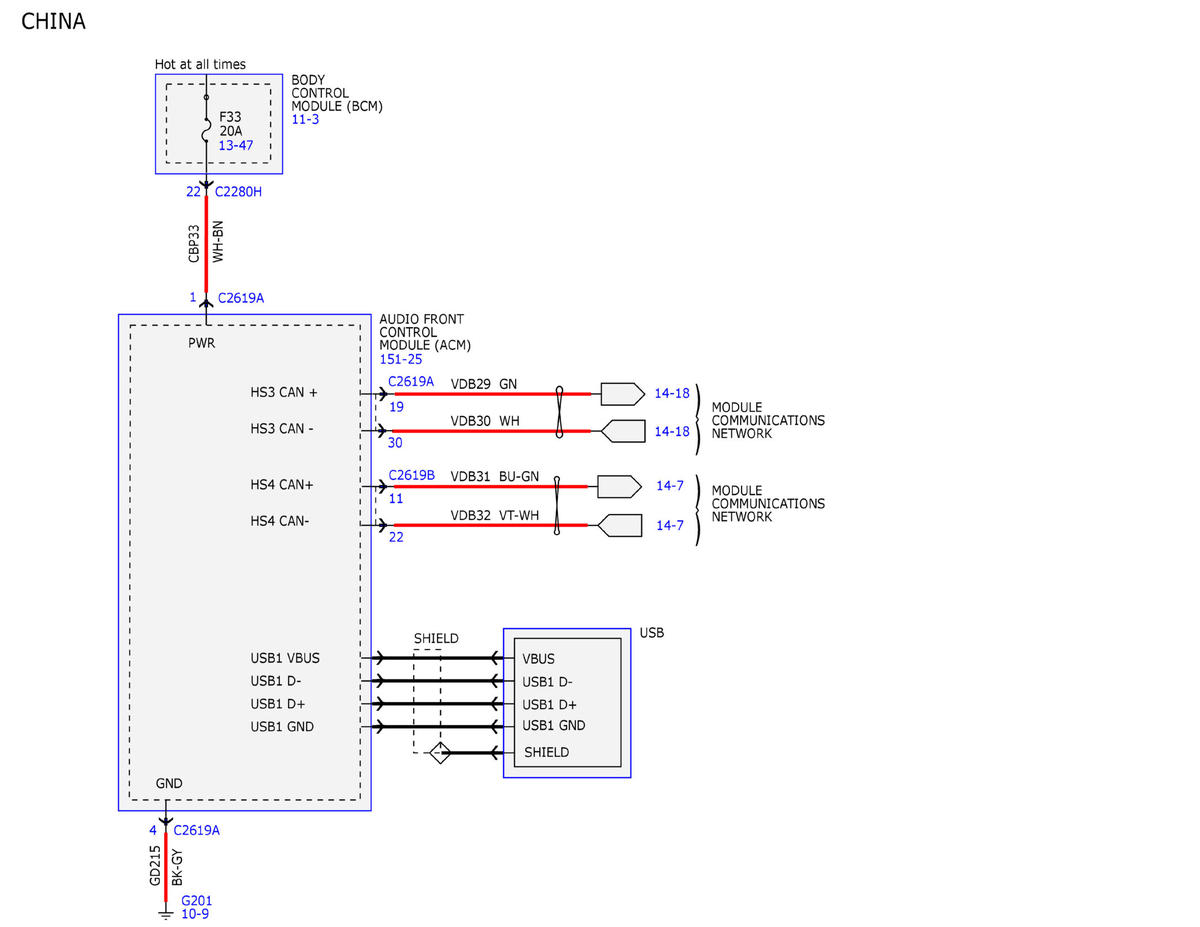

Fig 6: Audio System/Navigation - Sync+ Wiring Diagram (6 Of 8)
GFDWR89441Courtesy of FORD MOTOR COMPANY

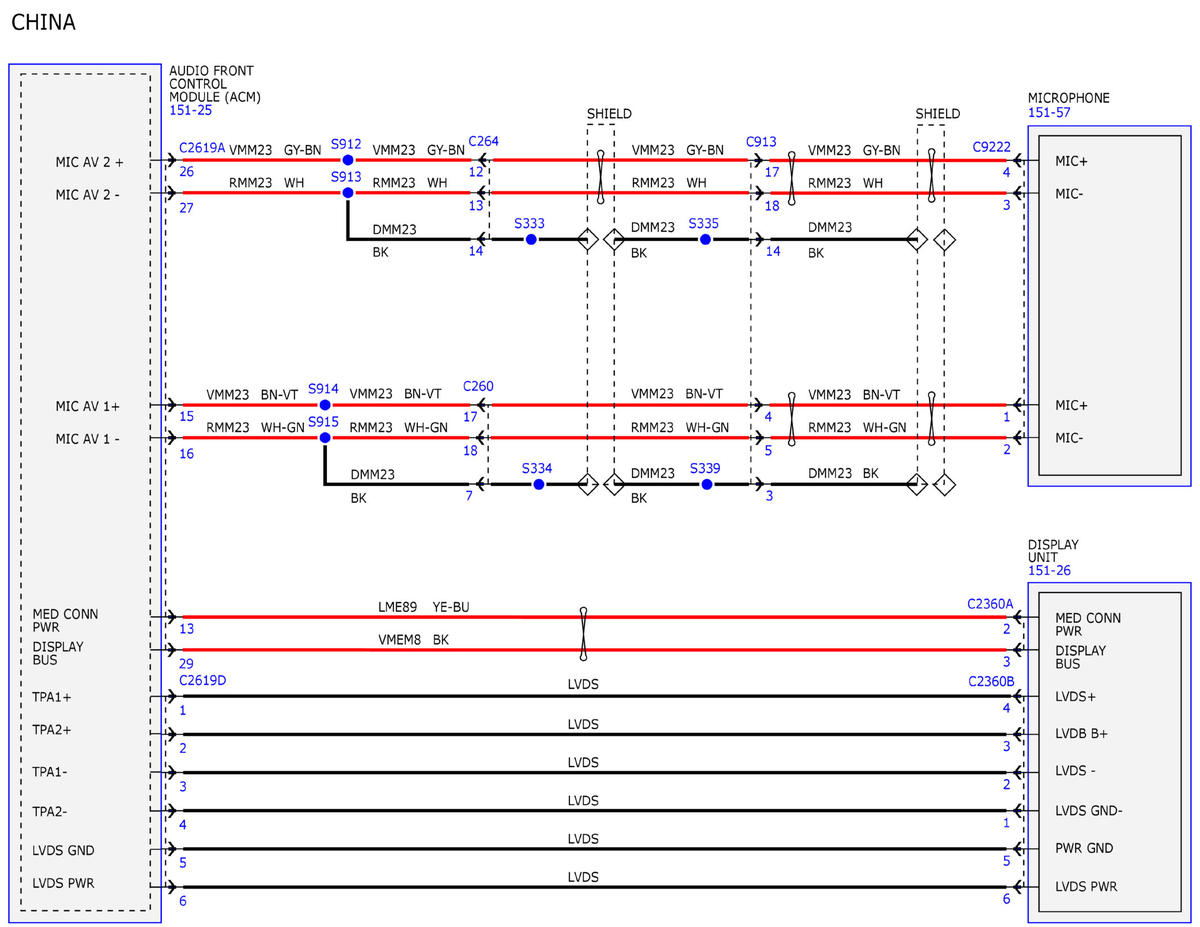

Fig 7: Audio System/Navigation - Sync+ Wiring Diagram (7 Of 8)
GFDWR89442Courtesy of FORD MOTOR COMPANY

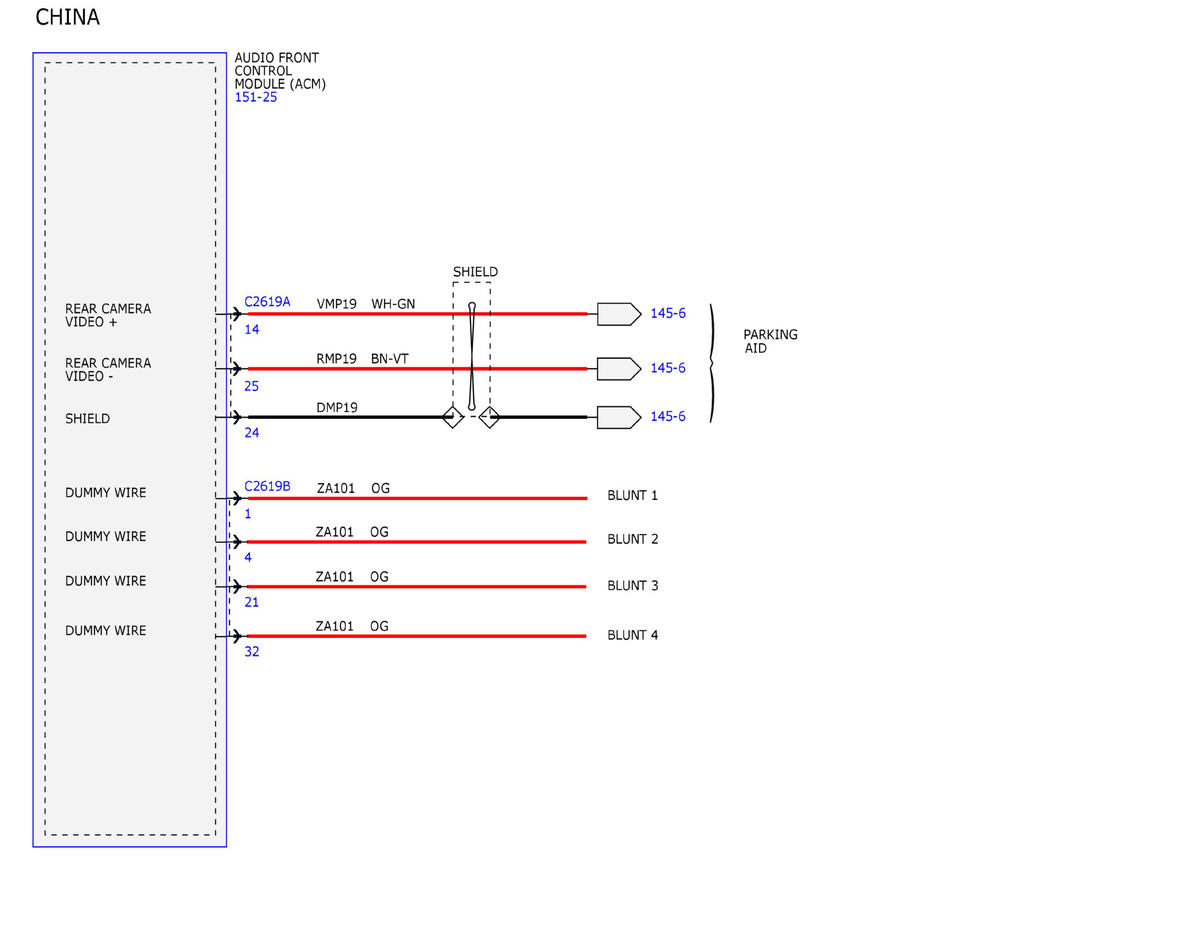

Fig 8: Audio System/Navigation - Sync+ Wiring Diagram (8 Of 8)
GFDWR89443Courtesy of FORD MOTOR COMPANY
