Audio System/Navigation - MKZ With Harman Revel

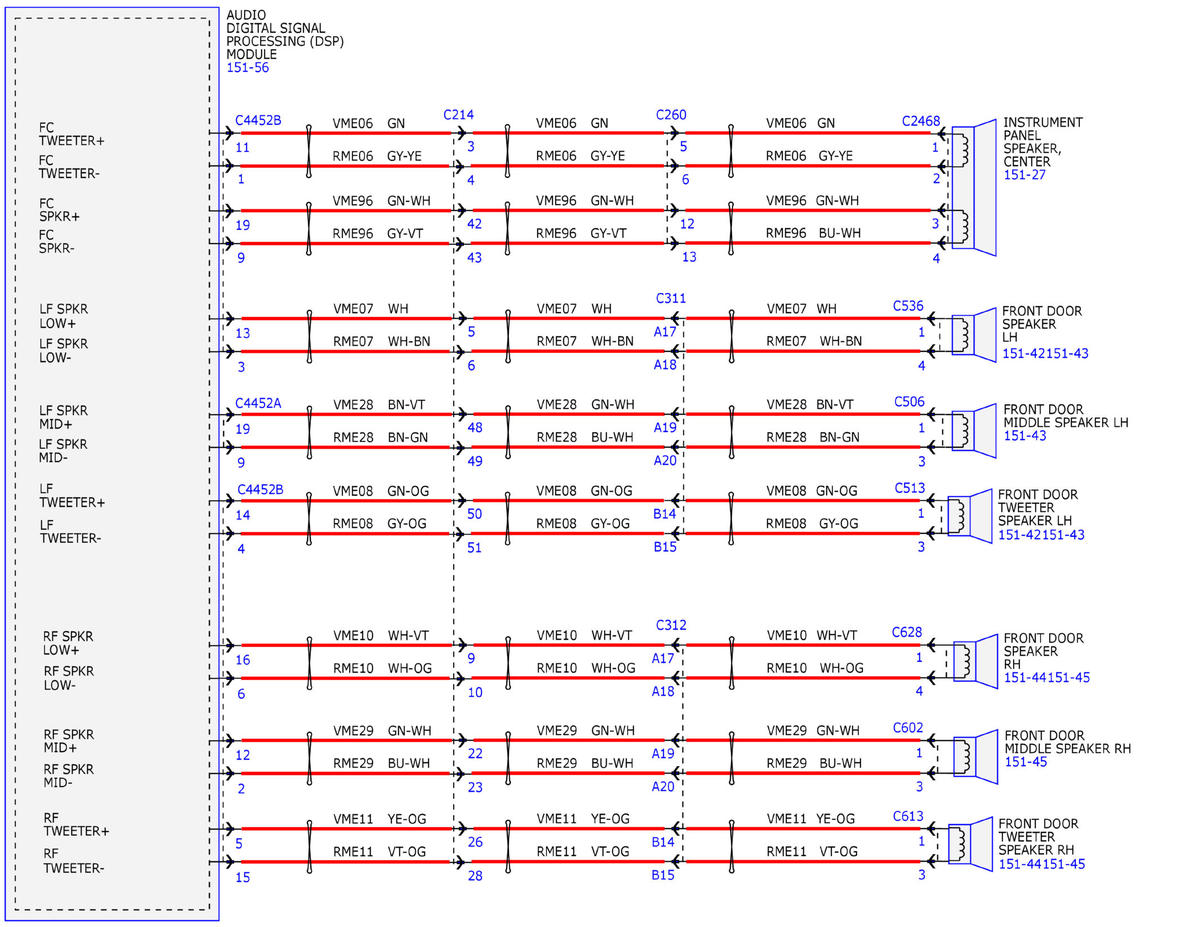

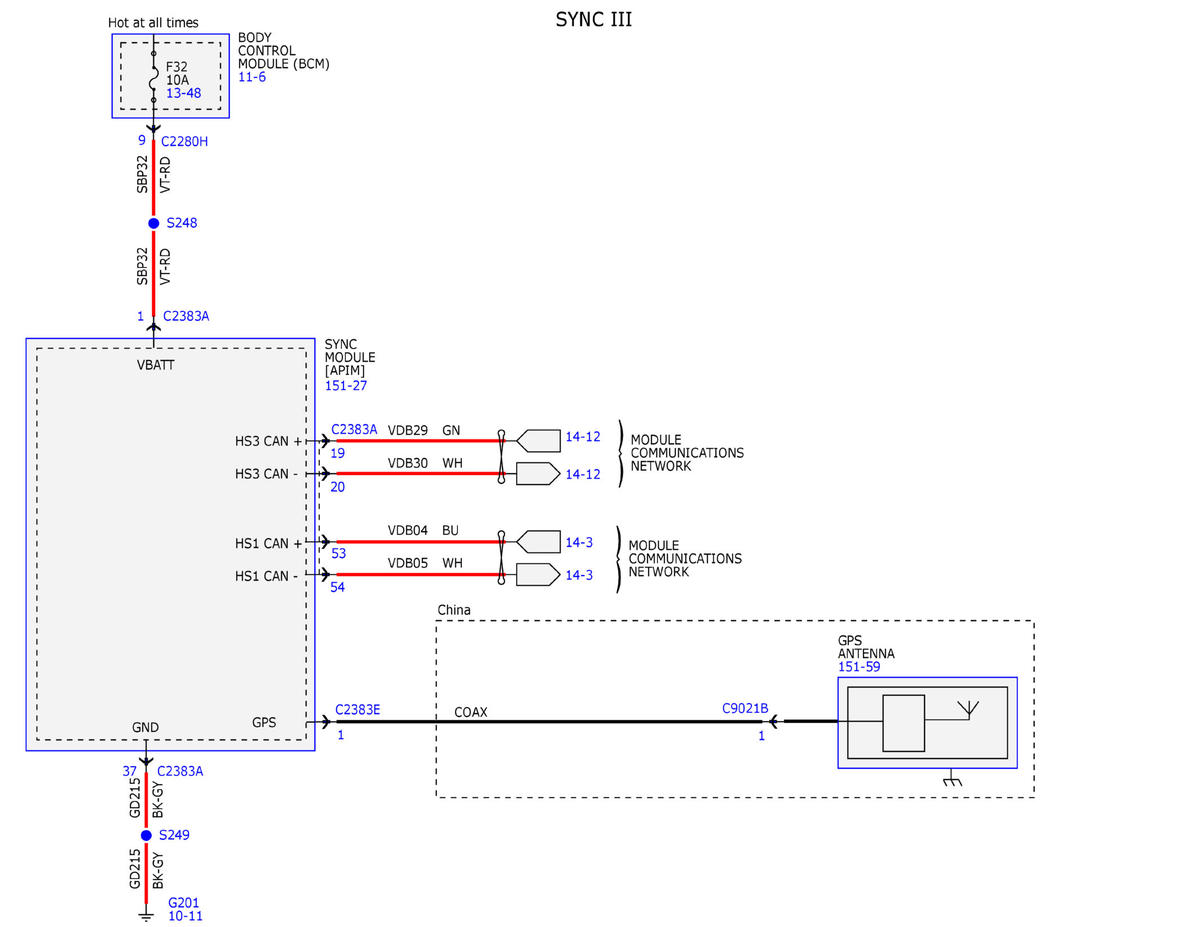

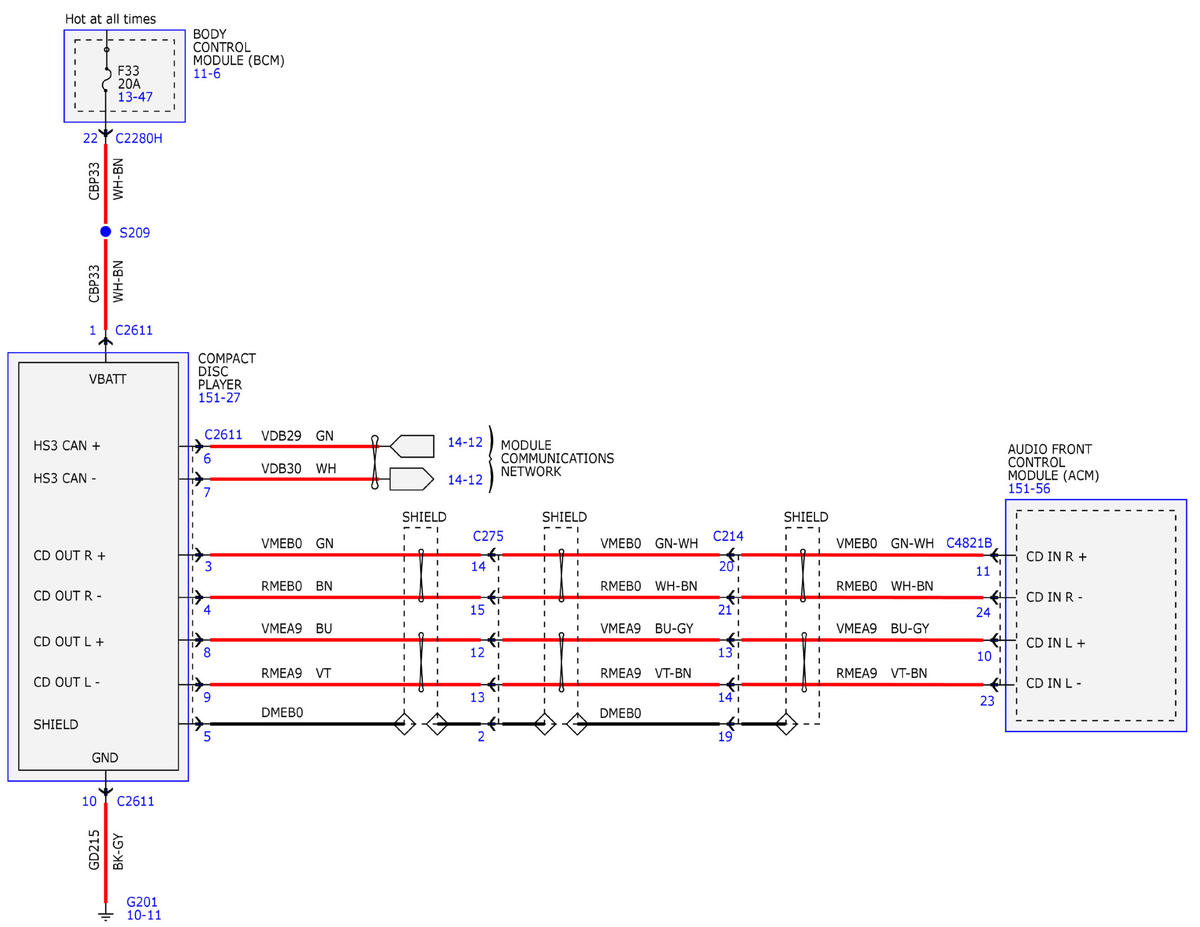

Fig 1: Audio System/Navigation - MKZ Harman Revel (1 Of 17)

Courtesy of FORD MOTOR COMPANY

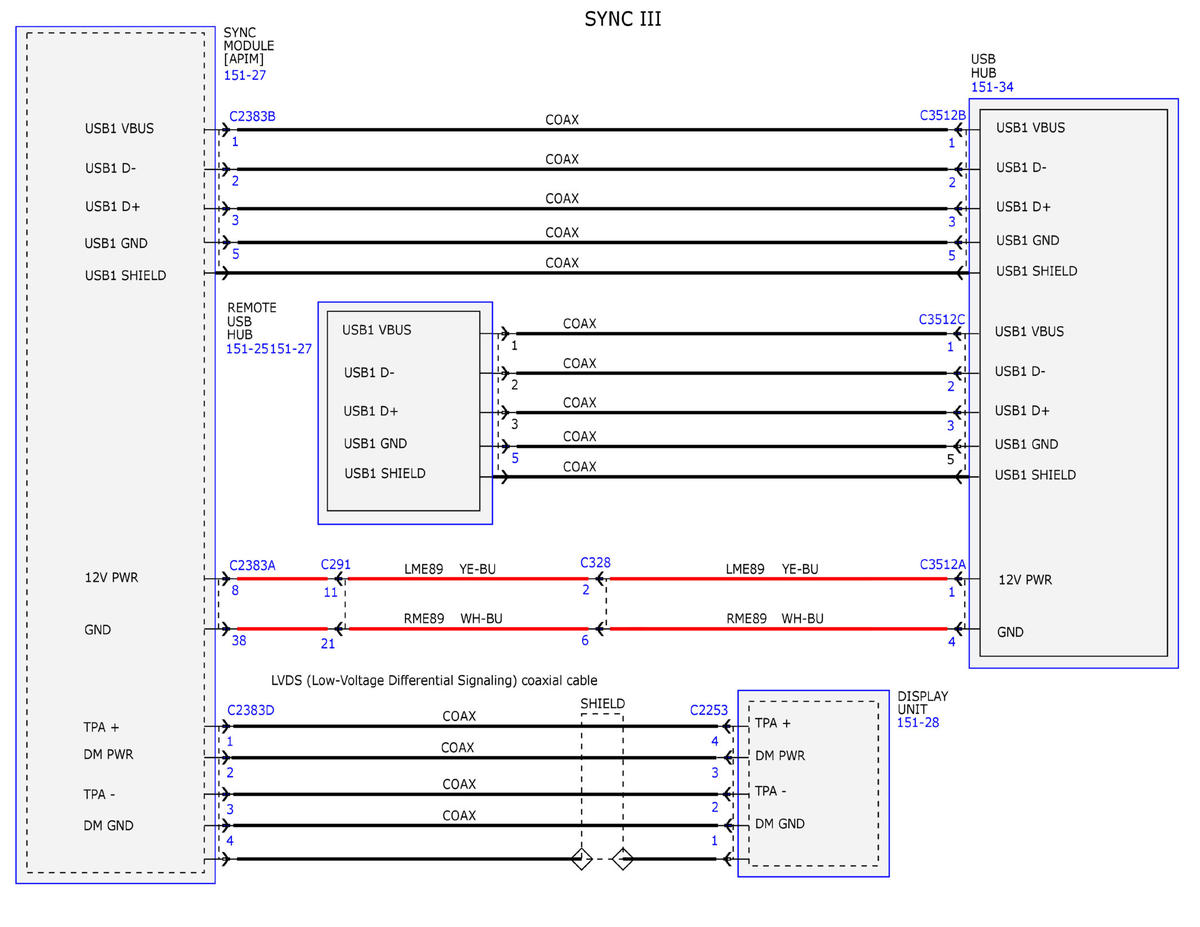

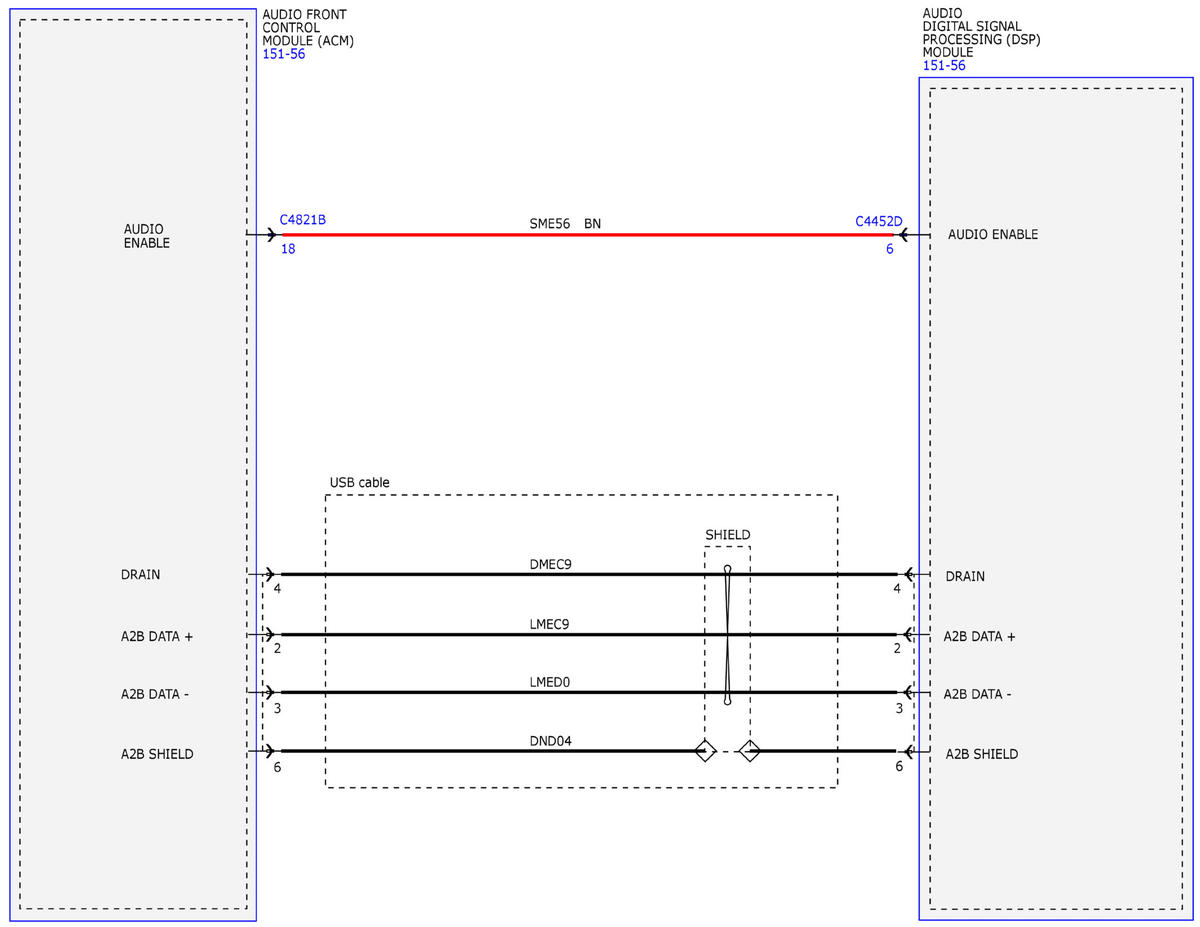

Fig 2: Audio System/Navigation - MKZ Harman Revel (2 Of 17)

Courtesy of FORD MOTOR COMPANY

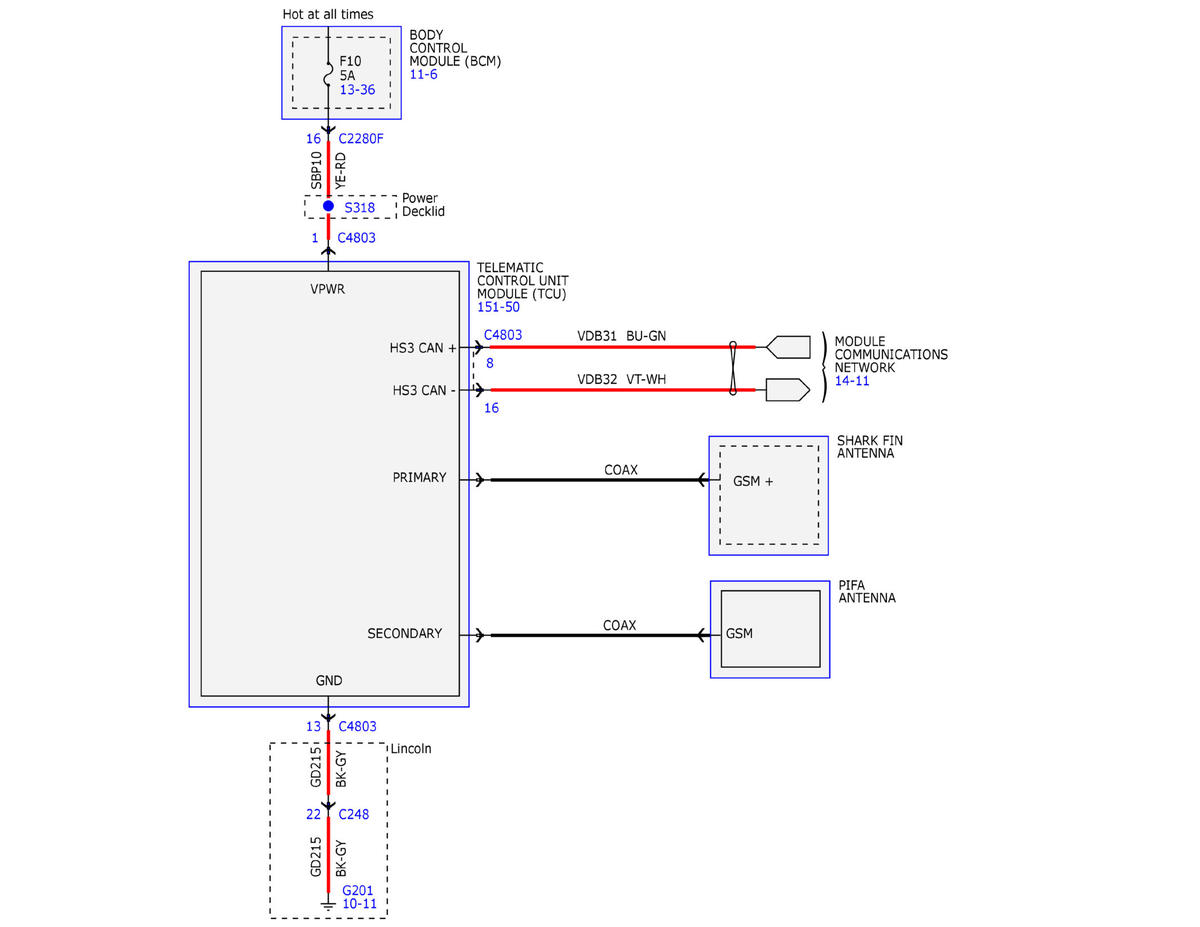

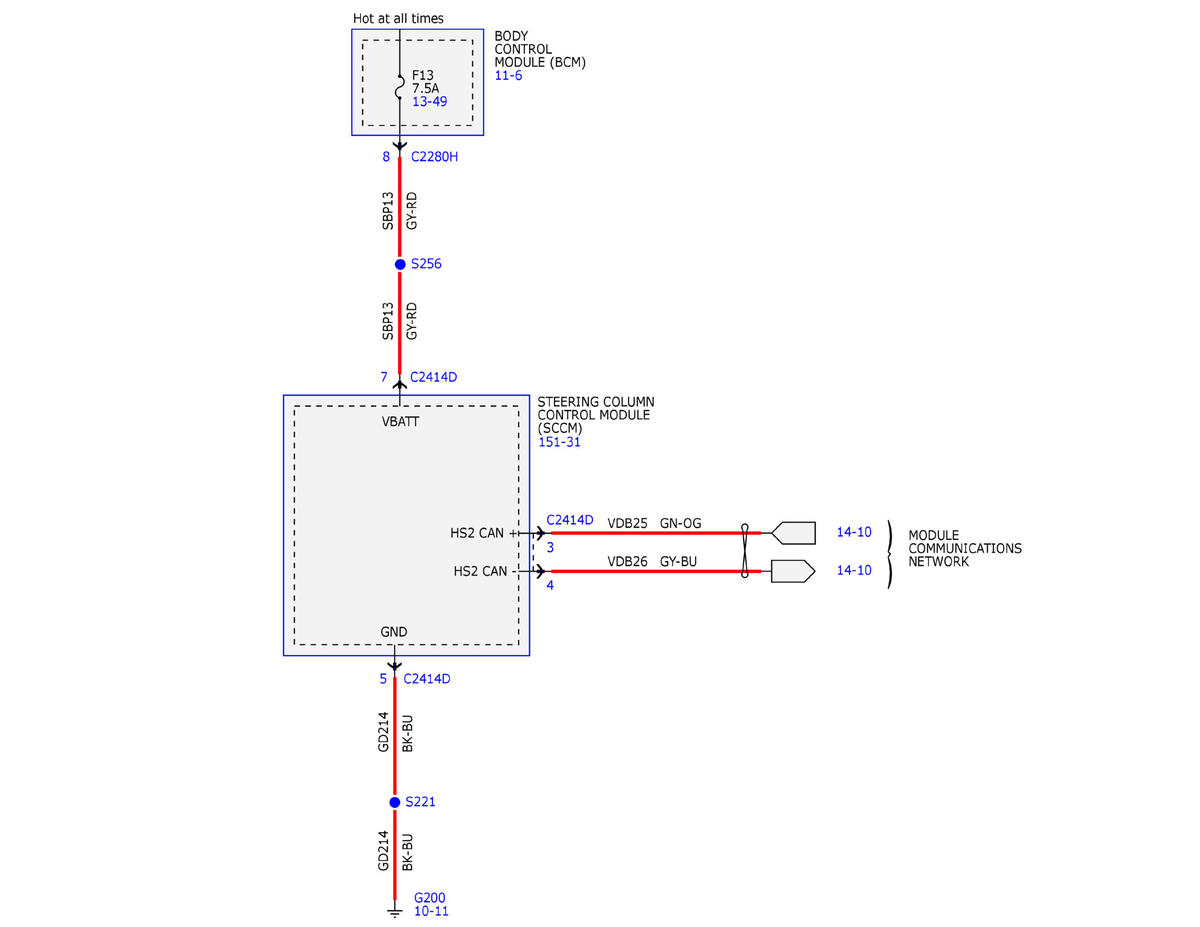

Fig 3: Audio System/Navigation - MKZ Harman Revel (3 Of 17)

Courtesy of FORD MOTOR COMPANY

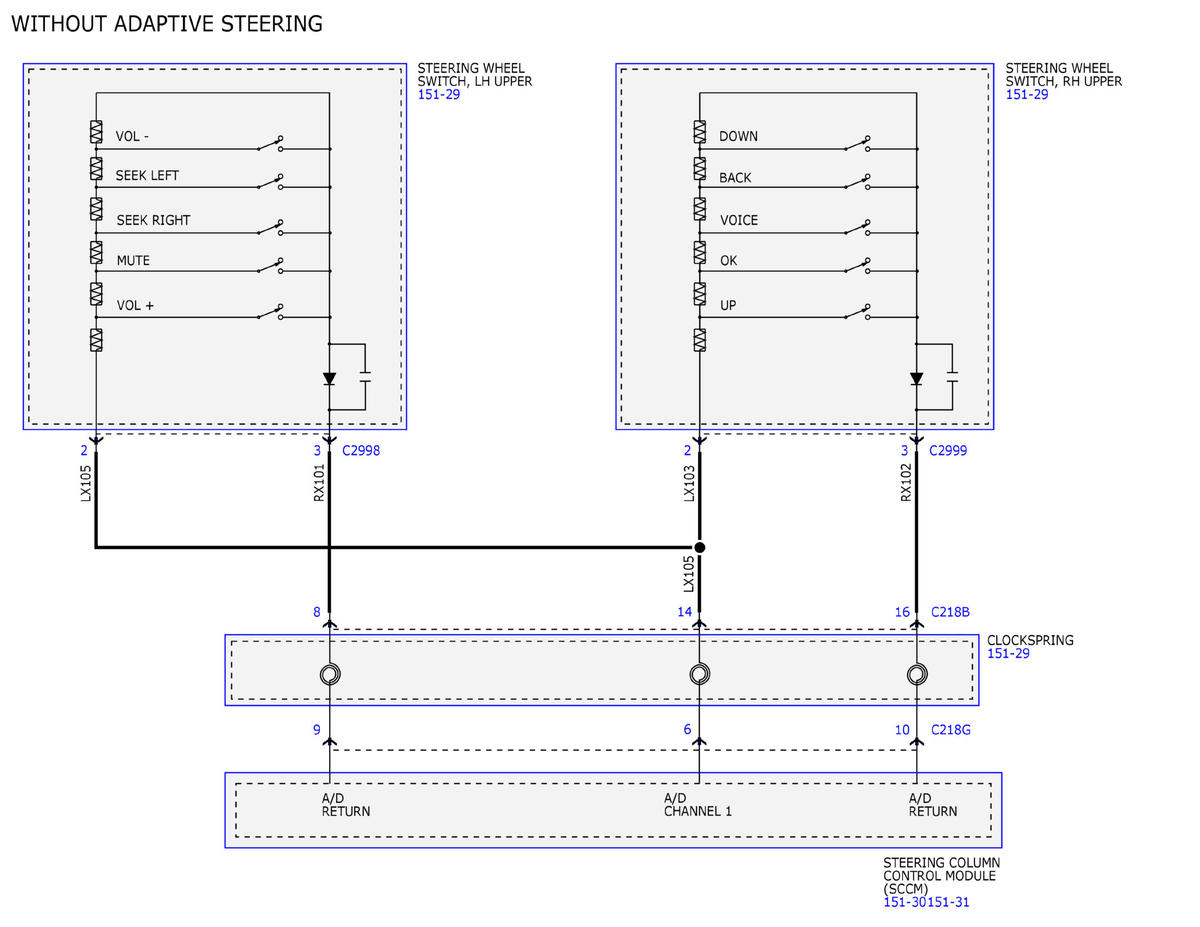

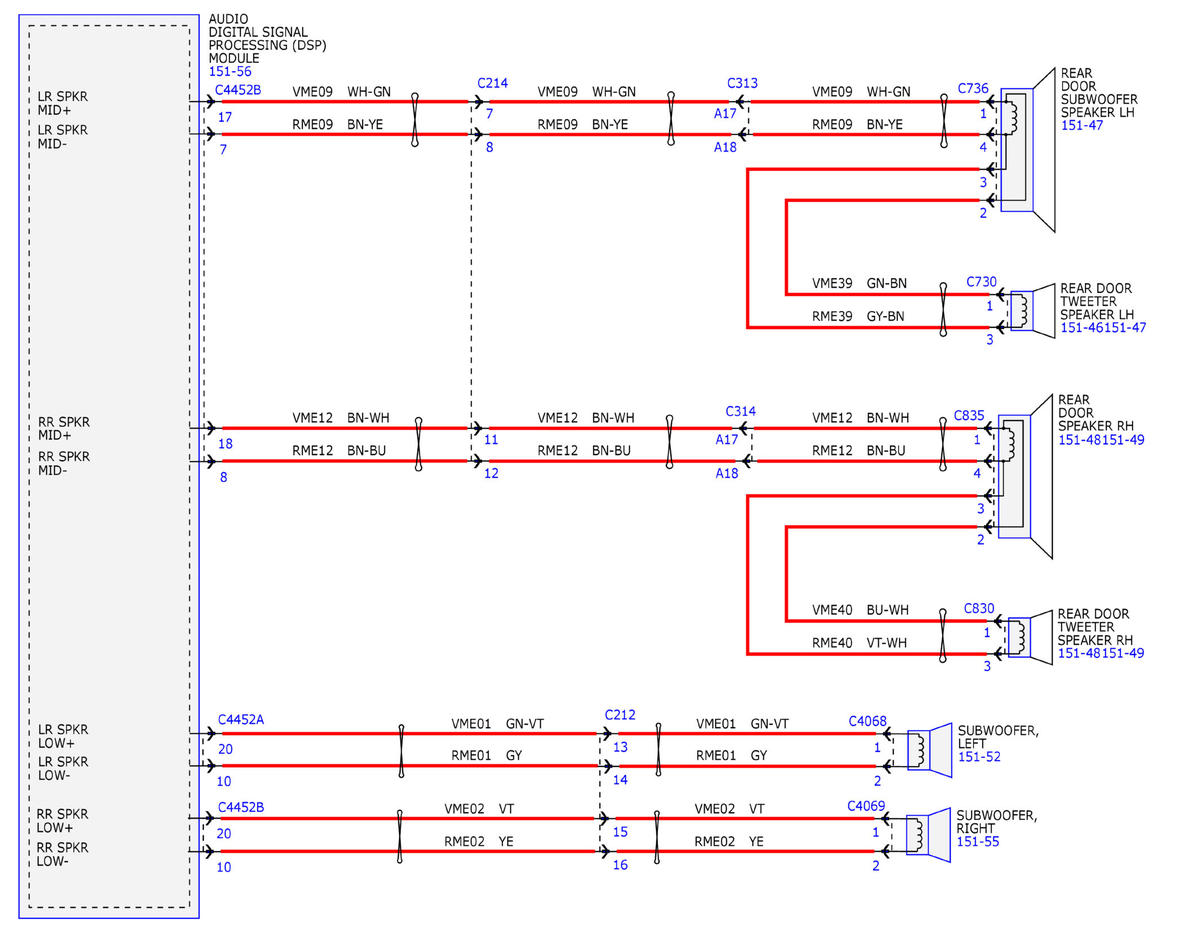

Fig 4: Audio System/Navigation - MKZ Harman Revel (4 Of 17)

Courtesy of FORD MOTOR COMPANY

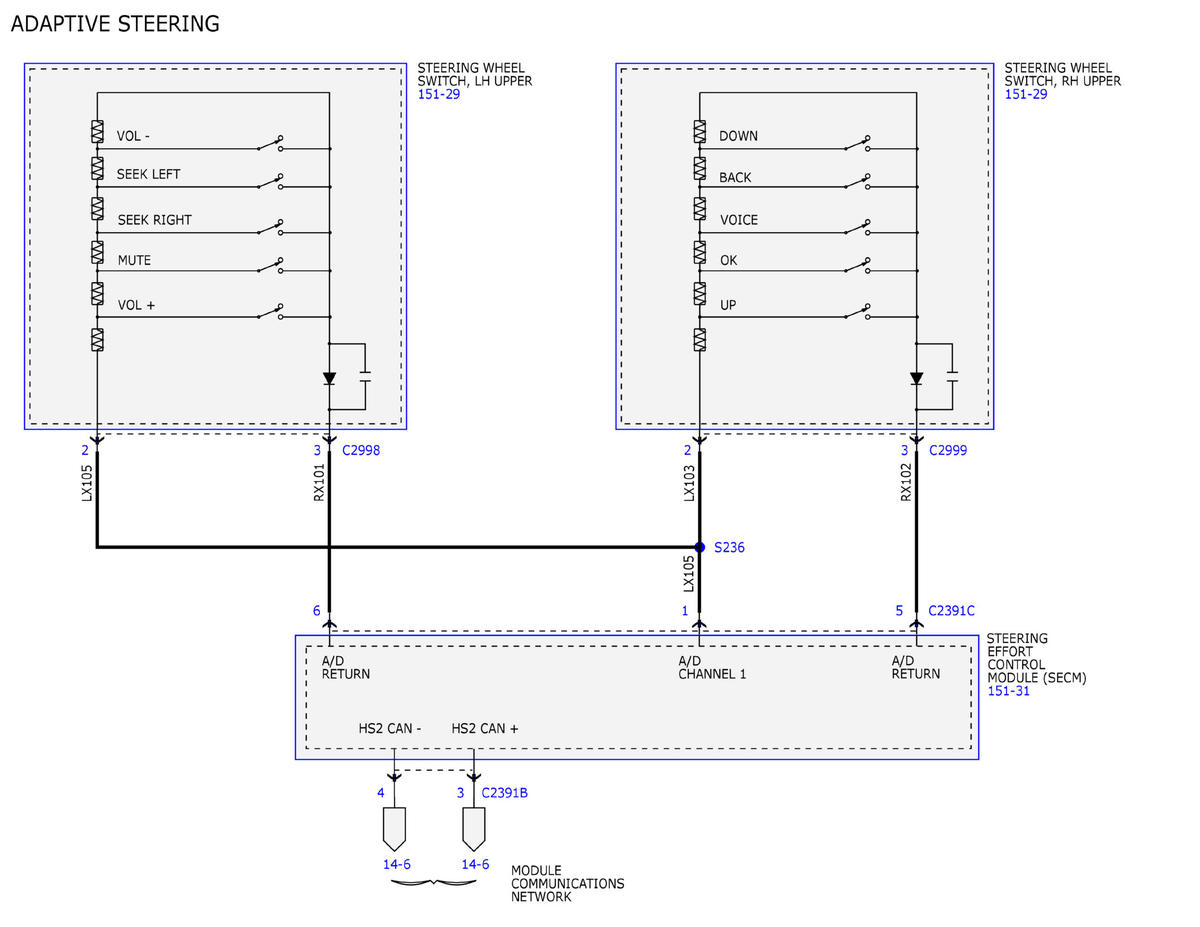

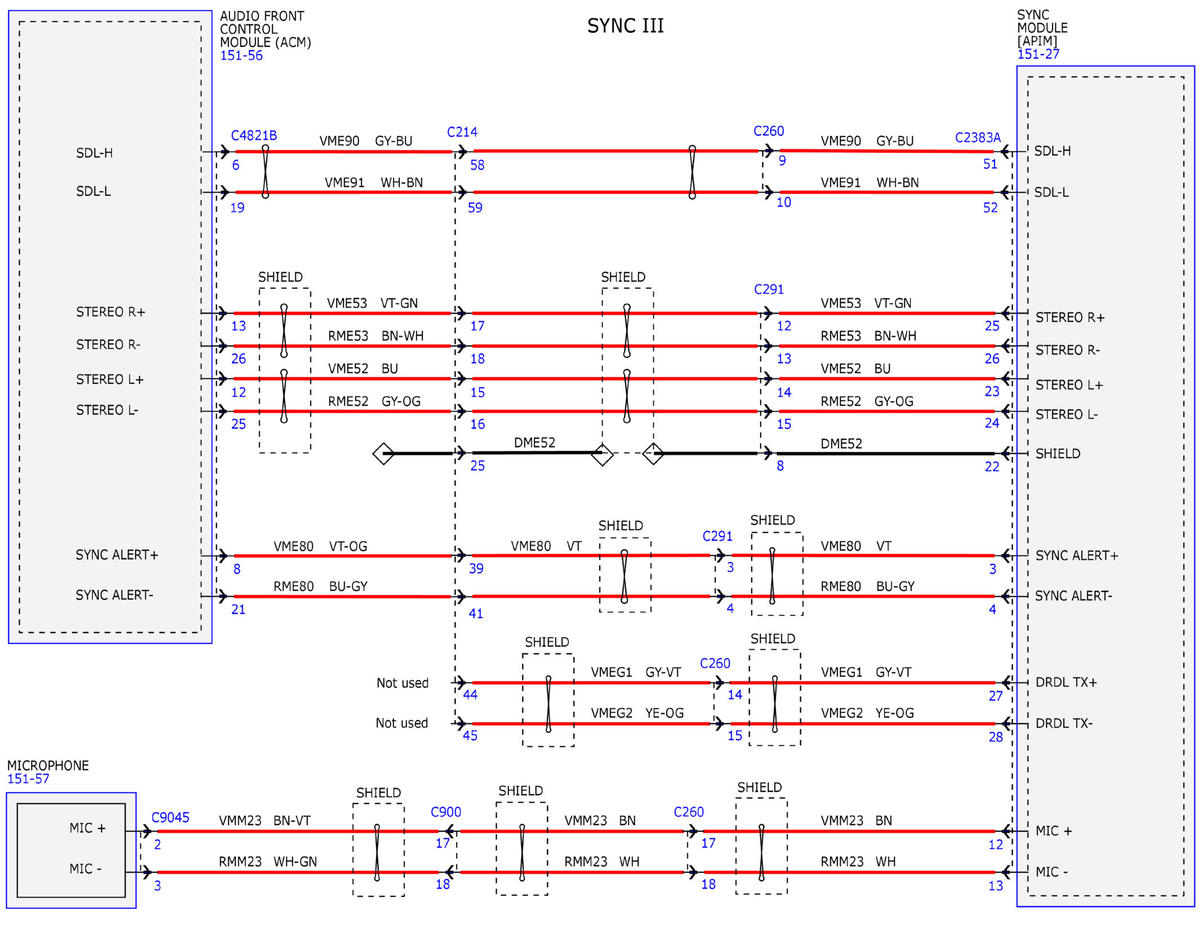

Fig 5: Audio System/Navigation - MKZ Harman Revel (5 Of 17)

Courtesy of FORD MOTOR COMPANY

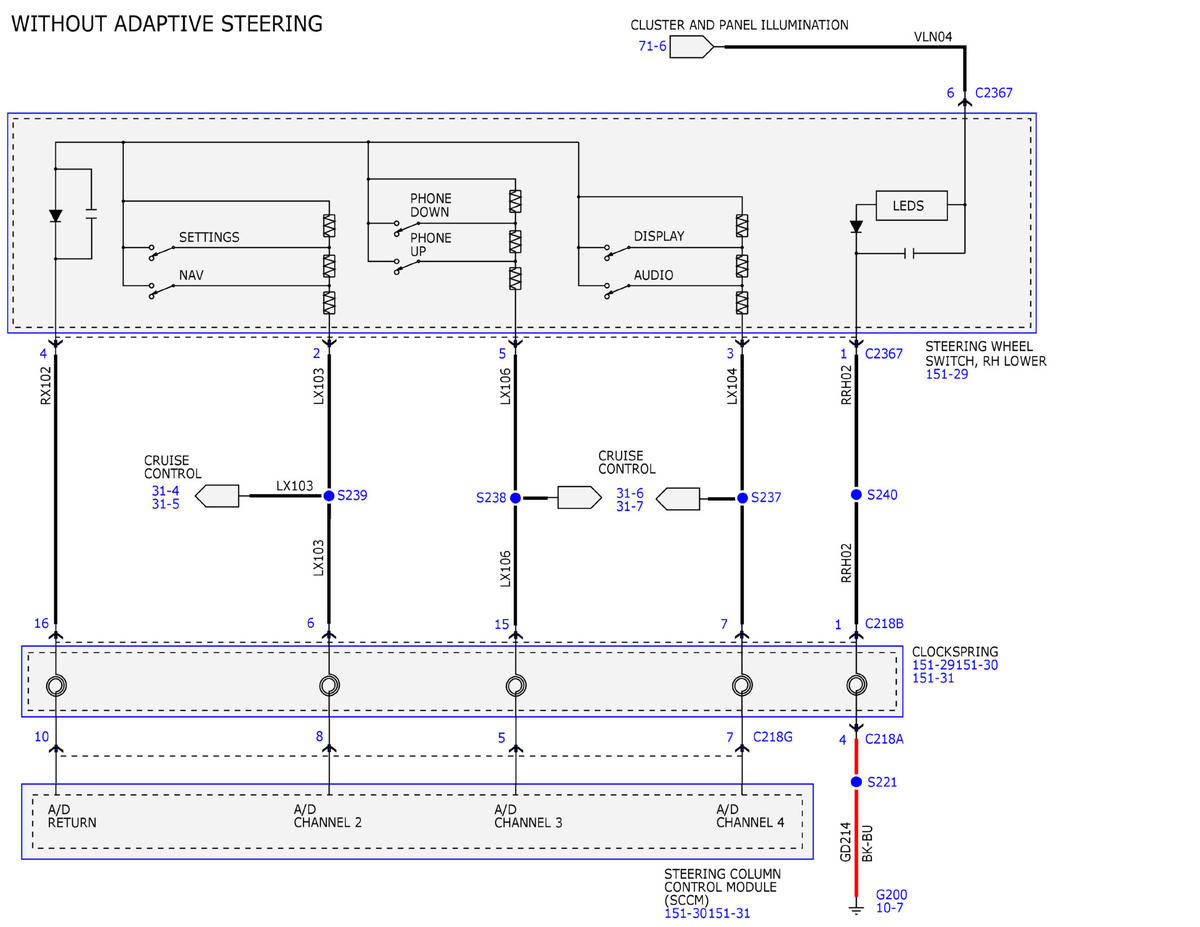

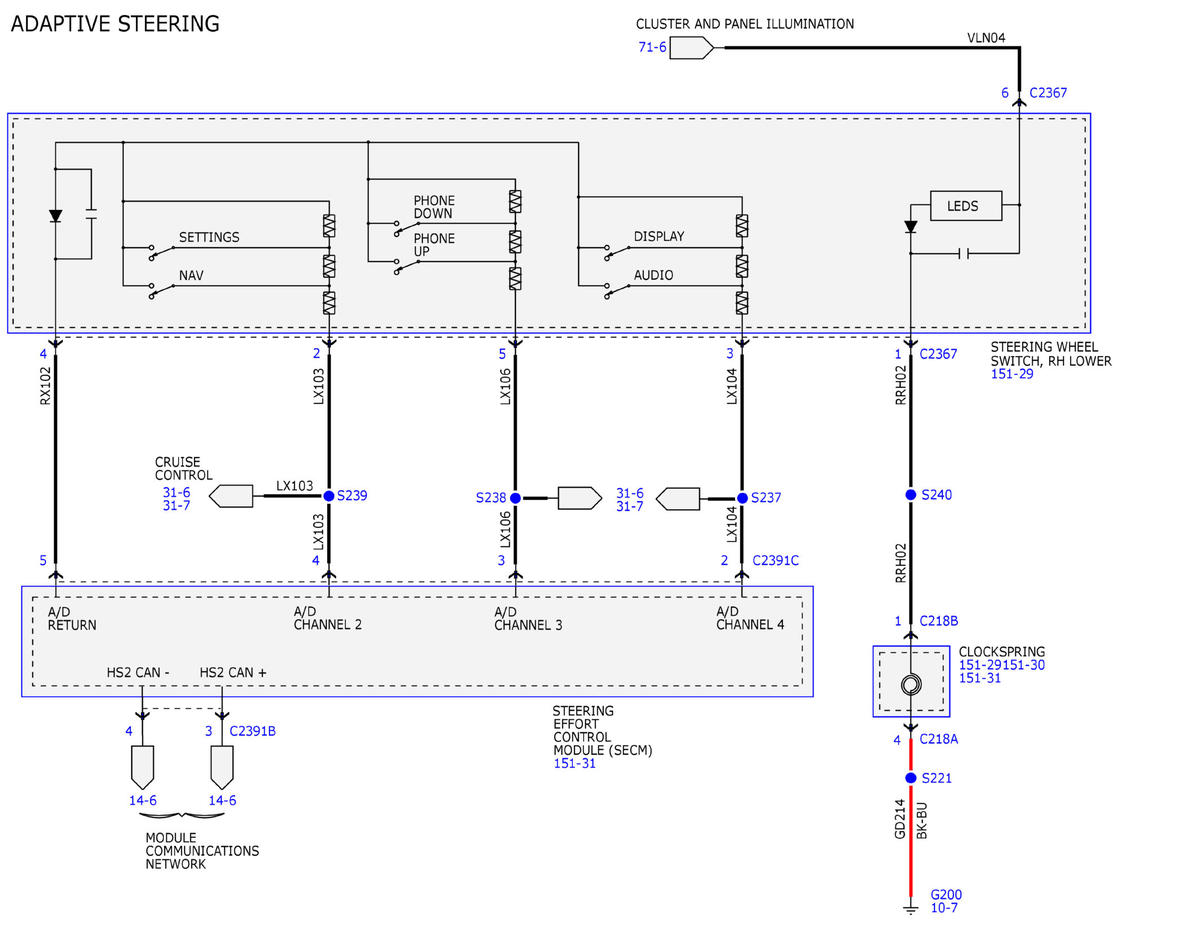

Fig 6: Audio System/Navigation - MKZ Harman Revel (6 Of 17)

Courtesy of FORD MOTOR COMPANY

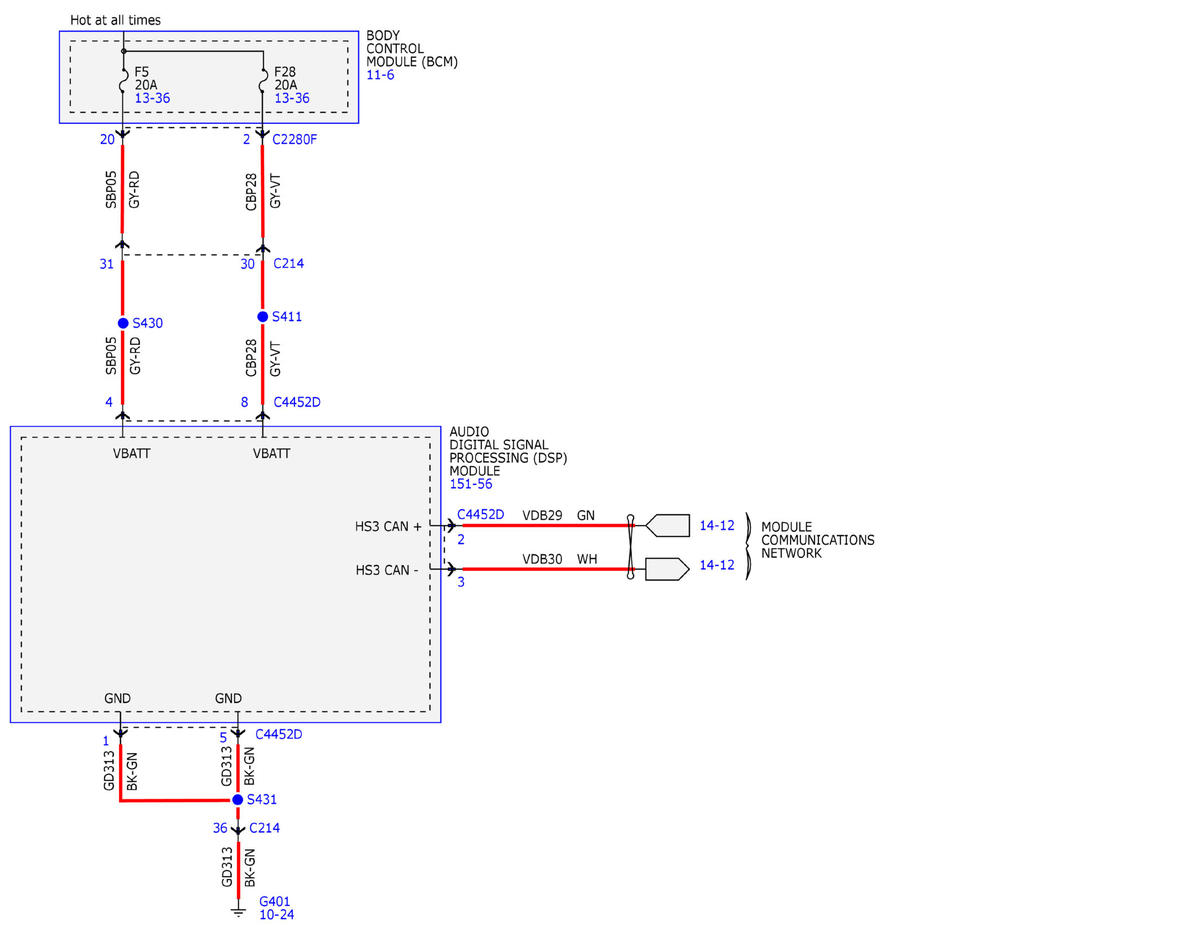

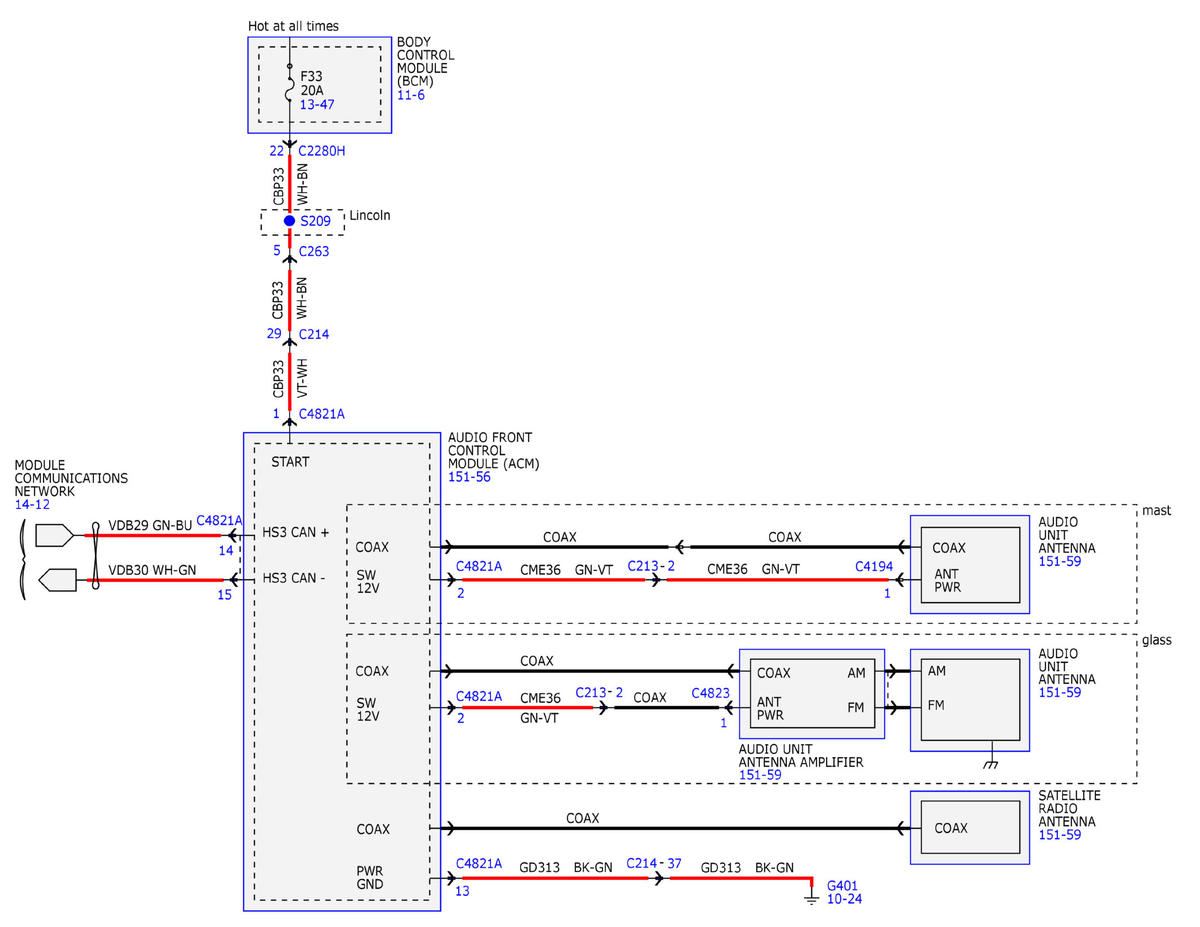

Fig 7: Audio System/Navigation - MKZ Harman Revel (7 Of 17)

Courtesy of FORD MOTOR COMPANY

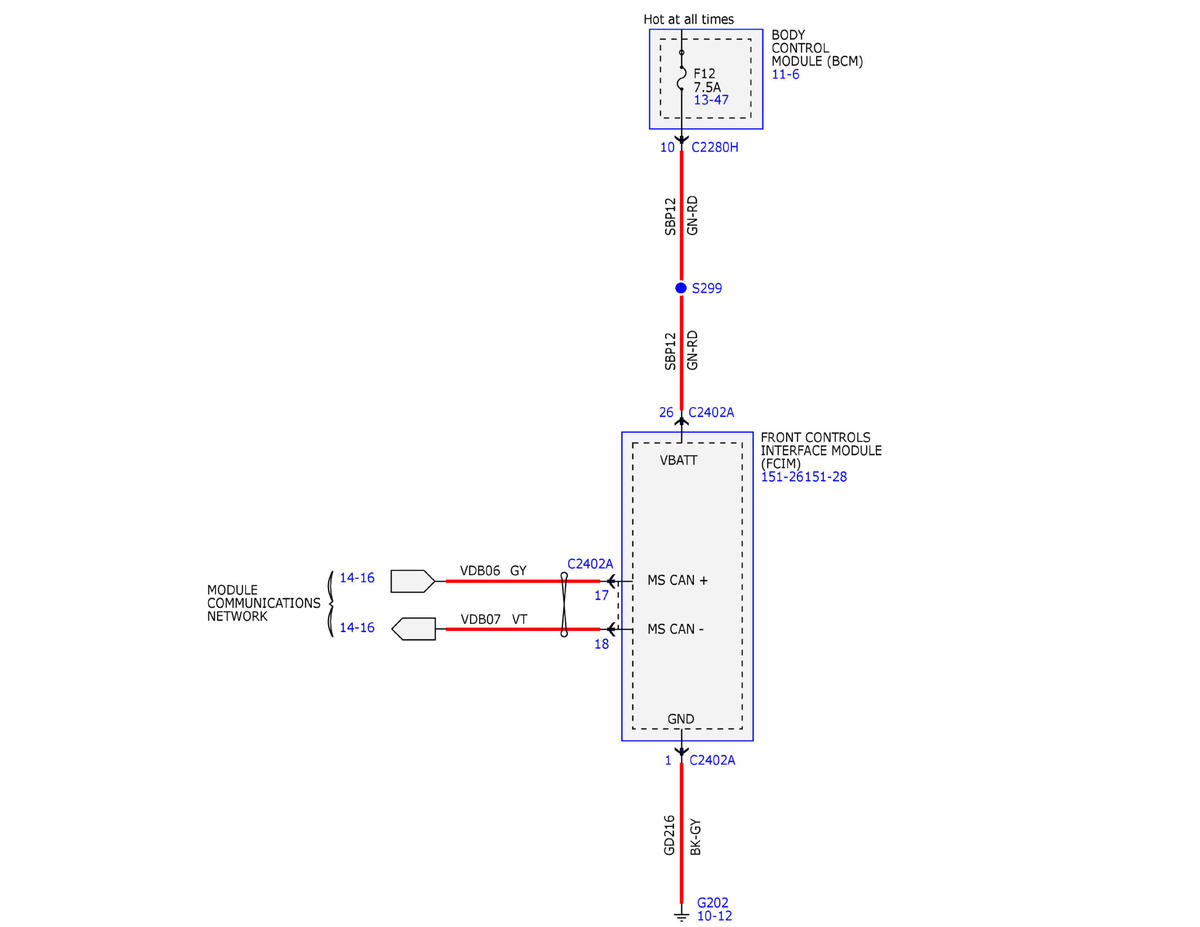

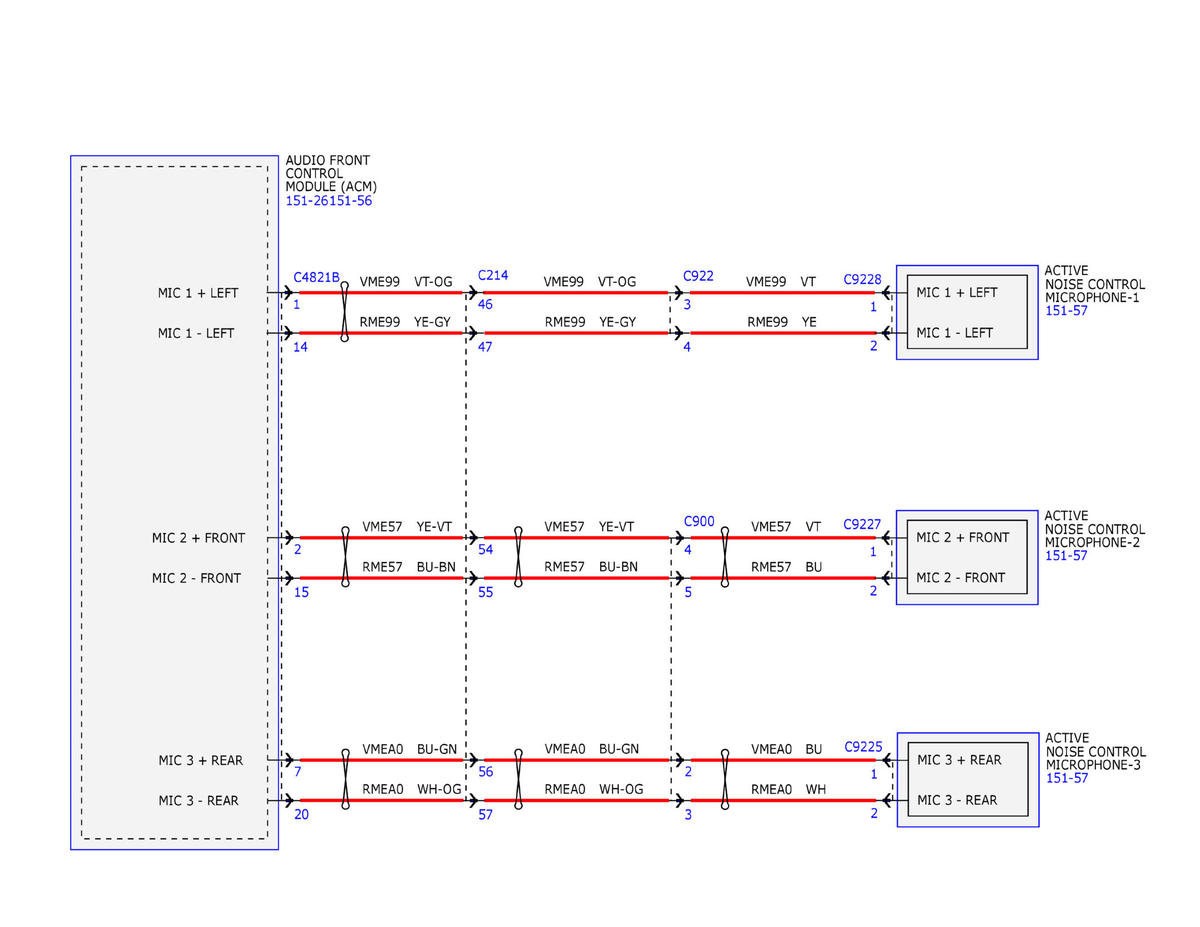

Fig 8: Audio System/Navigation - MKZ Harman Revel (8 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation - MKZ Harman Revel (9 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation - MKZ Harman Revel (10 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 11: Audio System/Navigation - MKZ Harman Revel (11 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 12: Audio System/Navigation - MKZ Harman Revel (12 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 13: Audio System/Navigation - MKZ Harman Revel (13 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 14: Audio System/Navigation - MKZ Harman Revel (14 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 15: Audio System/Navigation - MKZ Harman Revel (15 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 16: Audio System/Navigation - MKZ Harman Revel (16 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 17: Audio System/Navigation - MKZ Harman Revel (17 Of 17)

Courtesy of FORD MOTOR COMPANY
