Audio System/Navigation - MKZ Harman Revel Ultima Audio System

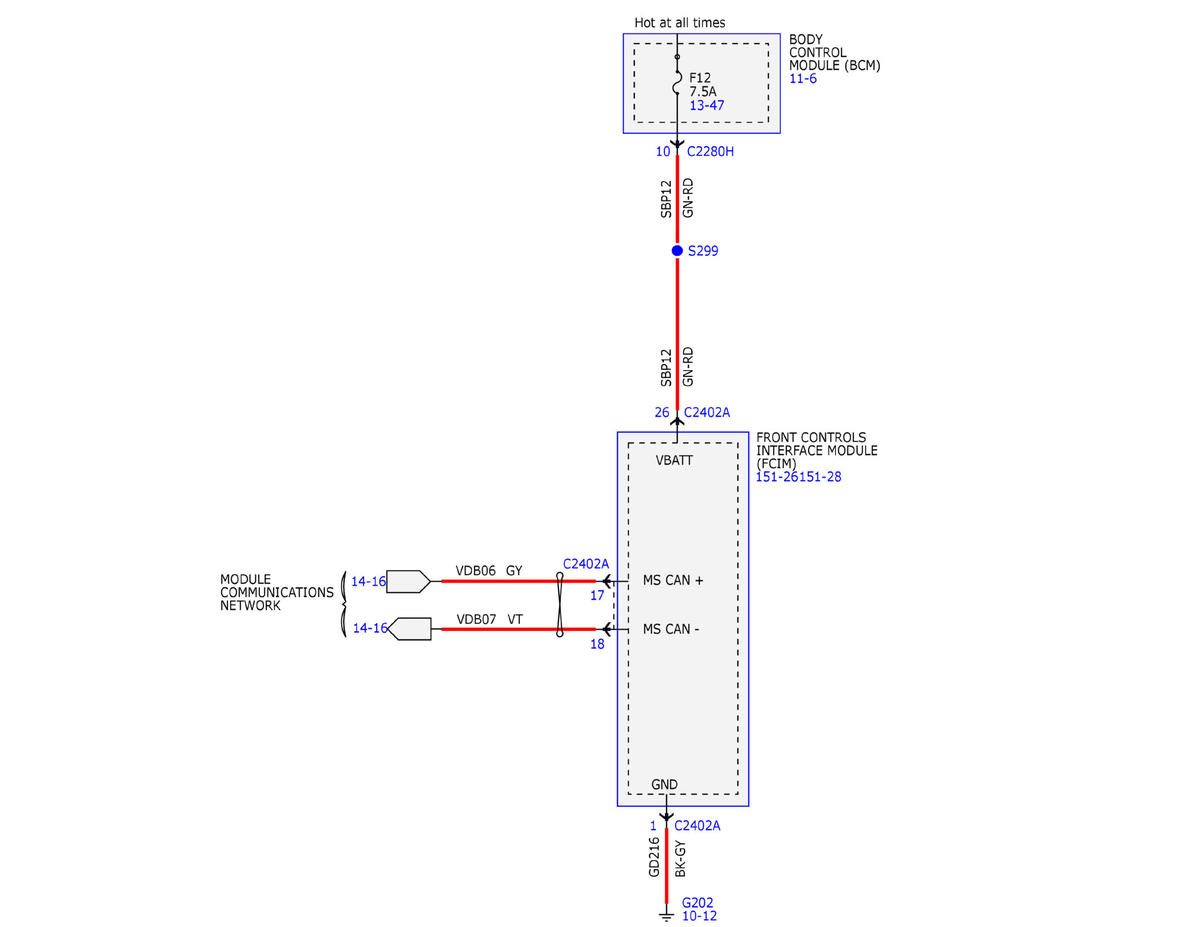

Fig 1: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (1 Of 18)

Courtesy of FORD MOTOR COMPANY

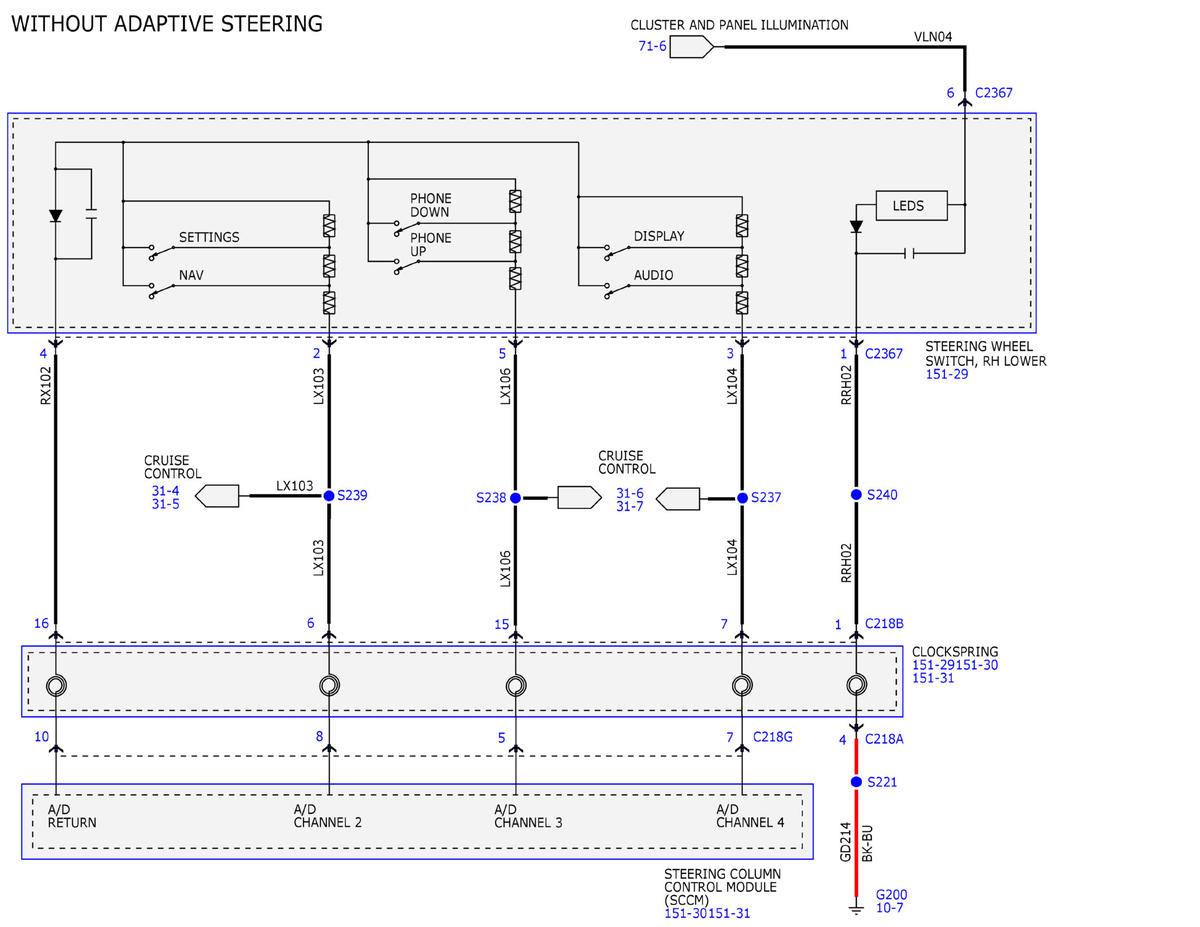

Fig 2: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (2 Of 18)

Courtesy of FORD MOTOR COMPANY

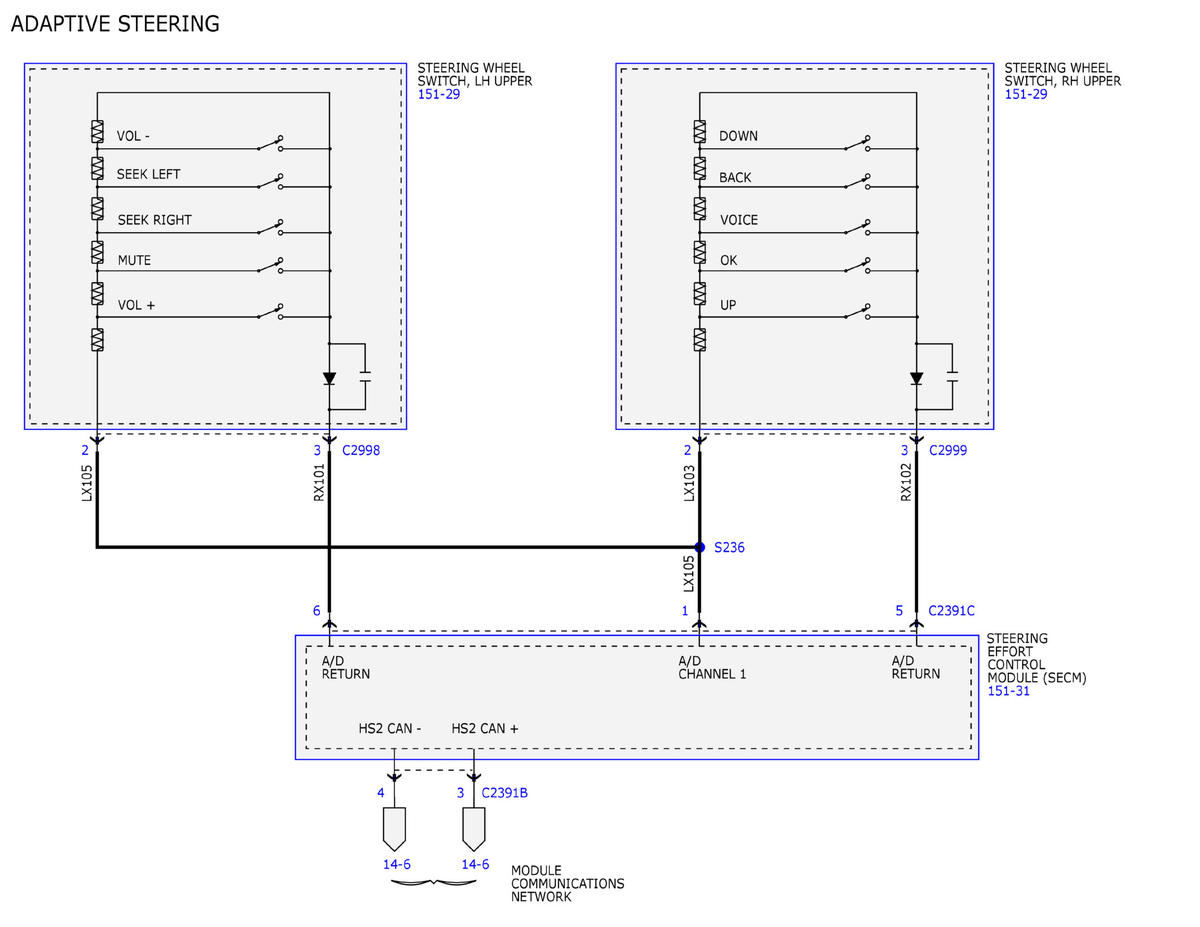

Fig 3: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (3 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 4: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (4 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 5: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (5 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 6: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (6 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 7: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (7 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 8: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (8 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (9 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (10 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 11: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (11 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 12: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (12 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 13: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (13 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 14: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (14 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 15: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (15 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 16: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (16 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 17: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (17 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 18: Audio System/Navigation - Fusion Without Touchscreen Wiring Diagram (18 Of 18)

Courtesy of FORD MOTOR COMPANY
