Audio System/Navigation - Fusion With Sony

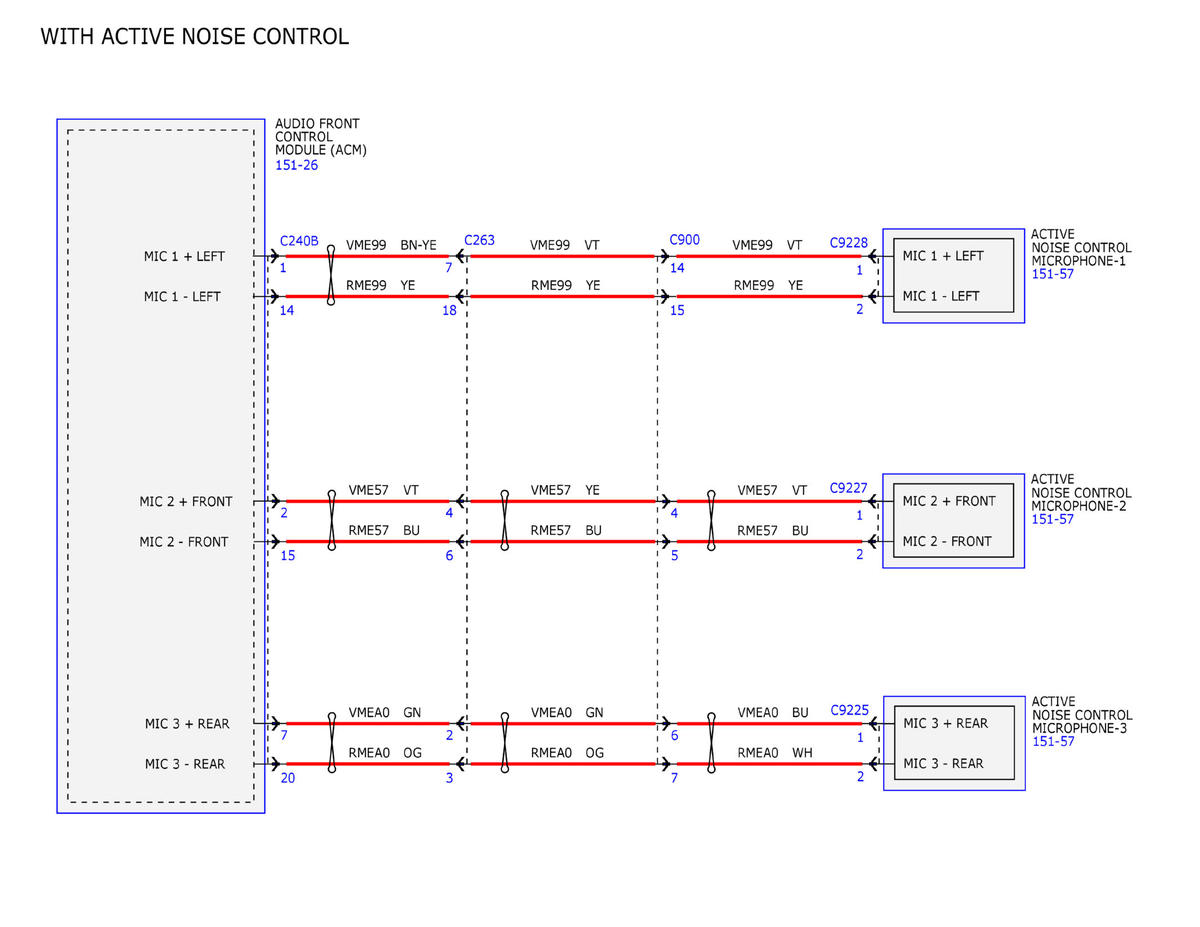

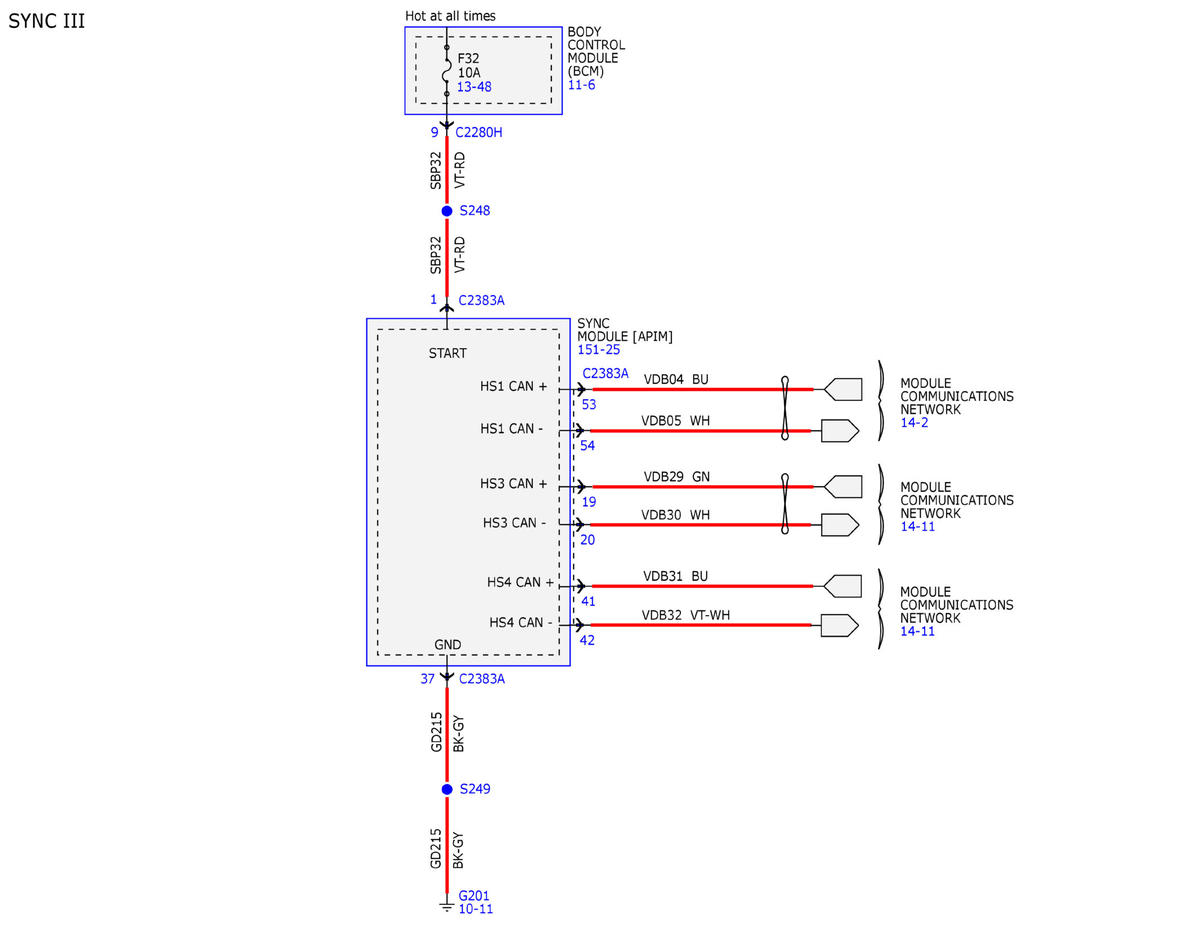

Fig 1: Audio System/Navigation - Fusion With Sony Wiring Diagram (1 Of 14)

Courtesy of FORD MOTOR COMPANY

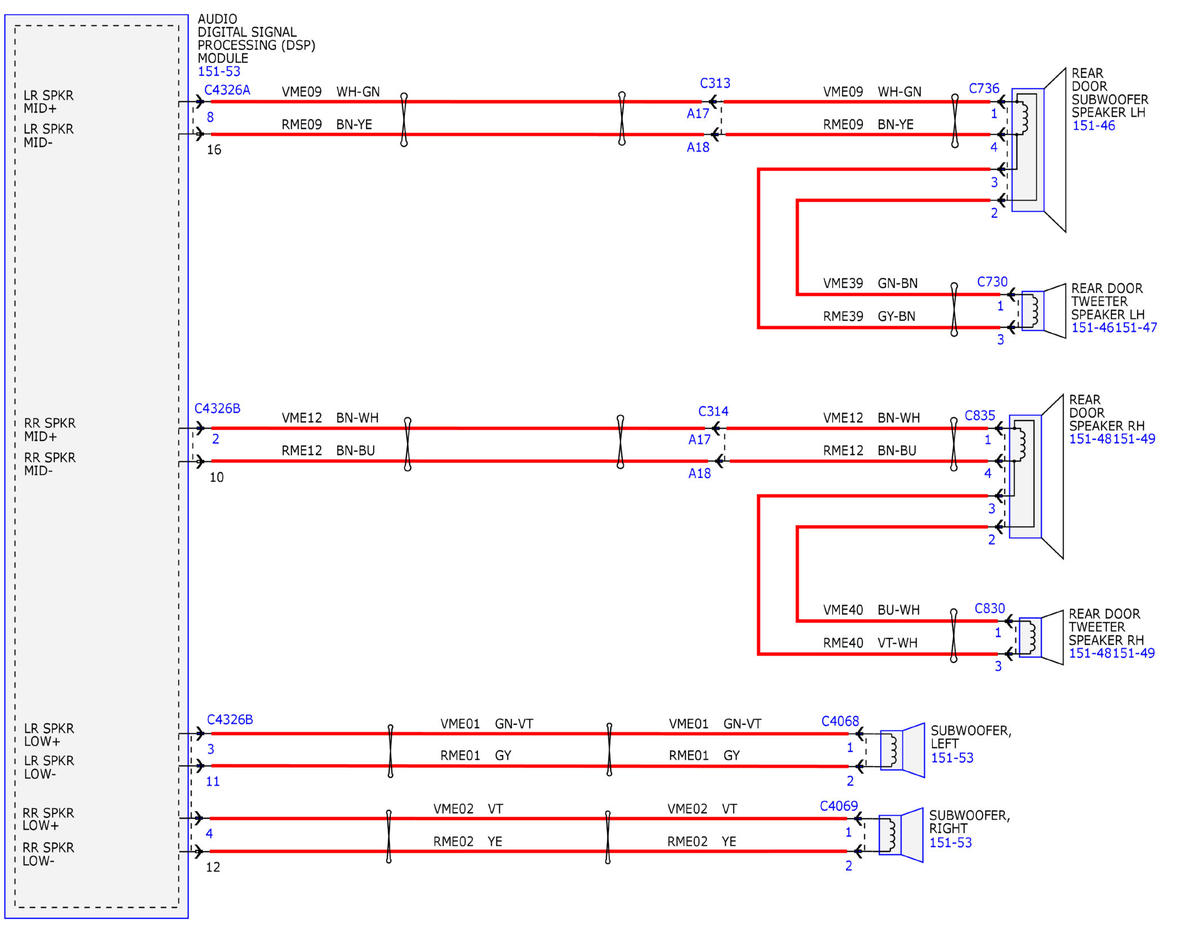

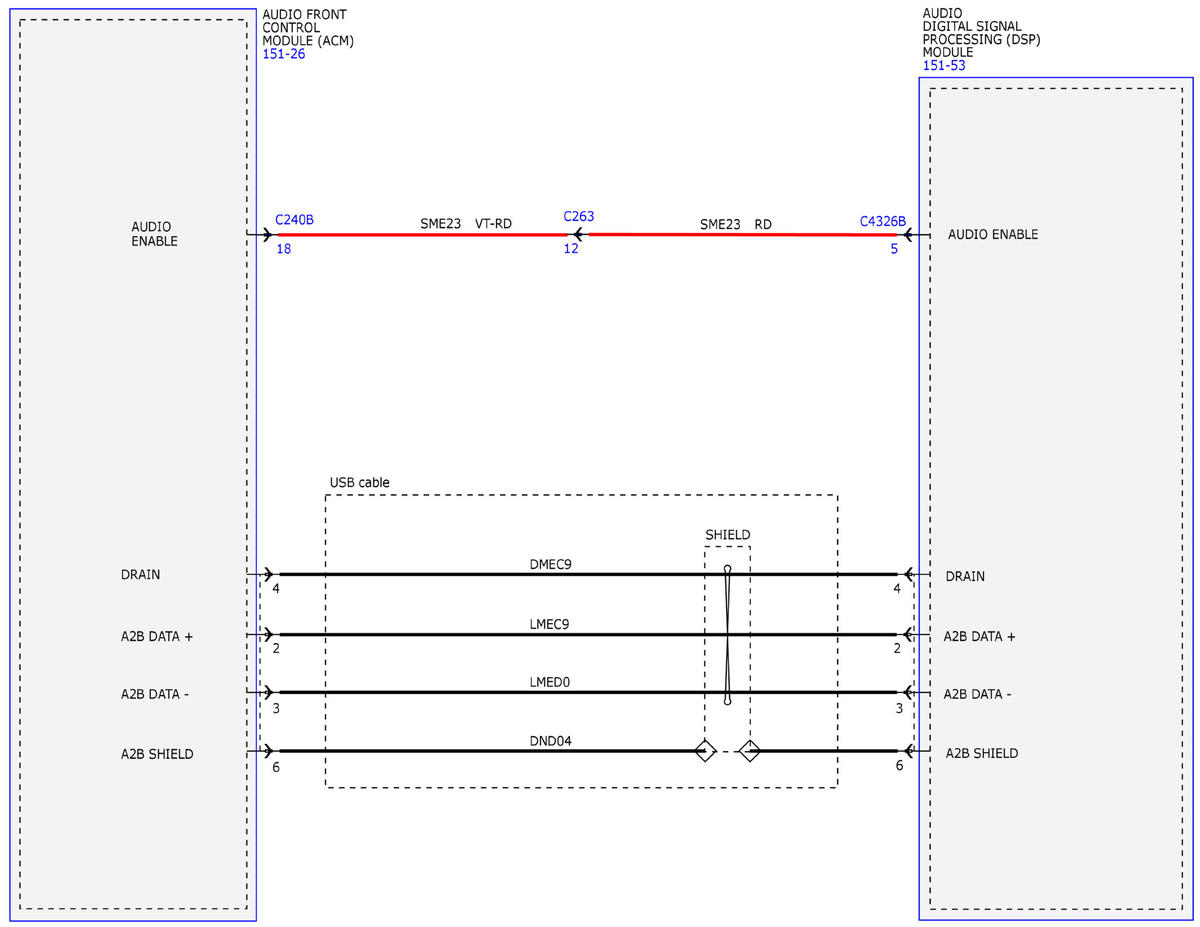

Fig 2: Audio System/Navigation - Fusion With Sony Wiring Diagram (2 Of 14)

Courtesy of FORD MOTOR COMPANY

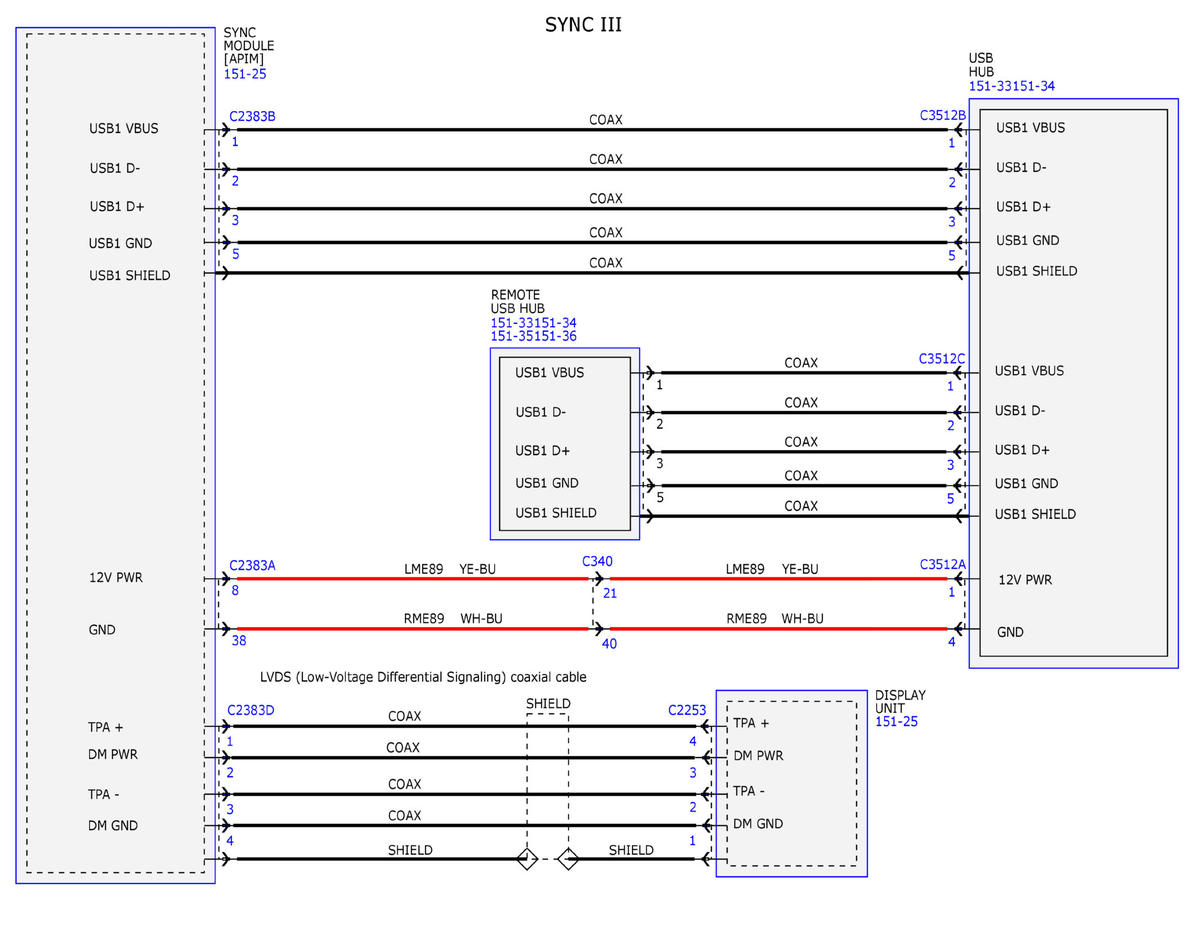

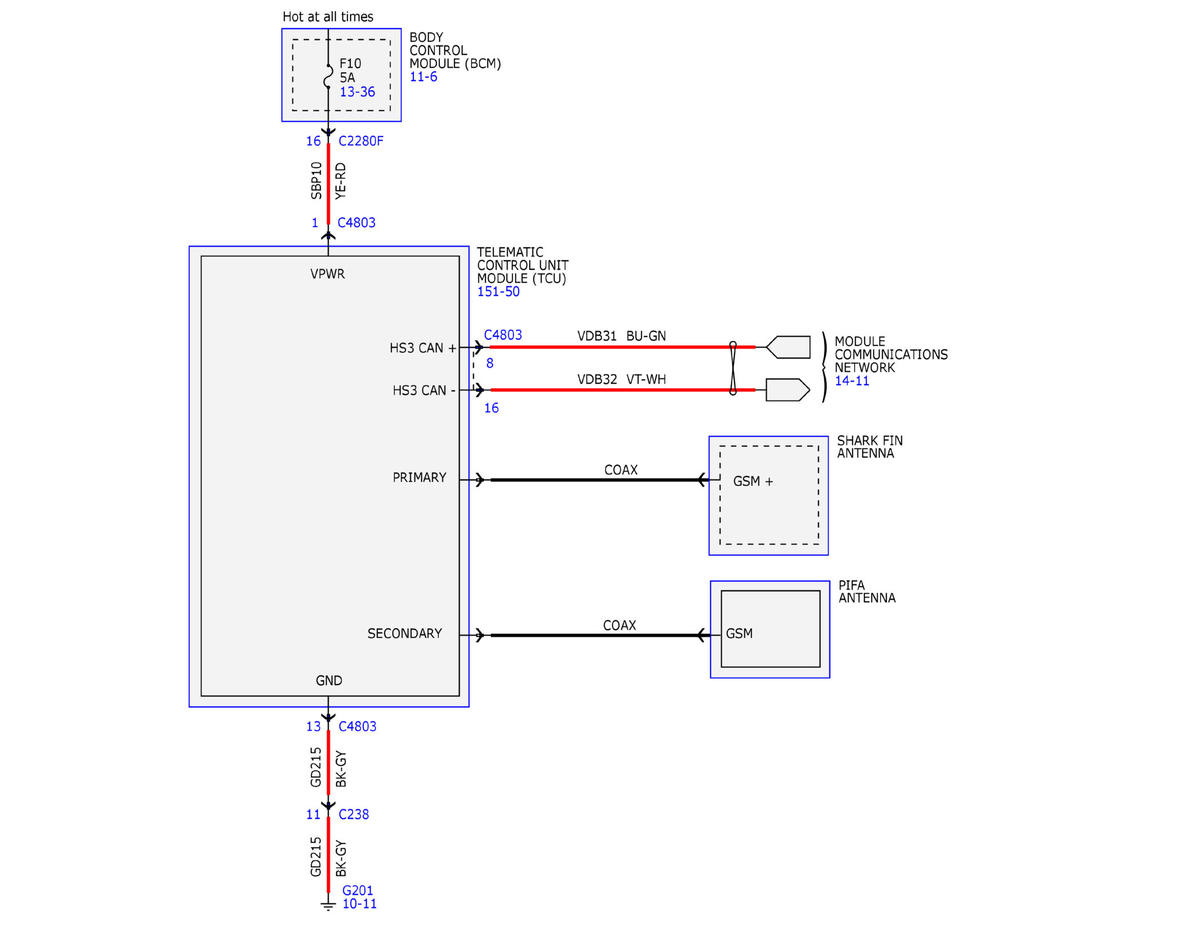

Fig 3: Audio System/Navigation - Fusion With Sony Wiring Diagram (3 Of 14)

Courtesy of FORD MOTOR COMPANY

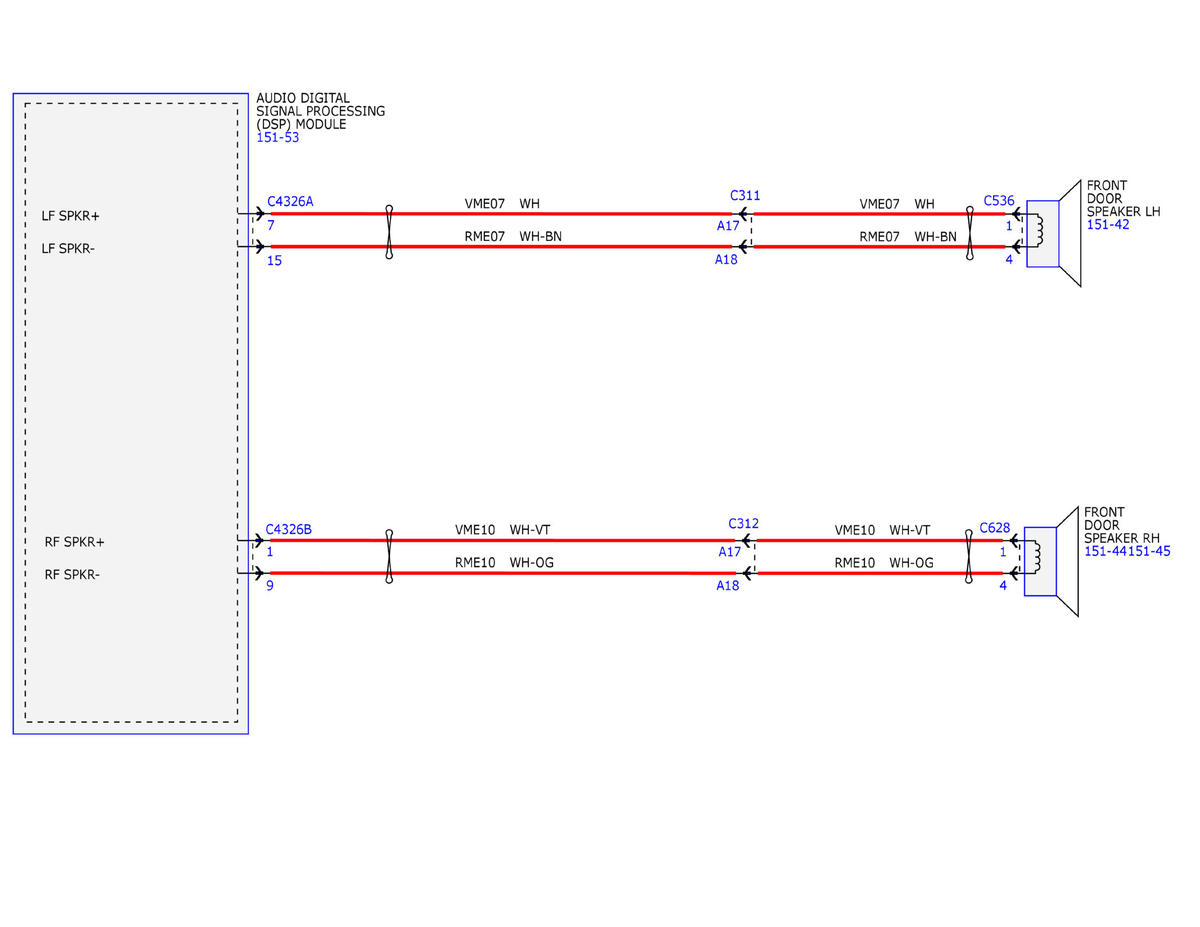

Fig 4: Audio System/Navigation - Fusion With Sony Wiring Diagram (4 Of 14)

Courtesy of FORD MOTOR COMPANY

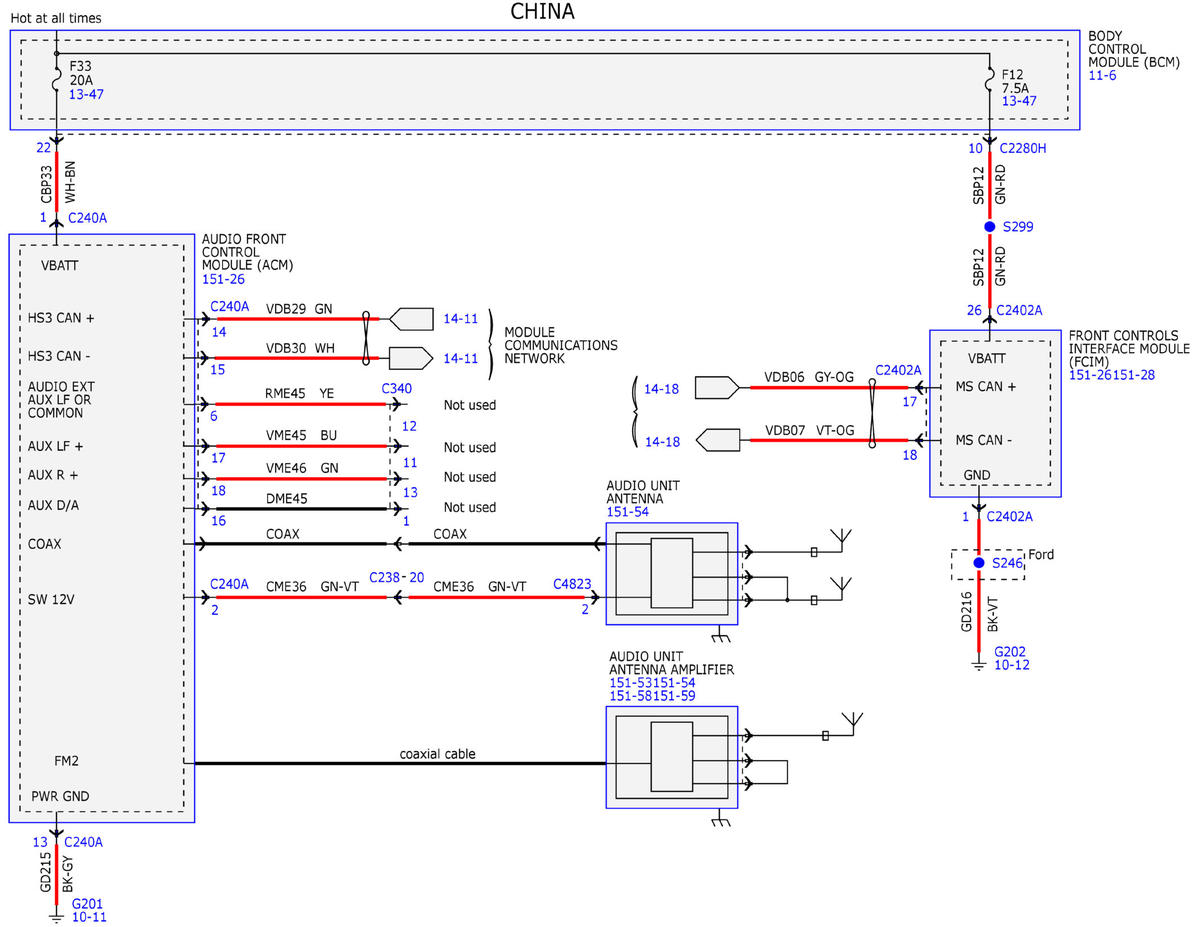

Fig 5: Audio System/Navigation - Fusion With Sony Wiring Diagram (5 Of 14)

Courtesy of FORD MOTOR COMPANY

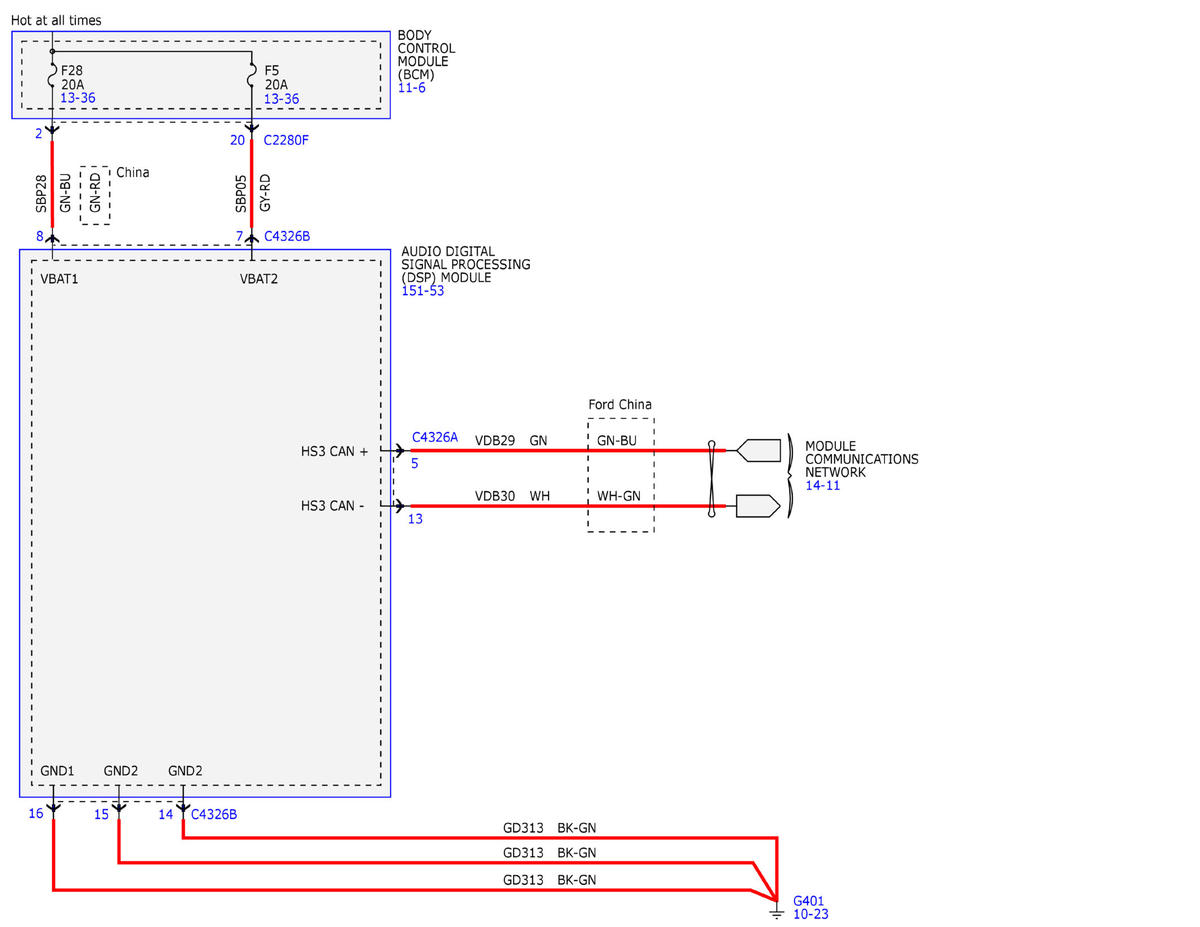

Fig 6: Audio System/Navigation - Fusion With Sony Wiring Diagram (6 Of 14)

Courtesy of FORD MOTOR COMPANY

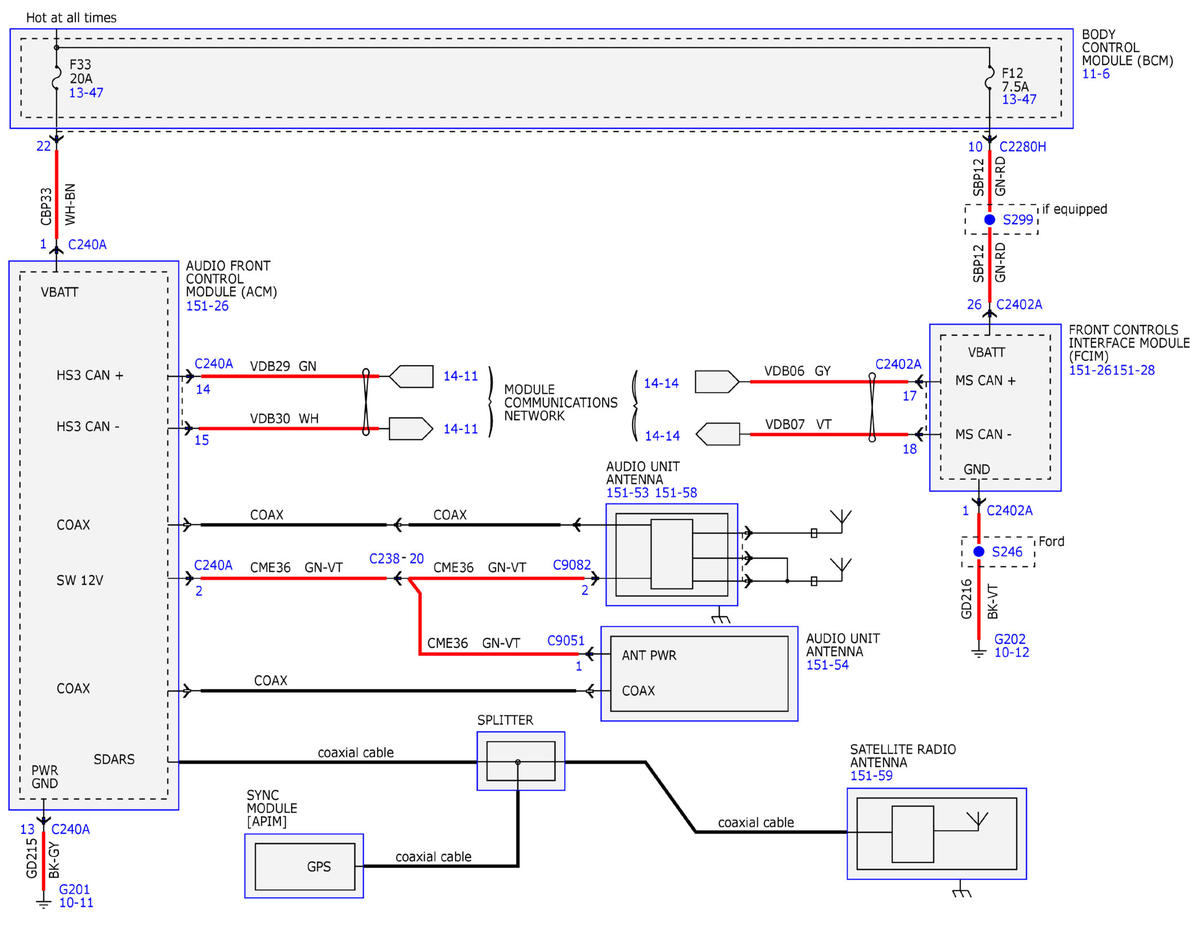

Fig 7: Audio System/Navigation - Fusion With Sony Wiring Diagram (7 Of 14)

Courtesy of FORD MOTOR COMPANY

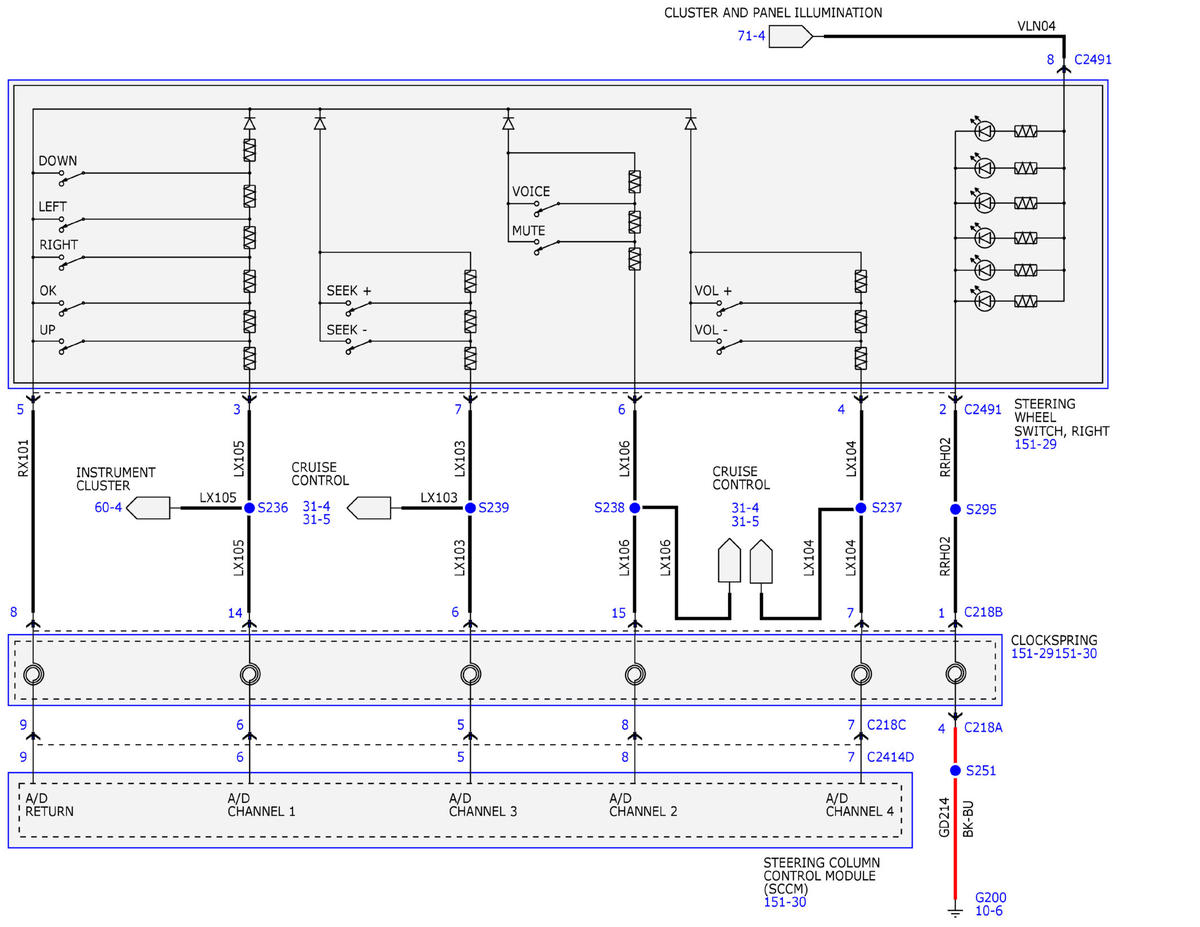

Fig 8: Audio System/Navigation - Fusion With Sony Wiring Diagram (8 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation - Fusion With Sony Wiring Diagram (9 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation - Fusion With Sony Wiring Diagram (10 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 11: Audio System/Navigation - Fusion With Sony Wiring Diagram (11 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 12: Audio System/Navigation - Fusion With Sony Wiring Diagram (12 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 13: Audio System/Navigation - Fusion With Sony Wiring Diagram (13 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 14: Audio System/Navigation - Fusion With Sony Wiring Diagram (14 Of 14)

Courtesy of FORD MOTOR COMPANY
