OEM Wiring Diagram Symbols (Hybrid): Symbols

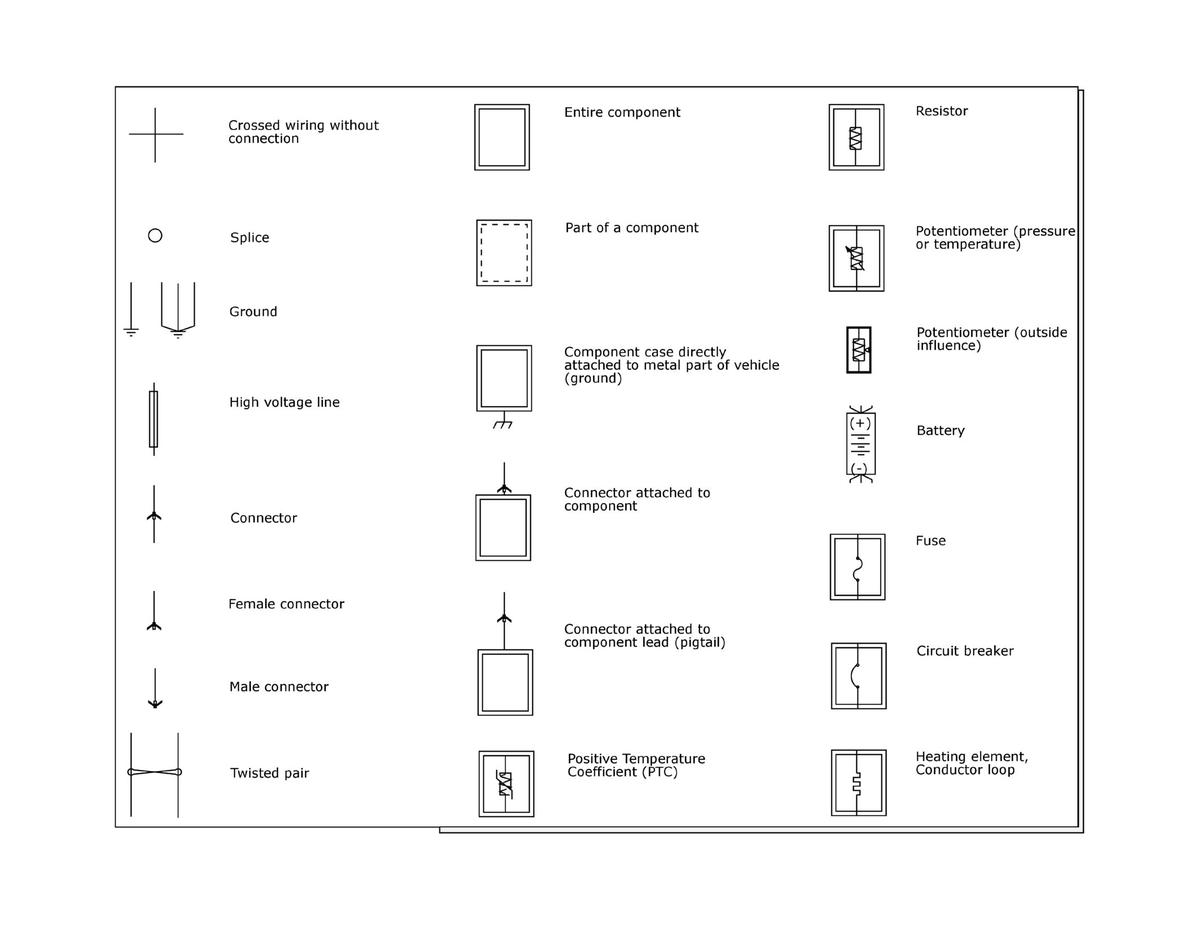

GFDWR99900

Courtesy of FORD MOTOR COMPANY

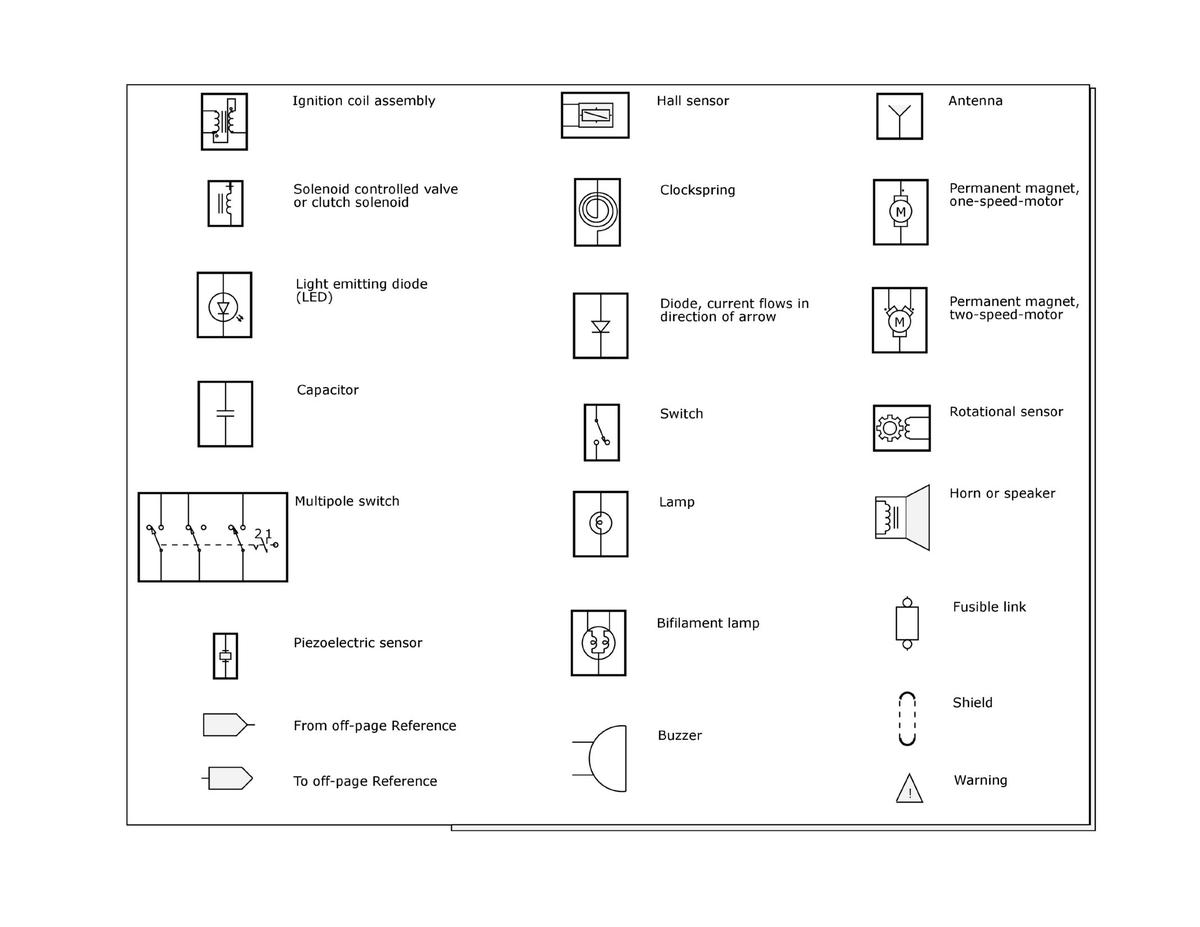

GFDWR99898

Courtesy of FORD MOTOR COMPANY

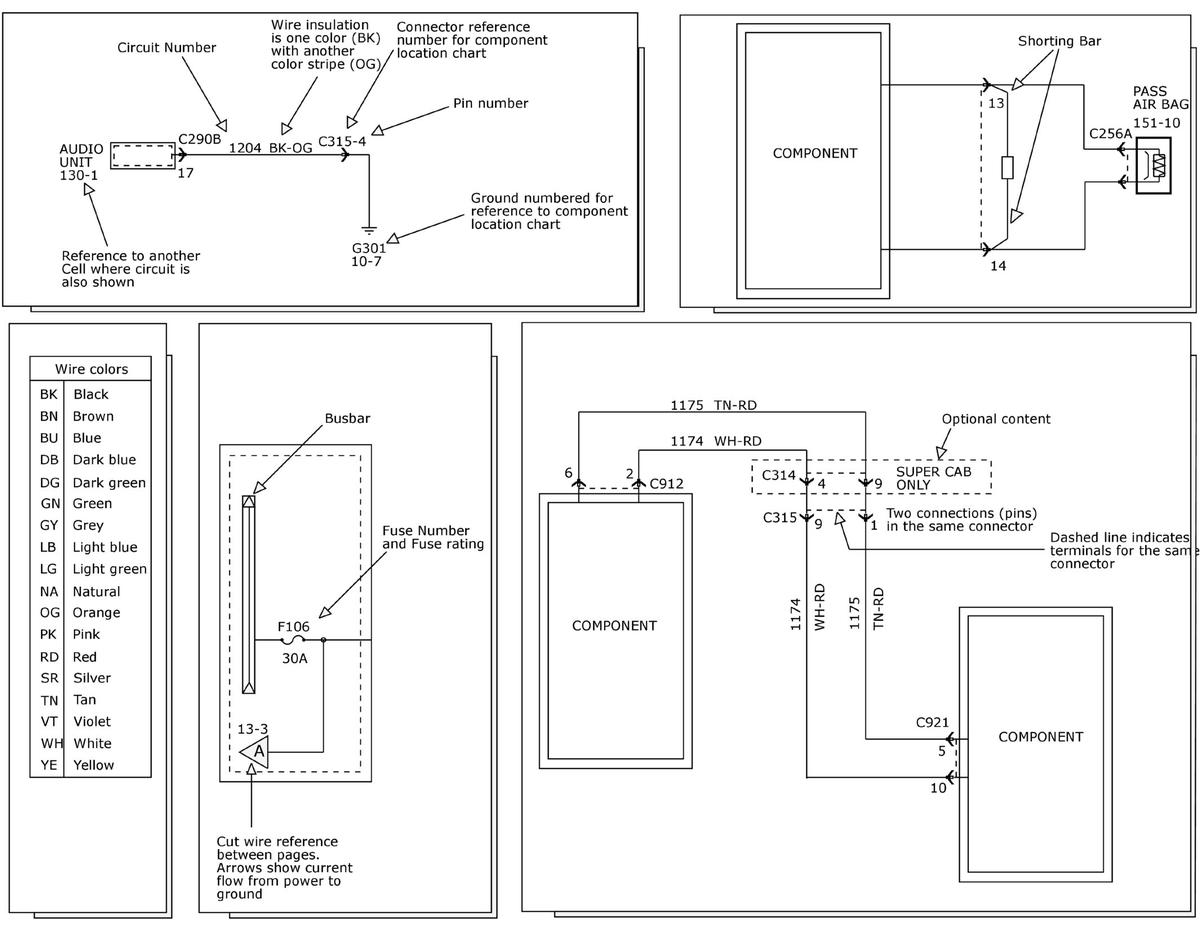

GFDWR99899

Courtesy of FORD MOTOR COMPANY

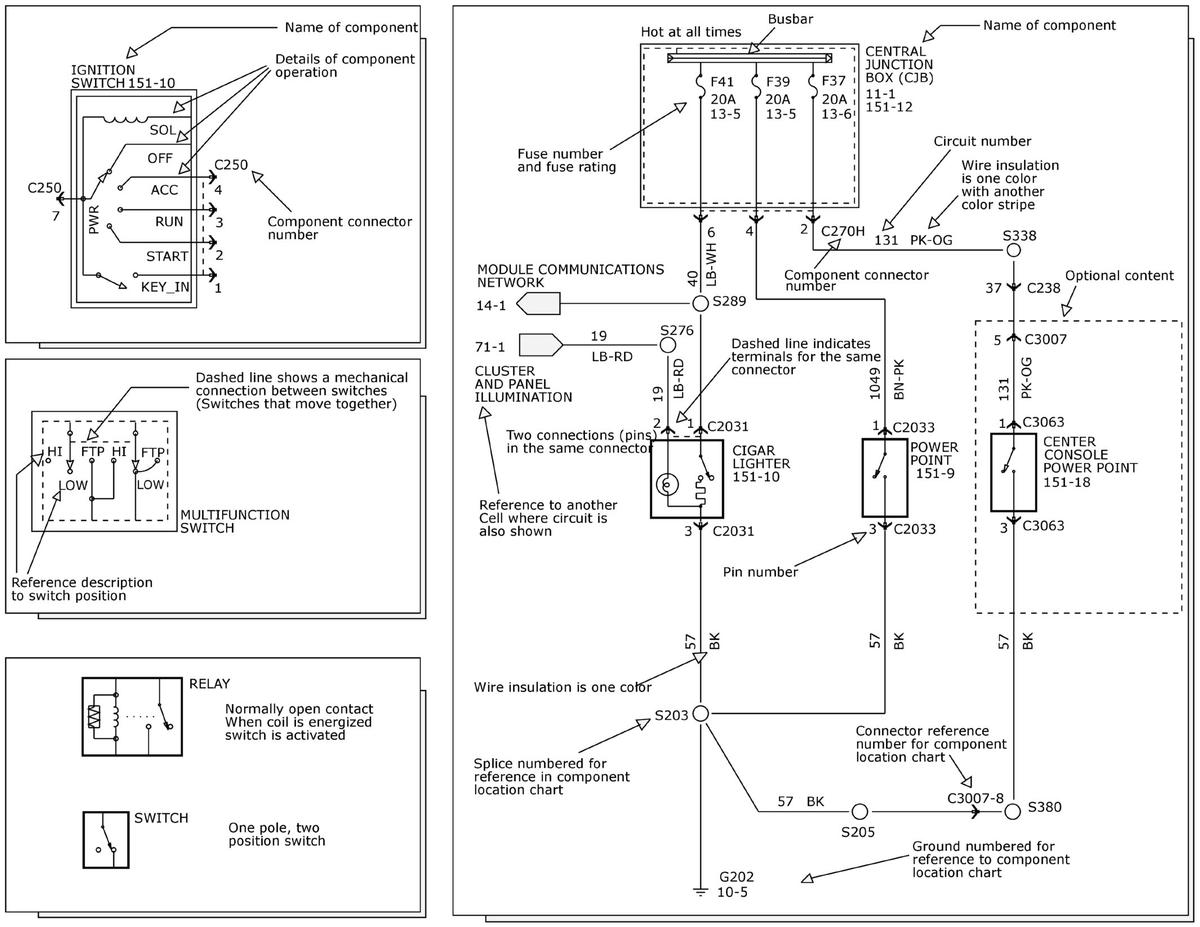

GFDWR99901

Courtesy of FORD MOTOR COMPANY

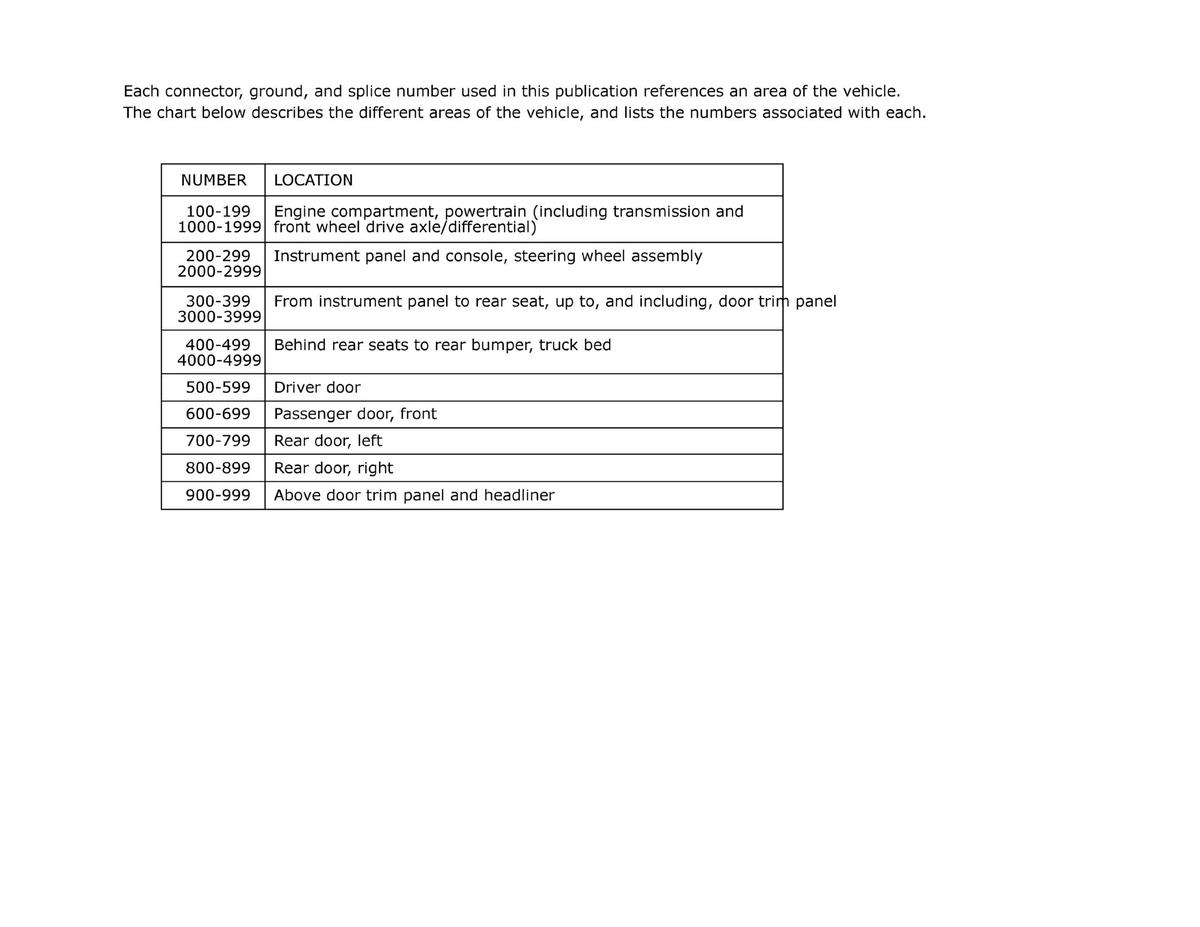

GFDWR99902

Courtesy of FORD MOTOR COMPANY
