OEM Wiring Diagram Symbols (Except Hybrid): Symbols

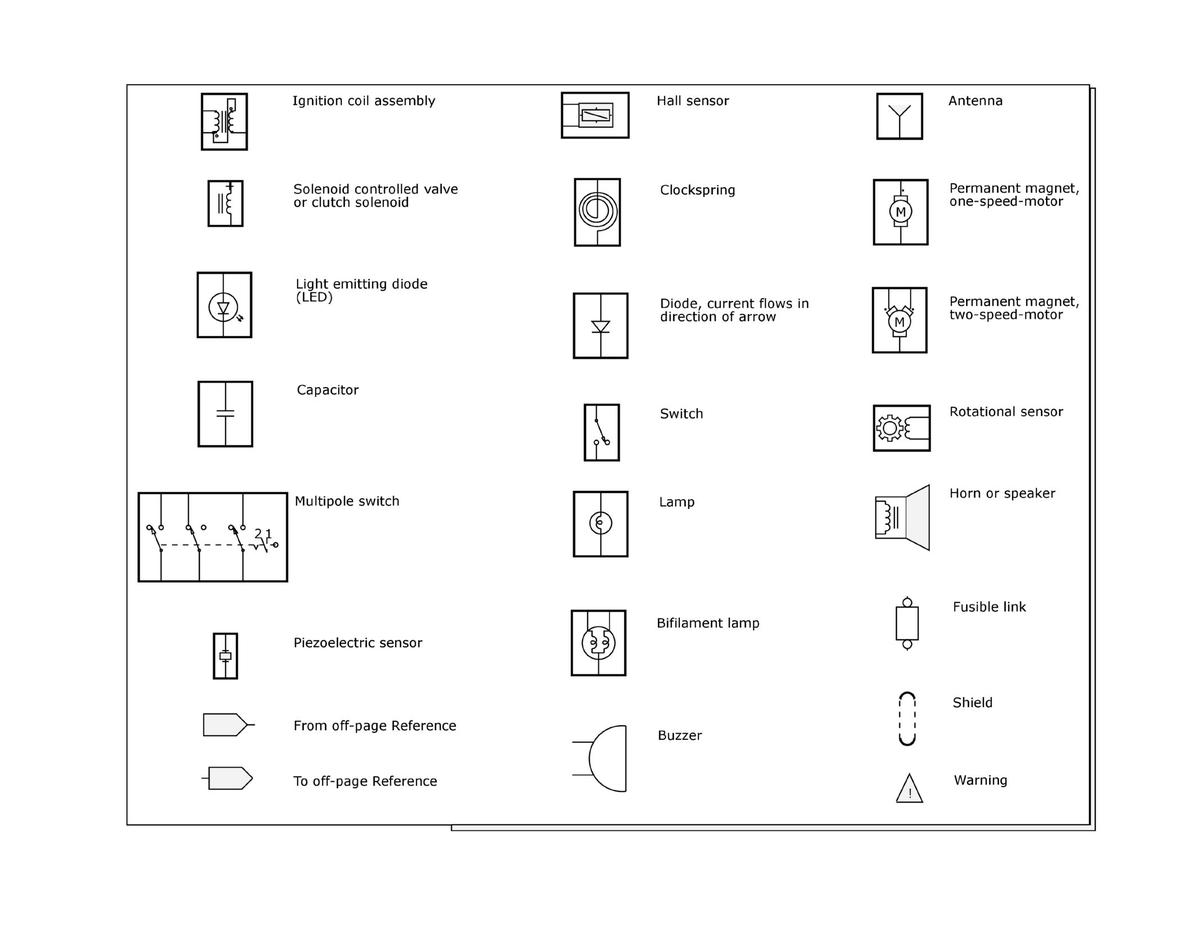

GFDWR89827Courtesy of FORD MOTOR COMPANY

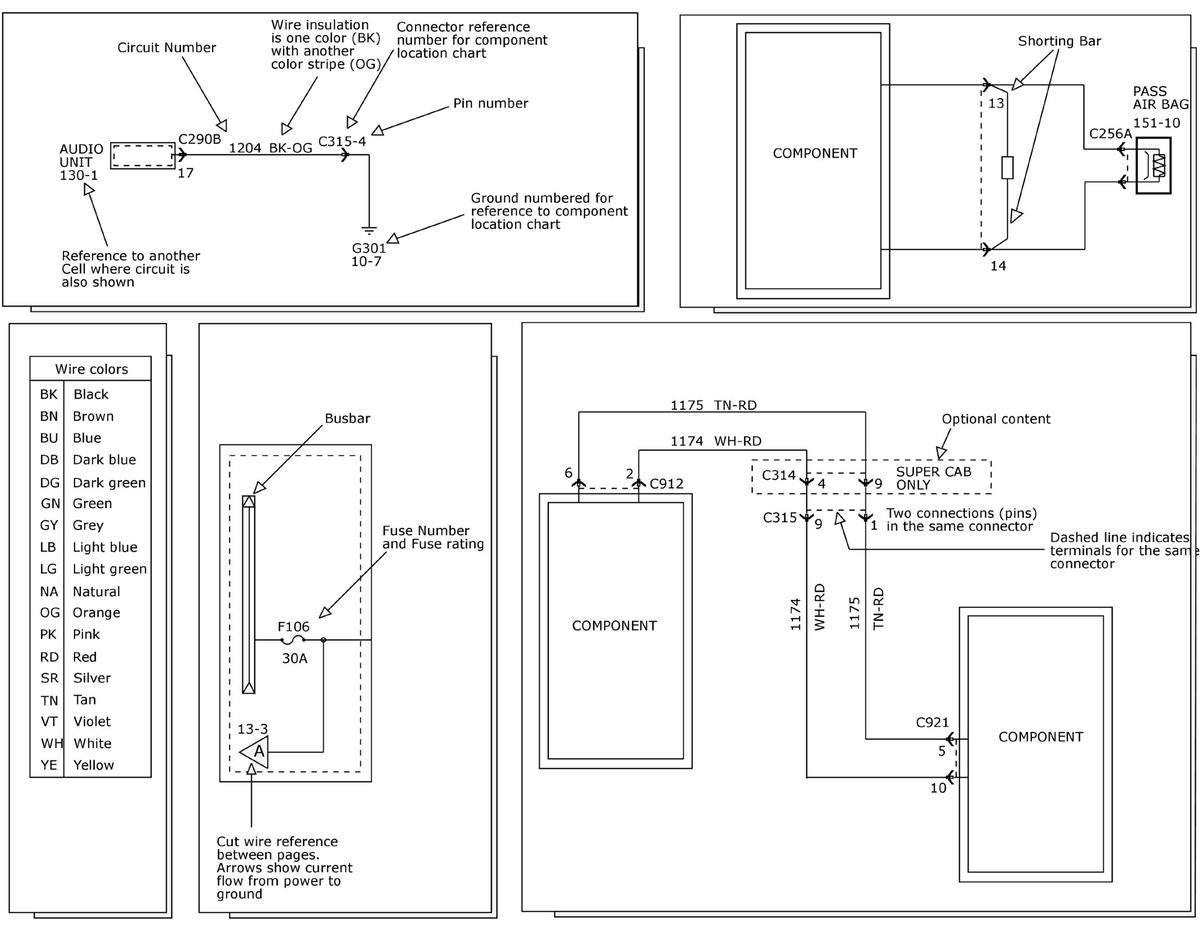

GFDWR89828Courtesy of FORD MOTOR COMPANY

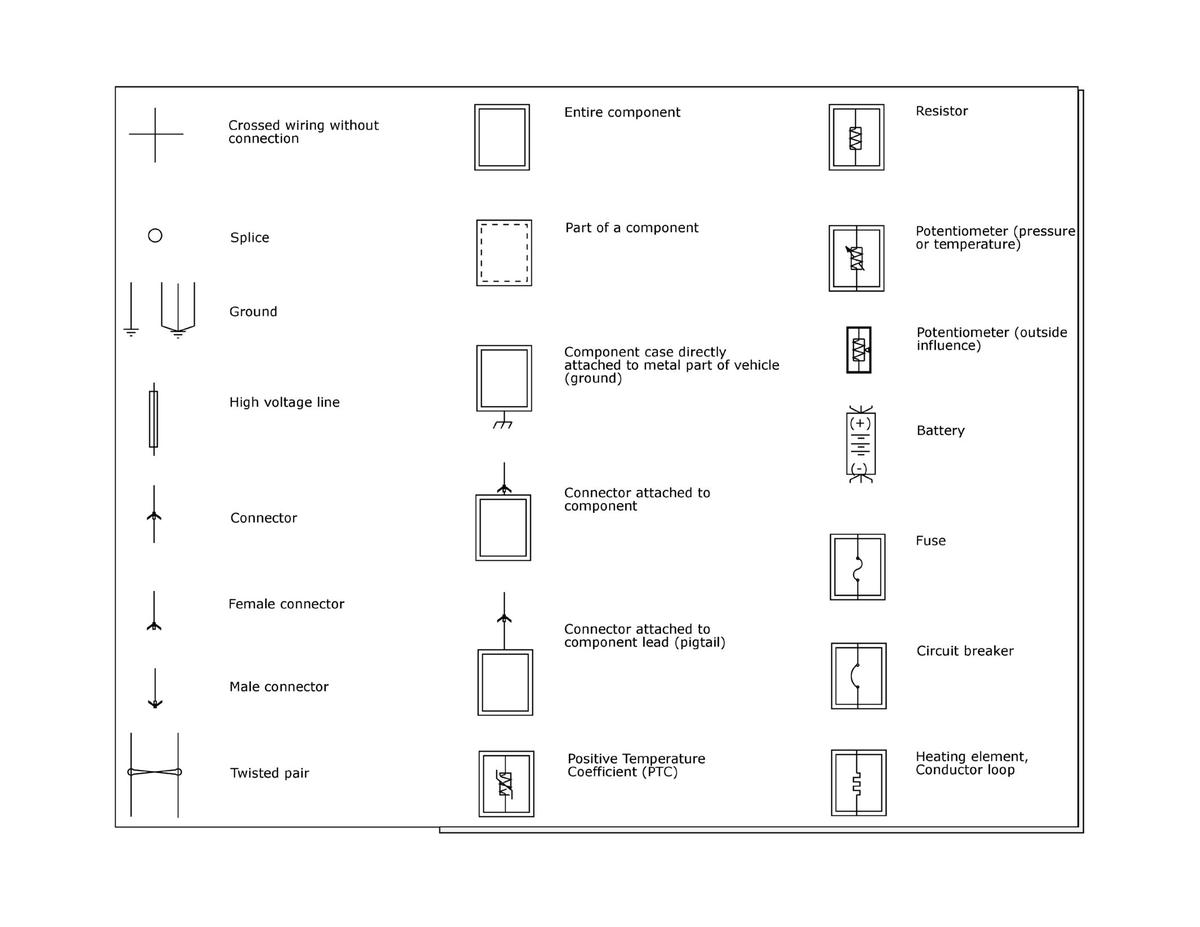

GFDWR89829Courtesy of FORD MOTOR COMPANY

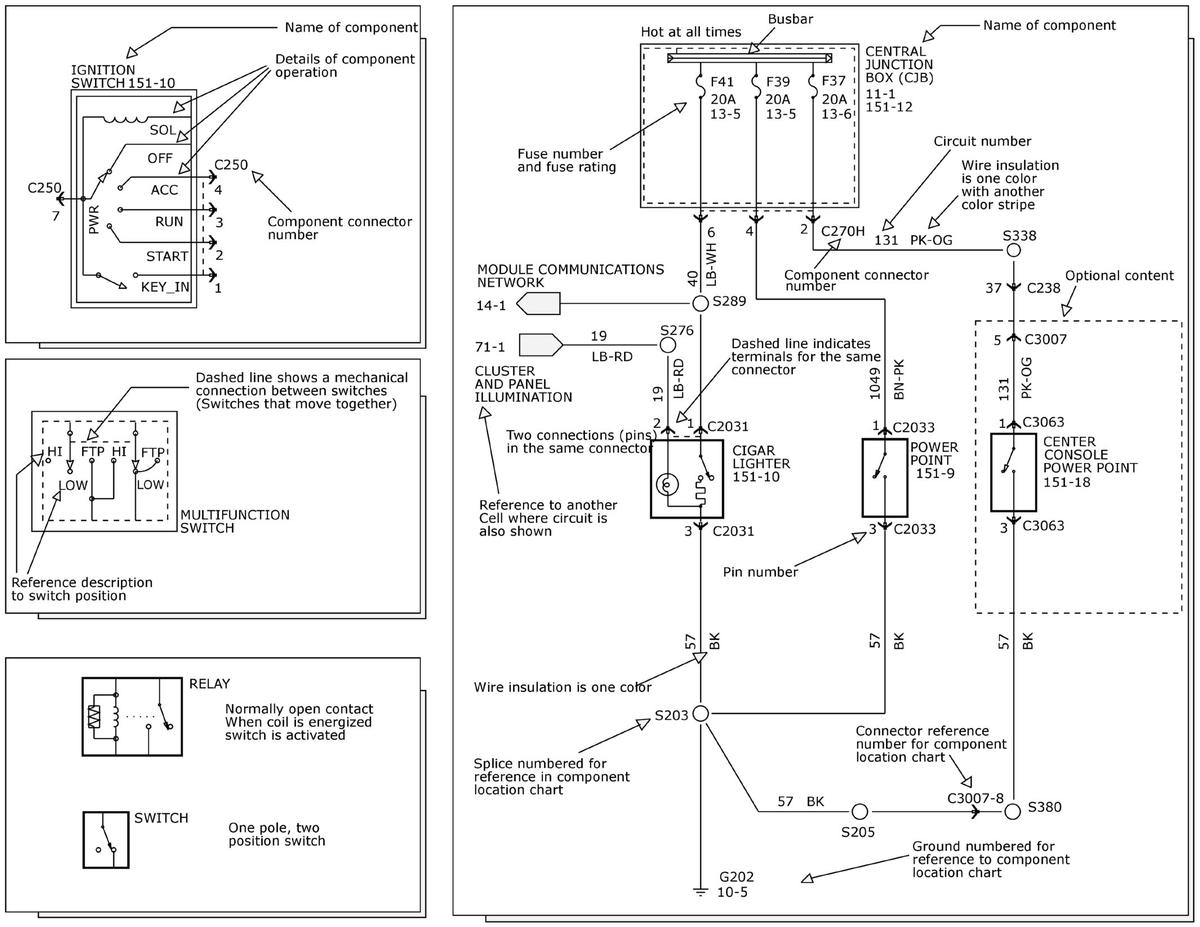

GFDWR89830Courtesy of FORD MOTOR COMPANY

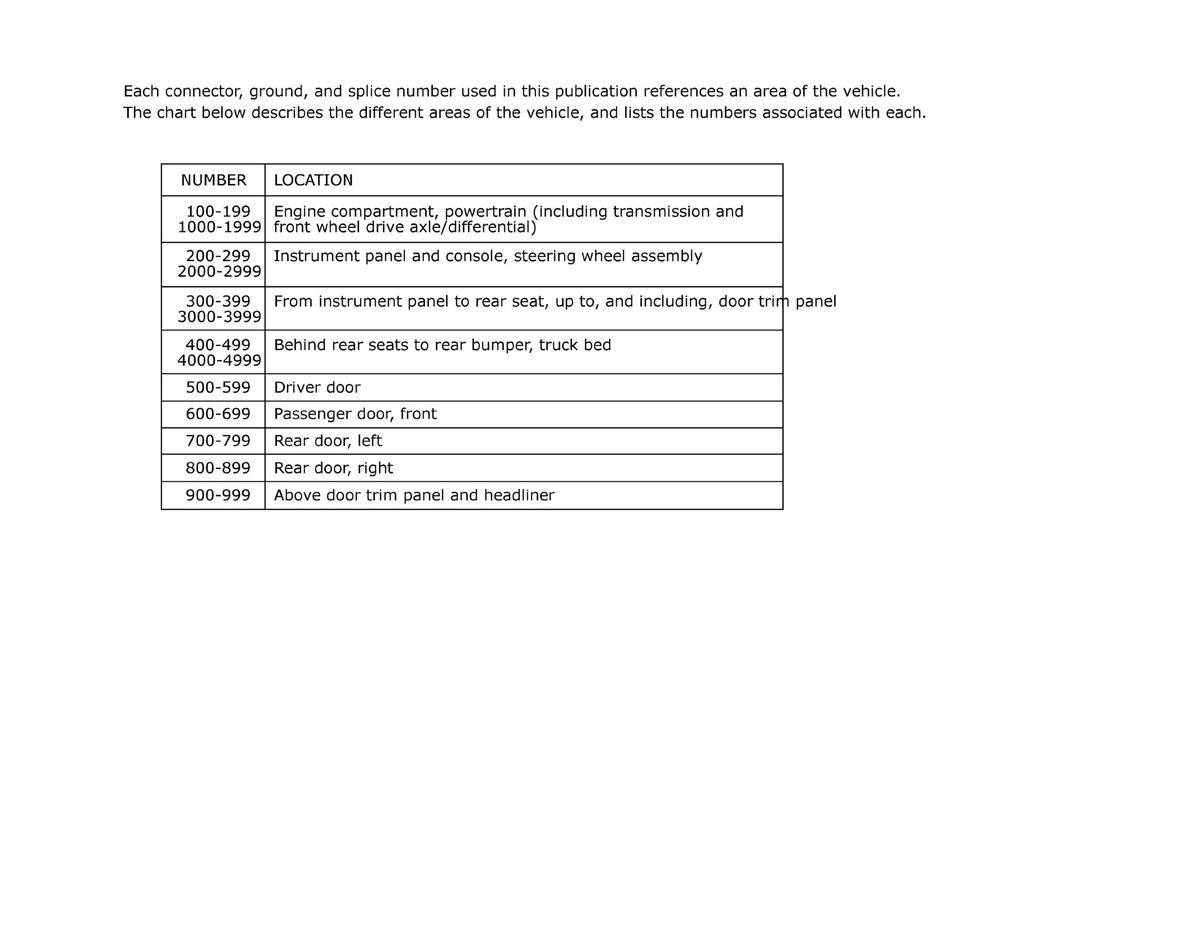

GFDWR89831Courtesy of FORD MOTOR COMPANY
