OEM Electrical Wiring Diagram Introduction (Except Hybrid): Introduction

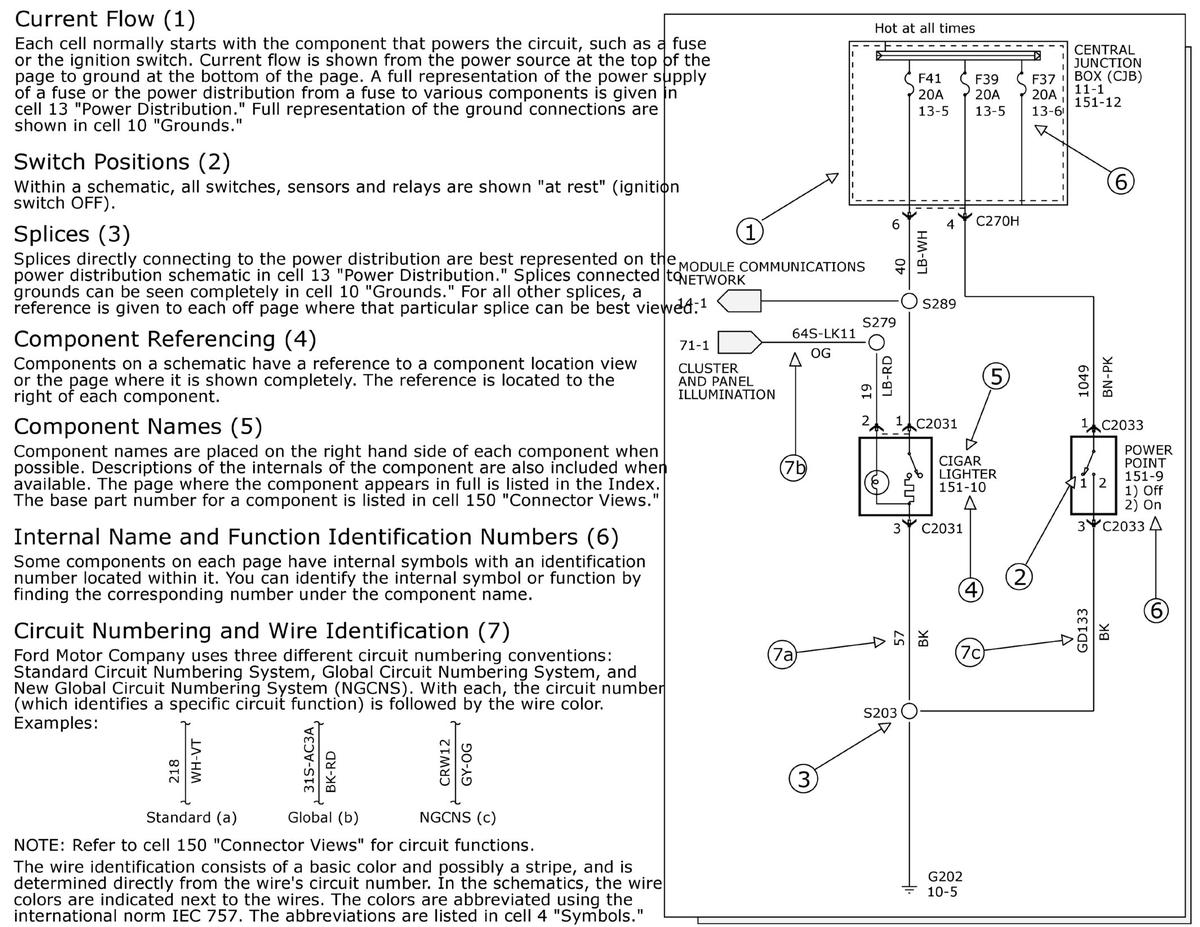

GFDWR89313Courtesy of FORD MOTOR COMPANY

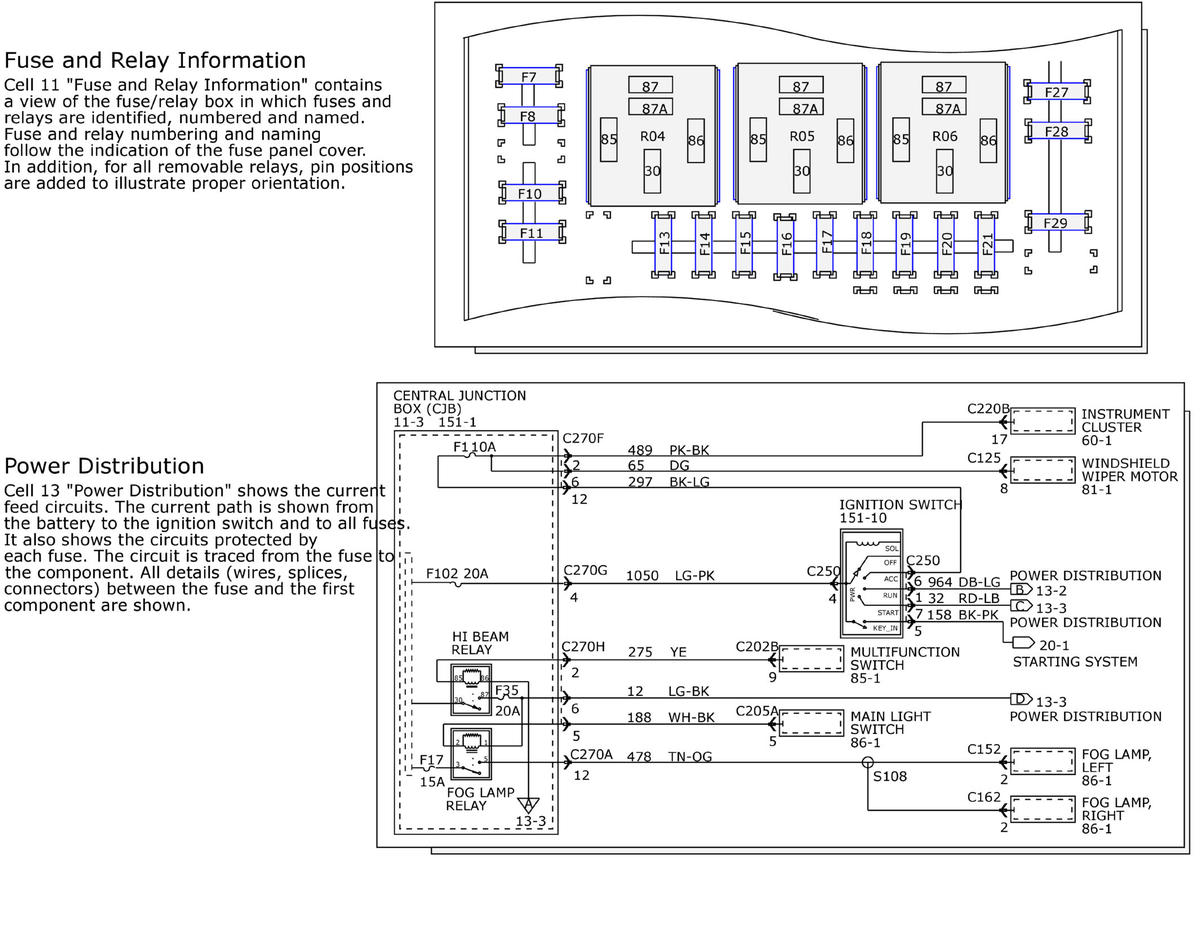

GFDWR89314Courtesy of FORD MOTOR COMPANY

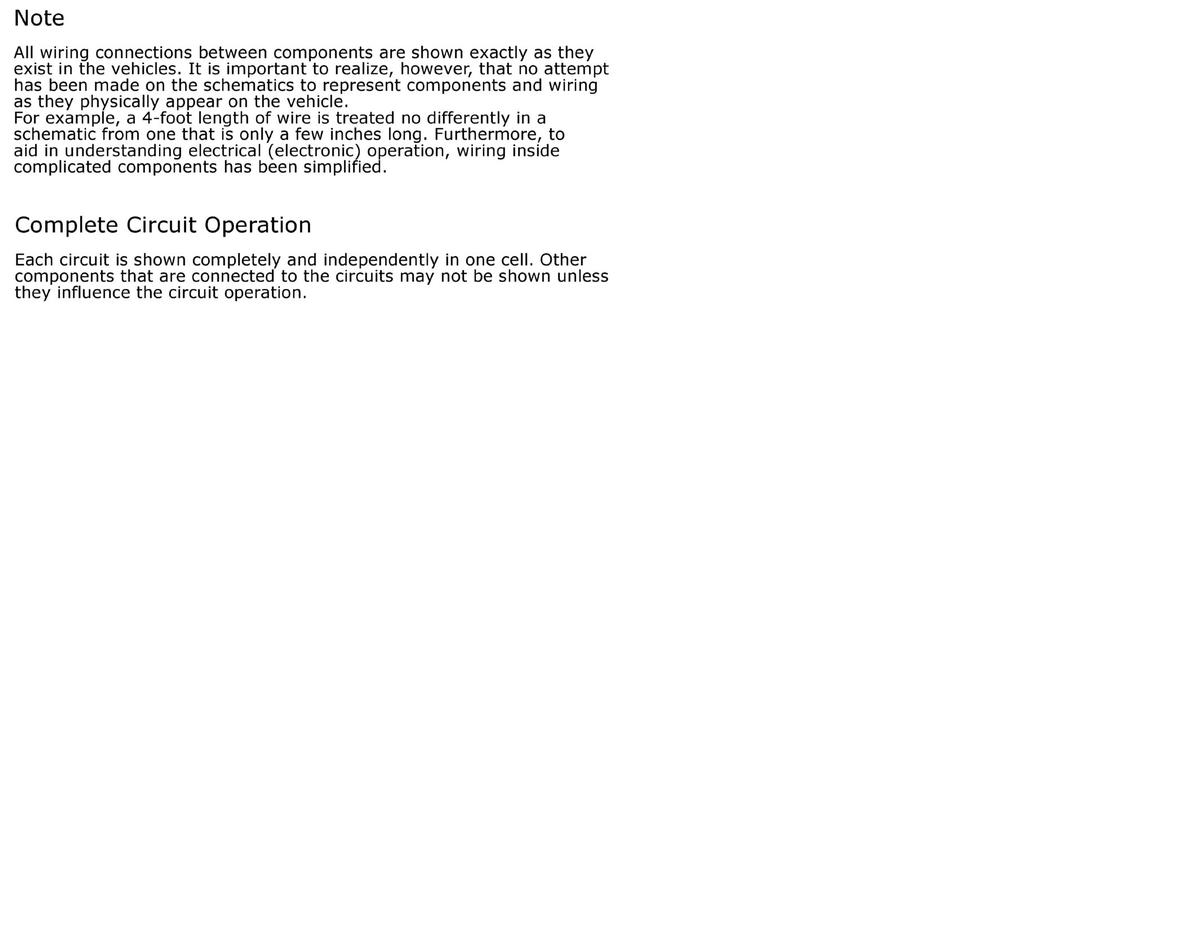

GFDWR89315Courtesy of FORD MOTOR COMPANY

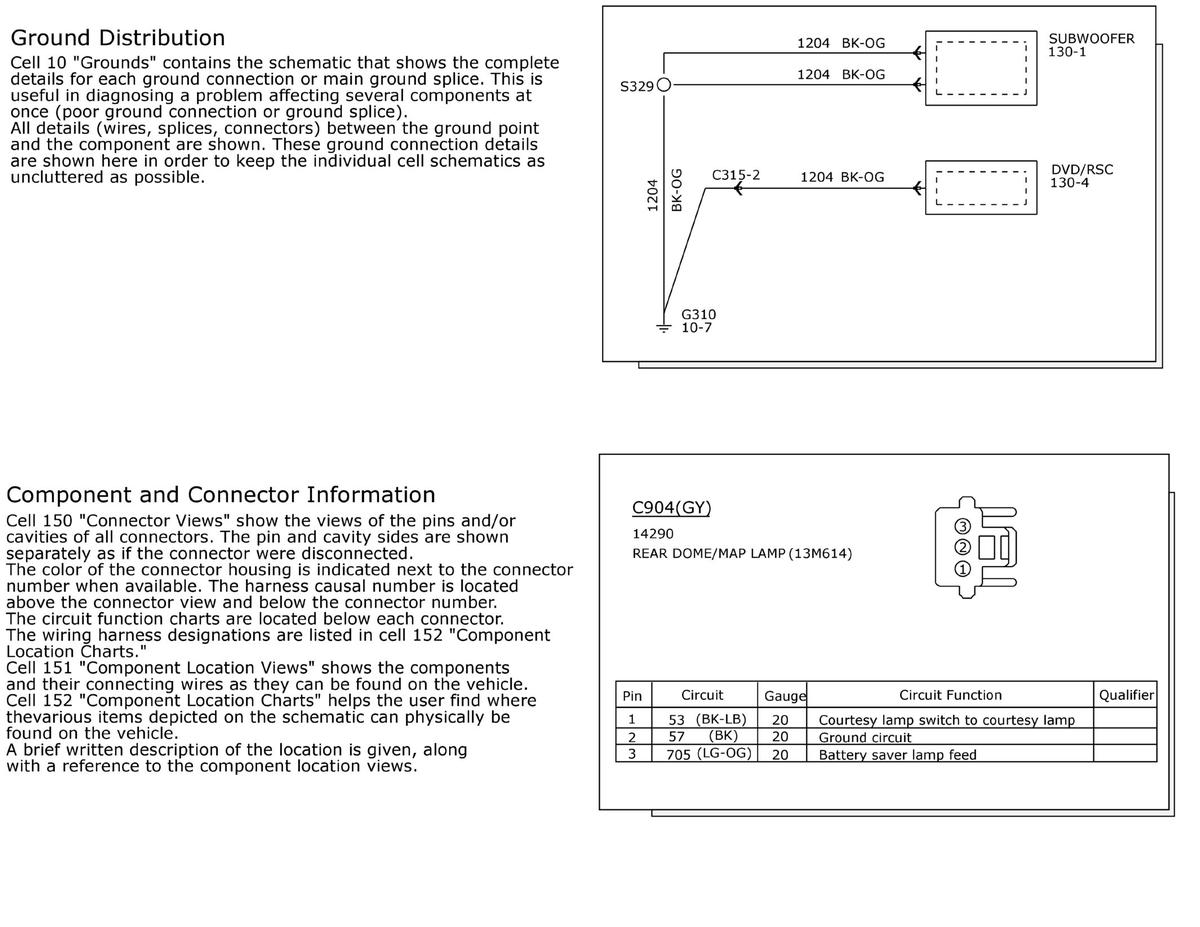

GFDWR89316Courtesy of FORD MOTOR COMPANY

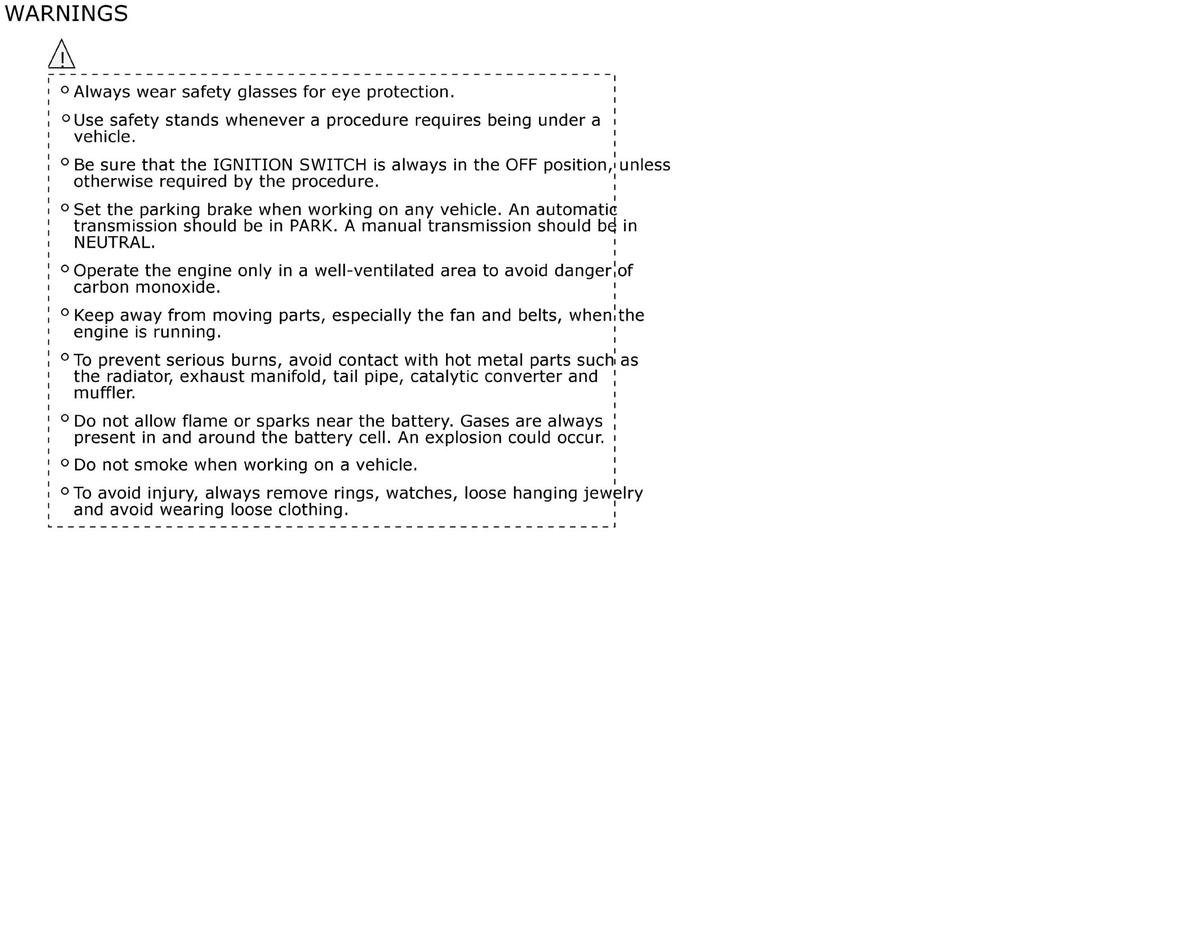

GFDWR89317Courtesy of FORD MOTOR COMPANY
