Connector Repair Procedures

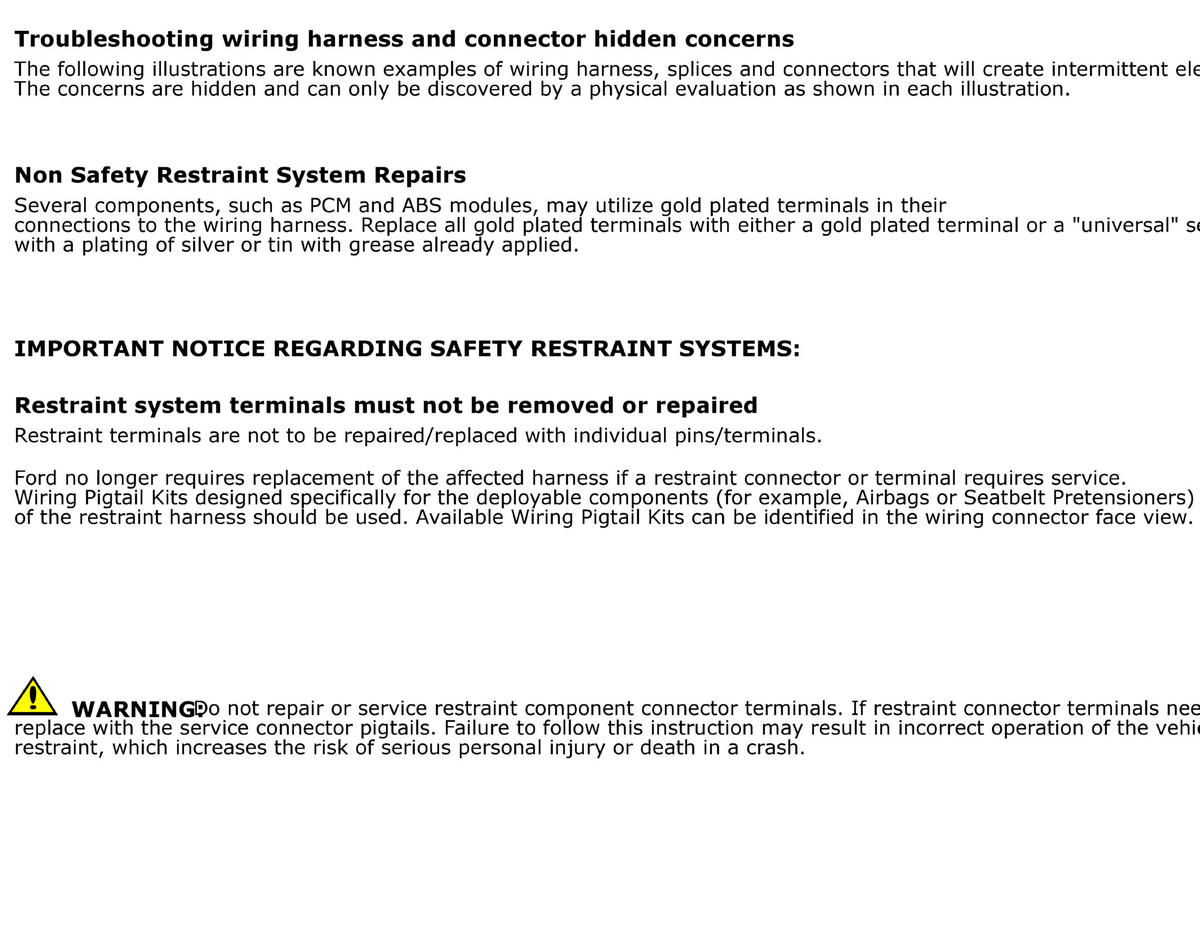

GFDWR99433Courtesy of FORD MOTOR COMPANY

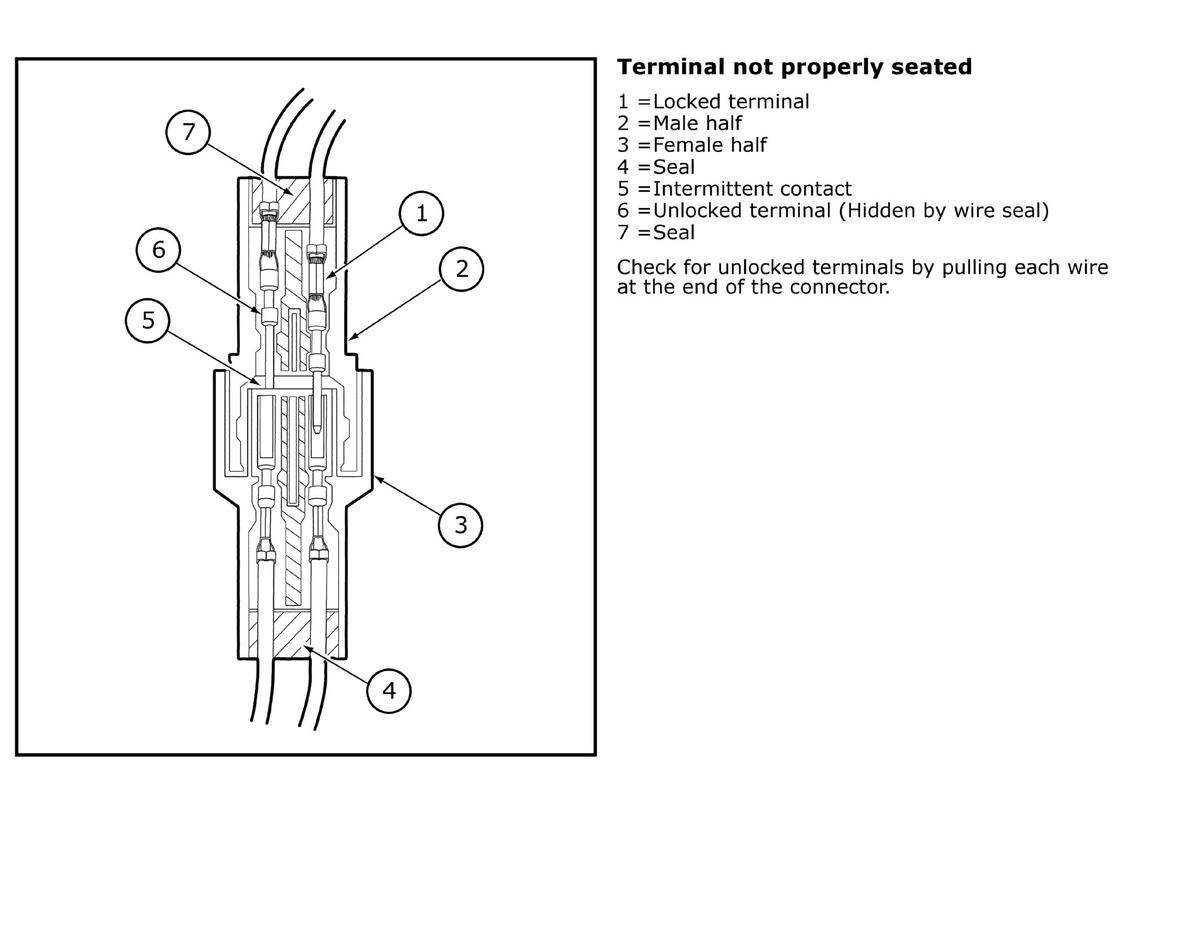

GFDWR99427Courtesy of FORD MOTOR COMPANY

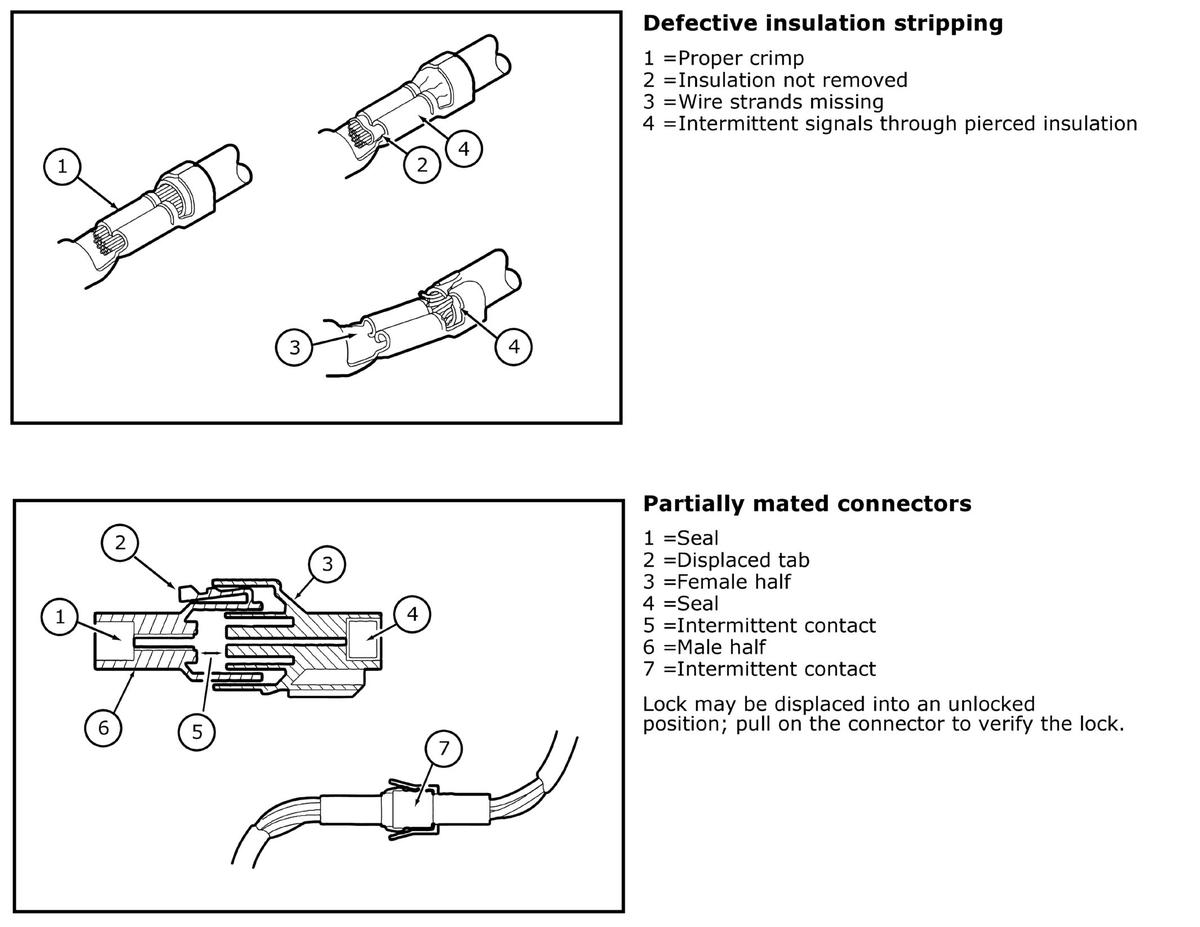

GFDWR99431Courtesy of FORD MOTOR COMPANY

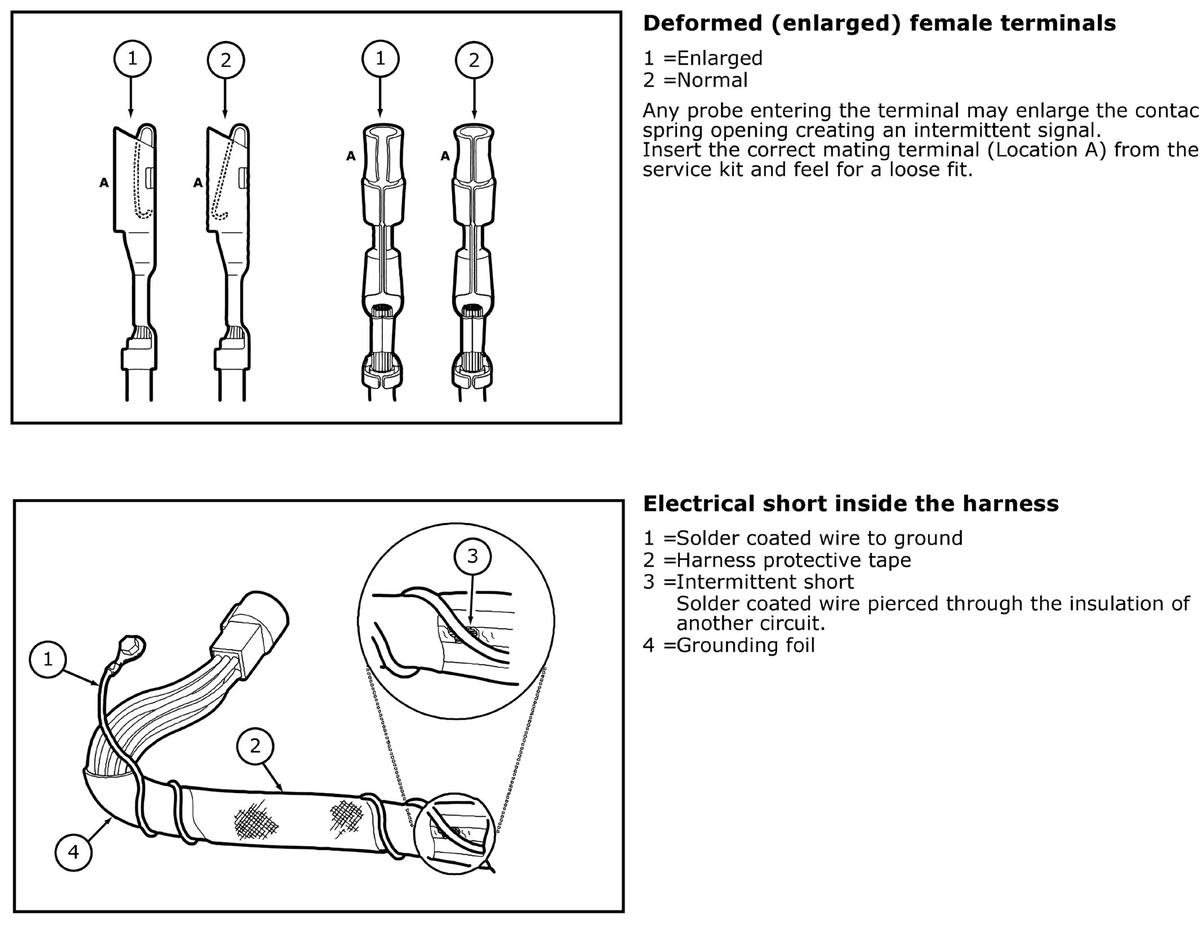

GFDWR99434Courtesy of FORD MOTOR COMPANY

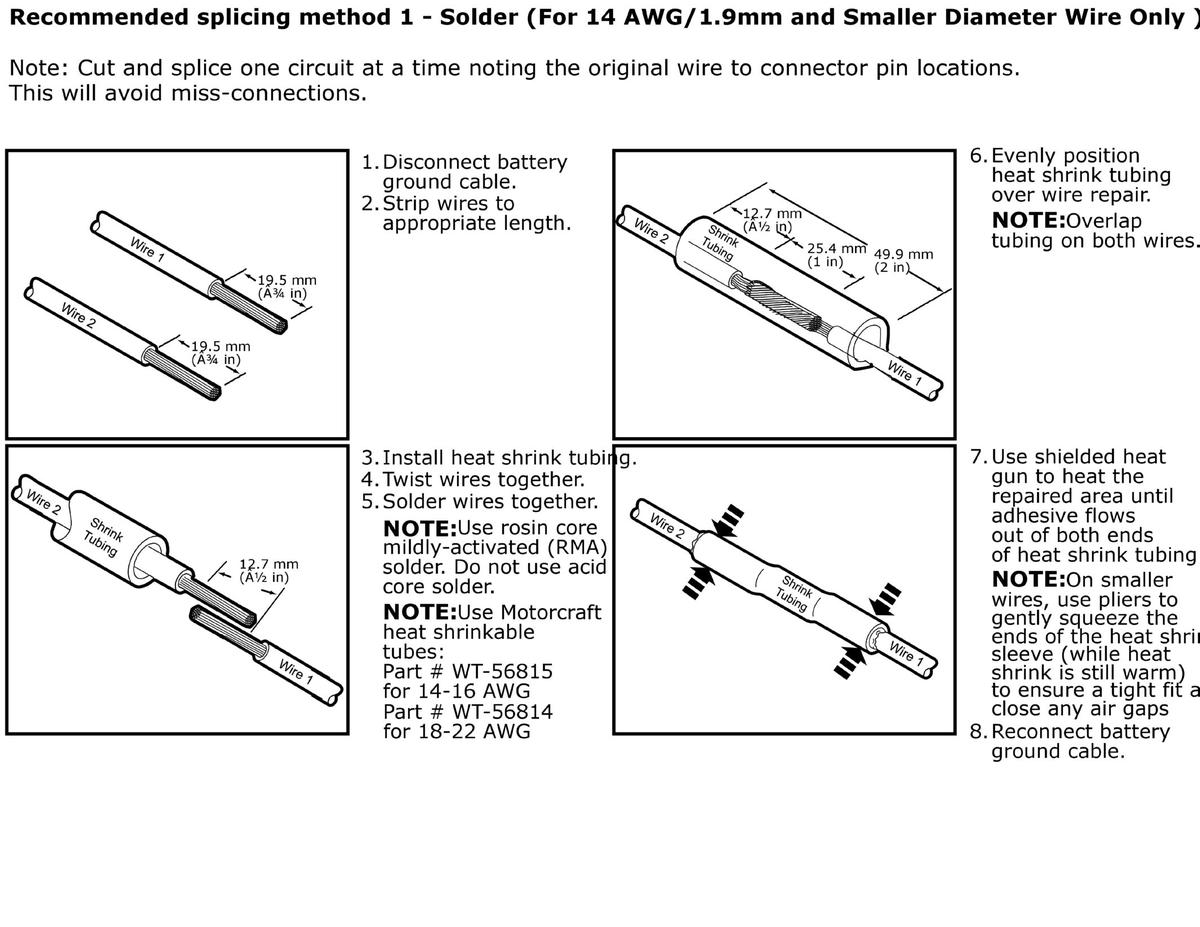

GFDWR99435Courtesy of FORD MOTOR COMPANY

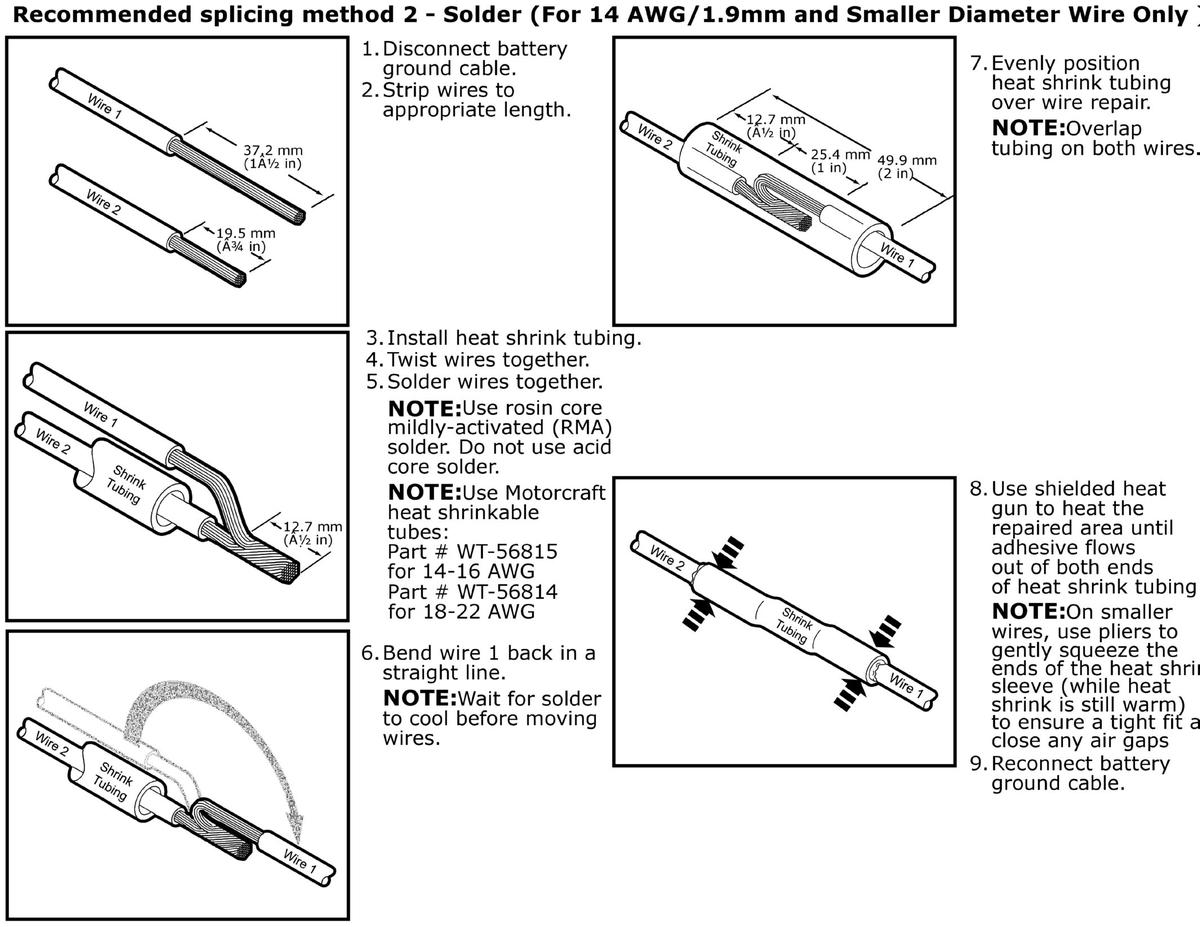

GFDWR99432Courtesy of FORD MOTOR COMPANY

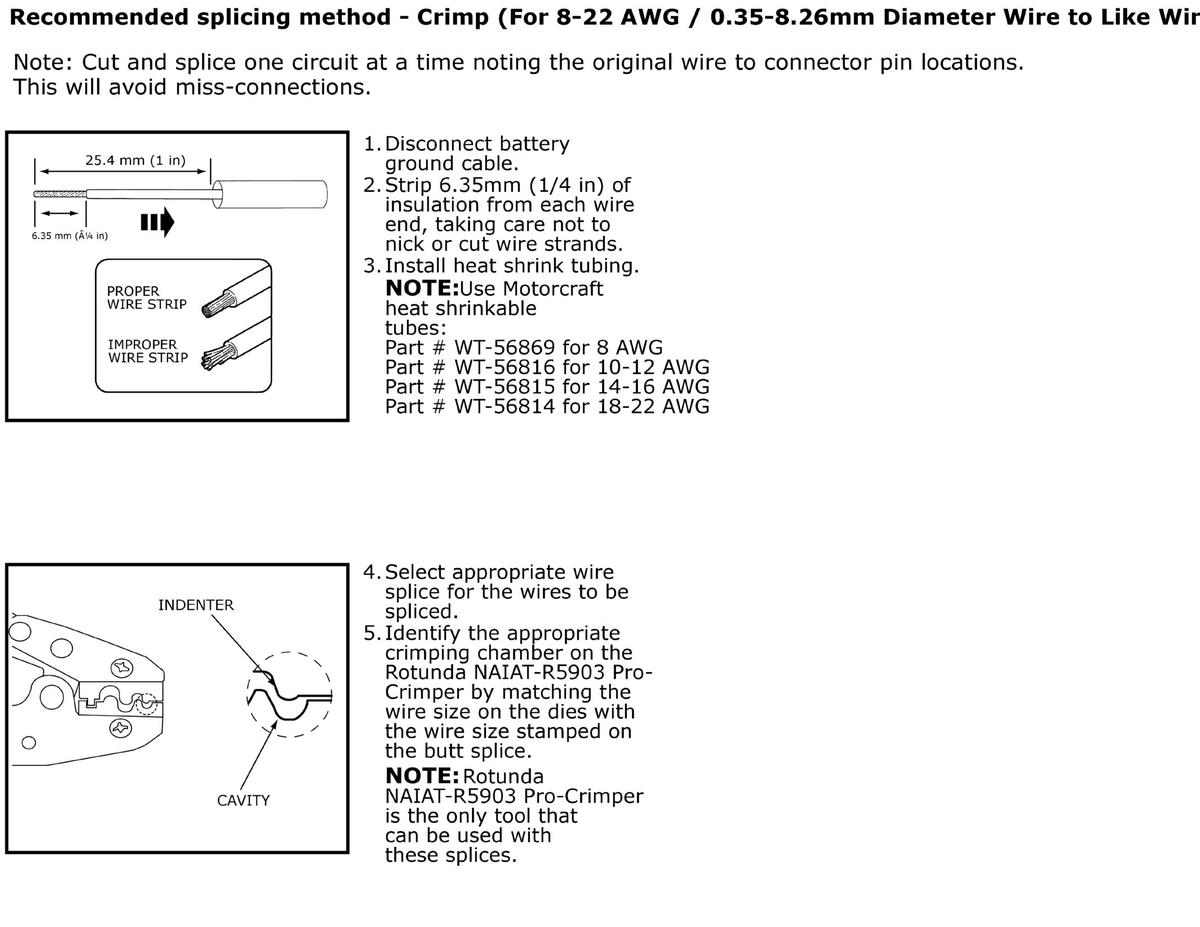

GFDWR99430Courtesy of FORD MOTOR COMPANY

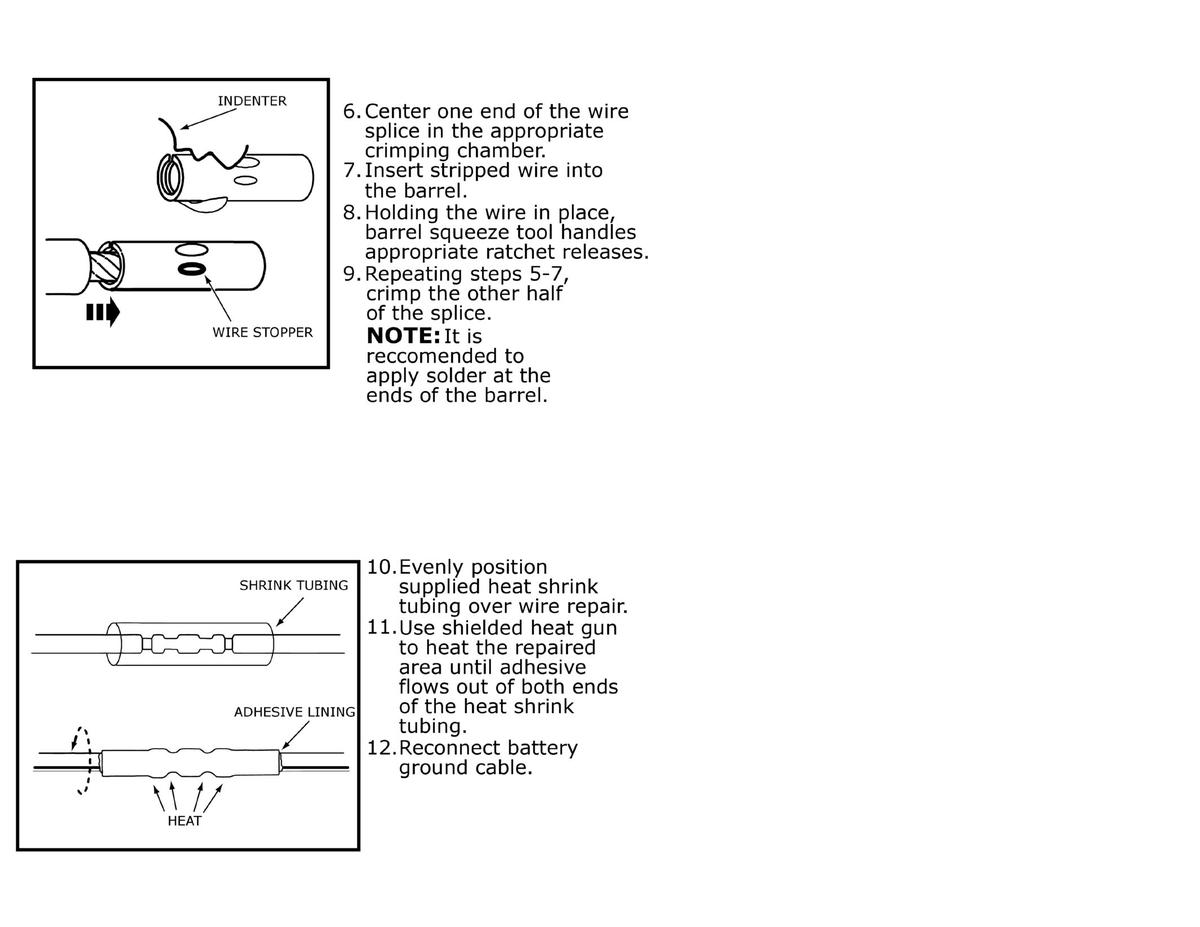

GFDWR99429Courtesy of FORD MOTOR COMPANY

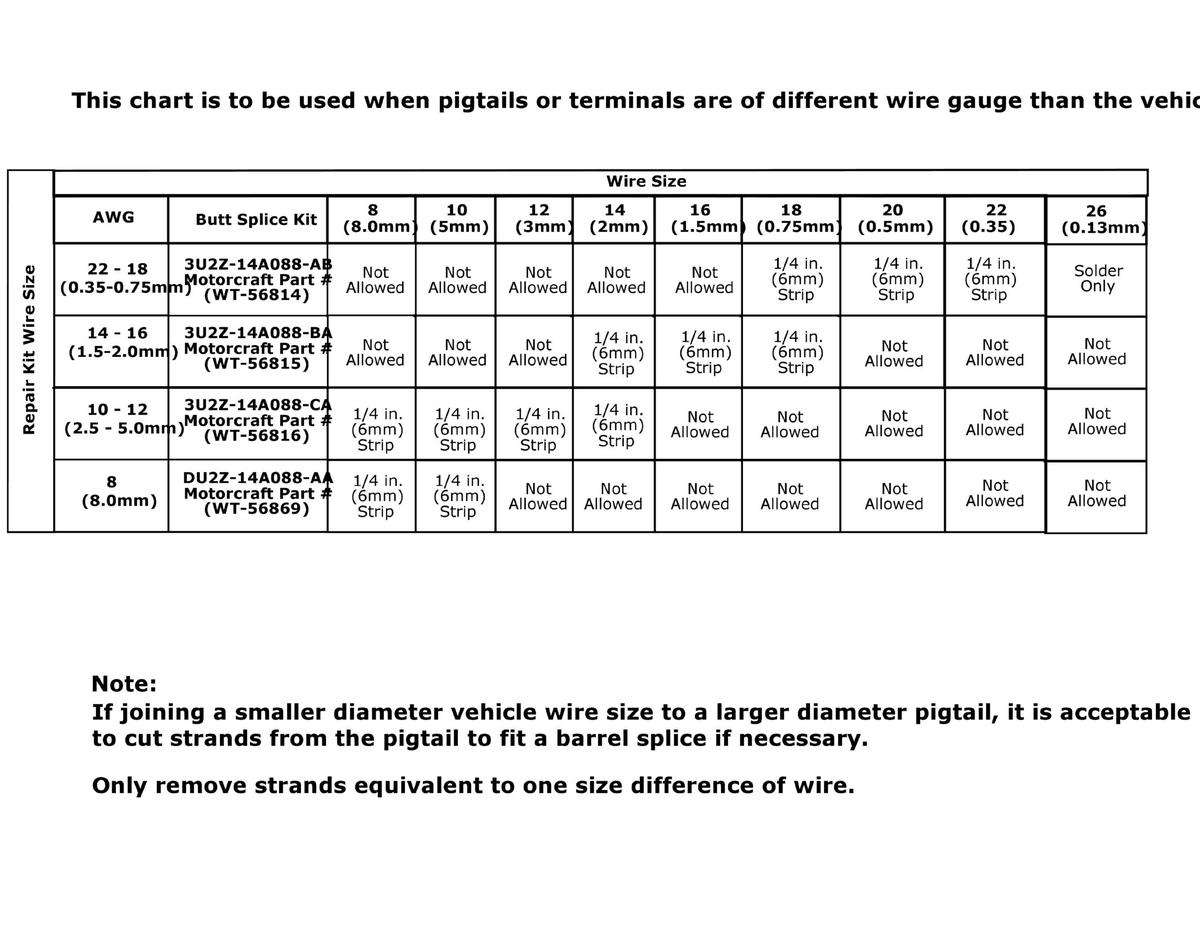

GFDWR99428Courtesy of FORD MOTOR COMPANY
