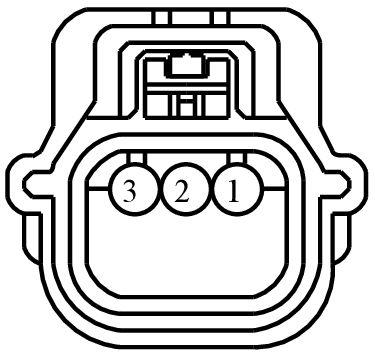

Connector End View (C4420) - ELECTRONICS TRAY COOLING FAN

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4411	ELECTRONICS TRAY COOLING FAN	none	14A103	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD312 (BK)	14	GROUND - PILLAR C OR QUARTER PANEL LEFT # 2ND POINT	N/A
2	CBB73 (WH-BN)	14	FUSE - 73 OR CIRCUIT BREAKER	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1078

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-LAB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Connector - Inline
• Element - Heated Seat
• Lamp - PRNDL Indicator
• Speaker - Front
• Switch - Seat Lumbar
