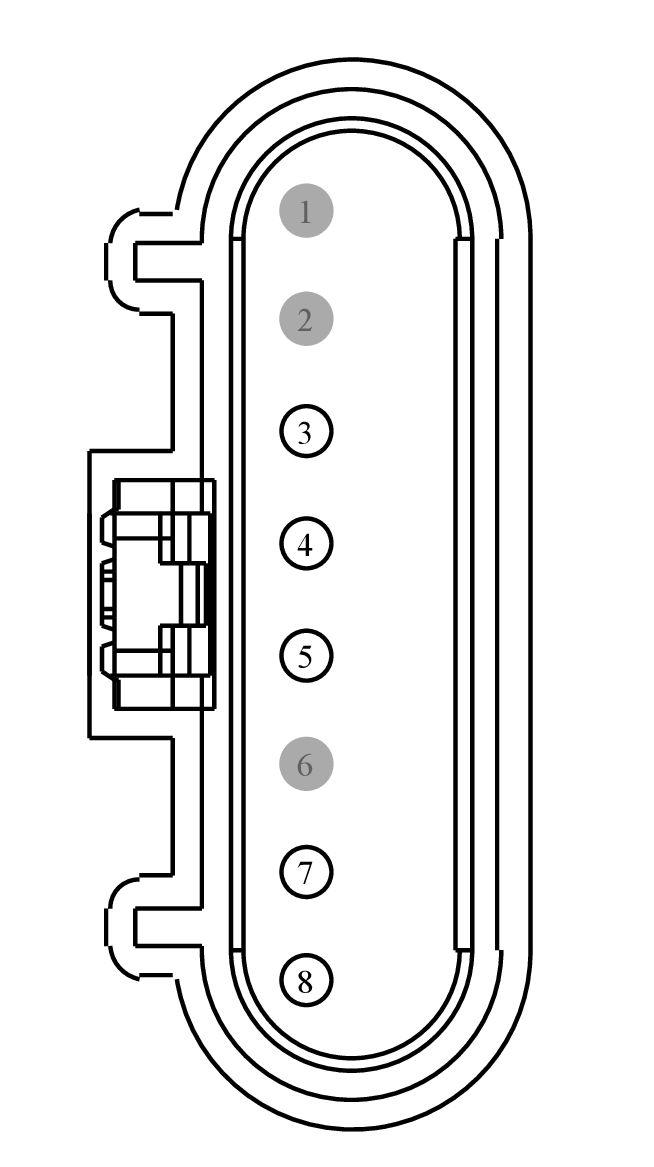

Connector End View (C525) - FRONT DOOR LATCH RELEASE MOTOR LH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C525 | FRONT DOOR LATCH RELEASE MOTOR LH | 14631 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | CPL26 (GN-VT) | 22 | SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR | Lincoln, Ford China | 97BG-14474-ADA | |||
| 3 | CPL26 (GN) | 22 | SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR | 97BG-14474-ADA | ||||
| 4 | CPL30 (BU-BN) | 22 | SWITCH - LATCH DRIVER OR LEFT FRONT # UNLOCK | 97BG-14474-ADA | ||||
| 5 | RPL61 (BN-GN) | 22 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER | 97BG-14474-ADA | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | CPL11 (GY-BN) | 14 | CTRL MOD. - DOOR LOCK # ALL LOCK | 98BG-14474-AKA | ||||
| 7 | CPL11 (GY) | 14 | CTRL MOD. - DOOR LOCK # ALL LOCK | Lincoln | 98BG-14474-AKA | |||
| 8 | CPL51 (BU-GN) | 14 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK | 98BG-14474-AKA | ||||
| 8 | CPL51 (BU) | 14 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK | Lincoln | 98BG-14474-AKA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1366
Service Part Number:
3U2Z-14S411-MBB
Gauge:
16
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Actuator - Door Lock - LH - Front
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - RH - Front
- Actuator - Door Lock - RH - Rear
- Module - Liftgate
- Switch - Door Ajar / Interior Lamp
- Switch - Door Lock (LH)
- Switch - Door Lock (RH)
- Switch - Sliding Door Contact
